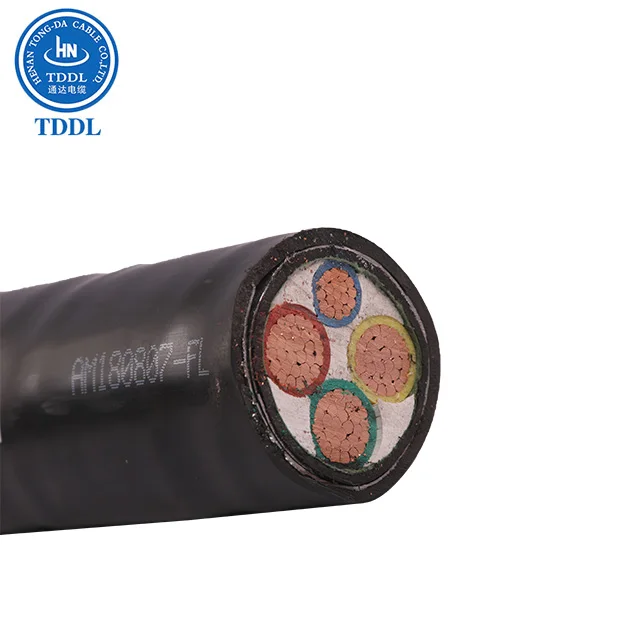

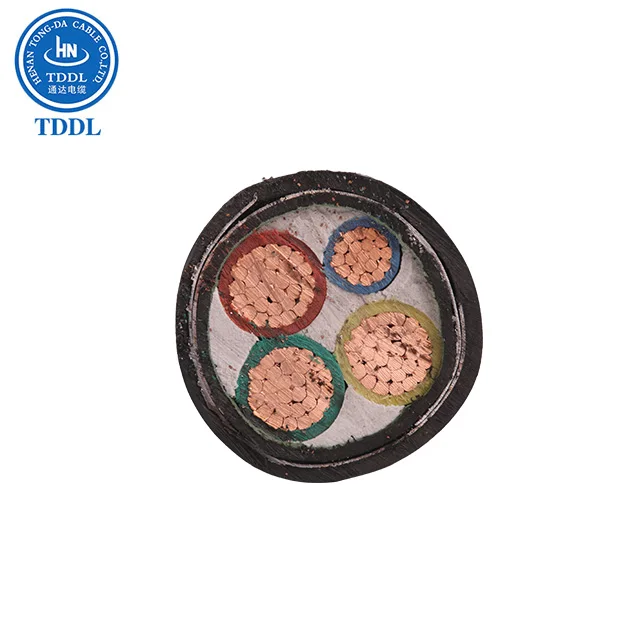

0 6/1kV 4 ядра медный провод с ПВХ изоляцией бронированный стальной лентой силового
- Категория: Power Cables >>>
- Поставщик: Henan,Tong-Da,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.89 $* | 0.41 $* |
| Aug-19-2025 | 0.73 $* | 0.86 $* |
| Jul-19-2025 | 0.86 $* | 0.33 $* |
| Jun-19-2025 | 0.76 $* | 0.57 $* |
| May-19-2025 | 0.74 $* | 0.21 $* |
| Apr-19-2025 | 0.30 $* | 0.9 $* |
| Mar-19-2025 | 0.80 $* | 0.71 $* |
| Feb-19-2025 | 0.39 $* | 0.51 $* |
| Jan-19-2025 | 0.95 $* | 0.51 $* |
Характеристики
Products Application
This product is suitable for ac 50HZ, it can be used in line with rated voltage of 0.6/1kv power transmission and distribution.
For Laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.
For Laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.

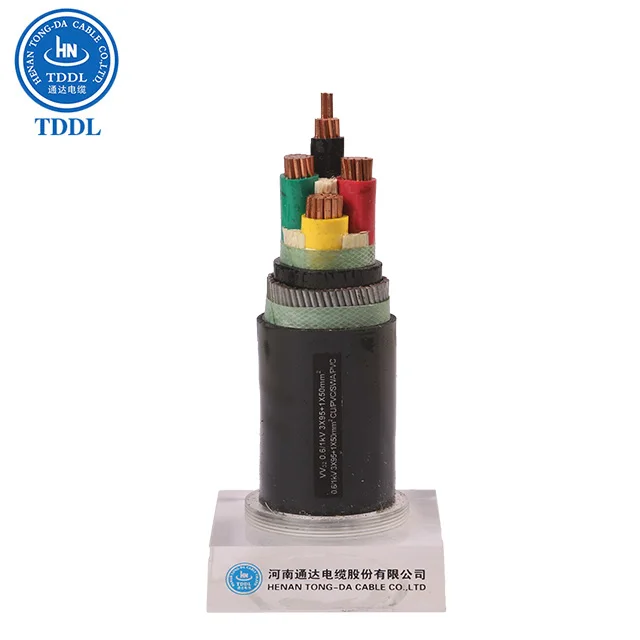

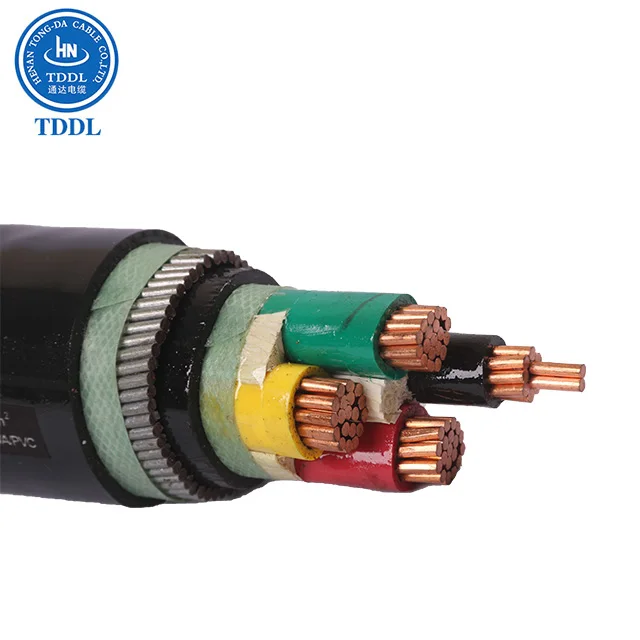

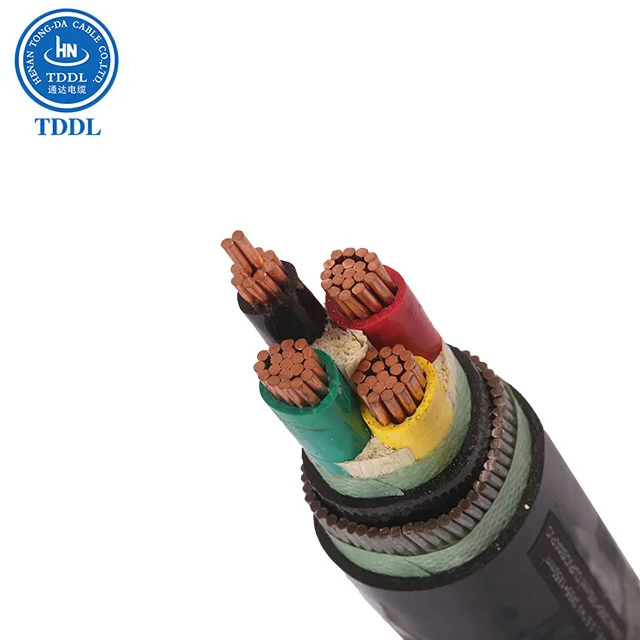

Product Construction
2)Insulation: Polyvinyl chloride PVC
3)Filler:Non-hygroscopic material
4)Wrap around:Non-hygroscopic material
5)Inner sheath:Polyvinyl chloride PVC
6) Armour: Steel-tape
7)Outer sheath:Polyvinyl chloride PVC
Product Standards
0.6/1kV-4 core copper conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) | ||||||||
4X2.5 | 0.8 | 0.2 | 1.8 | 14.9 | 382 | 7.41 | - | - | ||||||||
4X4 | 1 | 0.2 | 1.8 | 17.2 | 497 | 4.61 | - | - | ||||||||
4X6 | 1 | 0.2 | 1.8 | 18.5 | 607 | 3.08 | - | - | ||||||||
4X10 | 1 | 0.2 | 1.8 | 21.5 | 848 | 1.83 | 50 | 70 | ||||||||
4X16 | 1 | 0.2 | 1.8 | 24.1 | 1148 | 1.15 | 66 | 92 | ||||||||
4X25 | 1.2 | 0.2 | 1.8 | 28.1 | 1590 | 0.727 | 85 | 115 | ||||||||
4X35 | 1.2 | 0.2 | 1.9 | 29.8 | 2018 | 0.524 | 105 | 140 | ||||||||
4X50 | 1.4 | 0.2 | 2.0 | 34.6 | 2690 | 0.387 | 125 | 175 | ||||||||
4X70 | 1.4 | 0.5 | 2.2 | 40.0 | 3980 | 0.268 | 160 | 205 | ||||||||
4X95 | 1.6 | 0.5 | 2.4 | 45.4 | 5230 | 0.193 | 195 | 250 | ||||||||
4X120 | 1.6 | 0.5 | 2.5 | 49.5 | 6403 | 0.153 | 235 | 290 | ||||||||
4X150 | 1.8 | 0.5 | 2.6 | 54.4 | 7848 | 0.124 | 265 | 325 | ||||||||
4X185 | 2 | 0.5 | 2.8 | 60.0 | 9545 | 0.0991 | 300 | 365 | ||||||||
4X240 | 2.2 | 0.5 | 3.0 | 66.9 | 12140 | 0.0754 | 355 | 420 | ||||||||
4X300 | 2.4 | 0.5 | 3.2 | 73.4 | 14881 | 0.0601 | 410 | 475 | ||||||||
Company Profile
About Us
Henan Tong-Da Cable Co.,LtdHenan Tong-Da Cable Co.,Ltd founded in 1987, covers an area of 360,000 square meters.The annual production capacity of conductors and power cables is more than 100,000 tons. On March 3, 2011, Tong-Da became a public company listed on the Shenzhen Stock Exchange.
Our company is specialized in conductors, such as: All Aluminium Conductor (AAC), All Aluminium Alloy Conductor (AAAC), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strand (ACS), Galvanized Steel Wire Strand. We can also supply Aerial Bundled Cable (ABC cable), PVC Insulated Wire and Flexible Wire, PVC Insulated Power Cable,XLPE Insulated Power Cable, General Rubber sheathed Flexible Cable, Mining Cable, Welding Cable and Control Cable. These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce according to customers' requirements and specifications. We have obtained certificates of ISO9001,ISO14001, China's Electrical Product Safety Certification, State Economic and Trade Commission Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Through years of unremitting effort and endeavors, we have achieved sound reputation and widely compliments from clients all over the world by superior quality, reasonable price and sincere after-sale services.
Our company is specialized in conductors, such as: All Aluminium Conductor (AAC), All Aluminium Alloy Conductor (AAAC), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strand (ACS), Galvanized Steel Wire Strand. We can also supply Aerial Bundled Cable (ABC cable), PVC Insulated Wire and Flexible Wire, PVC Insulated Power Cable,XLPE Insulated Power Cable, General Rubber sheathed Flexible Cable, Mining Cable, Welding Cable and Control Cable. These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce according to customers' requirements and specifications. We have obtained certificates of ISO9001,ISO14001, China's Electrical Product Safety Certification, State Economic and Trade Commission Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Through years of unremitting effort and endeavors, we have achieved sound reputation and widely compliments from clients all over the world by superior quality, reasonable price and sincere after-sale services.
workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
