Чистое серебро провода 9999, акустический кабель провод
US $0.85-$1.20
3 ядра алюминиевый проводник среднего напряжения с изоляцией из сшитого полиэтилена NA2XSEY силового
- Категория: Wires, Cables & Cable Assemblies >>>
- Поставщик: Henan,Tong-Da,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.51 $* | 0.48 $* |
| Aug-19-2025 | 0.32 $* | 0.24 $* |
| Jul-19-2025 | 0.83 $* | 0.12 $* |
| Jun-19-2025 | 0.75 $* | 0.32 $* |
| May-19-2025 | 0.51 $* | 0.72 $* |
| Apr-19-2025 | 0.90 $* | 0.8 $* |
| Mar-19-2025 | 0.35 $* | 0.7 $* |
| Feb-19-2025 | 0.0 $* | 0.3 $* |
| Jan-19-2025 | 0.86 $* | 0.64 $* |
Характеристики
Products Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

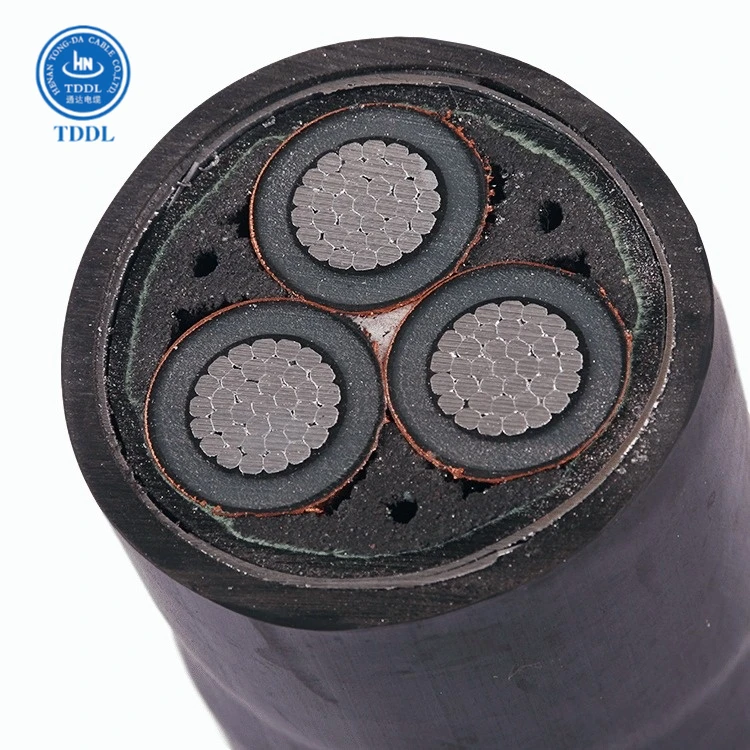

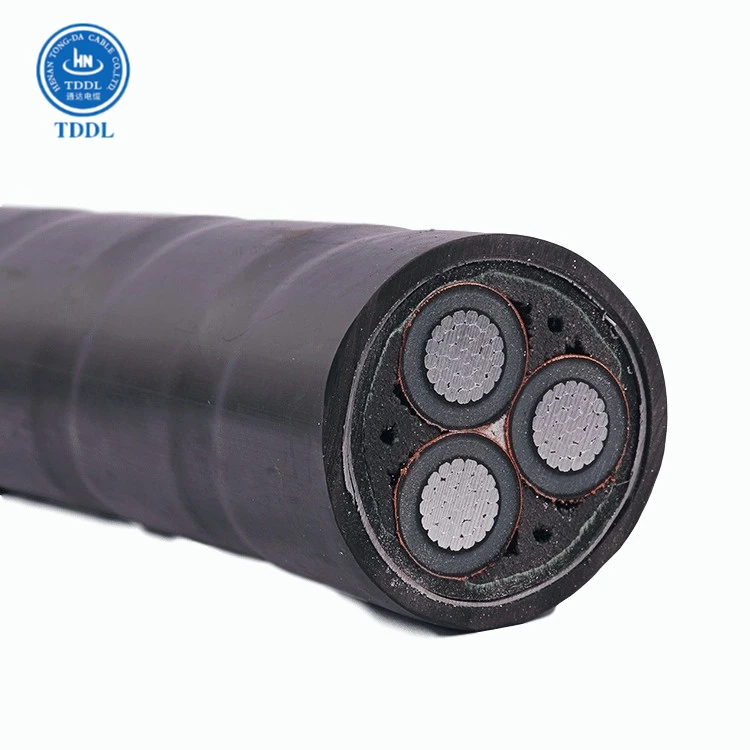

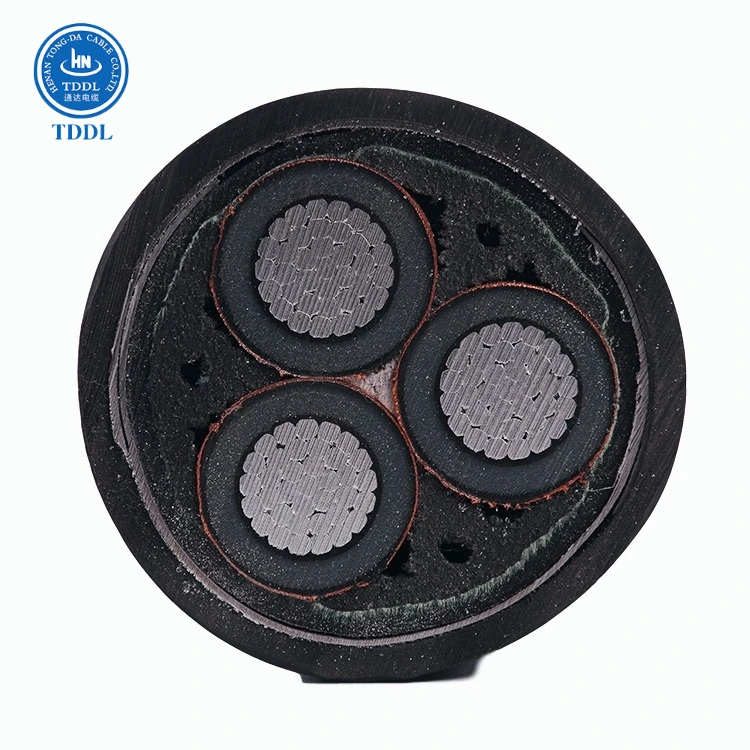

Product Construction
1)Conductor : Aluminium ,Class 1 or Class 2,solid or stranded Circular conductors
2)Conductor screen: Non-metallic，semi-conducting compound
2)Conductor screen: Non-metallic，semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic，semi-conducting compound
4)Insulation screen: Non-metallic，semi-conducting compound
5)Metallic screen: Copper tape
6)Filler: Non-hygroscopic material
7)Binder tape: Non-hygroscopic material
8)Oversheath: Polyvinyl chloride PVC
8)Oversheath: Polyvinyl chloride PVC
Product Standards
No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | ||||||||
(mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) | |||||||
YJLV (NA2XSEY) - 6/10kV | ||||||||||||||
3X25 | 3.4 | 2.2 | 39.3 | 1408 | 1.20 | 95 | 105 | |||||||
3X35 | 3.4 | 2.3 | 41.7 | 1605 | 0.868 | 115 | 125 | |||||||
3X50 | 3.4 | 2.4 | 44.7 | 1856 | 0.641 | 135 | 150 | |||||||
3X70 | 3.4 | 2.5 | 48.5 | 2224 | 0.443 | 170 | 185 | |||||||
3X95 | 3.4 | 2.6 | 52.2 | 2630 | 0.320 | 205 | 220 | |||||||
3X120 | 3.4 | 2.7 | 55.4 | 3008 | 0.253 | 235 | 250 | |||||||
3X150 | 3.4 | 2.8 | 58.9 | 3419 | 0.206 | 270 | 280 | |||||||
3X185 | 3.4 | 2.9 | 62.7 | 3947 | 0.164 | 310 | 320 | |||||||
3X240 | 3.4 | 3.1 | 67.9 | 4727 | 0.125 | 370 | 375 | |||||||
3X300 | 3.4 | 3.3 | 73.0 | 5548 | 0.100 | 420 | 425 | |||||||
3X400 | 3.4 | 3.5 | 79.9 | 6679 | 0.0778 | 485 | 485 | |||||||
YJLV (NA2XSEY) - 8.7/15kV | ||||||||||||||
3X25 | 4.5 | 2.4 | 44.4 | 1759 | 1.20 | 95 | 105 | |||||||
3X35 | 4.5 | 2.5 | 46.8 | 1974 | 0.868 | 115 | 125 | |||||||
3X50 | 4.5 | 2.6 | 49.8 | 2248 | 0.641 | 135 | 150 | |||||||
3X70 | 4.5 | 2.7 | 53.7 | 2645 | 0.443 | 170 | 185 | |||||||
3X95 | 4.5 | 2.8 | 57.3 | 3079 | 0.320 | 205 | 220 | |||||||
3X120 | 4.5 | 2.9 | 60.6 | 3481 | 0.253 | 235 | 250 | |||||||
3X150 | 4.5 | 3.0 | 64.0 | 3918 | 0.206 | 270 | 280 | |||||||
3X185 | 4.5 | 3.1 | 67.9 | 4476 | 0.164 | 310 | 320 | |||||||
3X240 | 4.5 | 3.3 | 73.0 | 5295 | 0.125 | 370 | 375 | |||||||
3X300 | 4.5 | 3.4 | 78.0 | 6121 | 0.100 | 420 | 425 | |||||||
3X400 | 4.5 | 3.7 | 85.1 | 7340 | 0.0778 | 485 | 485 | |||||||
No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | ||||||||
(mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) | |||||||
YJLV (NA2XSEY) - 12/20kV | ||||||||||||||
3X35 | 5.5 | 2.7 | 51.7 | 2207 | 0.868 | 115 | 125 | |||||||
3X50 | 5.5 | 2.8 | 54.3 | 2464 | 0.641 | 135 | 150 | |||||||
3X70 | 5.5 | 2.9 | 58.4 | 2877 | 0.443 | 170 | 185 | |||||||
3X95 | 5.5 | 3.0 | 62.3 | 3340 | 0.320 | 205 | 220 | |||||||
3X120 | 5.5 | 3.1 | 65.3 | 3766 | 0.253 | 235 | 250 | |||||||
3X150 | 5.5 | 3.2 | 68.5 | 4204 | 0.206 | 270 | 285 | |||||||
3X185 | 5.5 | 3.3 | 72.4 | 4757 | 0.164 | 310 | 320 | |||||||
3X240 | 5.5 | 3.5 | 78.0 | 5591 | 0.125 | 365 | 370 | |||||||
3X300 | 5.5 | 3.6 | 83.0 | 6500 | 0.100 | 415 | 420 | |||||||
3X400 | 5.5 | 3.9 | 89.3 | 7725 | 0.0778 | 485 | 480 | |||||||
YJLV (NA2XSEY) - 18/30kV | ||||||||||||||
3X35 | 8.0 | 3.0 | 63.3 | 3035 | 0.868 | 132 | 119 | |||||||
3X50 | 8.0 | 3.1 | 65.8 | 3327 | 0.641 | 158 | 140 | |||||||
3X70 | 8.0 | 3.2 | 69.9 | 3793 | 0.443 | 196 | 171 | |||||||
3X95 | 8.0 | 3.4 | 73.8 | 4307 | 0.320 | 236 | 203 | |||||||
3X120 | 8.0 | 3.5 | 76.9 | 4774 | 0.253 | 273 | 232 | |||||||
3X150 | 8.0 | 3.6 | 80.1 | 5284 | 0.206 | 309 | 260 | |||||||
3X185 | 8.0 | 3.7 | 84.0 | 5858 | 0.164 | 355 | 294 | |||||||
3X240 | 8.0 | 3.8 | 89.5 | 6726 | 0.125 | 415 | 340 | |||||||
3X300 | 8.0 | 4.0 | 94.6 | 7740 | 0.100 | 475 | 384 | |||||||
3X400 | 8.0 | 4.2 | 100.9 | 8966 | 0.0778 | 552 | 438 | |||||||
Company Profile
About Us
Henan Tong-Da Cable Co.,LtdHenan Tong-Da Cable Co.,Ltd founded in 1987, covers an area of 360,000 square meters.The annual production capacity of conductors and power cables is more than 100,000 tons. On March 3, 2011, Tong-Da became a public company listed on the Shenzhen Stock Exchange.
Our company is specialized in conductors, such as: All Aluminium Conductor (AAC), All Aluminium Alloy Conductor (AAAC), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strand (ACS), Galvanized Steel Wire Strand. We can also supply Aerial Bundled Cable (ABC cable), PVC Insulated Wire and Flexible Wire, PVC Insulated Power Cable,XLPE Insulated Power Cable, General Rubber sheathed Flexible Cable, Mining Cable, Welding Cable and Control Cable. These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce according to customers' requirements and specifications. We have obtained certificates of ISO9001,ISO14001, China's Electrical Product Safety Certification, State Economic and Trade Commission Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Through years of unremitting effort and endeavors, we have achieved sound reputation and widely compliments from clients all over the world by superior quality, reasonable price and sincere after-sale services.
Our company is specialized in conductors, such as: All Aluminium Conductor (AAC), All Aluminium Alloy Conductor (AAAC), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strand (ACS), Galvanized Steel Wire Strand. We can also supply Aerial Bundled Cable (ABC cable), PVC Insulated Wire and Flexible Wire, PVC Insulated Power Cable,XLPE Insulated Power Cable, General Rubber sheathed Flexible Cable, Mining Cable, Welding Cable and Control Cable. These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce according to customers' requirements and specifications. We have obtained certificates of ISO9001,ISO14001, China's Electrical Product Safety Certification, State Economic and Trade Commission Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Through years of unremitting effort and endeavors, we have achieved sound reputation and widely compliments from clients all over the world by superior quality, reasonable price and sincere after-sale services.
workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.

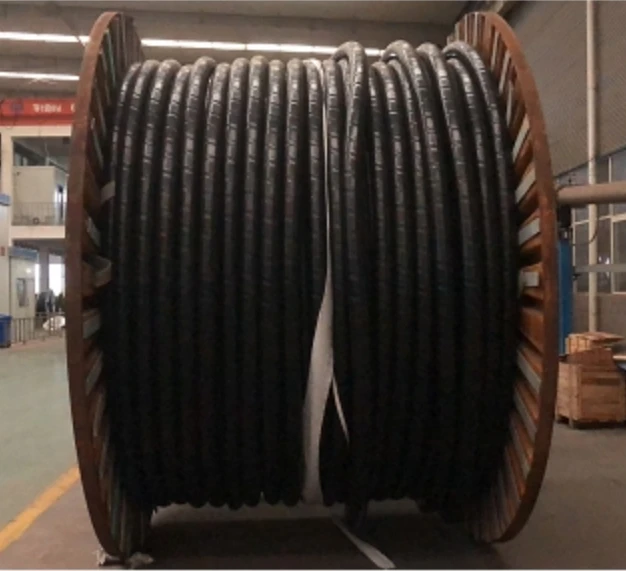

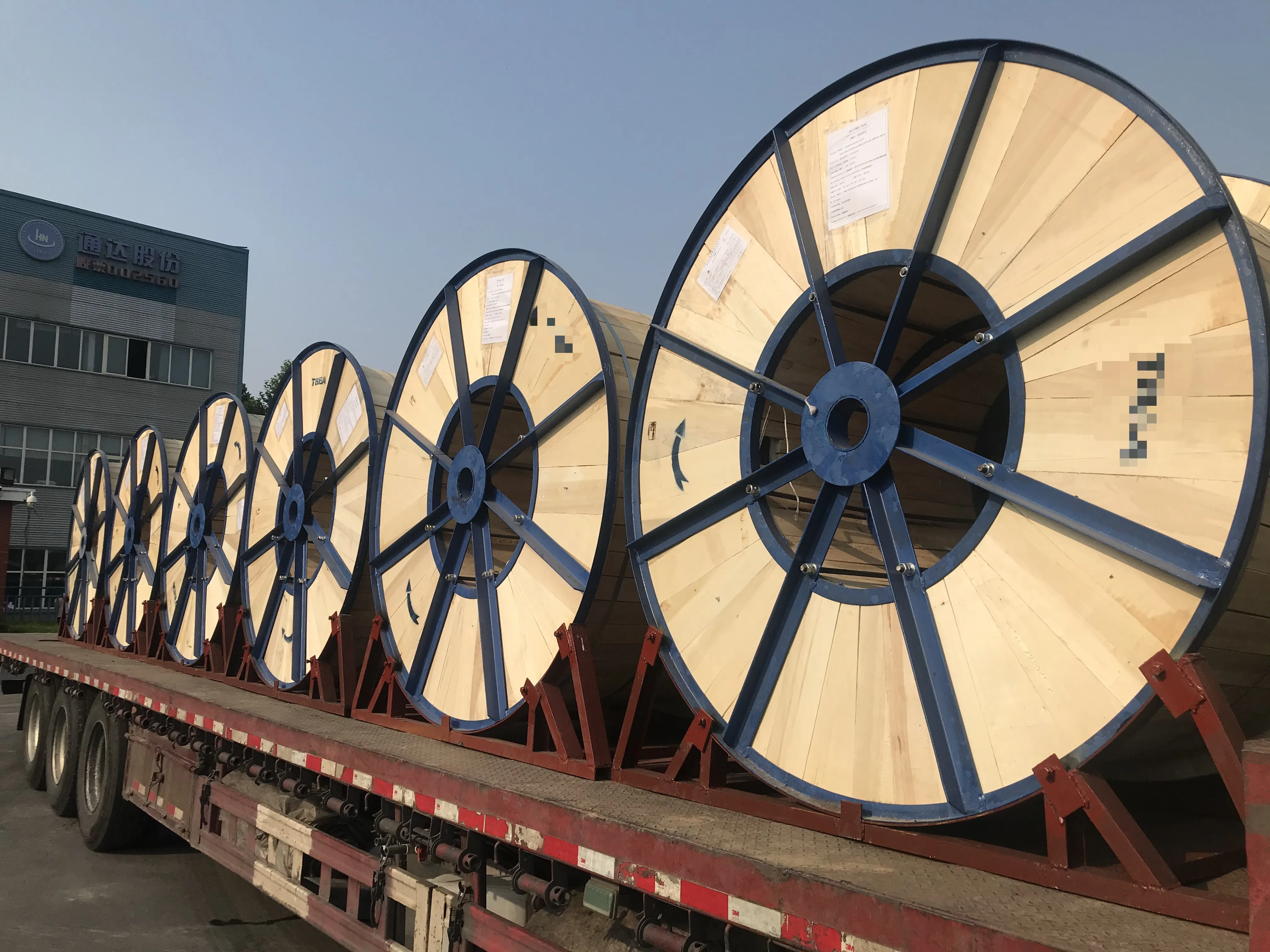

Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
