Новинка 2020 спутниковый ТВ-приемник GTMEDIA V8X DVB-S/S2/S2X с разъемом для карт CA поддержка BISS auto roll Full PowerVu DRE & Biss
- Категория: Satellite TV Receiver >>>
- Поставщик: Shenzhen,Winsat,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 37.58 $* | 38.68 $* |
| Jul-15-2025 | 30.99 $* | 31.25 $* |
| Jun-15-2025 | 36.26 $* | 37.36 $* |
| May-15-2025 | 36.45 $* | 37.46 $* |
| Apr-15-2025 | 29.66 $* | 30.5 $* |
| Mar-15-2025 | 35.99 $* | 36.61 $* |
| Feb-15-2025 | 35.55 $* | 36.10 $* |
| Jan-15-2025 | 35.40 $* | 36.95 $* |
Характеристики
Our Advantages
1.Own Brand GTMEDIA with CE certificate and competitive price
2.Warranty time for 12 months
3.Fast delivery & accept OEM/ODM
2.Warranty time for 12 months
3.Fast delivery & accept OEM/ODM
Product Description

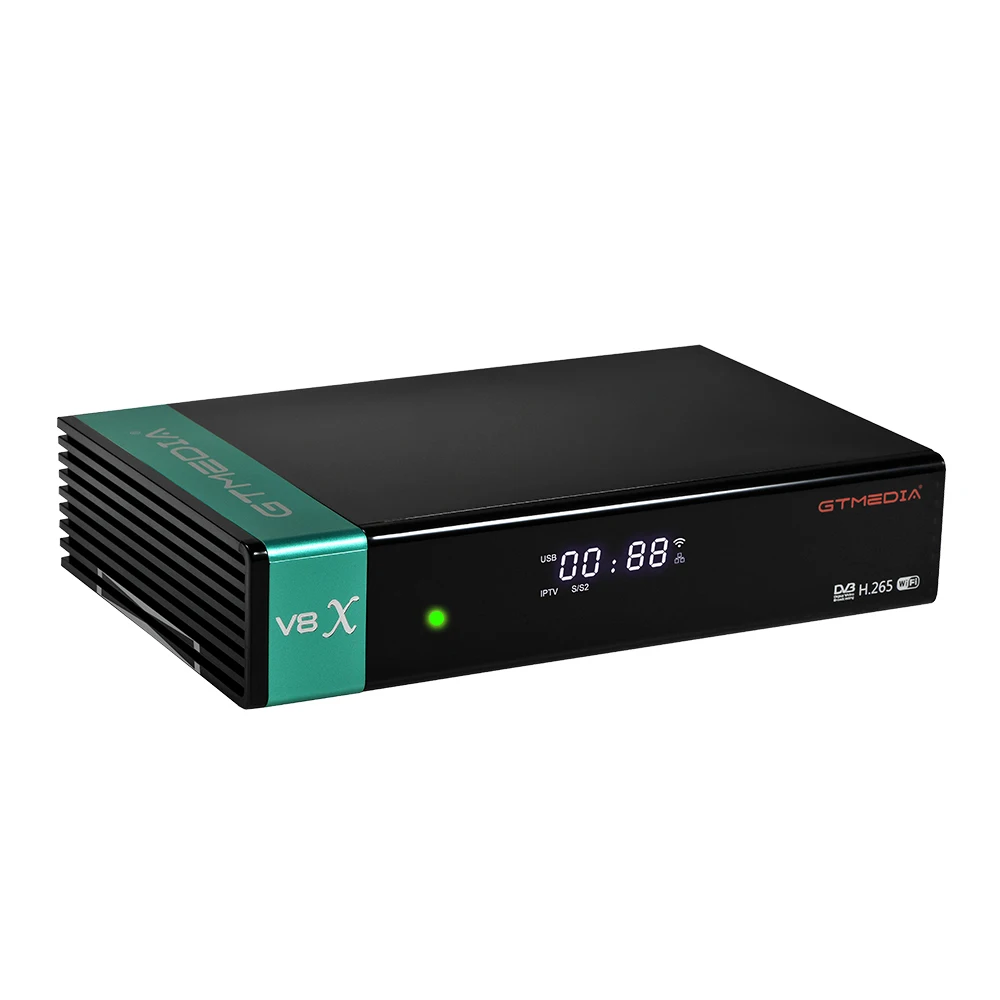

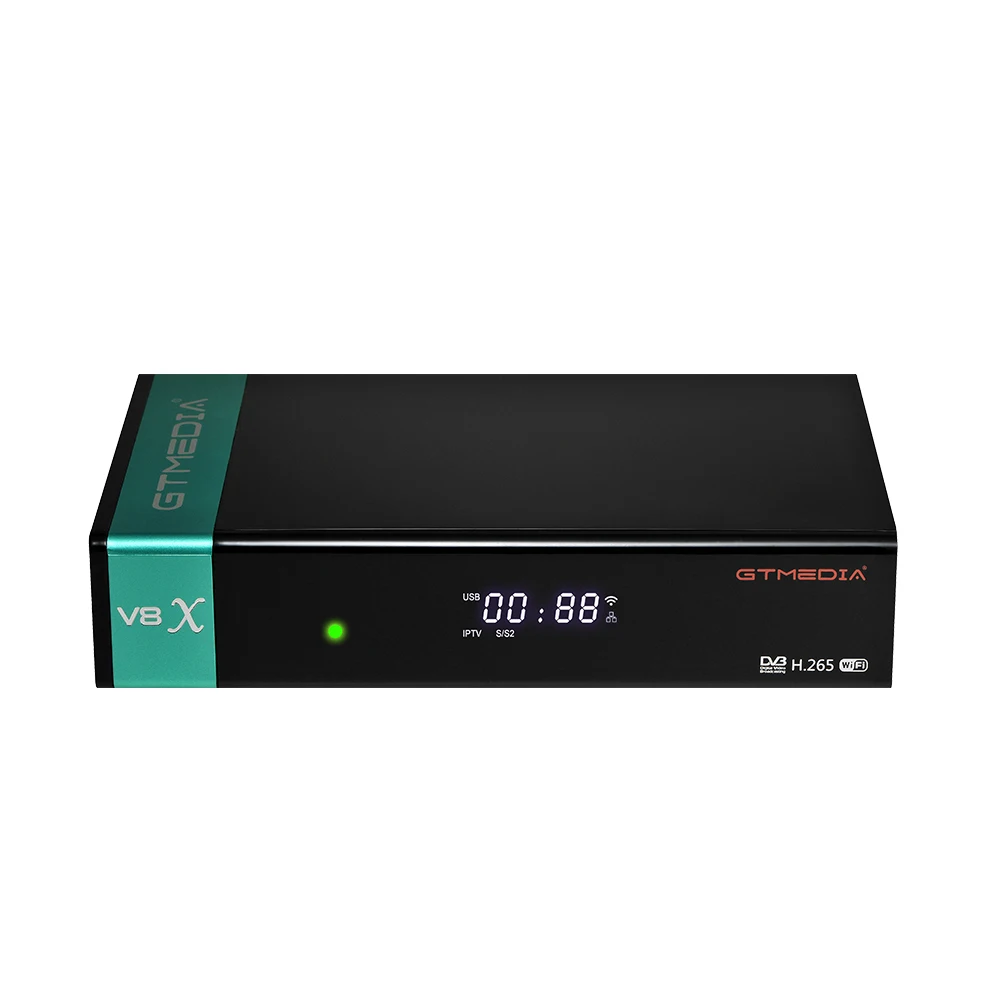

GTMEDIA V8X (DVB-S/S2/S2X SCART + CA)
1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+ 2.Support BISS auto roll, Full PowerVu, DRE &Biss key;
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
4.Support SAT streamed to Gtplayer, DLNA; 5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;
6.Support Online Movie (Youtube, Youporn, Hotstar);
7.Support IPTV (Customize, xtream, stalker); 8.Support Network Sharing Cccam, Newcam, Mgcam;
9.Support CA card slot;
10.Technical support website : www.freesat.cn
Note: We reserve the right to change the design and OEM/ODM supported
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
4.Support SAT streamed to Gtplayer, DLNA; 5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;
6.Support Online Movie (Youtube, Youporn, Hotstar);
7.Support IPTV (Customize, xtream, stalker); 8.Support Network Sharing Cccam, Newcam, Mgcam;
9.Support CA card slot;
10.Technical support website : www.freesat.cn
Note: We reserve the right to change the design and OEM/ODM supported
Specification
Main Chip Sets | CPU | 770MHz Dual Core | ||||||||||||
Flash Memory | 64MB SPI Flash | |||||||||||||
DDR2 Memory | 1G RAM | |||||||||||||
TS Demux | Demultiplexer | ISO/IEC 13818-1 | ||||||||||||
Input Bit Rate | Max 100Mbit/s | |||||||||||||
Video Decode | Video Decode | HEVC main profile@level 4.1 and main10 profile@L4.1,High tier MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder | ||||||||||||
TV System | Automatic PAL/NTSC conversion | |||||||||||||
Aspect Mode | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||||||||||||
Video effects | Standard, Default, Vivid. | |||||||||||||
Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | |||||||||||||
HDMI Color Space | RGB, YUV422, YUV444, Auto | |||||||||||||
Audio Decode | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | ||||||||||||
Sound Mode | LEFT/RIGHT/STEREO/MONO | |||||||||||||
Sampling Frequency | 32KHz,44.1KHz,48KHz | |||||||||||||
Audio Out | LPCM Out, BS Out | |||||||||||||

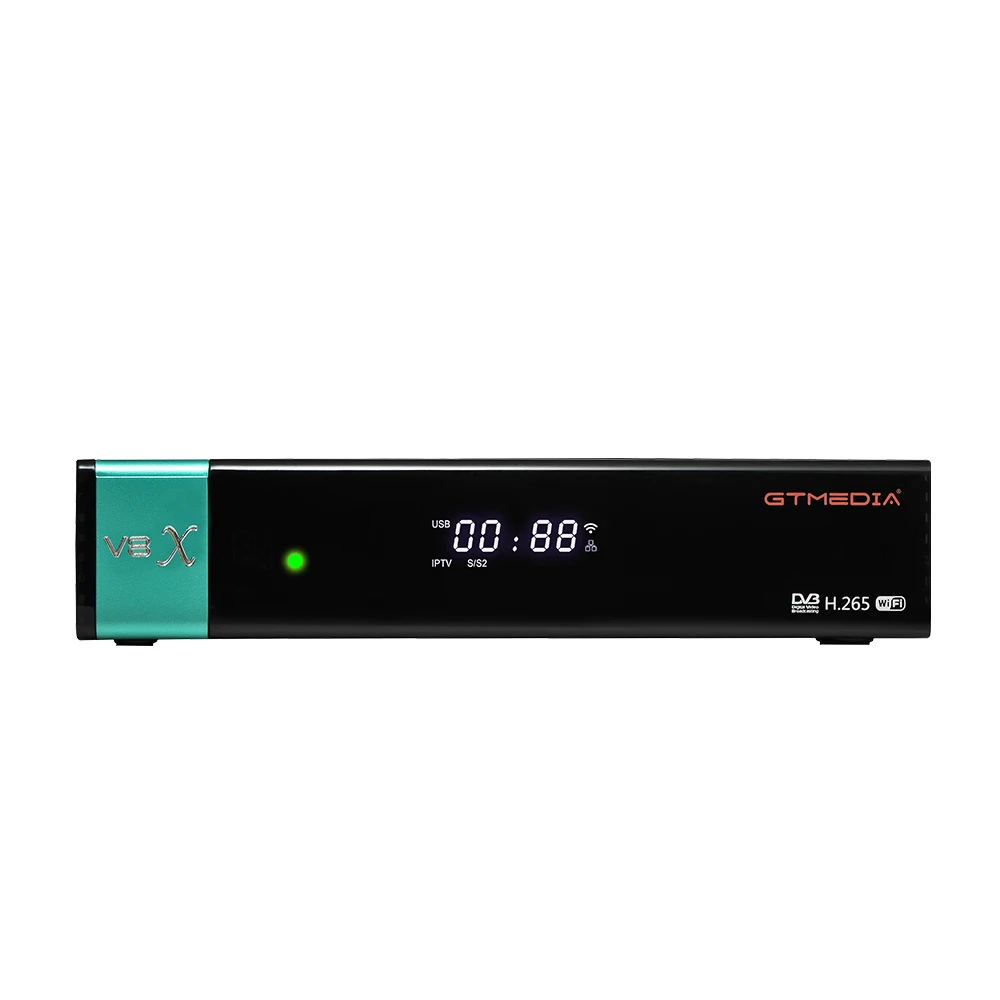

Hardware specifications | Panel display | 4-digit white LED display (Support function display) | ||||||||||||
LED Indicator | Power ON :Green; Standby :Red | |||||||||||||
Button | NOT | |||||||||||||
Wifi | Built in 2.4G WiFi Support IEEE 802.1.1b/g/n | |||||||||||||
IR | Exit IR for 38KHz,Infra Remote control | |||||||||||||

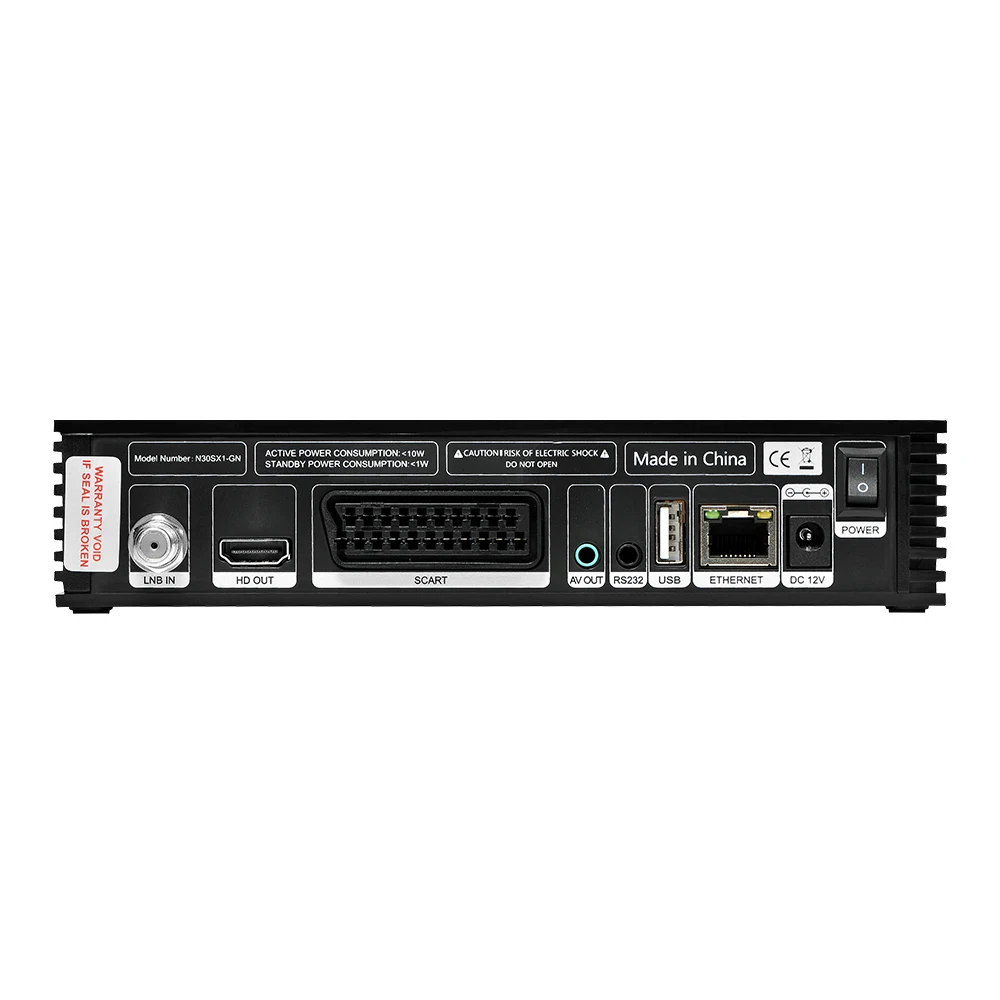

Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | |||||||||||||
HD OUT (up to 1080P) | ||||||||||||||
SCART OUT | ||||||||||||||
AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND) | ||||||||||||||
1*CA card solt | ||||||||||||||
1*USB HOST | ||||||||||||||
1*RJ45 | ||||||||||||||
1*RS232 (3-pin 3.5 mm jack) | ||||||||||||||
DC IN (DC12V/1.5A) | ||||||||||||||
DVB-S/S2 specificati-ons | System standard | ETS 302 307 | ||||||||||||
Frequency Range | 950~2150MHz for DVB-S/S2/S2X baseband demodulator | |||||||||||||
LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection | |||||||||||||
Input Level Range | -80dBm ~ -20dBm (average power) | |||||||||||||
Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | |||||||||||||
Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | |||||||||||||
Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | |||||||||||||
Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | |||||||||||||
Roll-off factors | Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | |||||||||||||
Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | |||||||||||||
ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | |||||||||||||
Sortware Features | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard | ||||||||||||
Channel Search | Support automatic network search for new added transponders | |||||||||||||
Channels Number | 6000+ channels TV and Radio programmable | |||||||||||||
Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||||||||||||
Favorites | 31 different favorite groups selection | |||||||||||||
OSD Language | English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian. | |||||||||||||
OSD Color | 32-bits OSD with anti-flickering | |||||||||||||
OSD Setting | Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3. | |||||||||||||
Other Setting | Sets up multiple habitual operation Settings | |||||||||||||
Parental Ctrl | Parental control for channels | |||||||||||||
Easy Menu | Plug and Play installation, with an easy to use Menu System | |||||||||||||
EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||||||||||||
Subtitle | support DVB EN300743 and EBU | |||||||||||||
Teletext | support DVB ETS300472 by VBI | |||||||||||||
SoftUpgrade | Software upgrades through USB port, or FTP upgrade. | |||||||||||||
Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||||||||||||
Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||||||||||||
USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | ||||||||||||
PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | |||||||||||||
Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | |||||||||||||
Audio Codec | WMA,MP3 | |||||||||||||
Photo Codec | JPG, BMP, PNG, GIF | |||||||||||||
Packing & Delivery
Packing | Product Dimension | 193*125*40MM（L*W*H） | ||||||||||
Packaged Size | 264*170*55MM | |||||||||||
Carton Size | 572*360*280MM (20pcs/ctn) | |||||||||||
Unit Weight | 0.68 Kg with gift box | |||||||||||
Carton Qty&Weight | 20 pcs/Carton, 14 kgs | |||||||||||

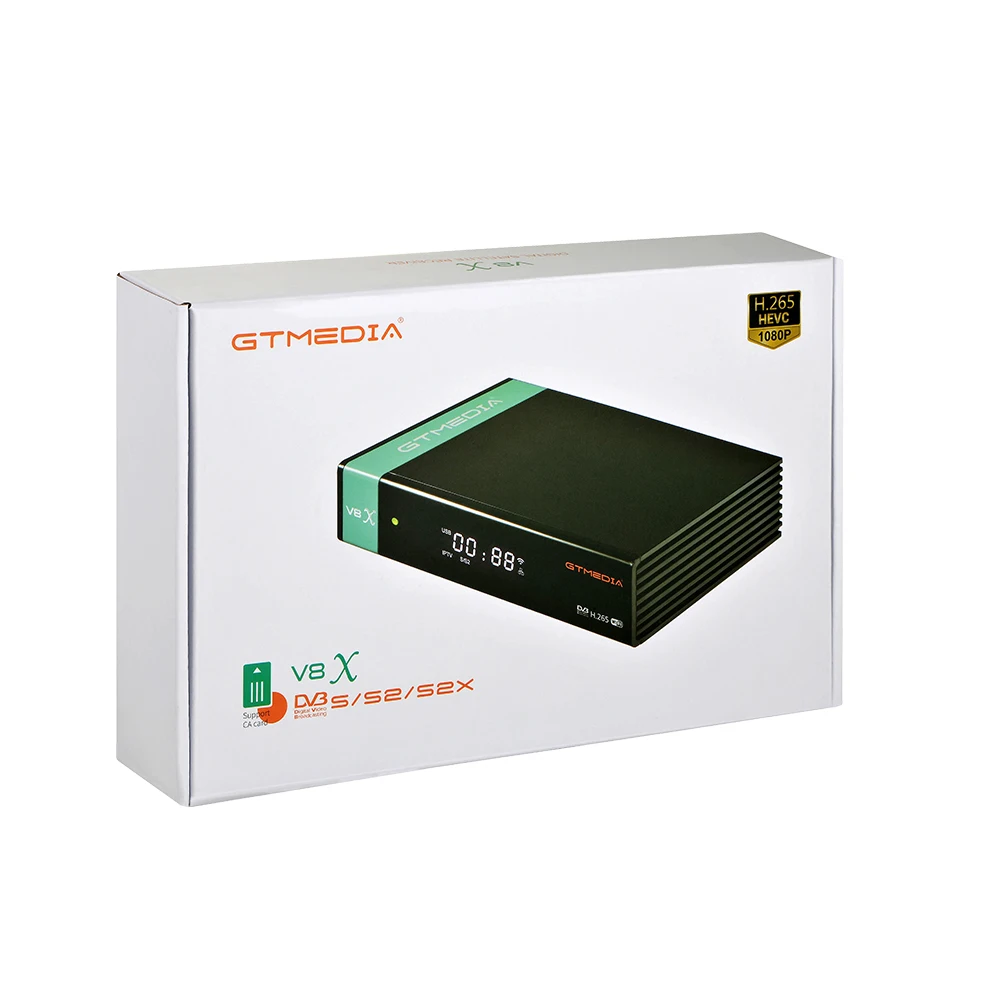

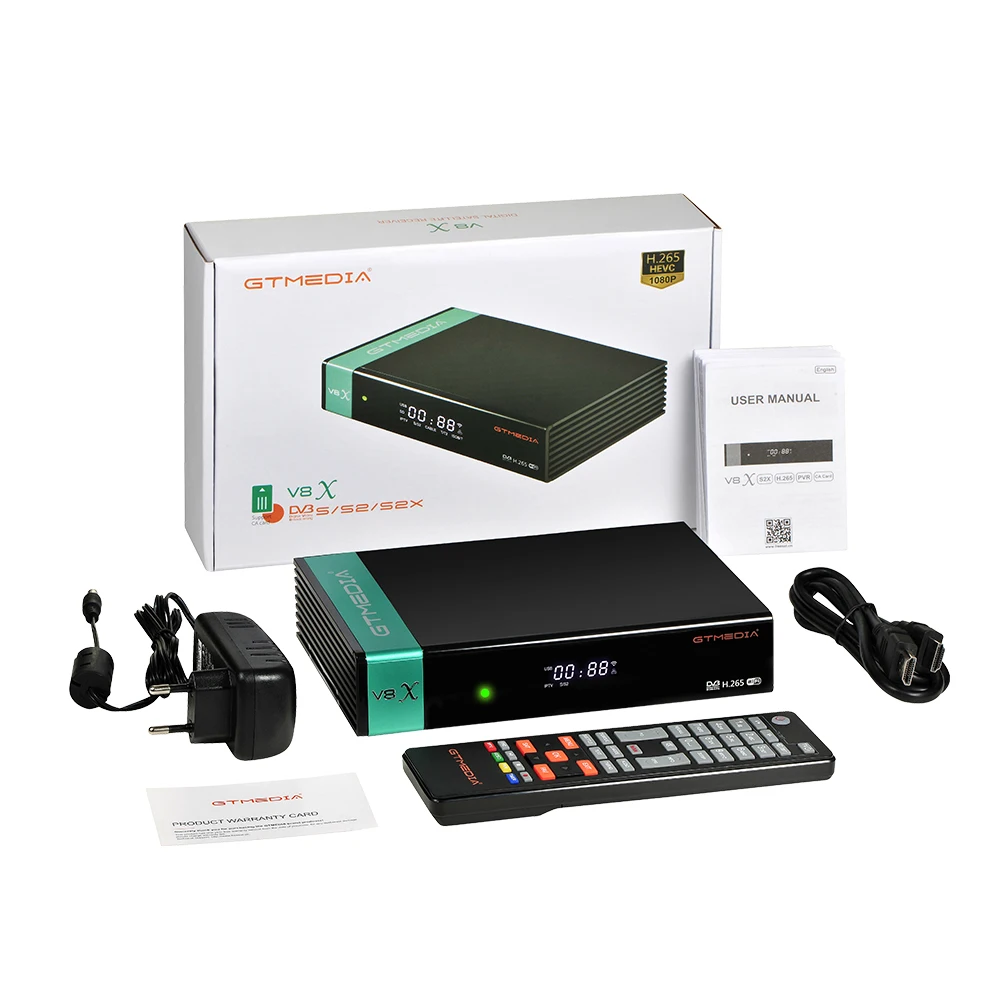

Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card | |||||||||||
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
