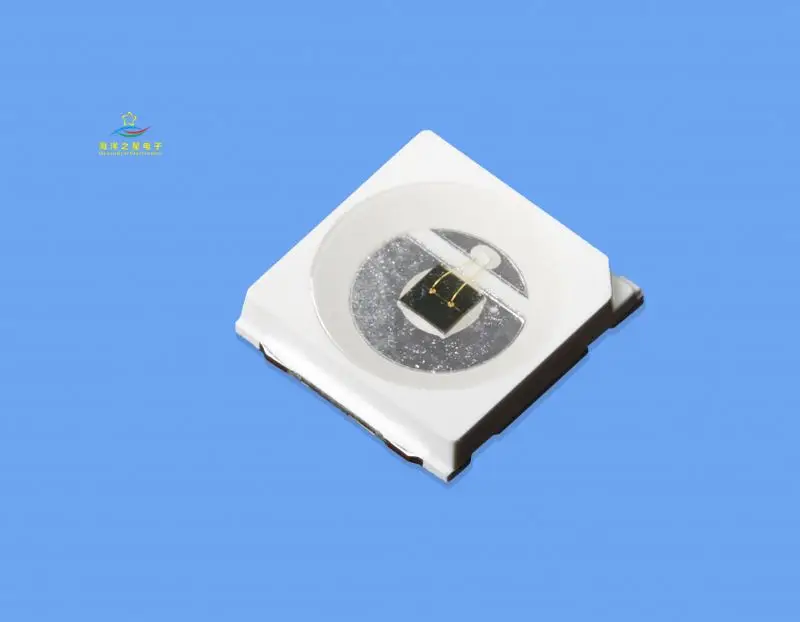

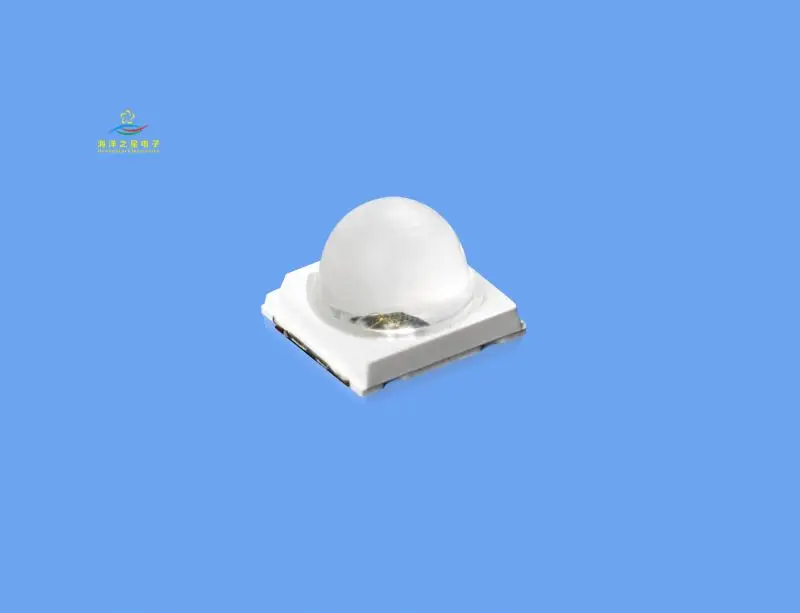

ИК инфракрасный светодиодный чип 5050 нм SMD Smd
- Категория: High Power LED >>>
- Поставщик: Shenzhen,Oceanstar,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.58 $* | 0.55 $* |
| Aug-18-2025 | 0.31 $* | 0.44 $* |
| Jul-18-2025 | 0.25 $* | 0.95 $* |
| Jun-18-2025 | 0.34 $* | 0.61 $* |
| May-18-2025 | 0.94 $* | 0.69 $* |
| Apr-18-2025 | 0.57 $* | 0.90 $* |
| Mar-18-2025 | 0.80 $* | 0.3 $* |
| Feb-18-2025 | 0.45 $* | 0.62 $* |
| Jan-18-2025 | 0.51 $* | 0.33 $* |
Характеристики
Product properties:
Package size:5.0*5.0MM
Wavelength:850/940nm
Radiant Intensity Ie:210-270 mw/sr
Radiant Flux:160mw
VF:1.4-2.1v
View Angle:60°/125°
IF:350/700mA
Product characteristics:
1.Adopt the latest Quad infrared chip
2. Low power consumption, high light output efficiency, long life, low thermal resistance, in line with the Rosh standard
3. EMC bracket, good heat dissipation performance
Product details:
Model | Wavelength | Package size | Luminous angle | Working current | VF | IE mw/sr | PO |
JNJ-5050JI0106W60/20MIL | 850 | 5.0*5.0 | 60 degree | 350MA | 1.4-2.1V | 210-270 | 160 |
JNJ-5050JI0111W60/28MIL | 850 | 5.0*5.0 | 60 degree | 700MA | 1.4-2.1V | 420-520 | 320 |
JNJ-5050JV0106W60/28MIL | 940 | 5.0*5.0 | 60 degree | 700MA | 1.4-2.1V | 380-500 | 320 |
JNJ-5050LTJI0106W140/20mil | 850 | 5.0*5.0 | 125 degree | 350MA | 1.4-2.1V | 55-95 | 165 |
