Характеристики


2020 high quality 0~1300um digital metal Coating Thickness Gauge  TL-TC100



Product Description


Introductions:


This Thickness Gauge is built-in both Ferrous Mode & Non-Ferrous Mode; It can be widely used in kinds of metal coating thickness measurement which is your indispensable tool in non-destructive testing; The instrument can automatically recognize the material to be tested and choose the correct measurement mode.











Technical specifications









































































Probe F



Probe N



Principle



Magnetic Induction



Eddy Current



Range



0~1300um


0~51.2mil



0~1300um


0~51.2mil



Accuracy



±(3%+2um)


±(3%+0.08mil)



±(3%+2um)


±(3%+0.08mil)



Resolution



0.1um/0.01mil



0.1um/0.01mil



Calibration



Points: ZERO/50/100/250/500/1000um



Units



um, mil



minimum curvature radius convex: 1.5mm



minimum curvature radius concave: 25mm



minimum measuring area: Diameter 6mm



minimum thickness of substrate



0.5mm(0.02”)



0.3mm(0.012”)



Power



One 9V battery



Operation Environment



Temperature:0~40(32~104) Humidity:20%~90%RH

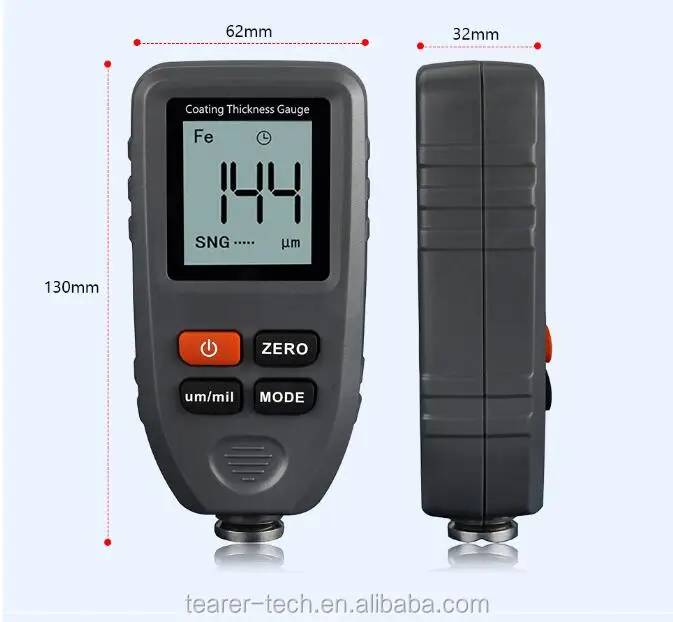

Size



130mm x 62mm x 32mm


(4.88” x 2.44” x 1.26”)



Weight



100g(3.53oz)












Application Field:


The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

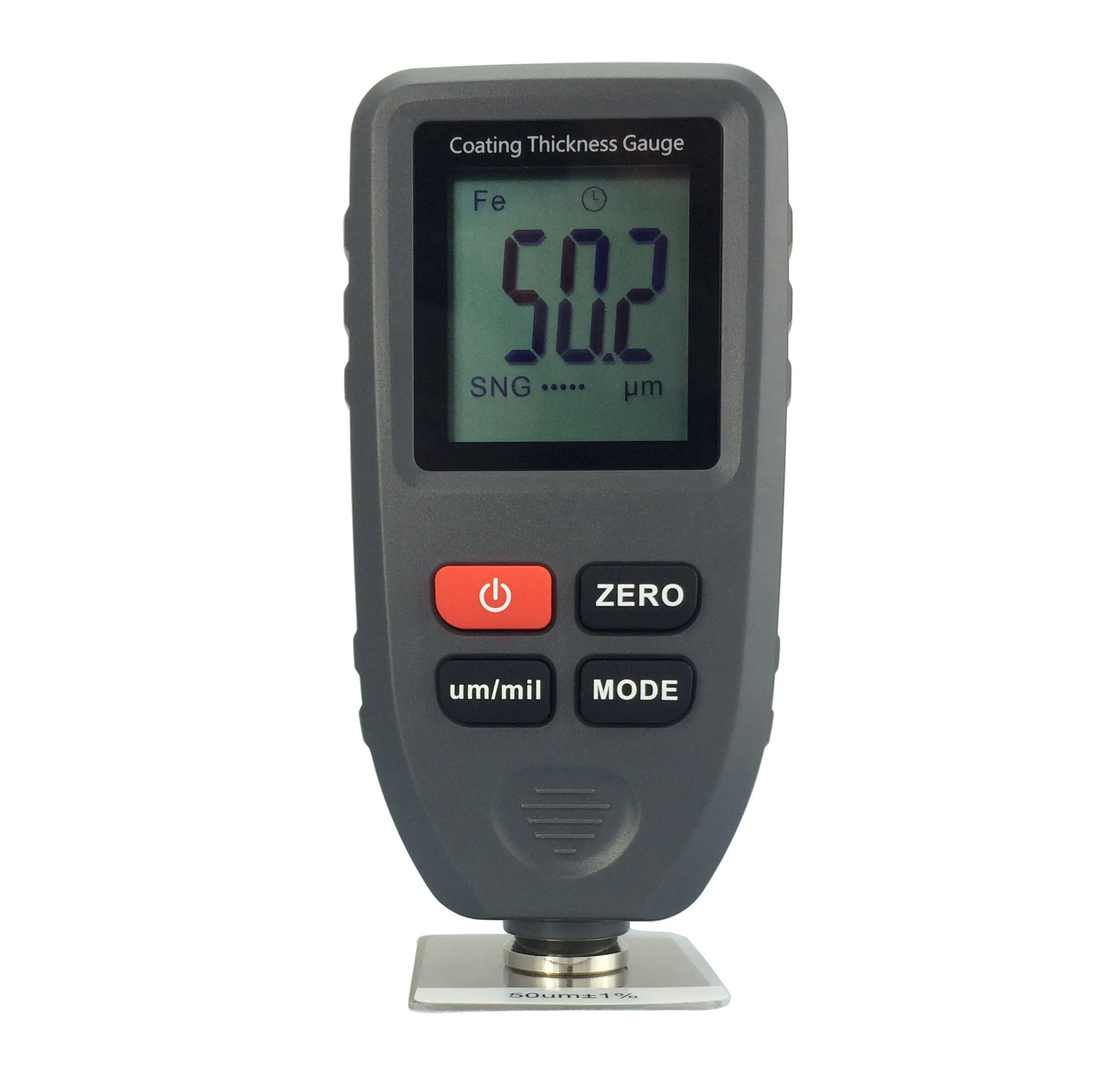

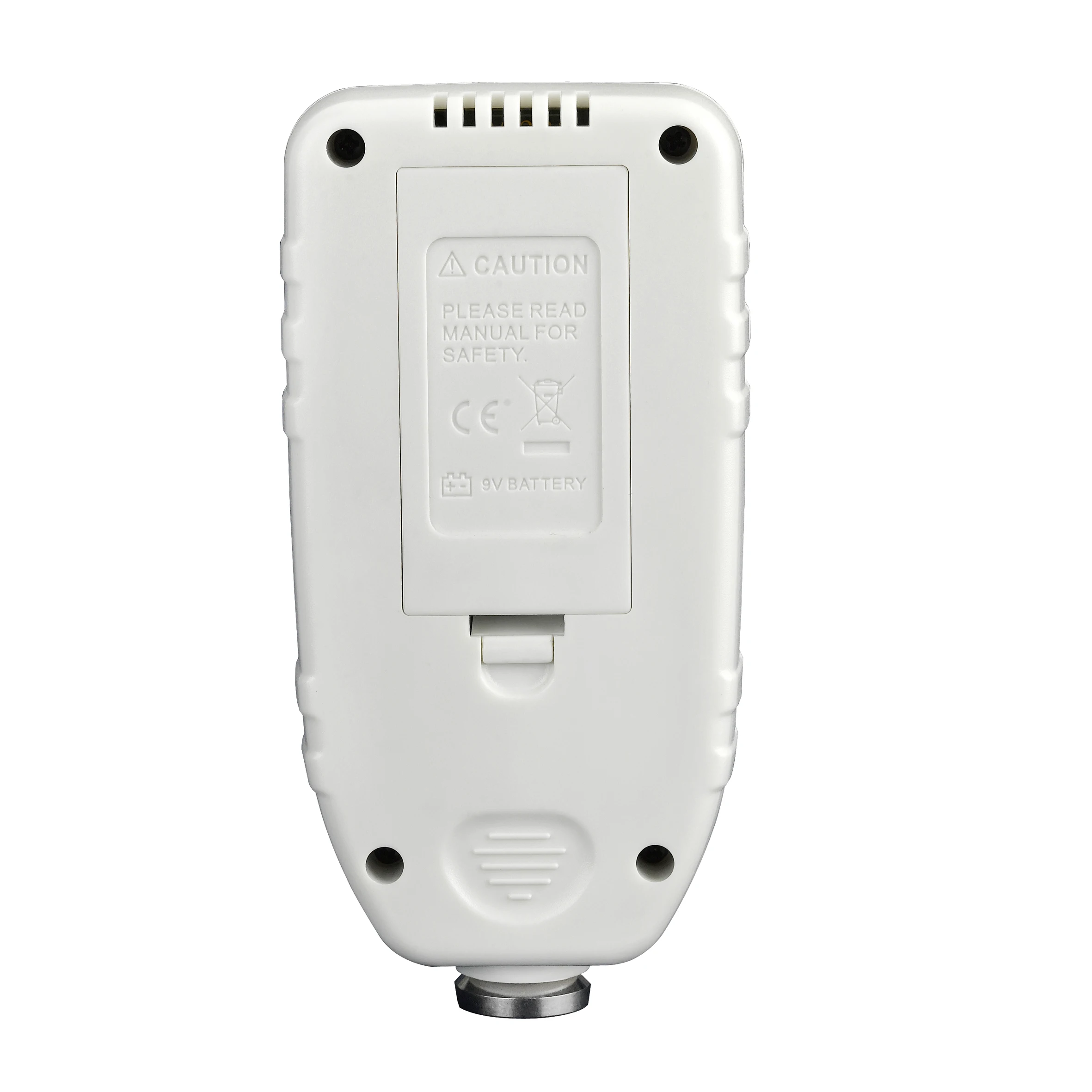

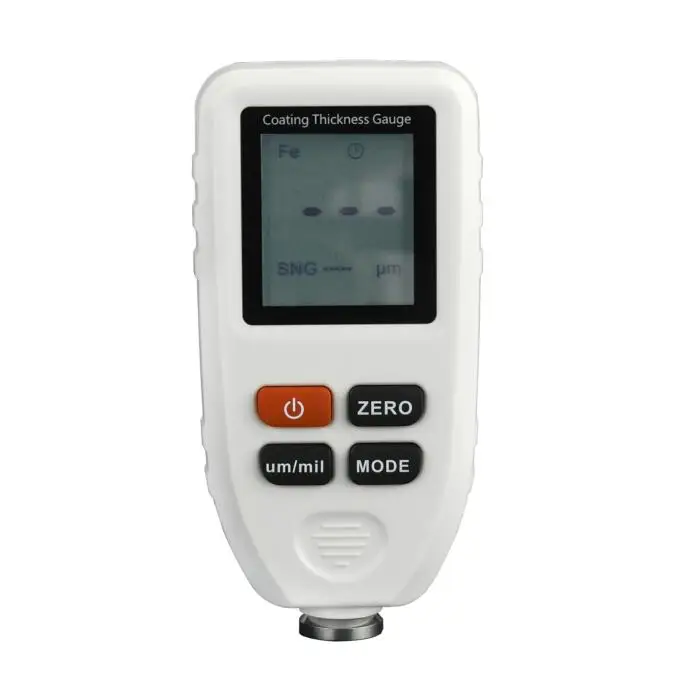

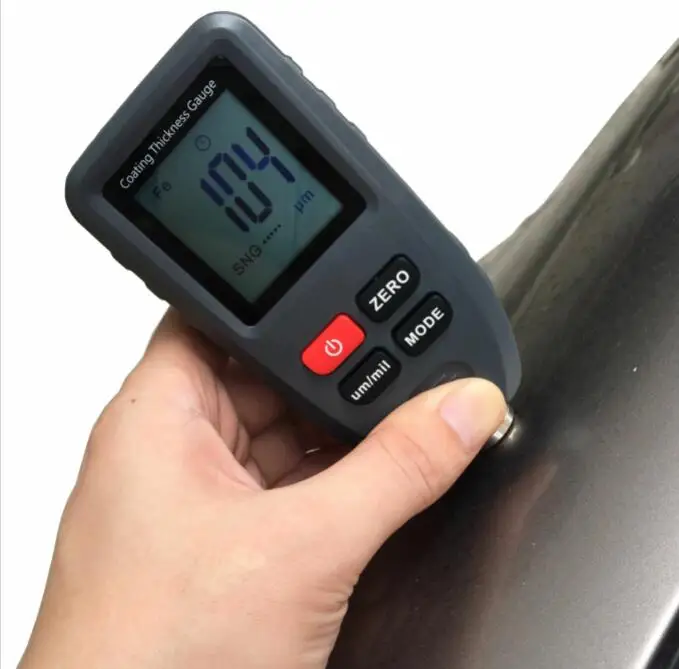

 Product pictures:

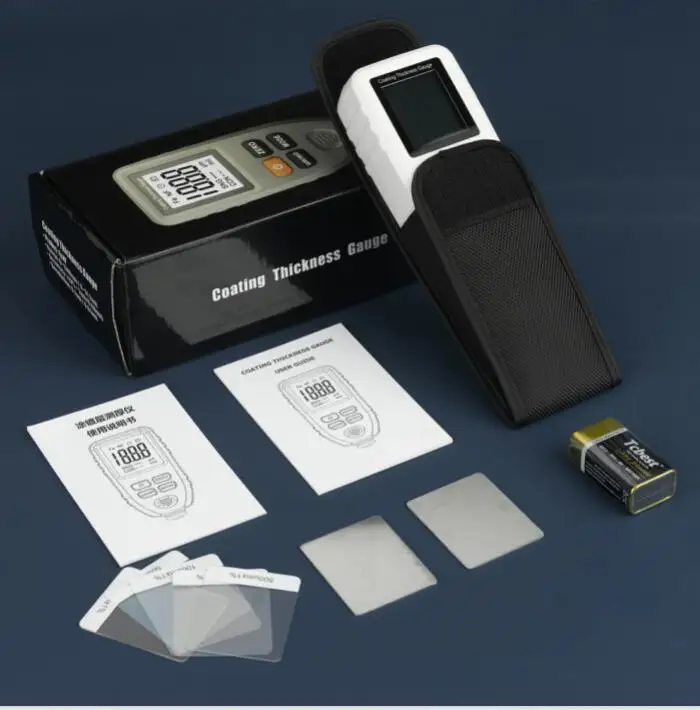

Packaging & Shipping


Coating Thickness Gauge


Substrates


Five Standard foils


User Guide





package pictures:











Shipping and Payment:


Shipping








Company Information





 **Dongguan Xinrui Instrument Co., Ltd is one of the professional electronic instrument manufacturers in China . Operation include complete R&D , producing and marketing line.


**Products Include wood moisture meter.digital tachometer , IR thermometers , Infrared Cameras , Laser distance meters , Anemometers , Sound level meters , Lux Meters , Humidity Meters , etc .


 **All products have CE and RoHS certificate . Exported to over 100 countries with more than 15 years enginner and sales team for service.


*Feel free to contact us if you have any comment or question . Sincerely wish to develop a long terms and good business relationship with your company in the near future











FAQ





Q: Are you a factory or trading company?
A: We are a factory with OEM service.

Q: Would you send me a sample to check the quality before I order?

A:.Sure. We would love to send you the sample.

Q: How does your factory do regarding quality control?
A:1) 100% QC inspection Before Shipment.
2) Skilful workers care every details in handling the producing and packing processes.


Quality Control Department is specially responsible for quality checking in each process.



Q:Can we customize the box or print the logo on the gift box ?
A:No problem. We absolutely do that for you if you send us your logo design or artwork of box.

Q: What is your MOQ?
A: Please contact the customer service, and the price is negotiable for large quantity.



Q: When will you make the delivery?
A: We can make the delivery within 2-7 days according to the size of your order. And the sample will
be sent in 2 days after received the payment.
