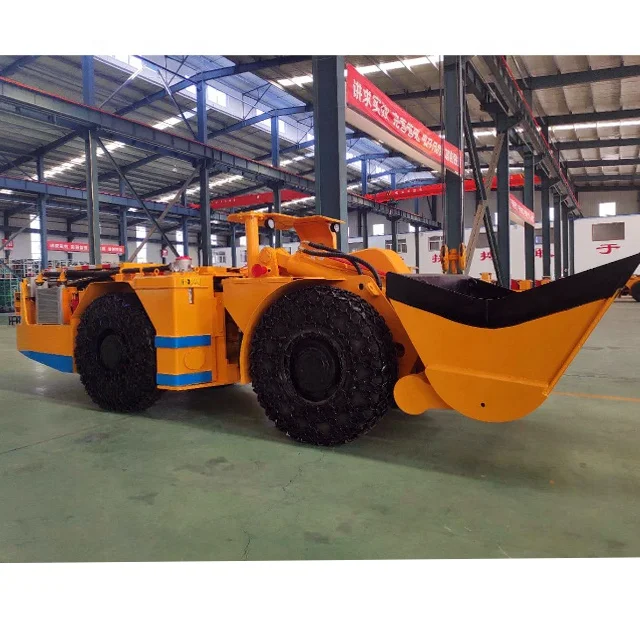

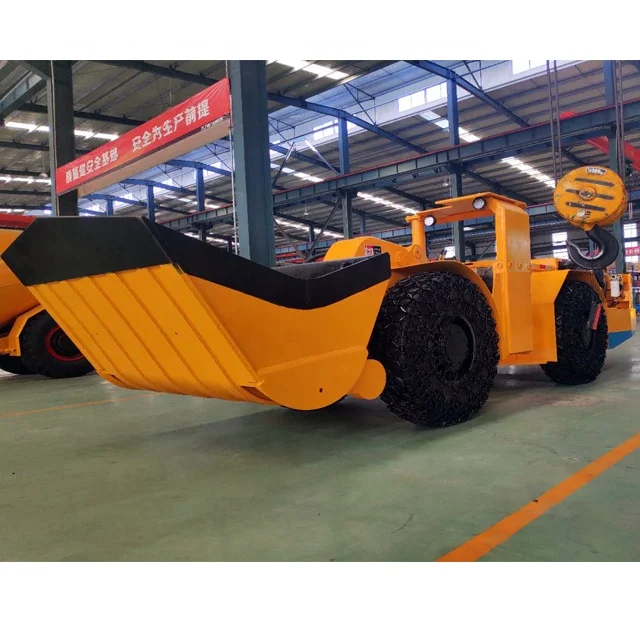

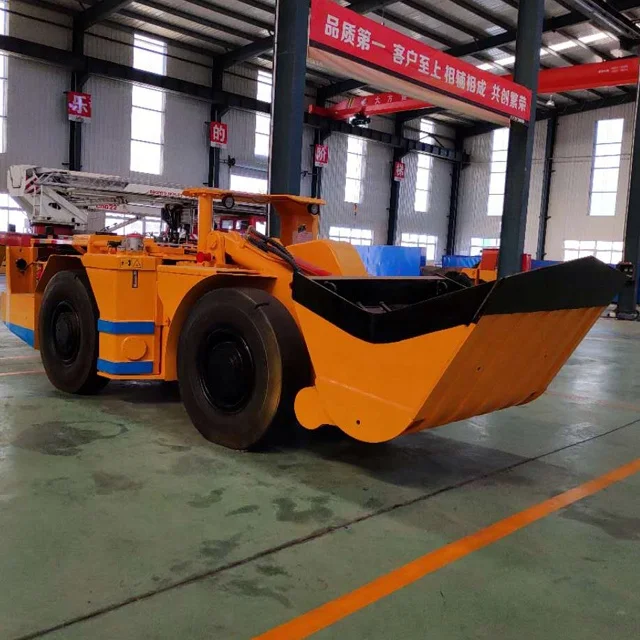

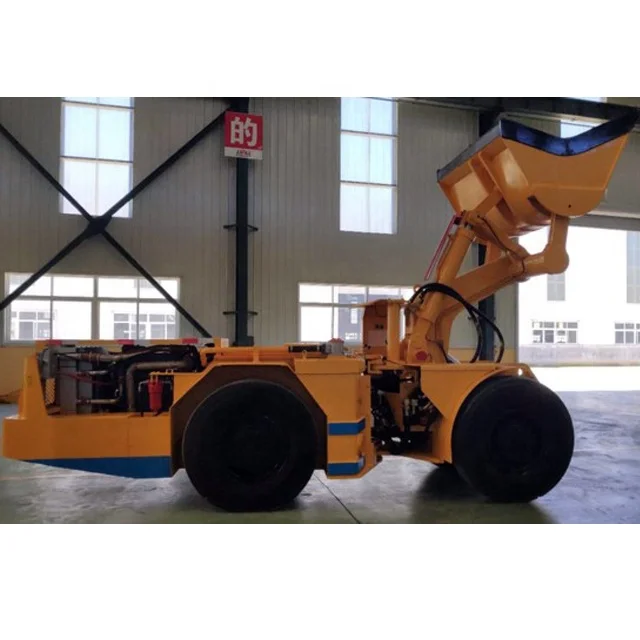

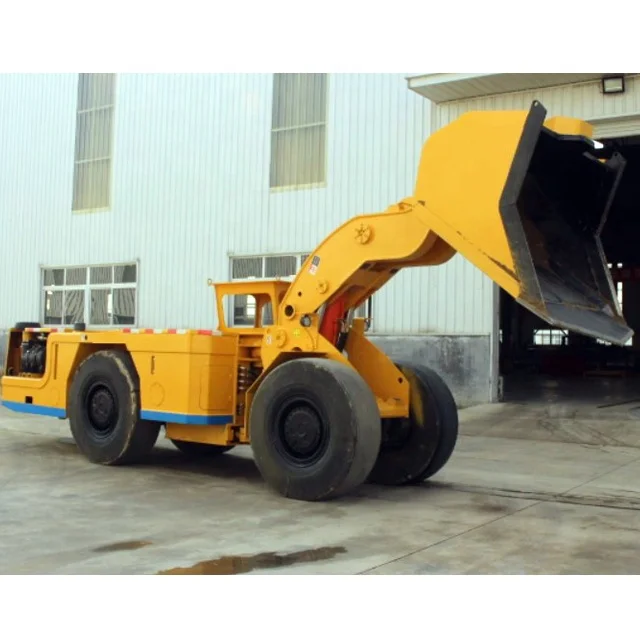

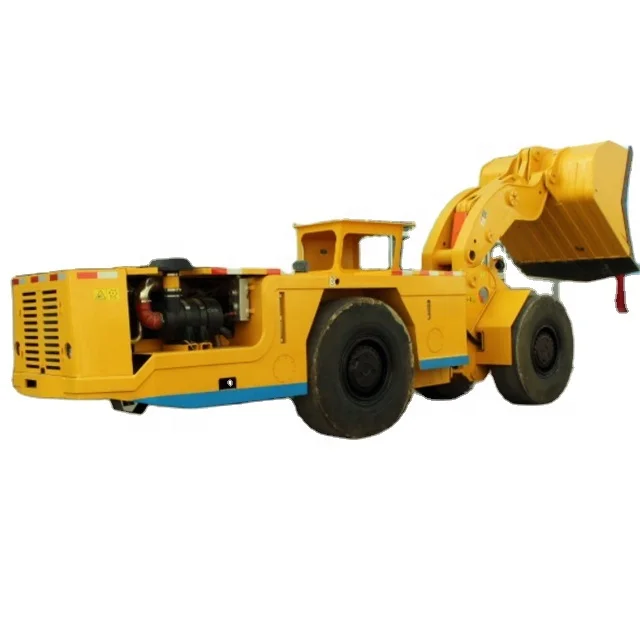

SDTW CY-20 2 M3 2CBM Load Haul Dump Underground Mining Scooptram , LHD Underground Loader
Product Description
CY-20 is a Load Haul Dump (LHD) for mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in operations. The loader is easy to operate and maintain, and it features an operator compartment that is in the rear frame of the machine to ensure increased operator safety. The CY-20 is full of features to help mines maximize tonnes and minimize extraction costs.
Deutz engine, Rexroth main pump, Parker Valve, DANA torque converter, DANA transmission
Specification
Model |
| CY-20 |
Bucket size | cbm | 1.5 m3 / 2.3m3 / 2.5m3 option |
Payload | kg | 4000 |
Overall Dimension | mm | 7000x1800x2080 |
Min Ground Clearance | mm | 250 |
Max Lift Height | mm | 3975 |
Max Unloading Height | mm | 1740 |
Turning radius | mm | 2600 / 4900 |
ENGINE | ||
Engine model |
| DEUTZ made in Germany F6L914 / BF4M1013EC |
Type |
| Air-Cool & Turbocharge |
Engine power | kw | 84 / 115 |
Numbers of cylinders |
| 6 In line / 4 in line |
Displacement | L | 6.472 |
Emission standard |
| EURO II / Tier 2 |
Filter Brand |
| DEUTZ MANN(Germany) |
Type |
| Two stage & dry type |
Model |
| C16400 |
Purifier Brand |
| ECS(Canada) |
Type |
| Catalytic purifier with silencer |
Exhaust Gas |
| CO≤500ppm NOx≤262ppm |
HYDRAULIC SYSTEM | ||
Pump brand |
| Rexroth |
Multivalve |
| Parker |
Torque converter |
| DANA |
Transmission |
| DANA |
Axle brand |
| MT |
Axle type |
| Rigid planetary axle |
Tire brand |
| Xinfeiya |
Model |
| 12.00-24 |
WEIGHT | ||
Machine weight | kg | 13500 |
Laden Weight | kg | 17500 |
|
|
|
PERFORMANCE | ||
Traveling speed | km/h | 0~17.4 |
Boom Raising Time |
| ≤ 6.3 |
Boom Lowering Time | s | ≤ 4 |
Dumping Time | s | ≤ 3.6 |
WORKING CAPACITY | ||
Max Breakout Force | KN | 85 |
Max Traction | KN | 104 |
Tank Volume | L | 150 |
Hydraulic oil tank | L | 120 |
