Гидравлический станок для резки железа с ЧПУ/3 мм 5 8 производственная линия перфорации стали
- Категория: Вырубная машина >>>
- Поставщик: Anhui,Suntay,Heavy,Industries&Mechanical,Manufacture,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 6069.93 $* | 6372.89 $* |
| Aug-15-2025 | 6018.36 $* | 6319.17 $* |
| Jul-15-2025 | 5049.88 $* | 5301.58 $* |
| Jun-15-2025 | 5916.75 $* | 6212.38 $* |
| May-15-2025 | 5151.99 $* | 5409.10 $* |
| Apr-15-2025 | 5814.12 $* | 6105.36 $* |
| Mar-15-2025 | 5763.65 $* | 6051.93 $* |
| Feb-15-2025 | 5712.35 $* | 5998.3 $* |
| Jan-15-2025 | 5661.25 $* | 5944.54 $* |
Характеристики

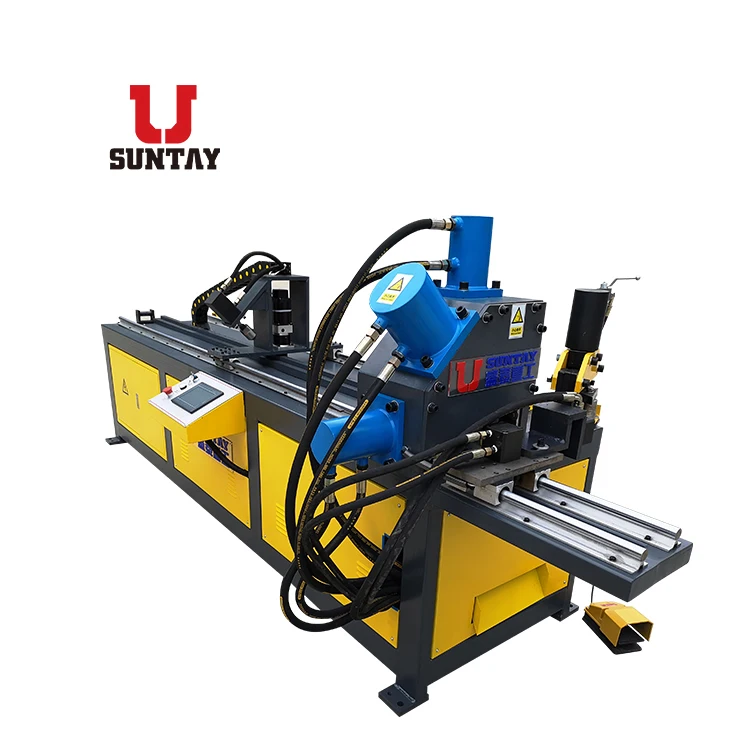

Angcnc hydraulic iron angle cutting machine/ 3mm 5mm 8mm angle steel punching production line
Function
Fully automatic angle steel flange production line, or CNC angle steel flange production line, is mainly for punching and cutting duct angle steel flange. The machine are designed to feed, punch, cut automatically in order to save labor and improve efficiency. It’s very fast, accurate and highly automatic.
Performance Features
1.It’s controlled by servo motor and its feeding dimensions are accurate.
2.It only requires to input the size of workpiece, distance between holes and how many holes to punch when programming, which is very easy to operate.

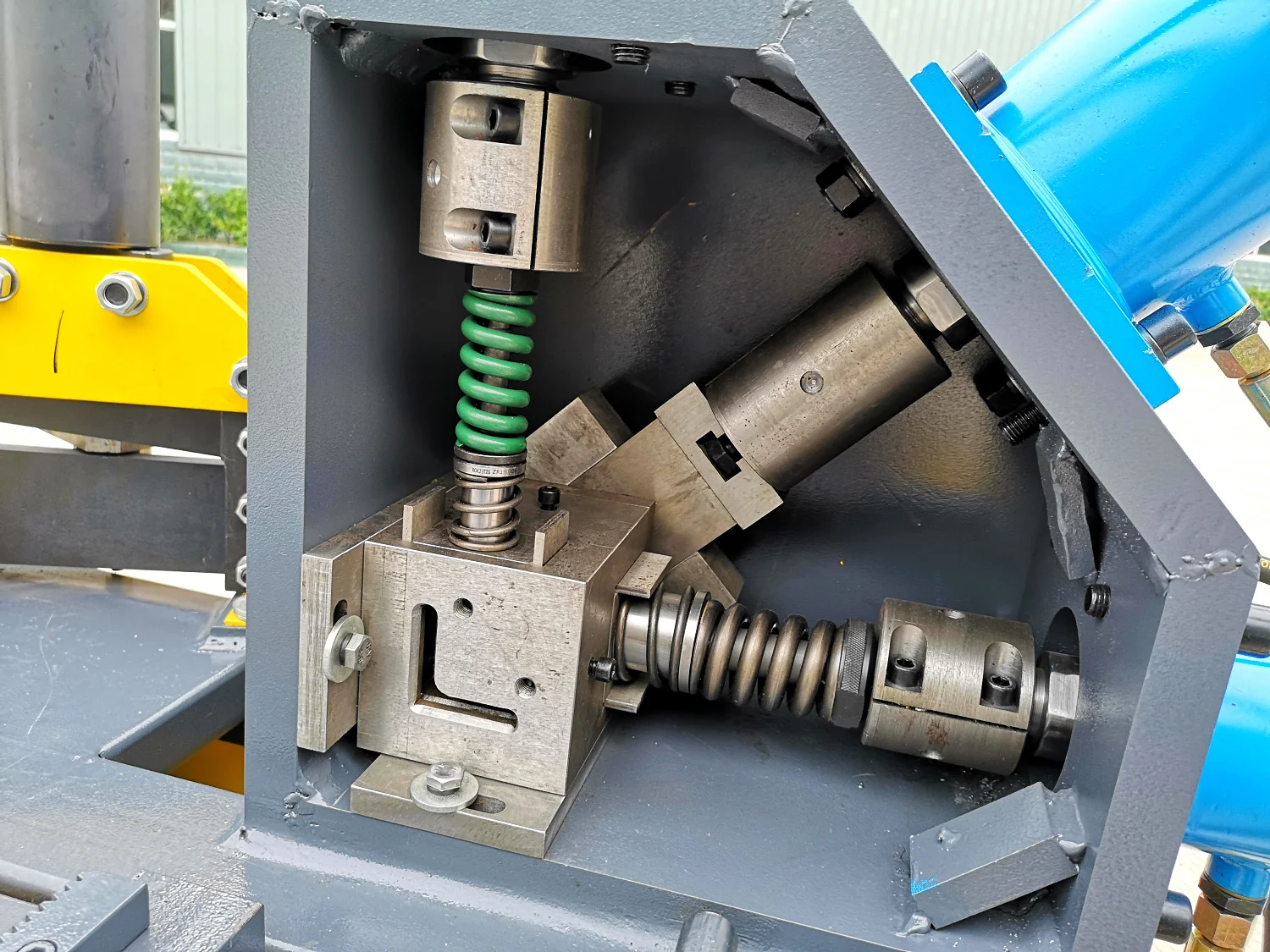

3.The new design mold can complete the angle steel switching rapidly, and the punch is durable.
2.It only requires to input the size of workpiece, distance between holes and how many holes to punch when programming, which is very easy to operate.
3.The new design mold can complete the angle steel switching rapidly, and the punch is durable.
Main Configuration
1.Taiwan hydraulic system

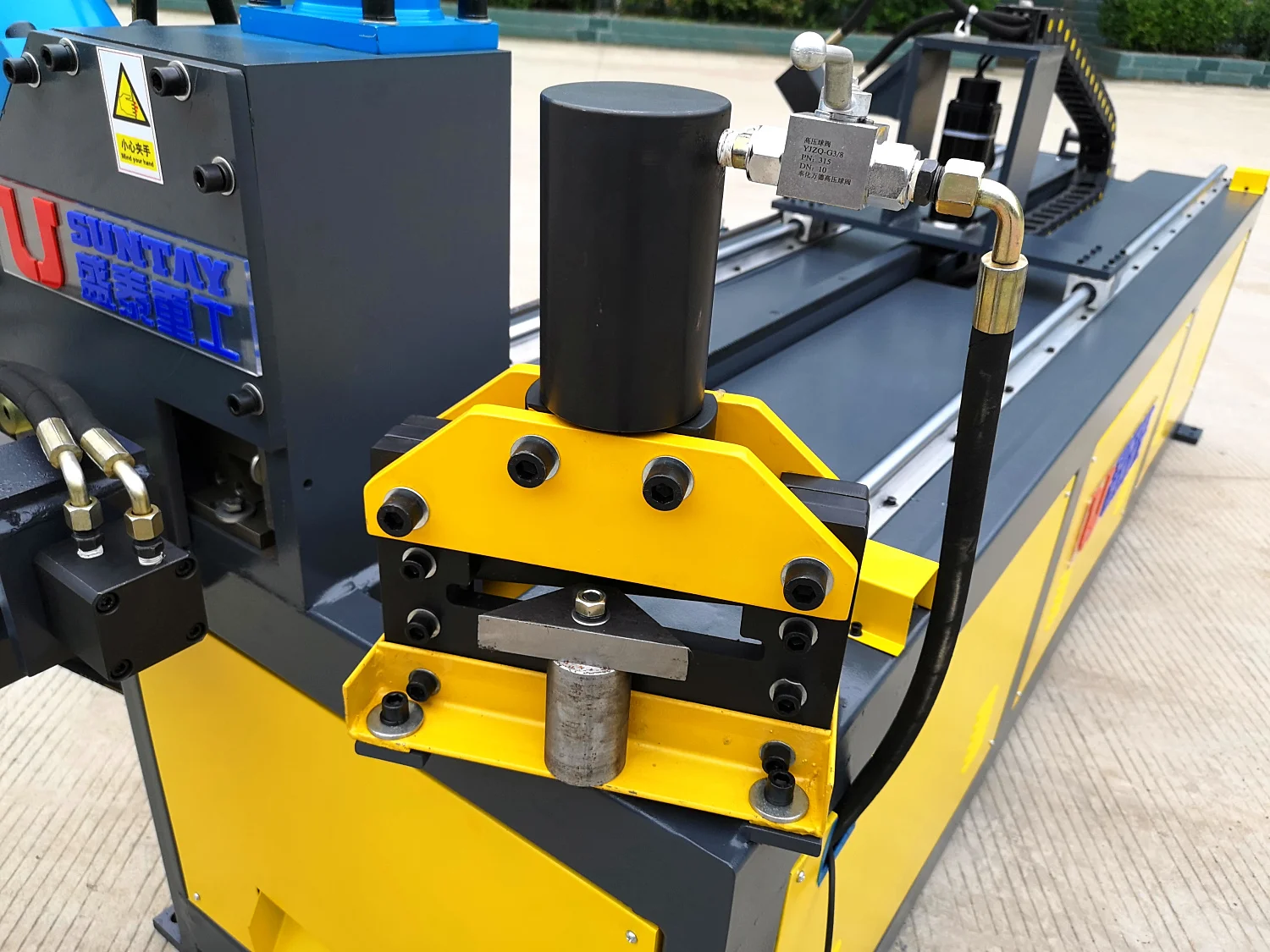

2.Cutter and punching die which are both made of American H13 material

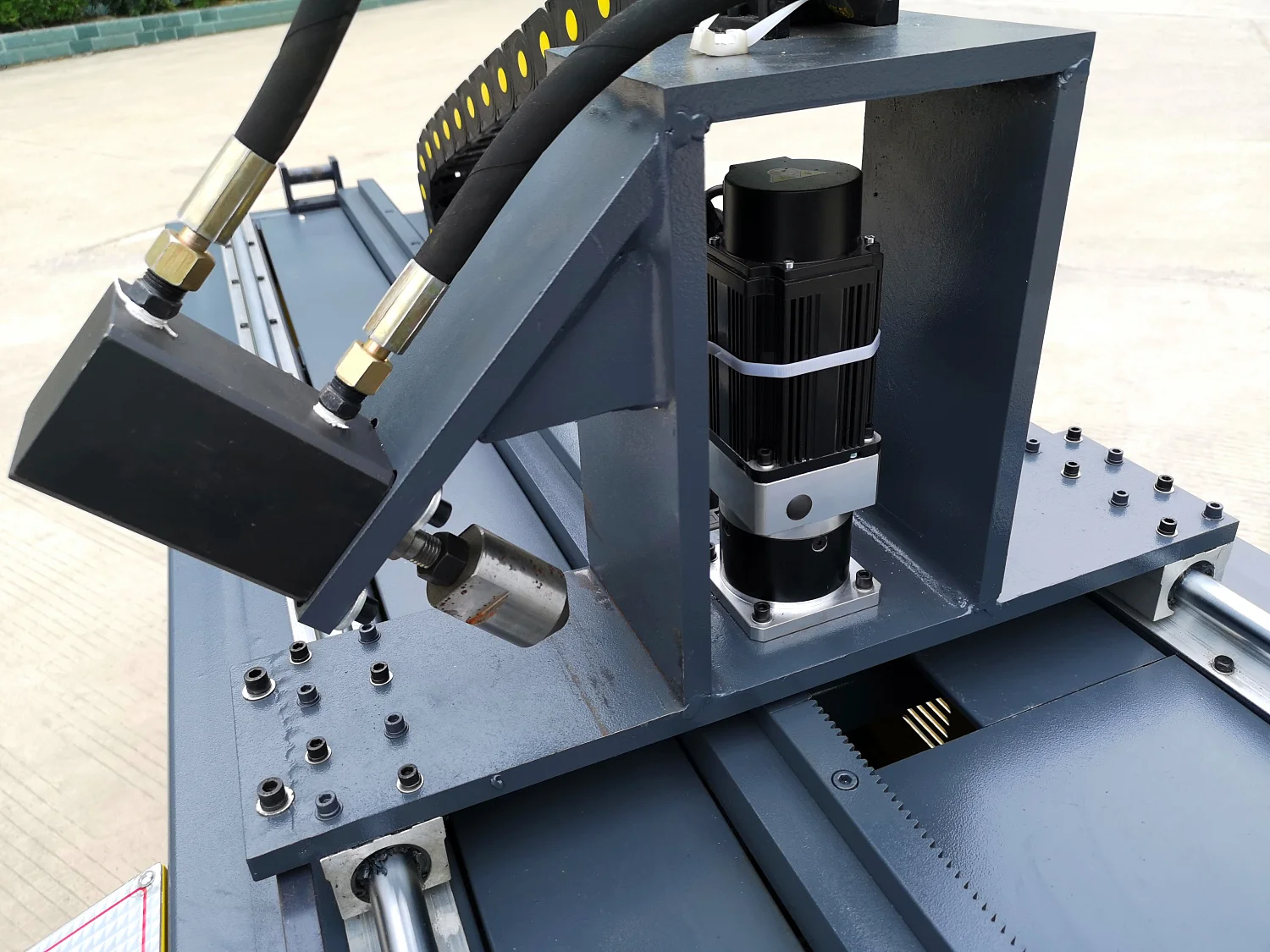

3.Servo motor-driven feeding system
2.Cutter and punching die which are both made of American H13 material
3.Servo motor-driven feeding system
Main Technical Parameters
1.Scale of angle steel to process:#3-#5 angle steel
2.Common punching sizes:big-sized 9×13mm small-sized 4.2/5.2mm
3.The number of punches which can be installed simultaneously:2
4.Common length of angle steel:6000mm
5.Machining accuracy not more than:0.5mm
6.Feeding speed of angle steel:15-20m/min
2.Common punching sizes:big-sized 9×13mm small-sized 4.2/5.2mm
3.The number of punches which can be installed simultaneously:2
4.Common length of angle steel:6000mm
5.Machining accuracy not more than:0.5mm
6.Feeding speed of angle steel:15-20m/min
Model | Working range | Power(kw) | Weight(kg) | Dimension(L*H*G) |
STJG-30/50 | 30/40/50 angle steel | 5 | 900 | 3000*1150*1380 |
