Характеристики



Products Description






No
Item
Data
1
Brand Name
Shenyuan
2
Bucket capacity
JG
3
Insulation
Silicone rubber
4

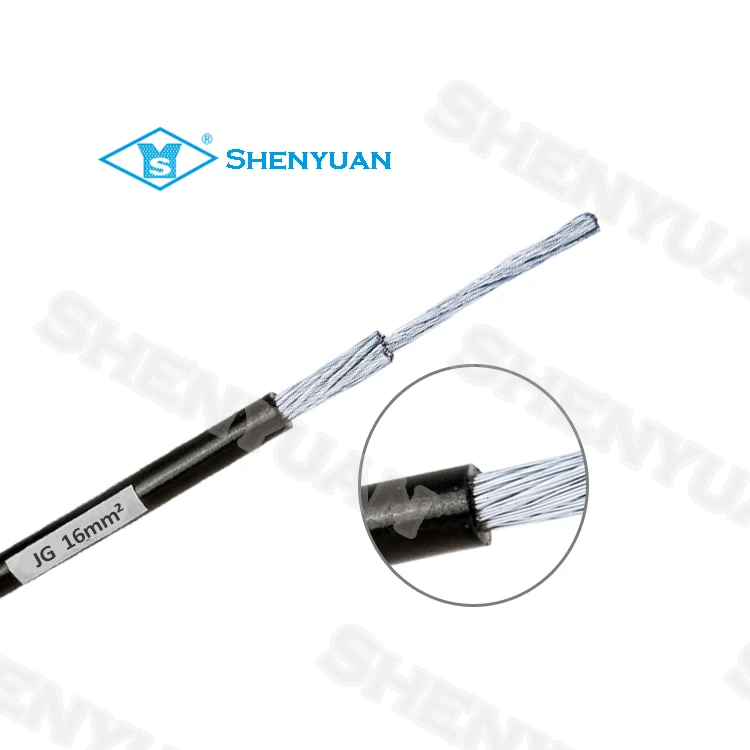

Conductor
Tinned & silver or nickel copper
5
Rated Voltage
500V、1000V
6
Temperature range
-60℃~+180℃
7

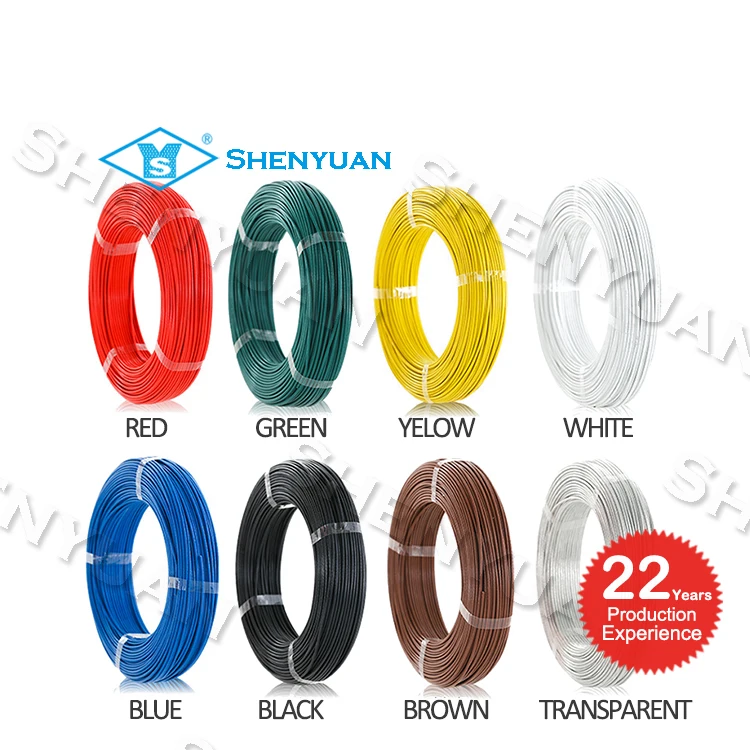

Colour
red / yellow / blue / white /black /yellow green / brown / orange / purple / green / etc
8
Application field
Used for various electric machineries，electronic ceramics，heating parts，car lights，lighting，ballast etc.


Comparative Advantage
Super flexible
Environmentally friendly
Odorless
High and low temperature resistance
Tear resistance
Anti-aging
Non-sticky surface
No frost
Excellent electrical performance


Product Paramenters




AWG
Conductor structure Strands/Diameter（mm）
Insulation Thickness （mm）
Average outer O.D. （mm）
20 ℃ conductor DC resistance （Ω/km）
Packing /Roll （m）
16
7 × 0.50
0.39
2.28
14.6
305
17
32 × 0.20
0.39
2.12
18.3
305
18
7 × 0.40
0.39
1.98
23.2
305
20
7 × 0.32
0.39
1.74
36.7
305
22
7 × 0.26
0.39
1.56
59.4
610
24
7 × 0.20
0.39
1.38
94.2
610
26
7 × 0.16
0.39
1.26
150
610
28
7 × 0.12
0.39
1.14
239
610
30
7 × 0.10
0.39
1.08
381
610


Properties
Ordinary silicone rubber
SHENYUAN silicone rubber
Environmental protection
Since the vulcanizing agent used contains a small amount of halogen, ordinary silicone rubber is low in halogen.
Silicone rubber raw materials and vulcanizing agents used are halogen-free, and the products meet the halogen-free requirements

Appearance
The use of 2,4-Dichlorobenzoyl peroxide , vulcanization will have a by-product, may produce frost spray phenomenon, the surface is dirty.
SHENYUAN product has no blooming phenomenon, better vulcanization, and better product gloss.

Odor
The use of 2,4-Dichlorobenzoyl peroxide ，agent will produce a pungent odor after vulcanization, which will affect the normal
installation and use.
SHNEAYUN product does not have any pungent odor, and it is safer and more assured when used.

Tensile Strength
The performance of ordinary silicone rubber raw materials is poor, and the tensile strength of the product is poor, about 5.5-6Mpa
The performance of SHENYUAN product silicone rubber raw material is significantly improved, and its tensile strength is better, at
7-8Mpa

Tear strength
The performance of ordinary silicone rubber raw materials is poor, and the tear resistance of the product is poor
The tear resistance of SHENYUAN product silicone rubber material has been significantly improved, and the tear resistance is better

Anti-aging
Ordinary silicone rubber will slowly oxidize under the action of light, oxygen and heat. As the use time increases, the surface
will gradually turn yellow and darken
SHENYUAN silicone rubber wire has good anti-aging properties, will not turn yellow or deform during long-term use, and has a longer service life.
High temperature resistance
Ordinary silicone rubber has good high temperature resistance, and the long-term use temperature is 200 degrees.
The high temperature resistance of SHENYUAN product silicone rubber has been appropriately improved, and it can with stand high temperatures of 250 ℃ in a short time.


more choice in cable


More Choice in Cable Configurations


Custom Engineered to Your Specifications and Designs Fluoroplastic wire
Silicone rubber wire
Silicone rubber insulated & braid wire
Multi conductor cables
UL certified high temperature cable
Fire resistance wire
High voltage wire
Thermocouple high temperature compensation cables

Conductor Materials
Conductors:
36AWG to 4/0 AWG
Bare copper
Tinned copper
Silver-plated copper
Nickel-plated copper
Copper alloys
Copper and nickel alloy
Pure nickel

Fibers and Yarns
Fiberglass
Silica sand
Aramid fiber
Stainless steel yarn
Insulating and Jacketing Compounds
Thermoplastics
PP
PE
PUR
Nylon
TPE
PEEK
Thermosets
XLPE

Fluoropolymers
PTFE
FEP
PFA
ETFE

Silicone rubber
Silicone
High tear resistance silicone rubber
Flame-retardant silicone
High-voltage silicone

Shielding
Application:Overall and individual conductors/pairs
Types: Foil, braid,


Shanghai Shenyuan High Temperature Cable Co., Ltd.
Welcome to our store to browse more products.
For more information, please contact us.>Click Here<










FAQ


Q1:Are you a trading company or manufacturer?
A1:Shanghai Shenyuan High Temperature Cable Co.,Ltd is a leading manufacturer in high temperature electrical wire and cable from1998.
We are a professional manufacturer,not a trading company,Thus,we can control your order from the first begining to the last.

Q2:What kinds of products does Shanghai Shenyuan High Temperature Cable Co.,Ltd produce?
A2:Our factory is located in Shanghai.Warmly welcome to visit us.

Q3:Can we have our logo or company name to be printed on your products or package?
A3:Yes,you can. Logo and company name can be printed on our products by silk screen printing.

Q4:Can I get the samples?
A4:Yes,sample is available for free,but the freight is collected.

Q5:How long can I expect to get the sample?
A5:The sample will be ready for delivery in 1 days,and will be arriving in 3-5 days by sending via express
