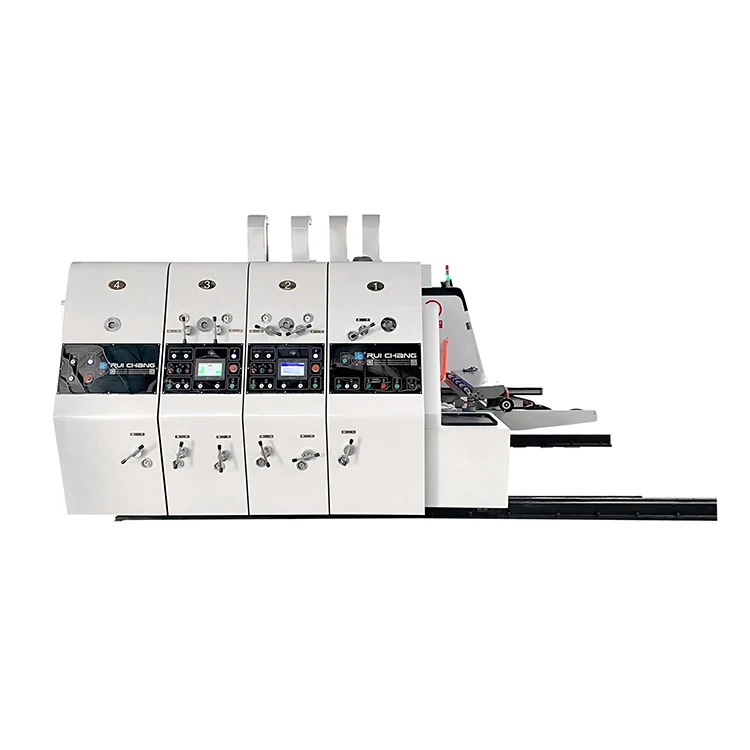

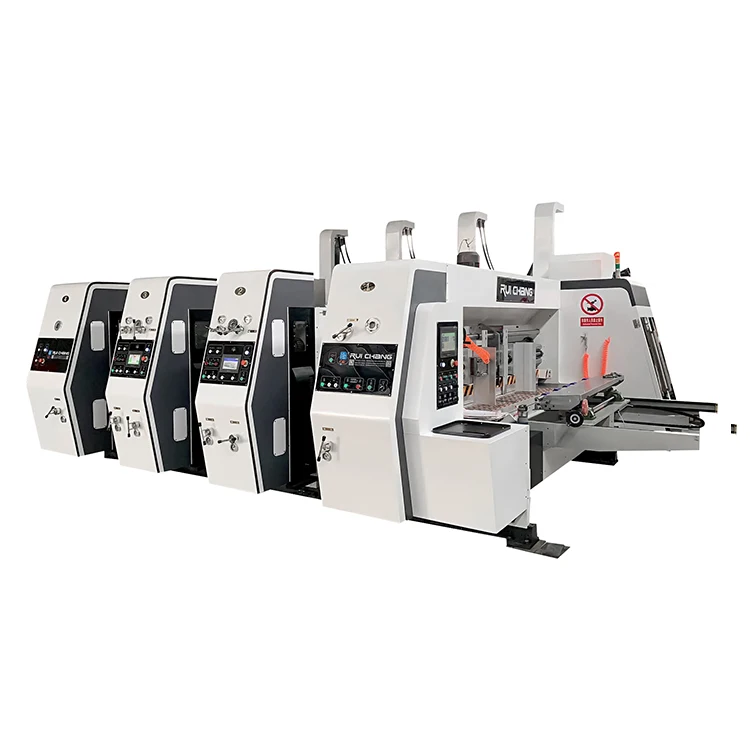

Полностью автоматическая машина высокой скорости 3 вида цветов печати автомат для гофрированного

Established in 1996, DongGuang RuiChang Carton Machinery Manufacture Co.,LTD is a professional manufacturer of flexo print slot die cut machine. We are located in DongGuang County which is famous for packing hometown with convenient transportation to TianJin sea port. Our print slot die cut machine comply with international quality standards and are greatly accepted by customer from domestic and aboard market.

We have over 50 employees, 2 engineers for technical upgrade,1 engineer for machine design ,70% of them worked for RuiChang Machine over 10 years.

If you are interested in any of our machine, please feel free to contact us for further information, we are looking forward to forming successful business relations with clients around the world in the near future.

Looking forward to your reply!

http://www.rczxjx.com.cn

Lucas

Mobile/Whats app:+8615100759783  Wechat:  w229381567

 Technical data

Machine details

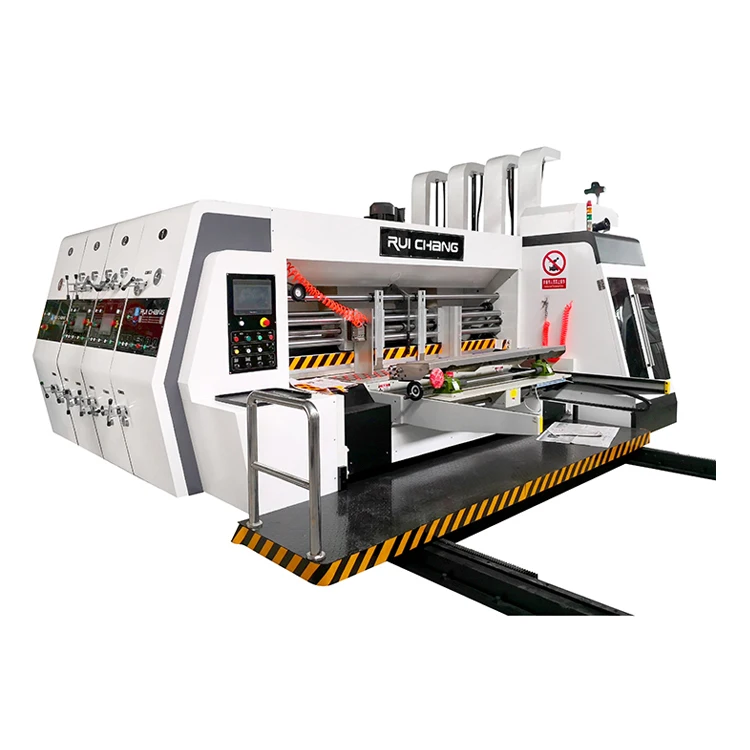

Feeder unit

Individual feeder unit ,it is easier to maintain and more stable when working.

Delta inverter and PLC ,touch screen operation .

Schneider contactor/ electric

Gear adopt 40Cr material with grinding technology with thickness 50mm

Units combined and detached by motor with alarm bell

Friction clutch installed on transmission roller which avoid machine damaged by mis-operation.

There is protect  system for main motor(machine can not working when it is not locked for combination).

Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed .

Dust removal device is installed

Front baffle is adjusted by manual.

Skipping feeding is available.

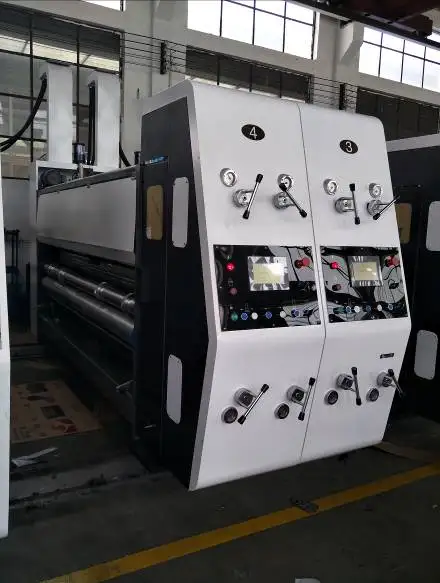

Printing unit

Touch screen operation .

Schneider contactor/ electric

Gear adopt 40Cr material with grinding technology with thickness 50mm

There is groove on the print roller which is used for installing the printing plate with foot switch .

Print rollers, ink roller and embossing rollers all adopt dynamic balance technical for ensure steady transmission.

Print roller can move 15mm by motor operation.

Ink roller lifting automatically coordinate with feeding system. Installed wedge clutch which is good for ink distributing and washing.

DaLian brand for ink anilox roller

Touch screen/ button adjusted on the side.

Ink automatic cycle.

LPI ranged from 220 to 280.

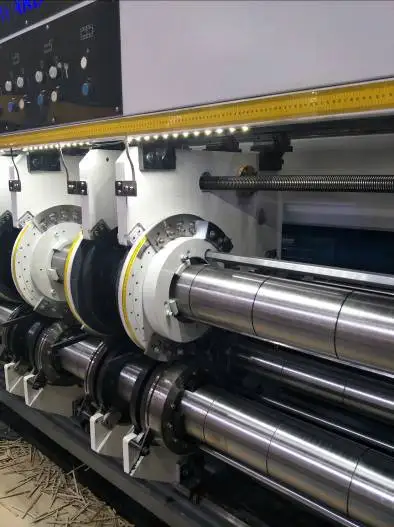

Slotter unit

5 blades 10 screw rods,

Pre-creasing,creasing,slotting structure.

Touch screen operation on the side.

Electric buttons operation on the back also.

Gear : 40CrMnTi,50mm,grinding technology

Schneider contactor/ electric

Main bearing is NSK

All rollers adopt dynamic balance progress

Auto zero and order storage

Carton height is adjusted by computer ,upper and lower blades and creasing wheel move together synchronously.

1.Are you manufacturer ?

Yes, we are a manufacturer with 20 year manufacturing  experience and  we have our own export company.

workshop

License and certificates

2. What is your product?

We are professional  carton making machinery manufacturer .

3.Do you have experience in packing for sea shipping?

Yes, we will wrap the machine with plastic film ,packed with steel shelf and wooden plate,then fixed in the container.

4. What we should do after we placed the order?

Seller will send a articles list and floor drawing which buyer should prepared in advance .

5.Who will install the machine when machines reached our factory?

We will send professional installer to install the machine and teach the operator how to operate and maintain the machine in customer factory ,it is free within 7 days. Buyer only need to offer return tickets and visa expenses .

6.Do you have local service ?

  Yes, we have. If customer come across the problem with the machine ,he can contact our local staff first.

Seller will go to check the machine situation once-twice in one year.

7 .what we  should do if we need spare parts for replacement ?

We will delivery some frequent spare parts along with order for emergency replacement.

We have comprehensive inventory of spare parts in our factory  to ensure quick availability for the infrequent replacement of parts required, we will delivery the spare parts by DHL when we get the spare parts information from customer side within 24 hours .
