DTI-T3 сэндвич вставки ультразвуковой водомер новая модель счетчика

The new generation of T3 series ultrasonic water meter uses a technology similar to that of FLEXIM company’s ultrasonic flowmeter. The transit time difference is obtained through correlation calculation of captured signal waveform, thus featuring high precision, low drift, anti-interference, stability and reliability.

 Product Features

1) Range ratio 40:1,100:1, 200:1

2) Standard: ISO4064 class B (class 2), 2% accuracy within the range

3) Protection grade: IP68

4) Flow rate range: 0.01m/S~8m/S

5) Low initial velocity to 1 mm/s, low zero drift (value to be determined)

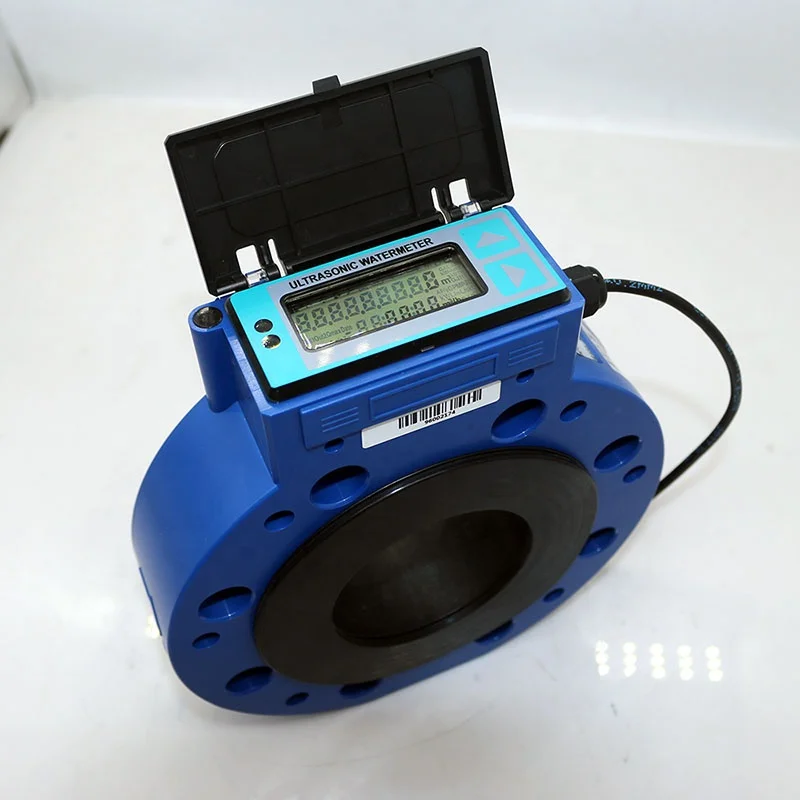

6) Display: multiple lines display simultaneously 9-bit long accumulator, 6-bit long instantaneous quantity, signal strength, battery status, flow direction, fault, communication status, etc

7) Flow unit selectable: cubic meter, American gallon, liter, cubic foot, acre foot

8) Operation: double capacitor touch button, support sliding operation

9) Output: optional 2-channel OCT outputs, which can simulate the double-pulse output of mechanical water meter

10) Communication interface: independent RS485 and infrared interface. Baud rate selectable 2400, 4800, 9600 Optional MBUS interface, Lora/ NB-iot wireless communication and  USART interface

11) Communication protocol: support MBUS, MODBUS, ASCII and CJ188 at the same time

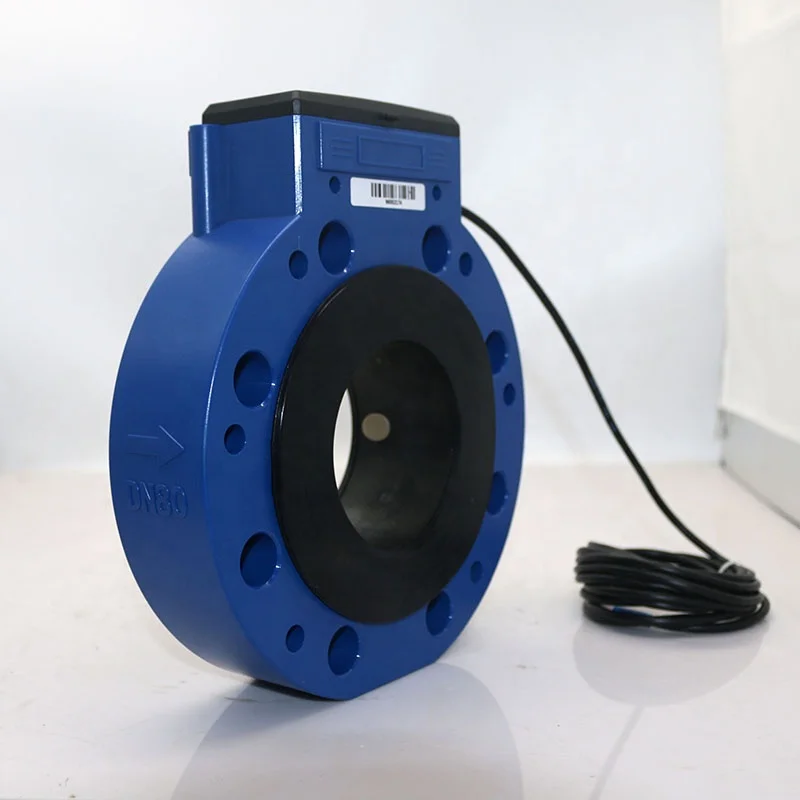

12) Pipe diameter: DN80 (batch supply in early December 2019), DN65 (batch supply in late December 2019),

DN100, DN125, DN150, DN50 (batch supply starting from January 2020)

13) Power supply: 3.6V4Ah disposable lithium battery power, >6 years of service life

14) In-field software upgrading: yes

15) Data retention time after power failure: 10 years

16) Technology applied: single channel ultrasonic principle, waveform analysis, correlation calculation, signal amplitude adaptive.

17) This product is a one-time product, and the defective products can only be replaced without repair within one year.

 Technology Of  Flow Meter

 What  Can  We Do For You ?

1. Factory price with OEM & ODM service

2. ISO & CE certificated with the ultrasonic flow meter .

3. Usually we have fow meter in stock,we can send the flow meter within 24hours .

4. 18months warranty :  if there is any fault with the ultrasnic flow meter during the warranty,we will send you the same model freely ,we will do as what we promised to coustomers.

5. 10% less freight charge at lest : We have good frendship with DHL and TNT ,we can get the best price of feright from them,usually we can get 10% less than others.

6. We provide 24hr online service

 Teren instruments was established in 2007, main focus on running of instruments, main cover ultrasonic flow meter, ultrasonic level meter, ultrasonic water meter, electromagnetic, turbine, vortex, oval gear flow meter,  radar Level meter and other series industry instruments.

we have overcame many technical difficulties on fluid analysis under the guidance of Professor Jing Xian Wang , such as “High frequency Multiple-pulse Ultrasonic launch drive”,“Hydraulic pipeline efficient circulation Washing Device” and so on, meanwhile, Jing Xian Wang professor have got several patents, like ZK-120.
Our products gain acceptance from users in domestic and aboard for years. We are reliable, experienced and trustworthy.
