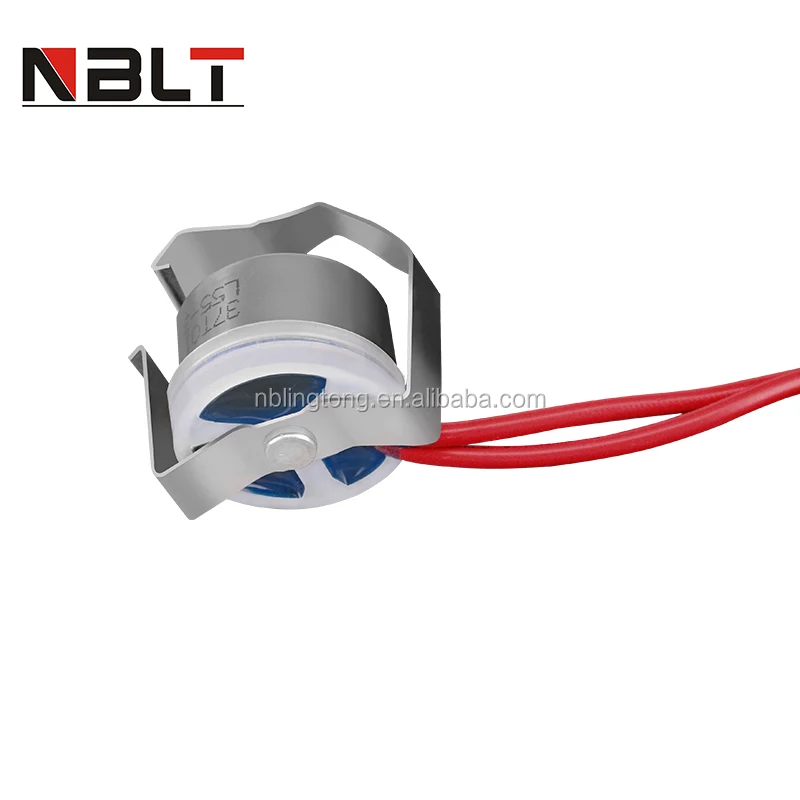

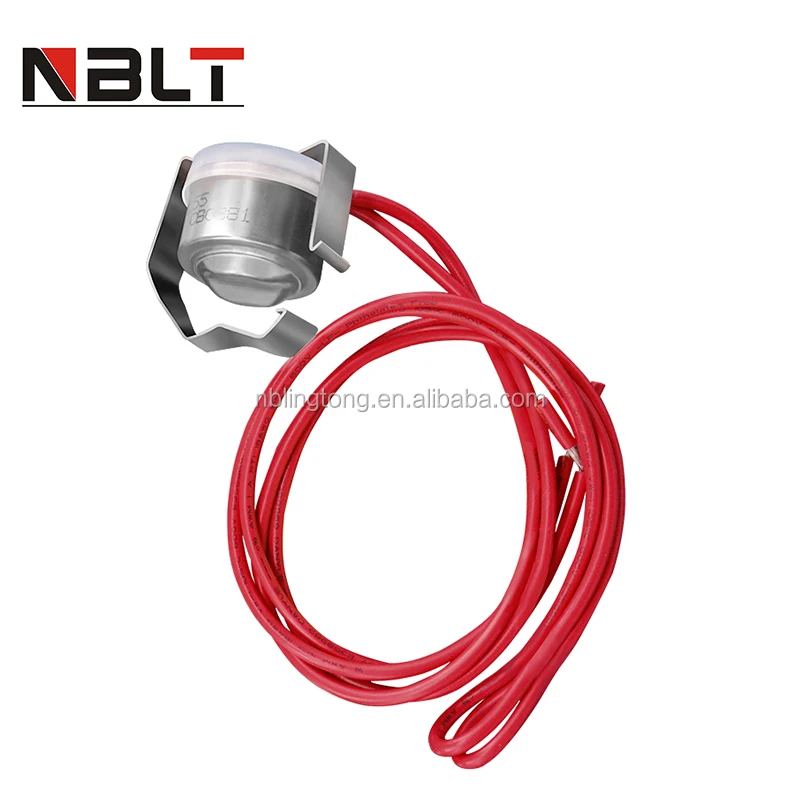

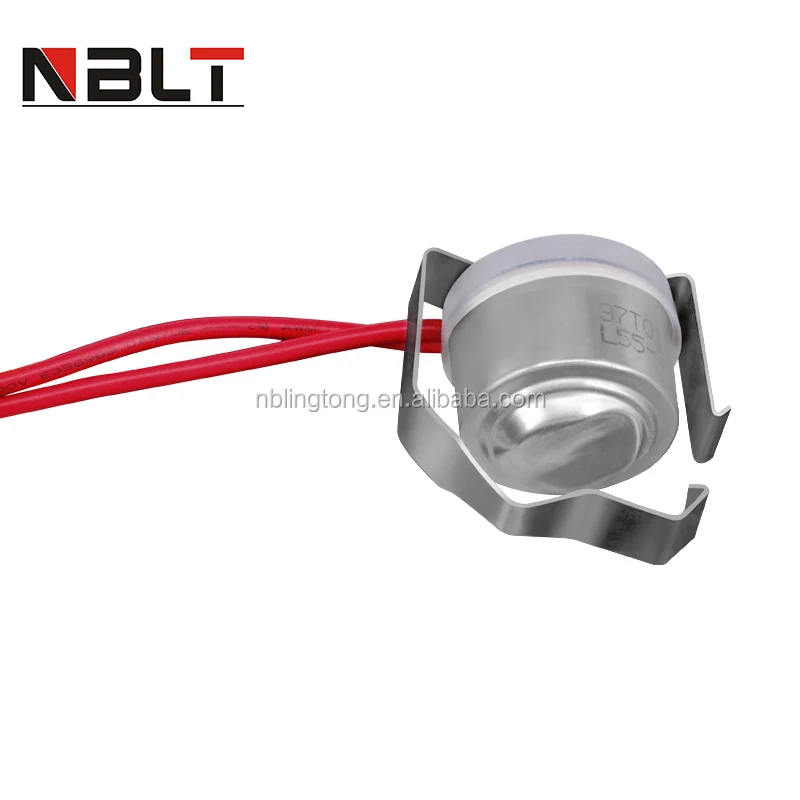

Новое поступление высококачественный термостат 5 9 cummins для заводского поставщика PL-001

ltem NO

PL001ML55 (24170)

Use

Defrost/Temperature control/Protection

Appliance

refrigerators, freezer

Reset type

Automatic

Base material

Amperage

3A/6A/10A/25A

6Max. Operating Temperature

60°C

Differential

According to the requirement

Min. Diff

8°C

Tolerance

Refer to the regulation

Cold-resistant
Temperature

-30°C

Limit of the tolerance(OFF)

±3°C

Limit of the tolerance(ON)

±3°C

Contact material

Silver

Dielectric Strength

Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC
current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.

Insulation
Resistance

With a DC 500V megger, borne DC 500V, the tested value is over 10MW.

Resistance
Between Terminals

Below 50mW

Temperature characteristics

Normal close, Normal open

Maximum
ambient
temperature

90°C

Diameter of
bimetal disc

F12.8mm(1/2″)

Line

Color: white/brown/yellow/blue Length: customized

Terminal type

Customized (Refer to our specification)

Cover/Bracket

Customized (Refer to our specification)
