Bandary DC Инвертор Компрессор драйвер контрольная плата инвертор pcb OEM ODM
- Категория: Блок печатных плат >>>
- Поставщик: Shenzhen,Bandary,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.32 $* | 0.70 $* |
| Aug-15-2025 | 0.14 $* | 0.56 $* |
| Jul-15-2025 | 0.61 $* | 0.94 $* |
| Jun-15-2025 | 0.96 $* | 0.35 $* |
| May-15-2025 | 0.45 $* | 0.62 $* |
| Apr-15-2025 | 0.96 $* | 0.13 $* |
| Mar-15-2025 | 0.46 $* | 0.73 $* |
| Feb-15-2025 | 0.18 $* | 0.71 $* |
| Jan-15-2025 | 0.2 $* | 0.35 $* |
Характеристики

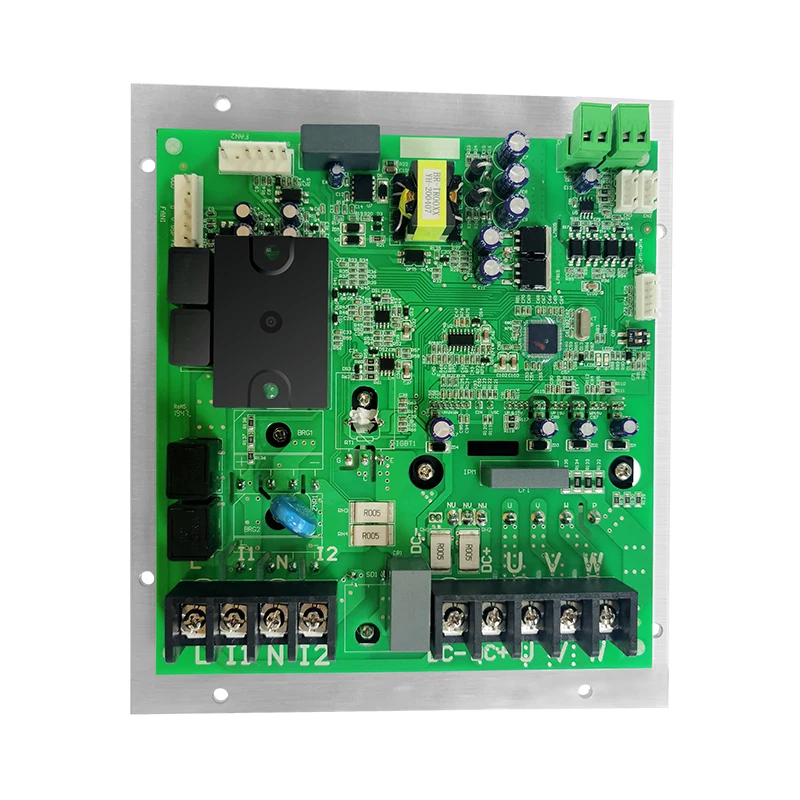

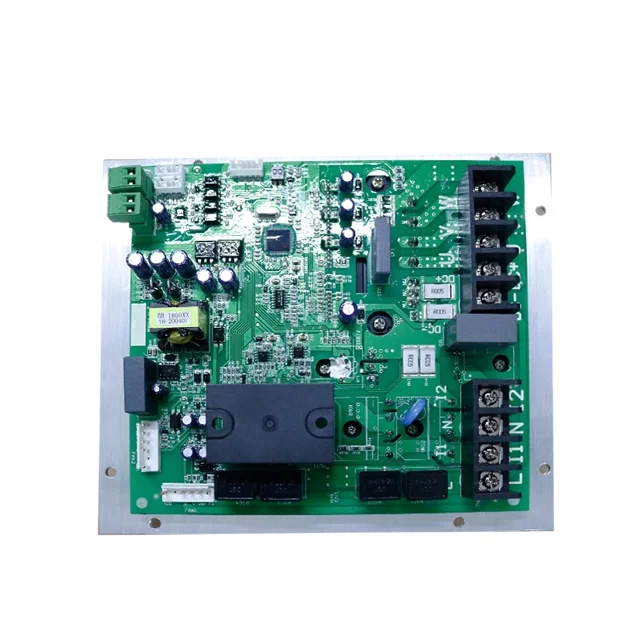

5HP compessor driver
module PCBA
module PCBA
Introduction
BDA01A is designed for driving DC frequency
inverter compressor. Bandary compressor
driver module (BDA01A) integrates rectifier
bridge, PFC, switching power supply, IPM
module, DC fan drive circuit and
communication circuit, with low harmonic
and high efficiency.
inverter compressor. Bandary compressor
driver module (BDA01A) integrates rectifier
bridge, PFC, switching power supply, IPM
module, DC fan drive circuit and
communication circuit, with low harmonic
and high efficiency.
Advantages
Suitable for Multi-VRF system, mini
VRF system, monobloc heat pump and
split heat pump system and fresh air
inverter systen.
VRF system, monobloc heat pump and
split heat pump system and fresh air
inverter systen.
Failure Alarm | |||||||
IPM fault alram | IPM temperature transmit fault &high temp alram | ||||||
compressor stalling or phase loss alarm | compressor phase current overload alarm | ||||||
current sampling fault alarm | IGBT high temperature alarm | ||||||
IGBT temperature transmit fault alarm | DC bus overvoltage &undervoltage alarm | ||||||
AC overvoltage or undervoltage alarm | AC input overcurrent alarm | ||||||
15VDC undervoltage alarm | external swithes off alarm | ||||||
Outdoor Unit frequency reduction protection | |||||||
1 | current overload protection | ||||||
2 | comp phase current overload protection | ||||||
3 | IPM/IGBT high temperature to reduce frequency protection | ||||||
