Характеристики

Product Description

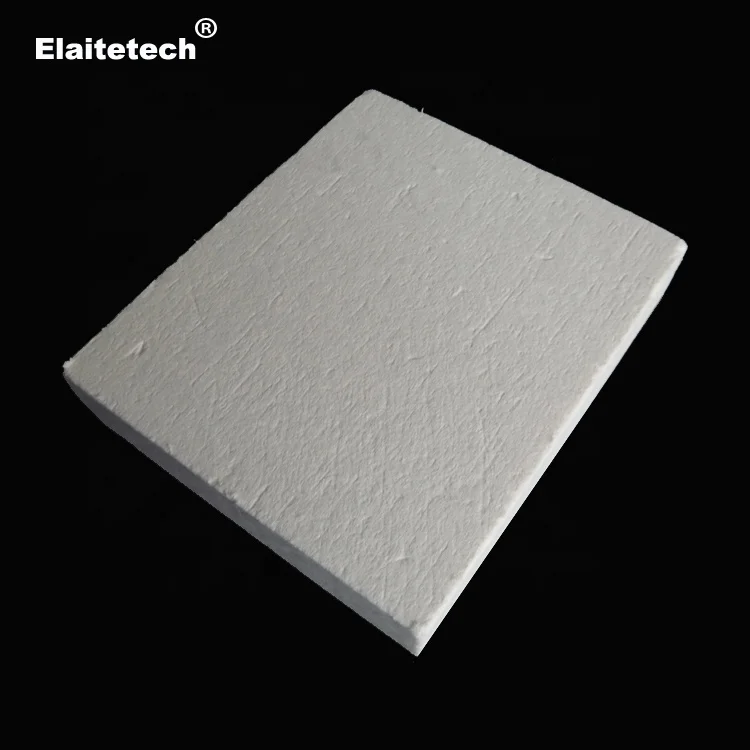

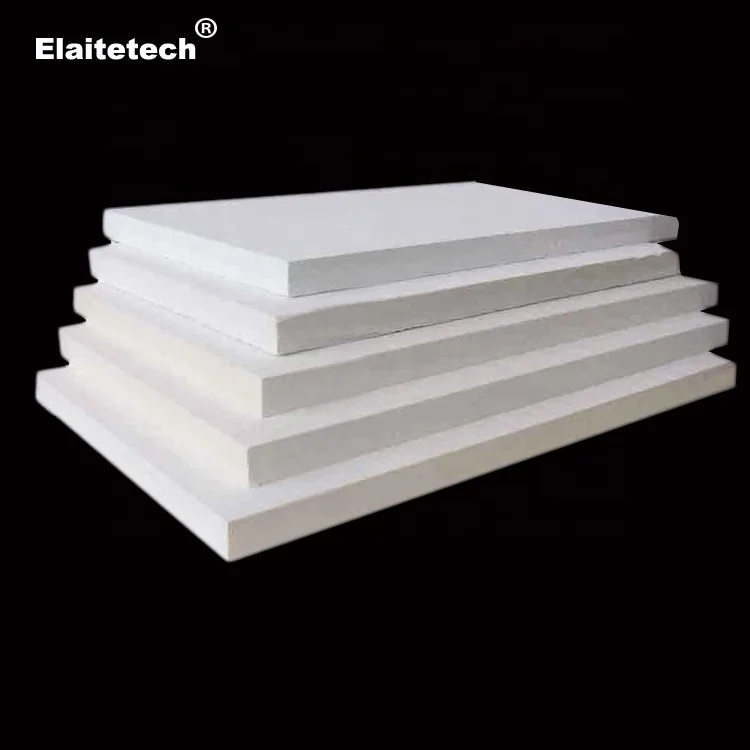

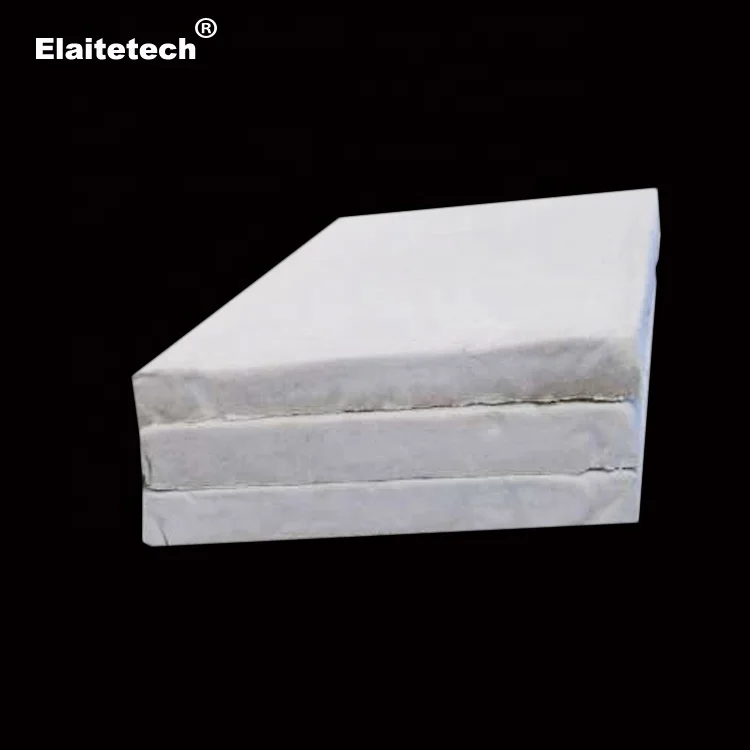

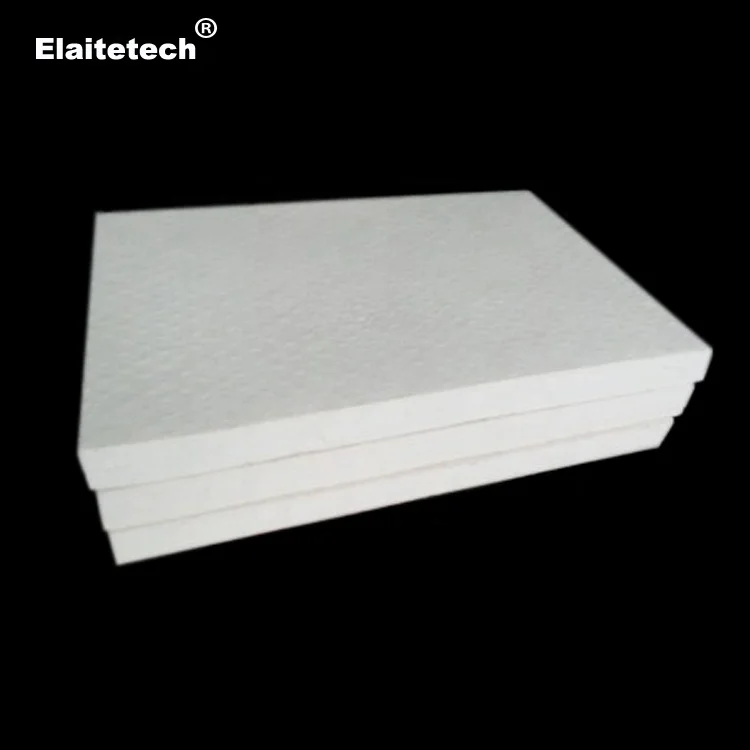

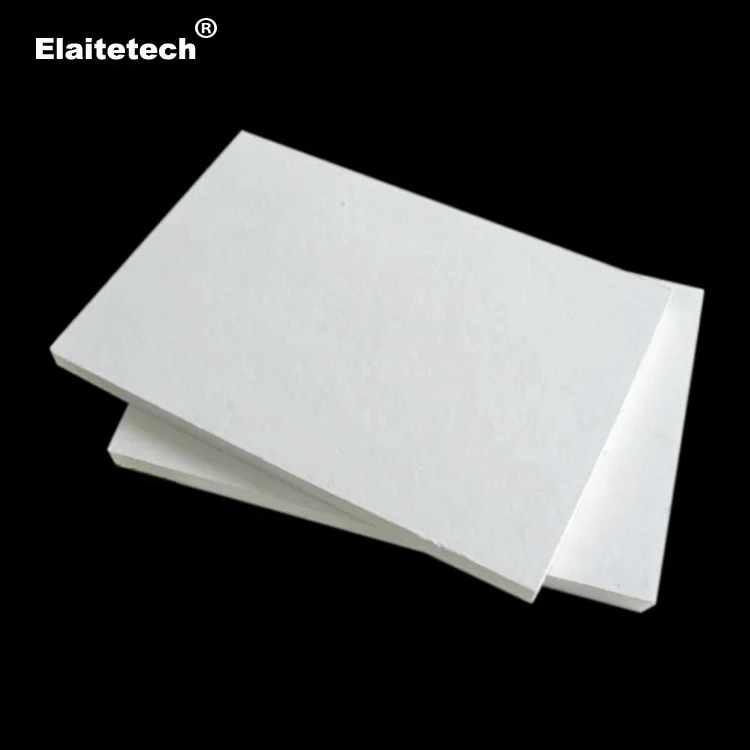

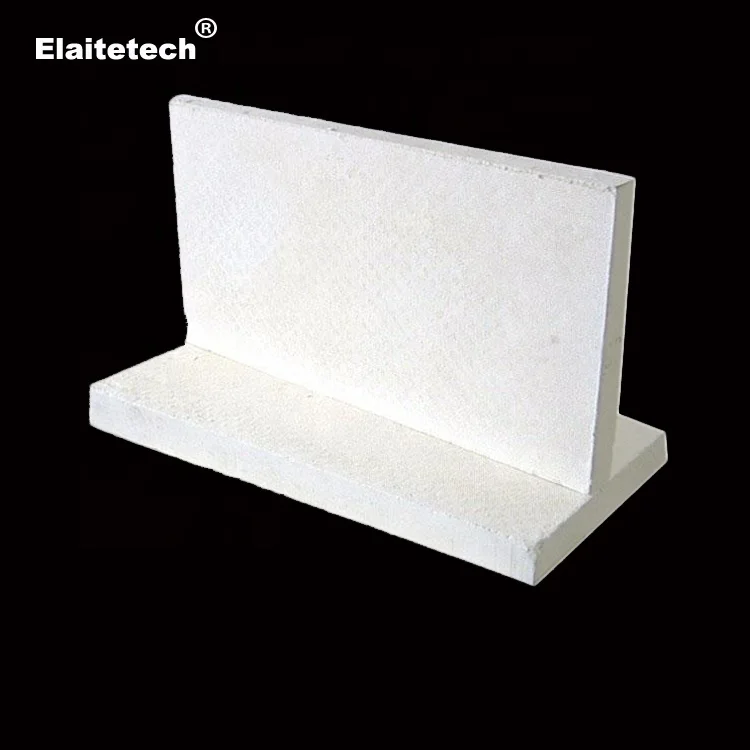

Aluminum silicate ceramic fiber boards are produced through vacuum forming process of ceramic fiber and binders. Aluminum silicate ceramic fiber boards have feature of with high temperature stability, low thermal conductivity, even density, excellent resistance thermal shock and chemical attack. They are widely used as furnace lining in all kinds high temperature furnace and kiln, and also used for other high temperature resistance application.

Product Advantages

1. Low heat capacity, low thermal conductivity.

2. Excellent heat stability and thermal shock resistance.

3. Accurate dimension and good flatness.

4. Excellent anti-erosion properties.

5. Easy to cut to install, easy construction.

6. Good toughness, high strength, long life.

7. Asbestos free

Product Application

1. Lining of various kilns for thermal insulation.

2. Flue & chimney linings in furnace & kilns.

3. Furnace door insulation, hot face lining of kilns.

4. High temperature boiler wall insulation, insulation for kiln car.

5.Petrochemical and metallurgy industries- back linings, wall linings, and linings-thermal insulation.

Technical Data

Type	Common grade	Standard grade	High pure grade	High alumina Grade	Zirconium grade
Color	White	Pure white	Pure white	Pure white	Pure white
Classification temp.	1100°C	1260°C	1260°C	1360°C	1430°C
Use temp.	≤1000°C	1050°C	1100°C	1200°C	1350°C
Density (kg/m³)	260-320	260-320	260-320	260-320	260-320
Shrinkage on heating (%)(density as 320kg/m³)	1000°C×24h ≤-4	1050°C×24h ≤-3	1100°C×24h ≤-3	1200°C×24h ≤-3	1350°C×24h ≤-3
Tensile strength	0.5MPa	0.5MPa	0.5MPa	0.5MPa	0.5MPa
Thermal conductivity ( w/m.k) (Physical volume density 285 Kgs/ m³)	0.085(400°C) 0.132(800°C) 0.18(1000°C)	0.085(400°C) 0.132(800°C) 0.18(1000°C)	0.085(400°C) 0.132(800°C) 0.18(1000°C)	0.085(400°C) 0.132(800°C) 0.18(1000°C)	0.085(400°C) 0.132(800°C) 0.18(1000°C)
AL₂O₃	44%	46%	47-49%	52-55%	39-40%
AL₂O₃+SiO₂	96%	97%	99%	99%	82-84%
ZrO₂	-	-	-	-	15-17%
AL₂O₃+SiO₂+ZrO₂	-	-	-	-	99%
Fe₂O₃	≤1.2%	≤1.0%	≤0.2%	≤0.2%	≤0.2%
Na₂O+K₂O	≤0.5%	≤0.5%	≤0.2%	≤0.2%	≤0.2%

Product Size

Length×Width×Thickness	Length×Width×Thickness
600×300×10-50mm	600×400×10-50mm
900×600×10-50mm	1000×600×10-50mm
1000×1000×10-50mm	1200×500×10-50mm
1200×600×10-50mm	1200×1000×10-50mm
Remarks: Other size can be customized according to your requirements.
