Волоконная лазерная сварочная машина автоматическая для ювелирных изделий на
- Категория: Лазерные сварочные станки >>>
- Поставщик: Jinan,TechPro,CNC,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.49 $* | 0.56 $* |
| Aug-16-2025 | 0.68 $* | 0.98 $* |
| Jul-16-2025 | 0.59 $* | 0.81 $* |
| Jun-16-2025 | 0.17 $* | 0.84 $* |
| May-16-2025 | 0.46 $* | 0.72 $* |
| Apr-16-2025 | 0.62 $* | 0.12 $* |
| Mar-16-2025 | 0.3 $* | 0.65 $* |
| Feb-16-2025 | 0.12 $* | 0.16 $* |
| Jan-16-2025 | 0.94 $* | 0.34 $* |
Характеристики
Product Description
Feature of Jewelry Laser Welding Machine
1.High precision / Weld any work piece with confidence
2.Advanced cooling system3.Intuitive touch screen interface / Very easy to operate
4.Microscopic weld joints / Weld small work pieces easily
5.10x stereo microscope / See the work piece close-up and clearly
6. Customizable welds / Manipulate the weld to your standard
7. A larger than normal opening in the weld chamber / Bigger access for larger pieces allowing you to work more freely
8. Pulse-shape settings
9.Superior, high-efficiency components / A cooler running system that reduces stress on critical-wear parts and greatly reduced maintenance
10.High-efficiency optics to enable a higher average power output from fewer joules / Efficient running machine
11. User-friendly, touch-screen control / Setting weld parameters is simple and quick

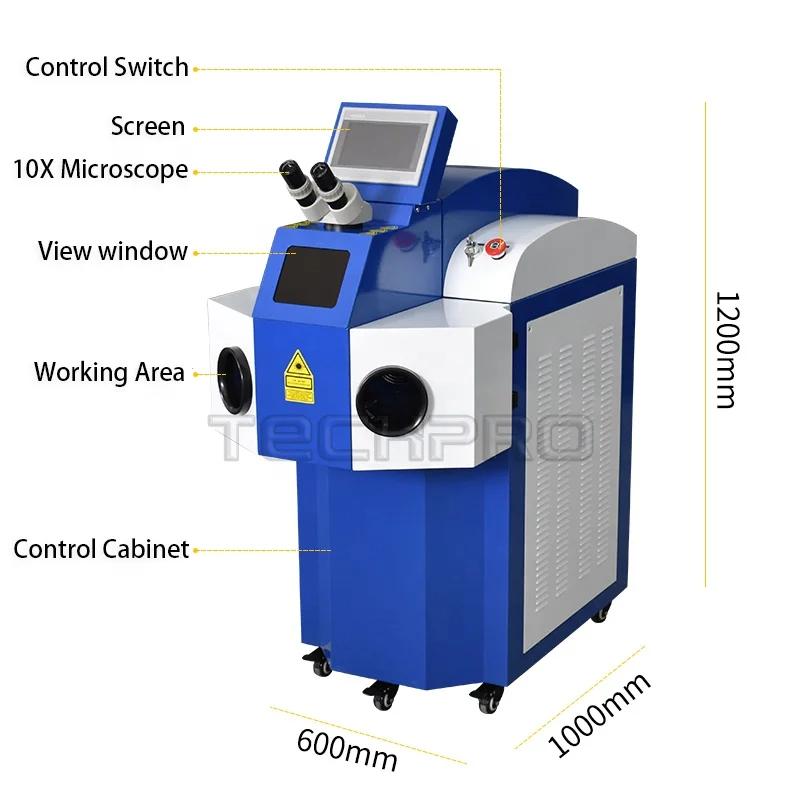

Machine Configuration
Machine Configuration | ||
Model | TPH-200W | |
Laser power | 200w | |
Laser wavelength | 1064nm | |
Max Single Pulse Engery | 100J | |
Pulse Width | ≤ 20ms | |
Power supply | 220V±5% / 50Hz or 110V/60Hz | |
Beam Diameter | 0.1-3.0mm | |
Observing System | microscope | |
Chamber Illumination | LED circle lamps | |
Parameters Memorization | 10 groups | |
Protection Alert | flow alert | |
Language Display | English | |
Shield Gas Supply | One line | |
Cooling System | Water cooling | |
Detailed Images
Microscope
Adopt 10x microscope viewing system, helps to achieve extremely fine workpiece welding.
Working Area Table
Easy for welding jewellery ring
Control System
Professional control sytem for laser welding machine, easy to operate and flexible, high stability. More user-friendly operation.
Gas Blowing Pipe
By blowing nitrogen or argon gas, the workpiece is prevented from oxidizing and blackening and the angle of the blowing pipe can be adjusted.

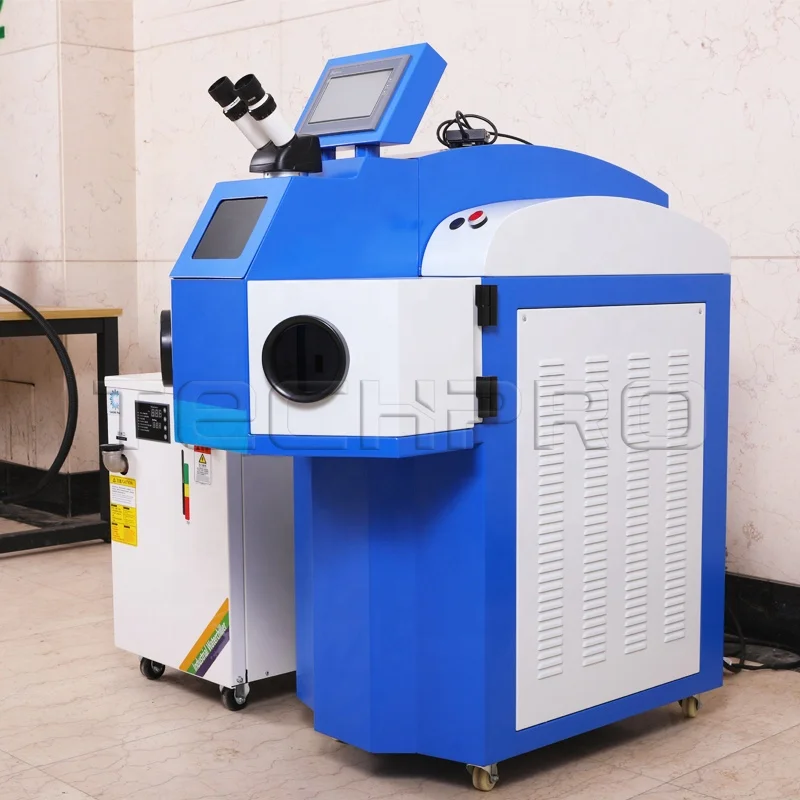

Water Chiller
With compressor can cool down fiber laser quickly to ensure that the fiber laser has stable power and efficient and fast operation.
Machine Sample
Packing&Shipping
Packaging & Shipping detail:
1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:1350*780*1350mm ,GW: 350kg
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:1350*780*1350mm ,GW: 350kg
Shipped in 7-15 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
After Service
1.) Warranty: 3 years on parts from date of shipping date, Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
Company Profile
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
A:We provide 3 years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
A:We provide 3 years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A: nozzle. our machine with 3 nozzles when delivery. It’s very economical and cost effective.
A: nozzle. our machine with 3 nozzles when delivery. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.
Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
