Однопокровная машина для изготовления двухслойного производственная линия/оборудование гофрокартона 2/3/5/7ply линии производства картонной коробки/wj150-1800 одностеночная с двойными стенками гофрированные различного

Однопокровная машина для изготовления двухслойного производственная линия/оборудование гофрокартона 2/3/5/7ply линии производства картонной коробки/wj150-1800 одностеночная с двойными стенками гофрированные различного

Категория: Табака обрабатывающее оборудование >>>
Поставщик: Cangzhou,Quanheng,Imp,&,Exp,Trade,Co.,Ltd.

Цена:200 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	238000.56 $*	249900.41 $*
Aug-19-2025	236000.97 $*	247800.31 $*
Jul-19-2025	198000.2 $*	207900.32 $*
Jun-19-2025	232000.25 $*	243600.45 $*
May-19-2025	202000.1 $*	212100.84 $*
Apr-19-2025	228000.43 $*	239400.60 $*
Mar-19-2025	226000.73 $*	237300.32 $*
Feb-19-2025	224000.87 $*	235200.1 $*
Jan-19-2025	222000.26 $*	233100.58 $*

Характеристики

CANGZHOU QUANHENG CARTON MACHINERY CO.,LTD MANUFACTURER FACTORY

Name:1800mm-150m-2plys corrugated cardboard plants

specification	Equipment name	UNIT	QTY	Remark

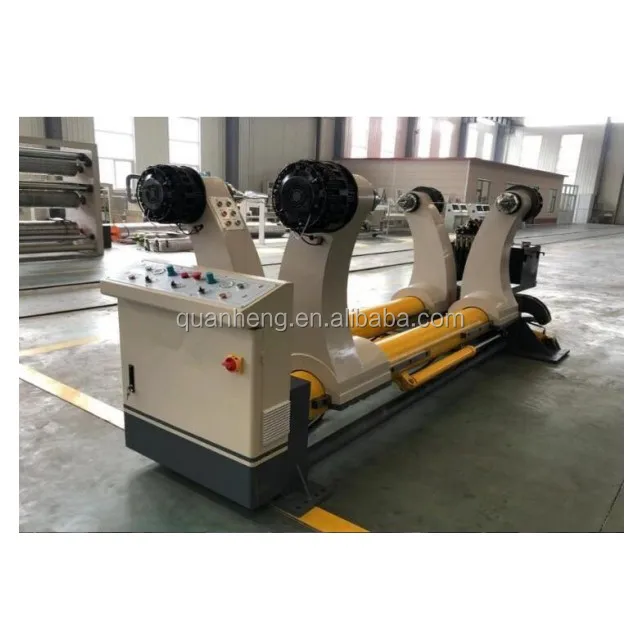

ZJ-V5B	Hydraulic shaftless mill roll stand	set	2	The spindle240mm,hyperbola heavy rocker,toothed chuck,multi-disc ventilated disc brakes,hydraulic drive lift,left and right translation,for medium. Rail length 6000mm,trolley used 10mm plate welding.
	Paper trolley	set	4
RG-1-600	preheater	set	2	roller900mm,including certificate of pressure vessel.Electromotion adjustment angle.
SF-320S	S Type Single facer	set	1	Corrugated main roller 320mm,48CrMo.
ZDF	Conveyor bridge	set	1	Independent frequency motor drive lifting, transmission.Main beam is connected with the 20th channel, 16-beam, No. 63 angles, columns, etc. Both sides of the security fence, the word pedals, ladders.

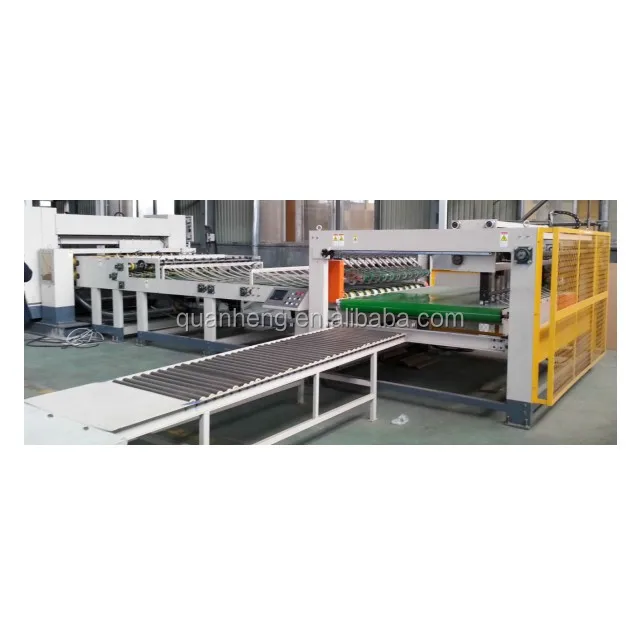

DHE-120	Single corrugated the aspect Cutter(Spiral knife Crosscutting,down stacking )	set	1	Electric control the knives distance.NC cutoff with down stacker
QH-1T	Gas heating steam boiler	set	1	Gas Heating type,supply steam boiler

Model: WJ1800mm-II 2-layer corrugated cardboard production line:

1. Maximum production width of corrugated board: 1800mm

2. Design speed: 120m/min; Economic speed: 100m/min

Note: The paper for production line speed test should meet the following requirements: (The surface temperature of equipment is not lower than 172°C)

* The grade of the base paper must not be lower than Grade B

* The water content of the base paper is approximately: 11% ± 2%

* Face Paper: 100-250g/m2 * Core Paper: 100--250g/m2

*Paper tiles: 100-200g/m2

3, corrugated type combination: A, B, C, E (or selected by the customer)

4, steam requirements:

* Steam volume 2500-3000Kg/Hr * Maximum pressure: 1.2Mpa

*Common pressure: 0.8-1.1Mpa

6, power supply: 380V 50Hz three-phase four-wire system

7, the equipment covers an area: about the specific length based on the foundation foundation map

8, the device out of paper direction: according to the user's plant to determine the drive left or right

9, equipment applicability, available A, B, C grade homemade base paper or imported paper

Customer-owned part

1. Steam heating system: It is recommended to use a 4000Kg/Hr steam boiler with a pressure of 1.25Mpa steam pipe.

2, air compressors, air ducts, glue pipelines.

3, power, wires connected to the operating cabinet and line pipe.

4, water, water pipes, buckets and so on.

5, water, electricity, gas ground plane installation of civil engineering.

6, raw materials for test run, corn (potato) starch, caustic soda for industrial use, borax and other materials.

7, equipment with oil, lubricants, hydraulic oil, grease.

8. Install and adjust personnel's diet and accommodation, and provide installation workers to cooperate with the installation and pay the workers' daily salary.
