Длинный тип LMB12LUU размер дюйма линейный подшипник с направляющим движением

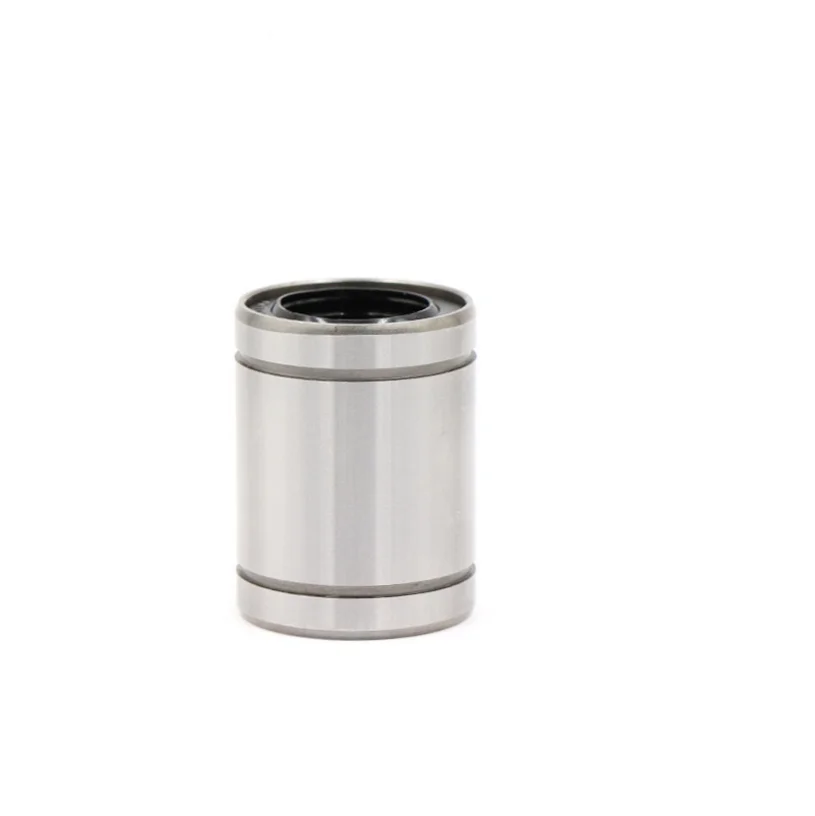

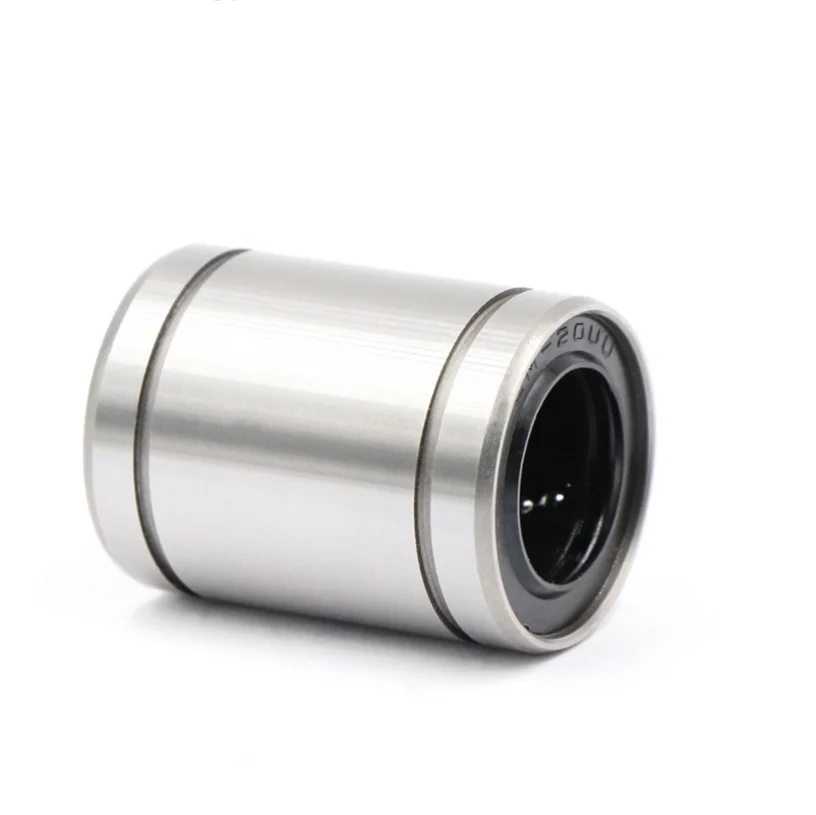

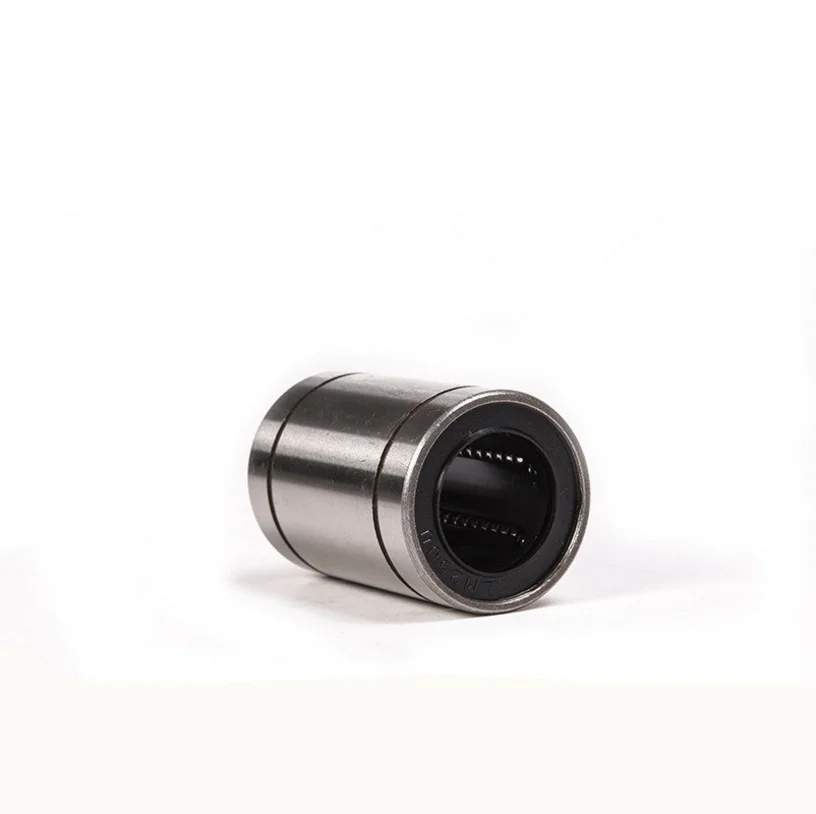

Linear motion bearing consists of an outer cylinder,ball retainer,balls and two end rings. The ball retainer which holds the balls in the recirculating trucks in held inside the outer cylinder by end of rings.those parts are assembled to optimize their required functions.the outer cylinder is maintainedsufficient hardness by heat treatment,therefore it ensures the bushings projected travel life and satisfactory durability.we can offer a full line of linear motion bearing:the standard,the clearance adjustable type and the open.double retainer and flanged type, these products are easy to assemble,easy to replace.

1  High Precision and Rigidity

 The Linear motion bearing is produced from a solid steel outer cylinder. Also the linear motion bearing incorporates either a patented all steel hardend seamless ball retainer or an industrial strength resin retained.

2  Ease of Assembly

 The standard type of linear motion bearing can be loaded from any direction. Precision control is possible using only the shaft supporter, and the mounting surface can be machined easily. We also provides a variously of housings for all types of slide bushings, offering convenience of design and assembly.

3  Ease of Replacement

 Linear motion bearing of each type are completely interchangeable because of their standardized dimensions and strict precision control. Replacement because of wear or damage is therefore easy and accurate.

4   Variety of Types

We offers a full line of linear motion bearing: the standard, integral single-retainer closed type, the clearance adjustable type and the open, double-retainer, and flanged types. The user can choose from among these according to the application requirements to be met.

Model number:

UU" means rubber seals on the both sides of the long type bearing
"LM" means metric standard type
"LME" means inch standard type
"OP" means open type
"AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type

Standard Type:LM3 LM4 LM5UU LM6UU LM8UU LM10UU LM12UU LM13UU LM16UU LM20UU LM25UU LM30UU LM35UU LM40UU LM50UU

LME3 LME4 LME5UU LME8UU LME10UU LME10UU LME16UU LME20UU LME25UU LME30UU LME40UU LME50UU LME60UU LME80UU

Adjustable types:LM6UU-AJ LM8UU-AJ LM10UU-AJ LM12UU-AJ LM13UU-AJ LM16UU-AJ LM20UU-AJ LM20UU-AJ LM25UU-AJ LM30UU-AJ LM35UU-AJ LM40UU-AJ LM50UU-AJ LM60UU-AJ LM80UU-AJ LM100UU-AJ

Open type: LM10UU-OP LM12UU-OP LM13UU-OP LM16UU-OP LM20UU-OP LM20UU-OP LM25UU-OP LM30UU-OP LM35UU-OP LM40UU-OP LM50UU-OP LM60UU-OP LM80UU-OP LM100UU-OP

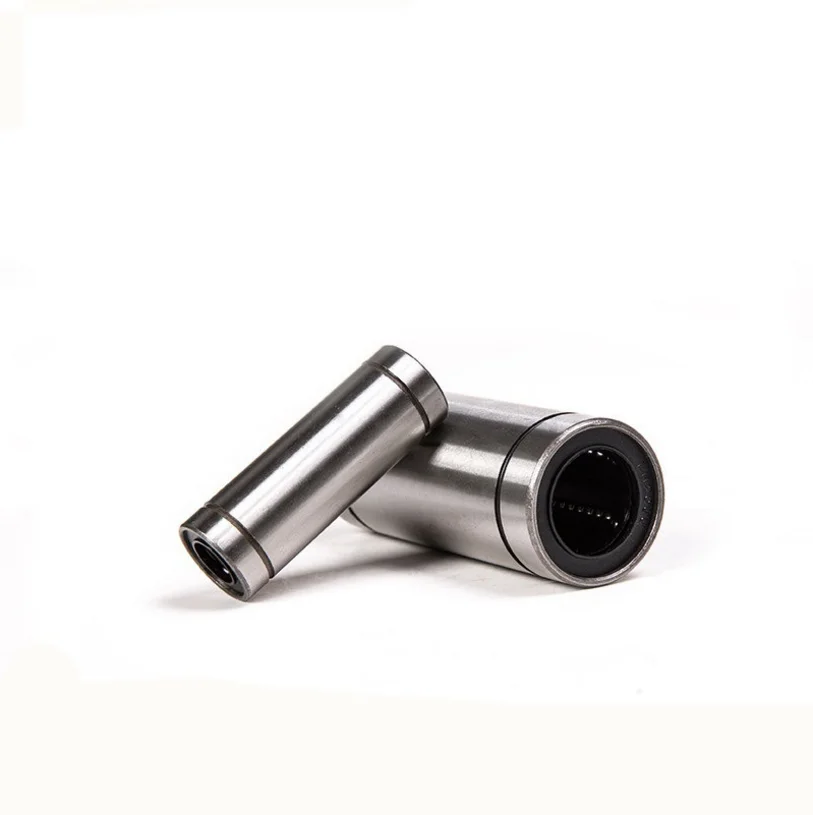

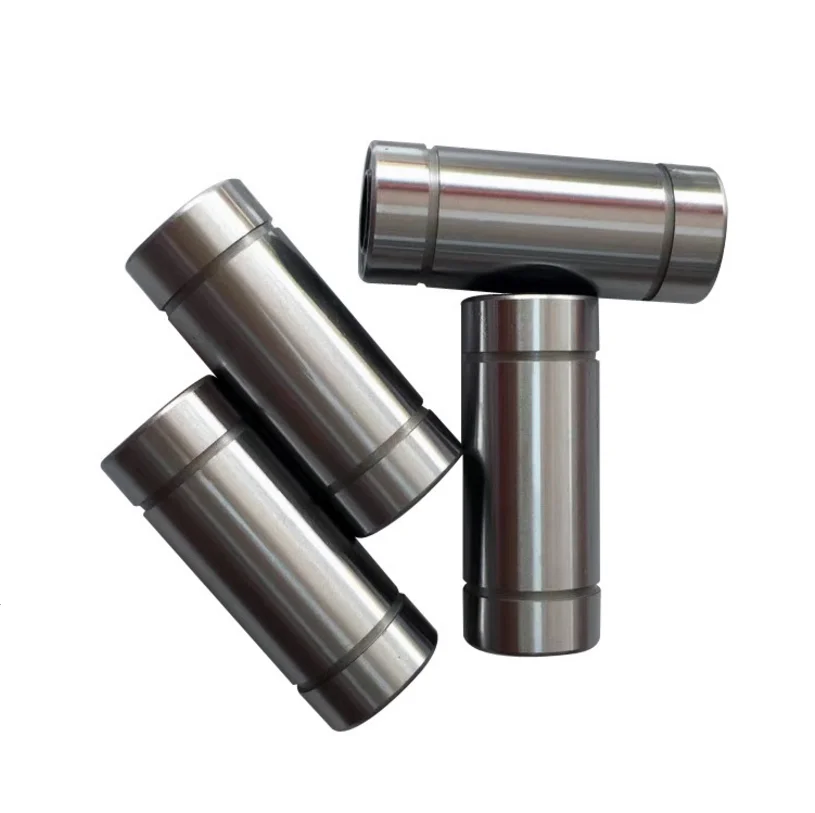

Extended Type: LM4L LM5LUU LM6LUU LM8LUU LM10LUU LM12LUU LM13LUU LM16LUU LM20LUU LM25LUU LM30LUU LM35LUU LM40LUU LM50LUU LM60LUU LM80LUU

Inch Type: linear motion ball bearing LMB4 LMB6UU LMB8UU LMB10UU LMB12UU LMB16UU LMB20UU LMB24UU LMB30UU

Packing Details : Carton+Pallet
Delivery Details : 3-30 days after order confirmation

1. Special Single Box

2. Cartob box

3. Single Pallet

4. Carton+Pallet

5. Complete Pallet

6. Complete package
