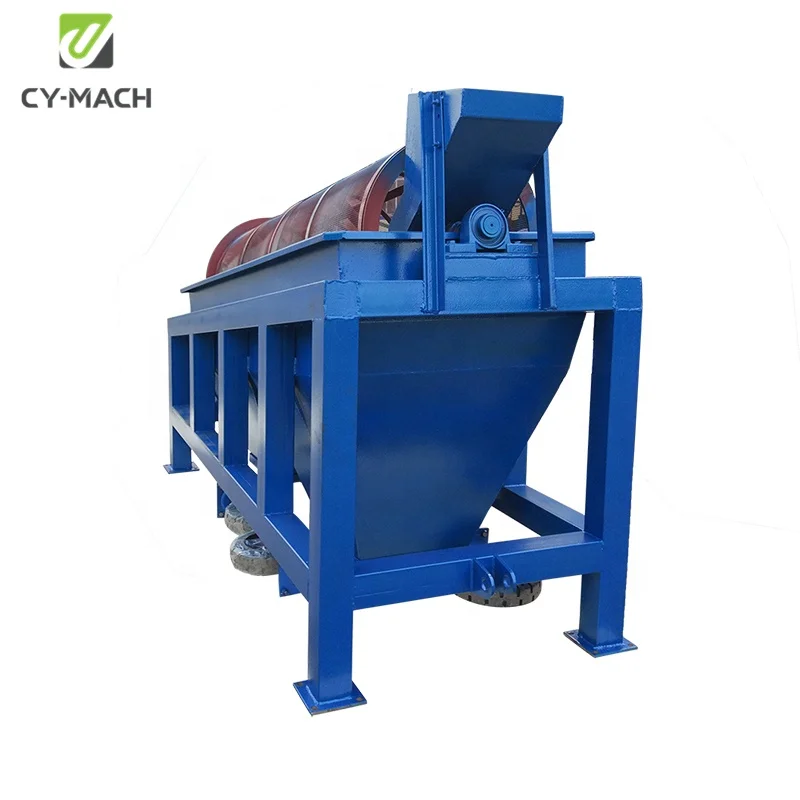

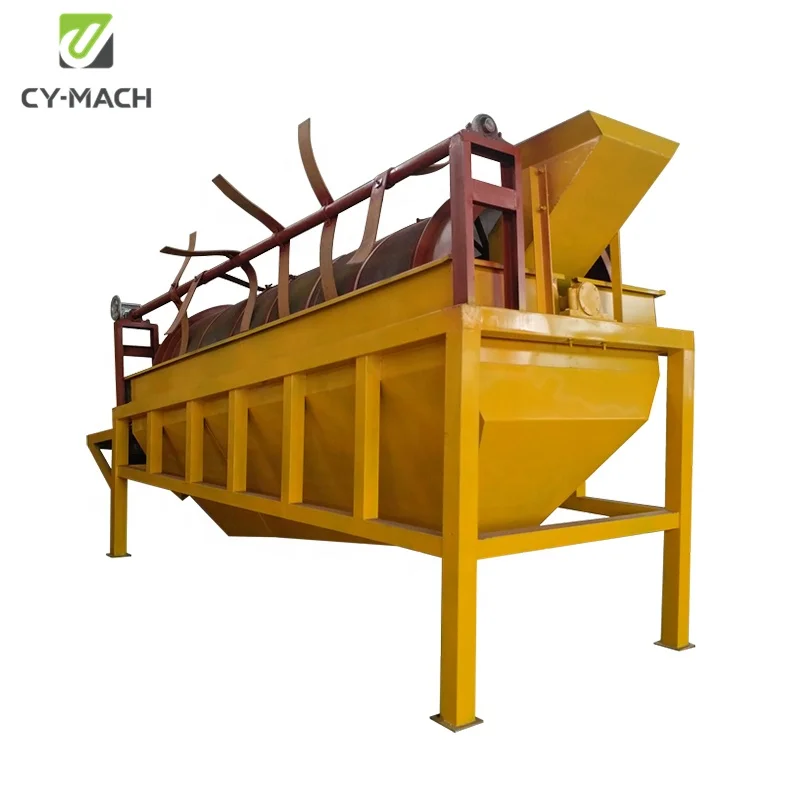

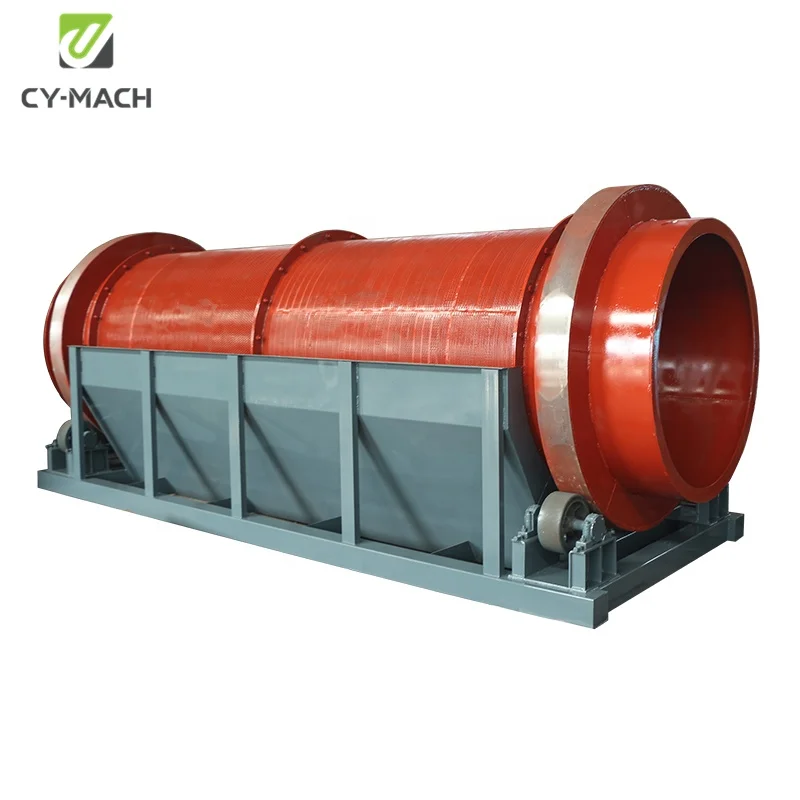

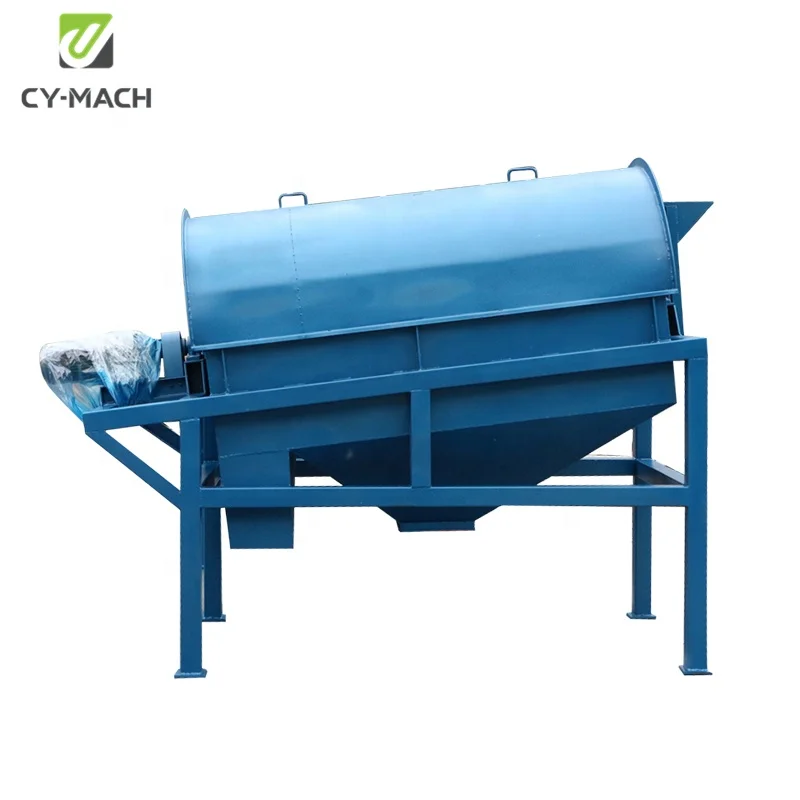

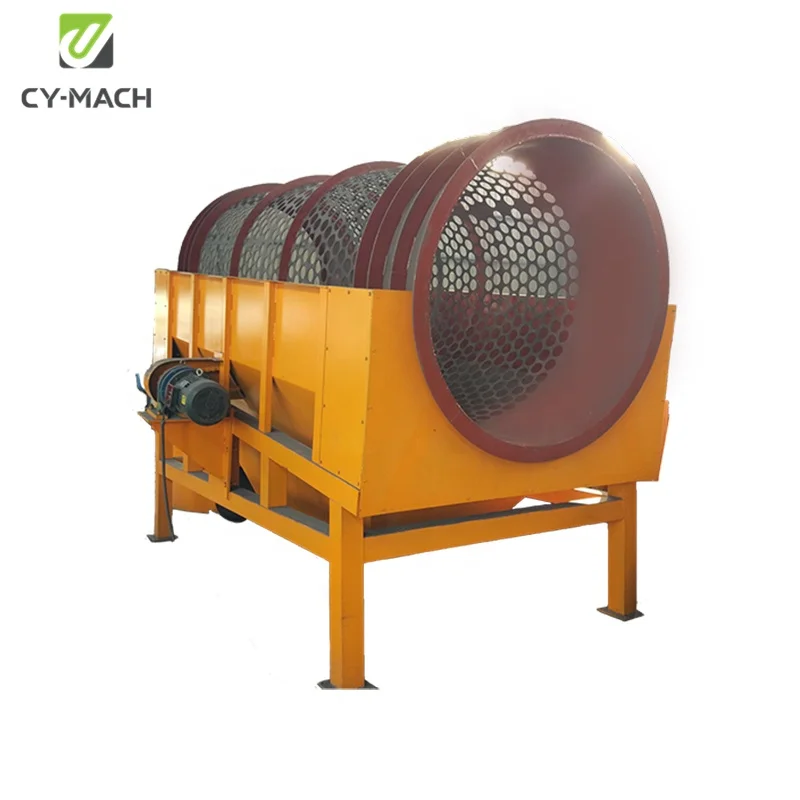

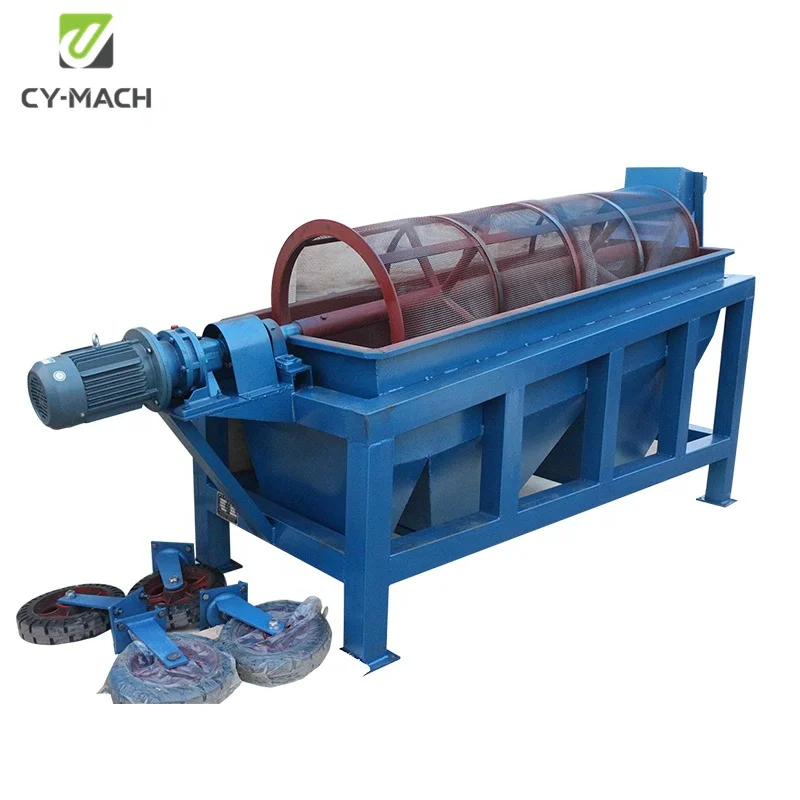

Trommel Screen widely use in soil compost gravel separate
Product Description
Product Introduction
Roller device tilt installed on the rack. Motor by the reducer with roller device through shaft coupling, drive roller device around its axis of rotation. When the materials enter the cylinder device, due to tilt and turn the drum unit, make the material on the surface of the screen to flip and rolling, the qualified materials (under size) after roller end at the bottom of the discharging mouth eduction, unqualified material (product) on the screen by the cylinder at the end of the discharging mouth eduction. Due to the flip, rolling material inside the drum, the card in the mesh material can be pop up, prevent the mesh plug.
Features
1.Configured for economical & efficient classification, screening and grading.2.Heavy duty trommel drum with lifters at the front to facilitate material break up.
3.Screen replaceable for different mesh sizes.
4.Multiple screen size.
5.Easily changed screen plates.
6.Largest processing capacity in the industry.
7.Heavy duty feed hopper and extension.
8.Discharge chute.
9.Gear drive mechanism.
10.Variable speed drive mechanism.
11.Technical specification of Gold Mineral Processing.
Application
1.Alluvial gold trommel screen,rotary drum screener,drum trommel screen for sale for gravel grading in stone quarry and separating soil and stone powder.2. Sand and gravel in the field with the separation.
3.Coal industry for lump coal and coal separation and coal washing (coal washing machinery components).
4.Chemical industry,mineral processing industry for the classification of large and small lumps and separation of powdery material.
Specification
Model | Trommel Dia. | Trommel Length | Screen Segment No. | Aperture Size | Power | Inclined Angle | Handling Capacity |
CYT600 | φ600 | 2-4m | 1-2 | 5-35mm | 2.2-3kw | 0-7° | 1-5m³/h |
CYT800 | φ800 | 2-5m | 1-3 | 5-40mm | 3-5.5kw | 0-7° | 2-8m³/h |
CYT1000 | φ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5kw | 0-7° | 5-10m³/h |
CYT1200 | φ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11kw | 0-7° | 8-15m³/h |
CYT1500 | φ1500 | 3-10m | 1-5 | 5-60mm | 7.5-15kw | 0-7° | 20-50m³/h |
CYT2000 | φ2000 | 4-12m | 1-5 | 5-75mm | 7.5-18.5kw | 0-7° | 50-80m³/h |
CYT2500 | φ2500 | 5-12m | 1-6 | 5-90mm | 11-18.5kw | 0-7° | 80-150m³/h |
