12 в 24 постоянного тока 5 вт 10 мм 20 ход душевой импульсной струи с быстрой открытой рамой линейный
- Категория: Игольчатые клапаны >>>
- Поставщик: Zhongshan,Landa,Solenoid,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5.34 $* | 5.38 $* |
| Aug-15-2025 | 5.80 $* | 5.54 $* |
| Jul-15-2025 | 4.44 $* | 4.90 $* |
| Jun-15-2025 | 5.94 $* | 5.43 $* |
| May-15-2025 | 4.13 $* | 4.93 $* |
| Apr-15-2025 | 5.96 $* | 5.6 $* |
| Mar-15-2025 | 5.67 $* | 5.49 $* |
| Feb-15-2025 | 4.15 $* | 4.55 $* |
| Jan-15-2025 | 4.51 $* | 4.57 $* |
Характеристики

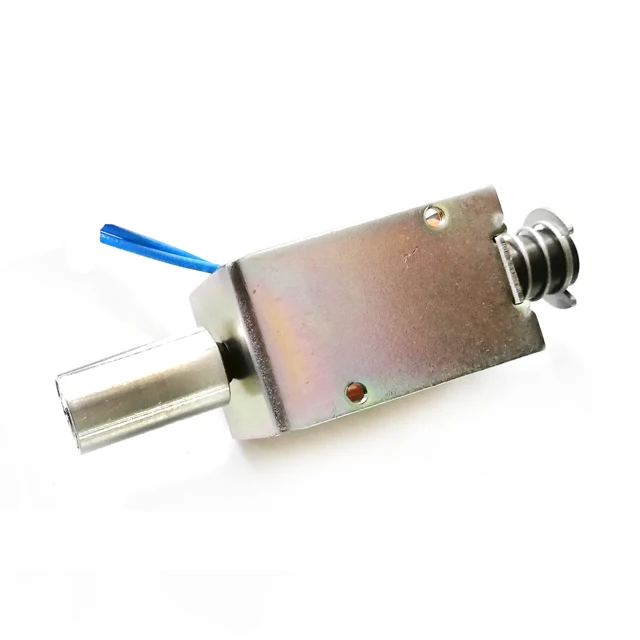

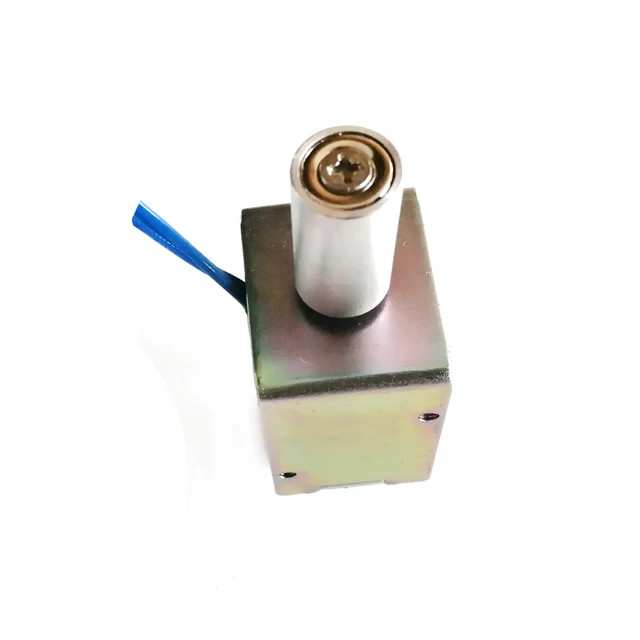

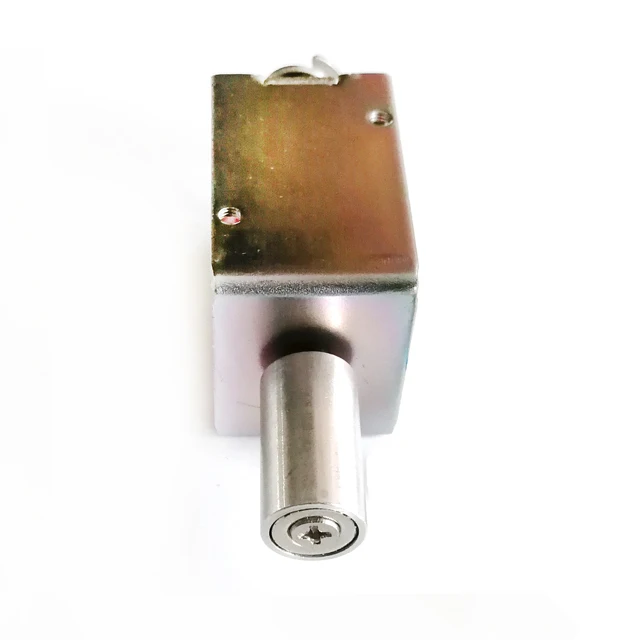

Dc 12v 24v 5w 10mm 20mm Stroke Shower Pulse Jet Fast Open Frame Pull Type Linear Solenoid
Product Description
Brand | Landa | Model | SQ1039 |
Rated Voltage (V) | DC12/24 | Rated Power(W) | 1-48 |
Work Model | Pull Push Type | Holding Force (N) | 1-10N |
Stroke(mm) | 0-10MM | Reset Time(s) | 0.2 |
Service Life | 500 Thousand Times | Certification | CE,ROHS,ISO9001 |
Material | Iron | Lead Wire Length(mm) | 200 |
Install Style | screw | Tolerance of Dimension | gb/t1804-m |
Water-proof | / | Insulation Class | B |
Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
Residual Magnefism | / | Duty Cycle | 1-100% |
Working Temperature | -10°C-100°C | Thread Size(mm) | M3 |
Thread Depth(mm) | / | Payment Term | TT,PAYPAL |
Sample Order | Yes | Warranty | 1 Year |
MOQ | 10 pcs | Supply Ability | 5000 pcs per Week |
Delivery Time | 3 Days | Port of Loading | Zhongshan |
Weight | Packaging Details | Shipment Details | ||||
N.W.(KG) | G.W.(KG) | Product Size(mm) | Carton Box Size(mm) | 20GP | 40GP | 40HQ |
0.125 | 0.15 | 24*29*40 | 350*310*180 | / | / | / |
Product Features
- Small in size
- Big in force
- With force power on and without force power off
- Easy to operate
- Epoxy filled
- IP65
- Wide range of application
- 10 years of designning and producing experience
- OEM/ODM is welcomed
Product Details
Packaging & Shipping

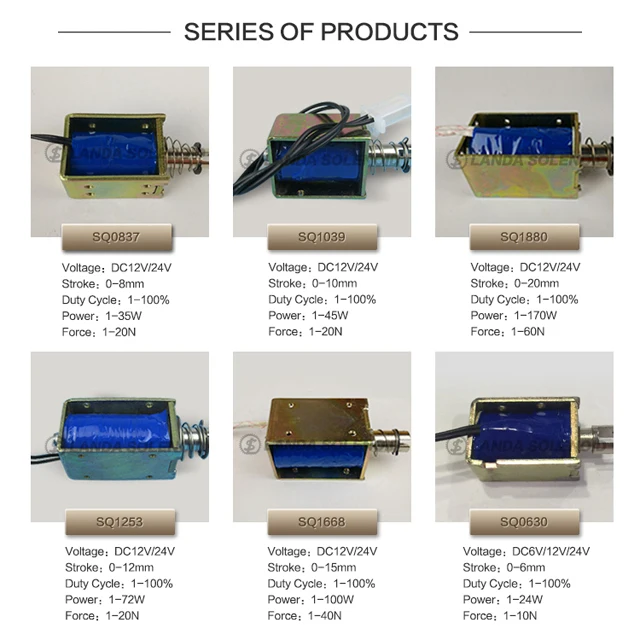

Our Products: | circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid >>HOMEPAGE |
MOQ: | 10 PCS; Small orders can be acceptable if we have stocks of this product |
Packing: | Carton Box Size(mm): 350*310*180mm |
Delivery Time: | Shipped in 3-8 days after payment |
Supply Ability: | 5000 pieces per week |
Payment Terms: | T/T; PAYPAL etc. |
Shipping: | Shipping by sea; Port of Loading: Zhongshan |
