Холодильная камера с открытой боковой дверью контейнер для рефрижератора 20 футов

Холодильная камера с открытой боковой дверью контейнер для рефрижератора 20 футов

Категория: Reefer Containers >>>
Поставщик: ACE,Container,&,Parts,Co.,Limited

Цена:18 300,00 $ - 19 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	21777.37 $*	22866.23 $*
Aug-19-2025	21594.41 $*	22674.80 $*
Jul-19-2025	18117.78 $*	19023.86 $*
Jun-19-2025	21228.36 $*	22289.56 $*
May-19-2025	18483.38 $*	19407.41 $*
Apr-19-2025	20862.78 $*	21905.85 $*
Mar-19-2025	20679.48 $*	21713.47 $*
Feb-19-2025	20496.98 $*	21521.23 $*
Jan-19-2025	20313.68 $*	21329.22 $*

Характеристики

Hot Sale Products

10ft Reefer

20ft Reefer

40ft Reefer

2 Room Dual Temperaure Reefer

Minus 60 ℃ Deep Reefer

Side Door Reefer Container

Product Description

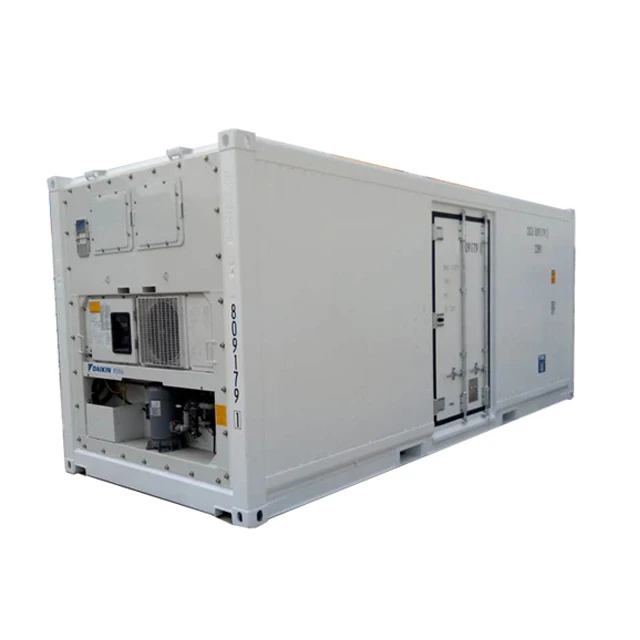

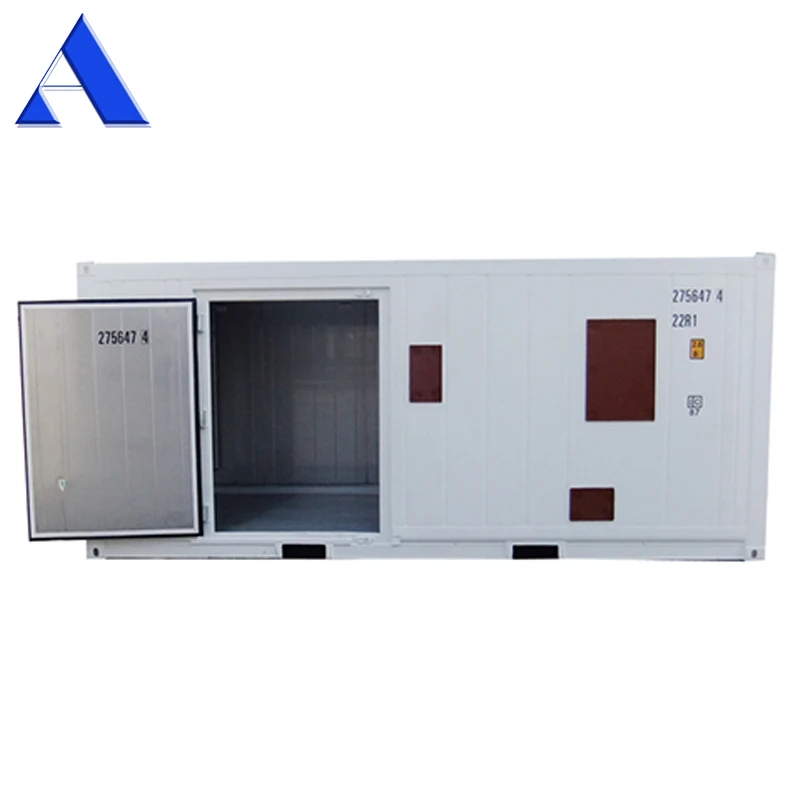

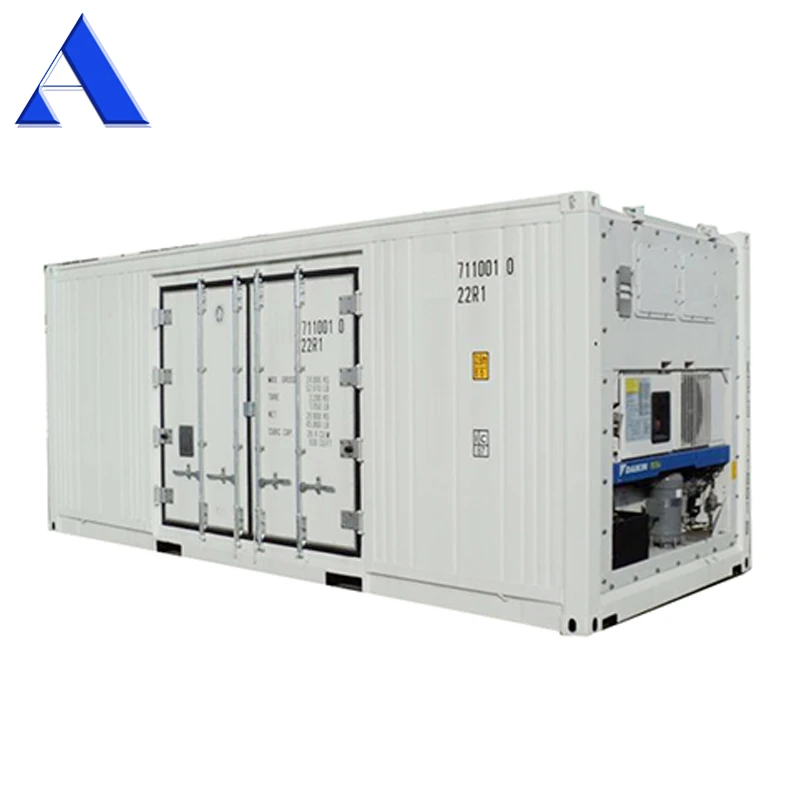

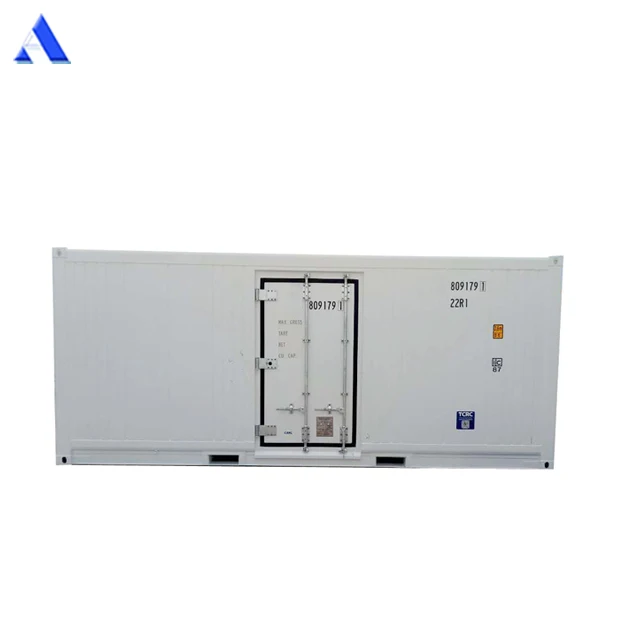

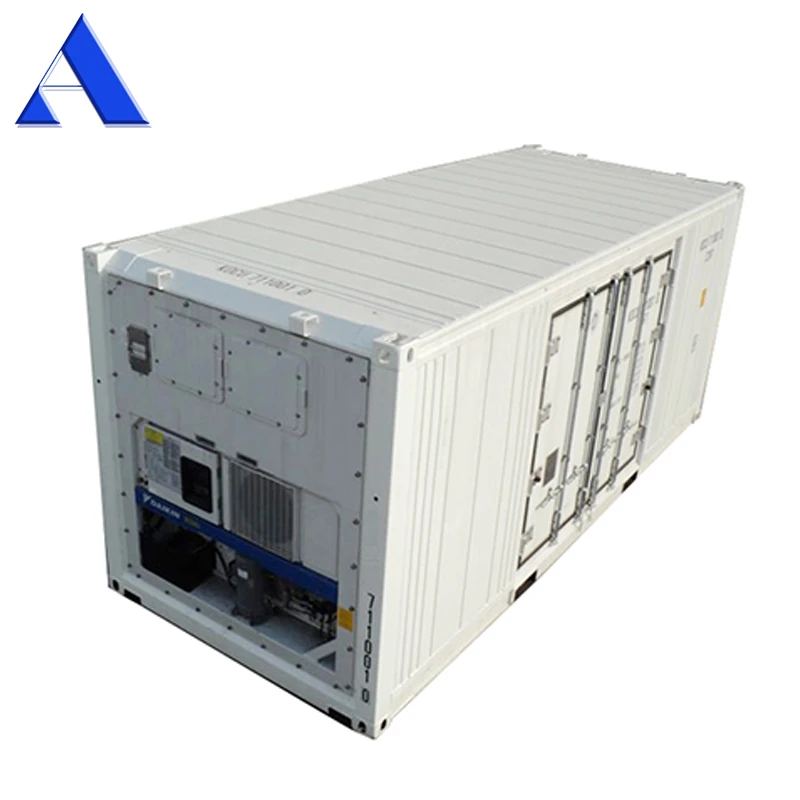

1. General Introduction_ open side door 20ft reefer container

The open side door 20ft reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C to +70°C without effect on the strength of basic structure.

Easy Instroduction of open side door 20ft reefer container

1. Material: Corten Steel and SS
2. Approve: BV , GL , ABS , DNV
3. Meet requirement of ISO, UIC, TIR, CSC, TCT
4. Color: White
5. Floor: T type floor
6. Logo: Customized
7. Cooler Brand: Daikin/Carrier/Thermo king
8. Temperature Range: -18 to +30℃

2. All Brand of Cooling Unit

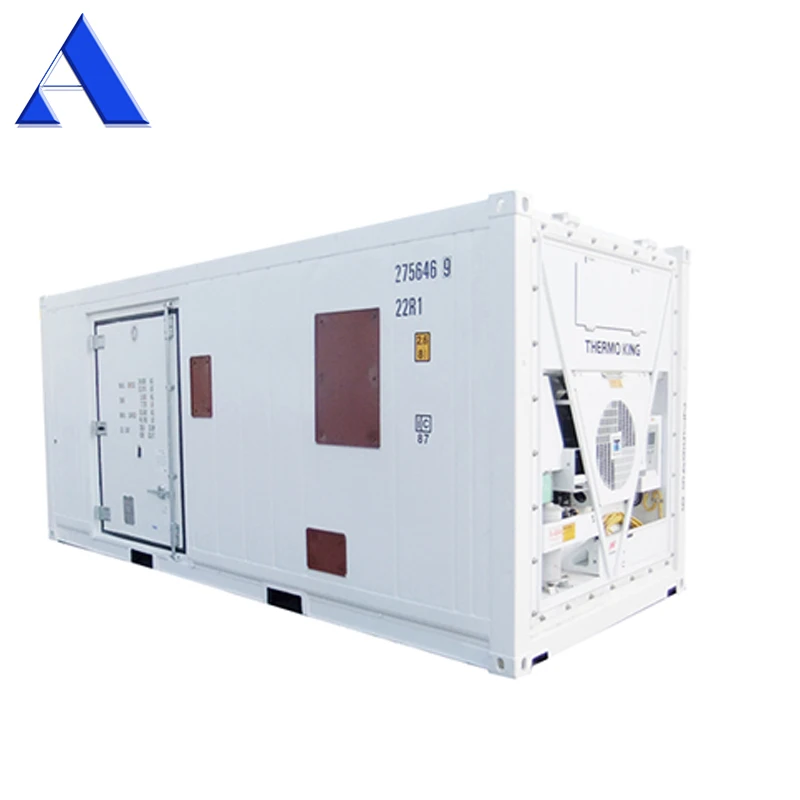

Thermo King(MAGNUM PLUS)

Cooling gas: R134a

400 to 500 Vac 3ph 60 Hz

360 to 460 Vac 3ph 50 Hz

Temperature Range:

-40℃ (-40F) to 30℃ (86F).

Carrier(PRIME LINE)

Cooling gas: R134a

380/460 VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30℃ (-22F) to 30℃ (86F).

Daikin(LXE10E)

Cooling gas: R134a

380/440VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30~50°C (-22~122°F)

3. The Air Flow Inner

4. Specification_side door reefer container
open side door 20ft reefer container	Internal	5450 x 2310 x 2292	mm
open side door 20ft reefer container		External	6058 x 2591 x 2438	mm
Door Opening(W*H)	2288x2251			mm
Side Door Opening(W*H)	1400x2000			mm
Inside Cubic Capacity	28.5			CBM
Maximum Gross Weight	24000			KG
Tare Weight	3360			KG
Maximum Payload	206400			KG
Allowable Stacking Weight	192000			KG
Cooling Capacity /W	6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ
Main Circuit	3 PHASE AC 440, 460V/380, 400, 415 60/50HZ
Heat Leakage	23
Air Leakage	5
Warranty	Container Body	1 Year
		Cooler Units	1 Year
		Compressor	3 Years
		Marks	5 Years

Packing & Delivery

Our Company

Customer Visiting

FAQ

1. Are your open side door 20ft reefer container meet with ISO requirement?
Yes, our container are BV approval and meet with ISO requirement.

2. Are your open side door 20ft reefer container approve the BV Certified? How about the cooling unit?

Sure, you could choose one from Daikin / Carrier / Thermo king

3. Can we load cargo in your open side door 20ft reefer container?

Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.

4. Do you supply generator ?
Yes, we have.

5. Do you supply reefer container parts?
Yes, we provide parts for repair the container body. For cooler system, the supplier(Daikin, Carrier, Thermo king) provide global service.
