Product Description
We focus on water pumps for 25 years

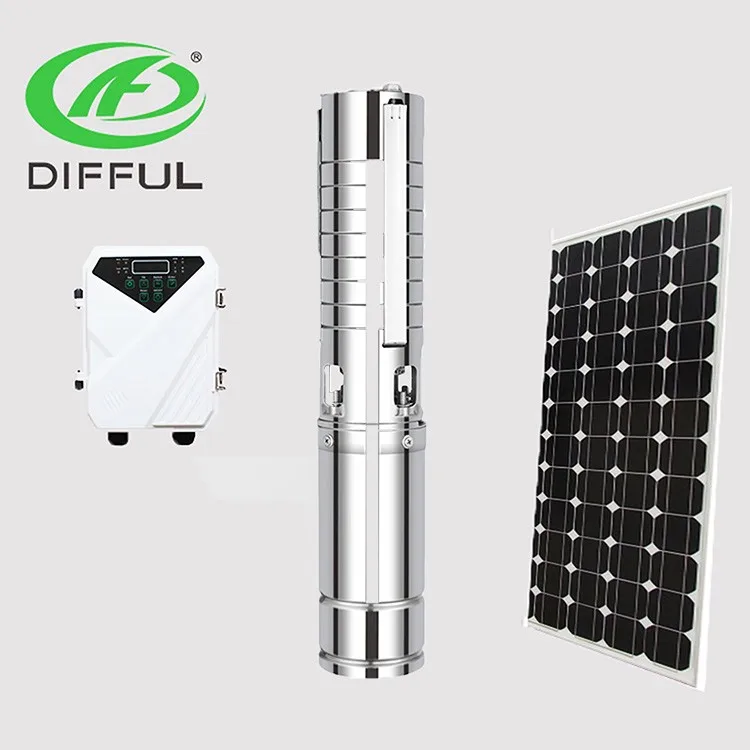

difful mini solar pumps for irrigation off grid solar pump
①ALL goods produced by ourselves,we provide one-stop services from designing,printing to processing
difful mini solar pumps for irrigation off grid solar pump
①ALL goods produced by ourselves,we provide one-stop services from designing,printing to processing
②Quick response within 2-8hours,response rates over 95%
③24 hours phone call is available,feel free to contact with us
Product Paramenters
difful mini solar pumps for irrigation off grid solar pump
MODEL NAME：3DSC4.8-112-72-1100VOLTAGE:DC72V
POWER:72v 1100w
MAX HEAD:112M
MAX FLOW:4.8M3/h
OUTLET:1.25INCH
MAX FLOW:4.8M3/h
OUTLET:1.25INCH
1 x 3" DC solar Pump with 2m cable
1 x Pump controller with MPPT function
1 x Stainless steel float switch (sensor for the tank)
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
1 x Pump controller with MPPT function
1 x Stainless steel float switch (sensor for the tank)
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
Model | Power(W) | Voltage(v) | Max flow (m3/h) | Max head (m) | Outlet (inch) |
3DSC4-35-24-300 | 300 | 24 | 4 | 35 | 1.25" |
3DSC4-50-48-400 | 400 | 48 | 4 | 50 | 1.25" |
3DSC4-80-48-600 | 600 | 48 | 4 | 80 | 1.25" |
3DSC4.8-95-72-750 | 750 | 72 | 4.8 | 95 | 1.25" |
3DSC4.8-112-72-1100 | 1100 | 72 | 4.8 | 112 | 1.25" |
3DSC4.8-112-110-1100 | 1100 | 110 | 4.8 | 112 | 1.25" |

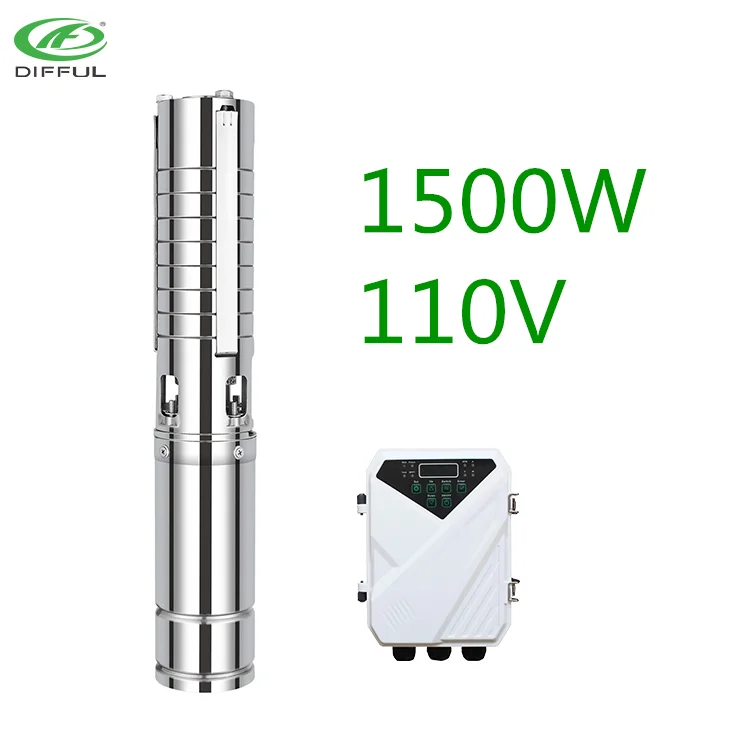

3DSC4.8-135-110-1500 | 1500 | 110 | 4.8 | 135 | 1.25" |
Why Choose Us

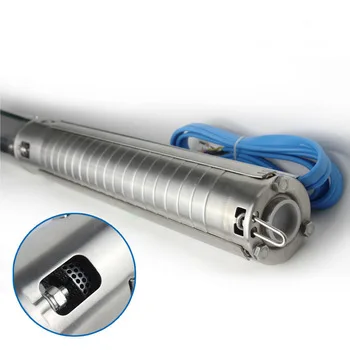

304 S/S pump shaft. Double bearing motor base can work under more axial pressure Alloy mechanical seal: Longer working life and high reliability Motor coil is made by automatic winding machine

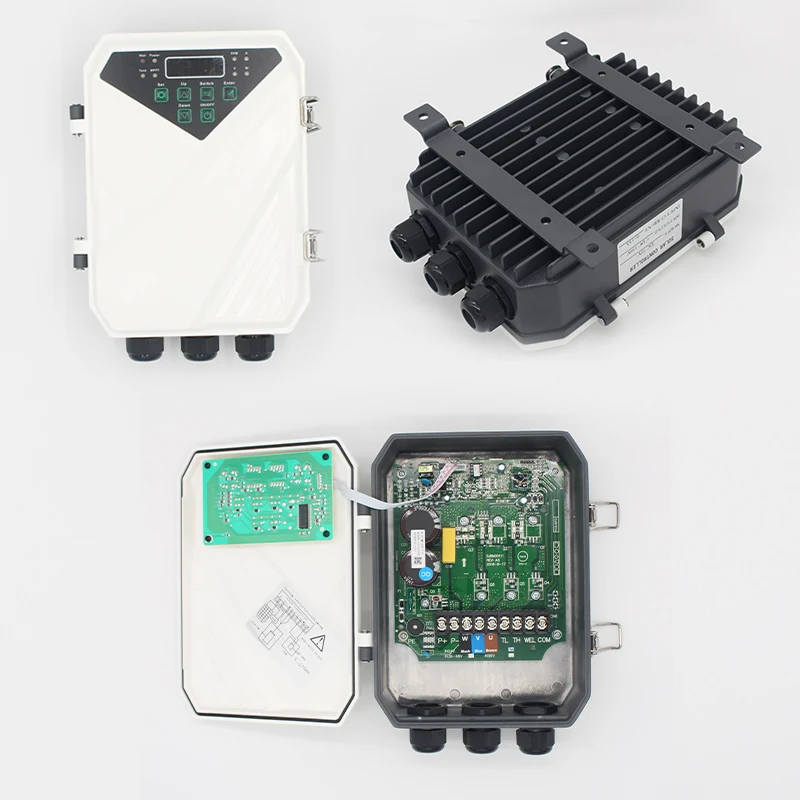

Controller Features:
1. Automatically run when power enough or tank is not full. Automatically off when tank is full.
2. High waterproof grade: IP65, double seal effect in waterproof and leak-proof
2. Soft start technology: No impulse current, longer life for the pump motor.
3. High voltage/Low voltage/Over-current/High temperature protection
4. 1 years warranty.
2. High waterproof grade: IP65, double seal effect in waterproof and leak-proof
2. Soft start technology: No impulse current, longer life for the pump motor.
3. High voltage/Low voltage/Over-current/High temperature protection
4. 1 years warranty.
PUMP VOLTAGE (V) | SOLAT PANEL (W) | PEAK VOLTAGE VMP(V) | OPEN CIRCUIT VOLTAGE VOC(V) |
24v/36v | ≥1.3PUMP POWER | ≥18 | 18V-50V |
48v | ≥1.3PUMP POWER | ≥30 | 30V-96V |
72v | ≥1.3PUMP POWER | ≥50 | 50V-150V |
110v | ≥1.3PUMP POWER | ≥60 | 60V-180V |
How to choose pump
HEAD CALCULATE:
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tank
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tank
FLOW CALCULATE:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table
Customer reviews
①Application of deep well pump to irrigation
②Village and town water supply
③Clean drinking water
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Enviroment friendly
⑥Pumping and drip irrigation
⑤Enviroment friendly
⑥Pumping and drip irrigation
Packing details

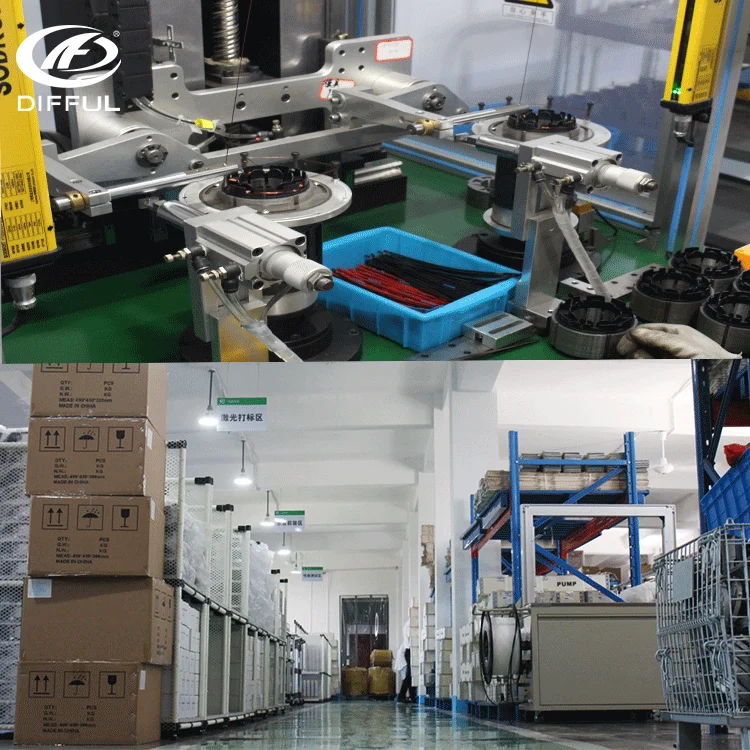

About us
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day difful pump will exist in every corner of the world by means of its reliable quality and good reputation.
DIFFUL sincerely welcomes all the friend to visit our company and hopes to have a good communication and double-winpartnership with all of you cause dingfeng pump is always on the way to be better
FAQ
1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
