Характеристики
Product Description

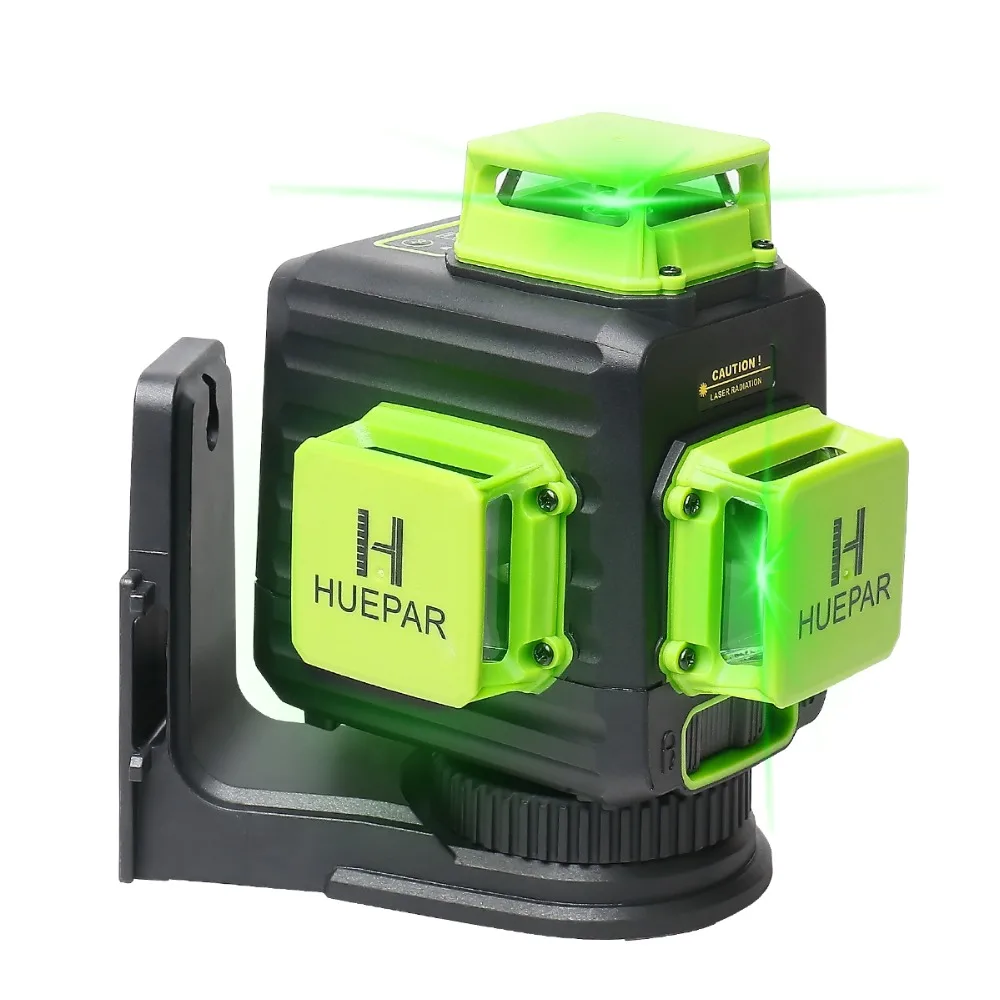

B03CG 3 x 360 Green Laser Level Specifications:
* Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
* Laser Wavelength: 505-520nm
* Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft
* Leveling/Compensation Range: +/-4°
* Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Receiver LR-5RG/LR-6RG
* Operating Time: 6 hours continual use with all laser beams on
* Power Source: 5200mAh Li-ion battery
* IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
* Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
* Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
* Mount Size: 1/4"-20
WARNING:
Avoid direct exposure of the laser beam to the eyes.
* Laser Wavelength: 505-520nm
* Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft
* Leveling/Compensation Range: +/-4°
* Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Receiver LR-5RG/LR-6RG
* Operating Time: 6 hours continual use with all laser beams on
* Power Source: 5200mAh Li-ion battery
* IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
* Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
* Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
* Mount Size: 1/4"-20
WARNING:
Avoid direct exposure of the laser beam to the eyes.

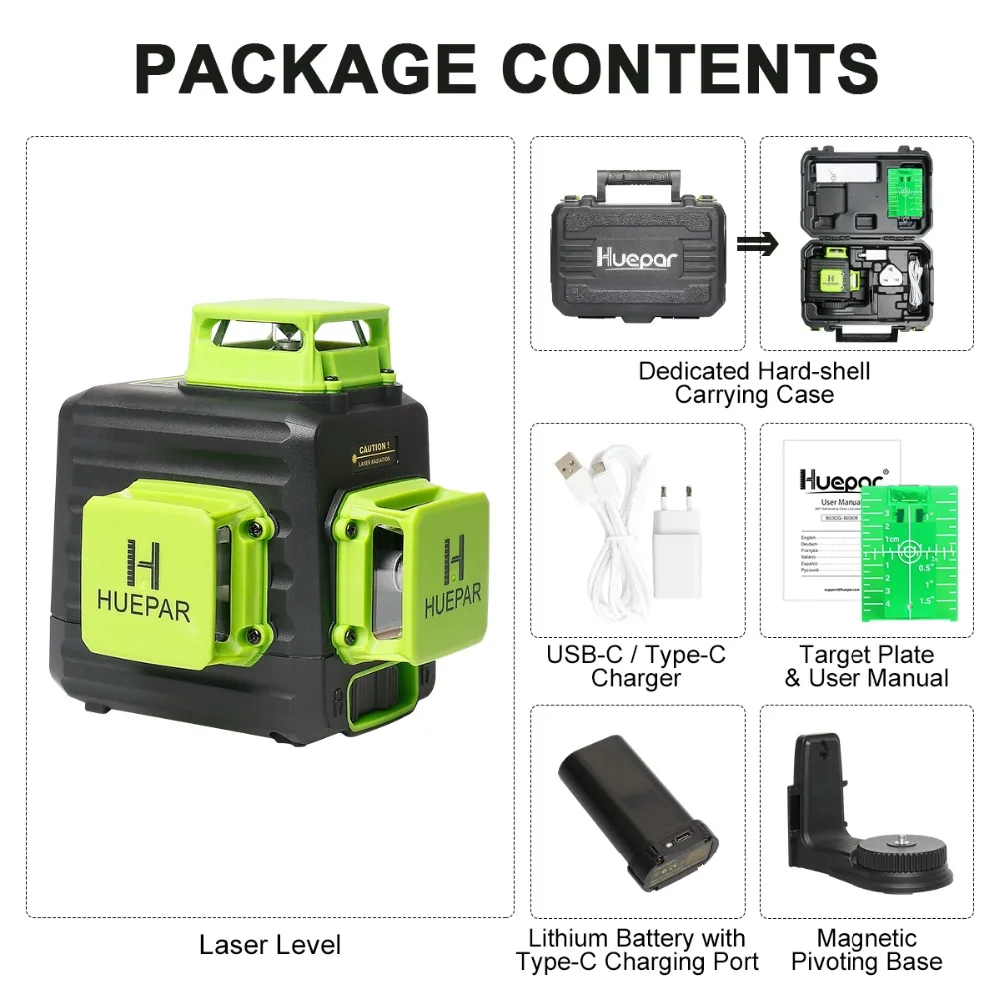

Package Contents:
* 1 x Huepar B03CG Pro Laser Level
* 1 x Rechargeable Lithium Battery 3.7V / 5200mAh
* 1 x Type-C Power Cord
* 1 x Power Adapter
* 1 x 360° Magnetic Pivoting Base
* 1 x Green Laser Target Plate
* 1 x Multilingual User Manual
* 1 x Hard Carry Case
* 1 x Rechargeable Lithium Battery 3.7V / 5200mAh
* 1 x Type-C Power Cord
* 1 x Power Adapter
* 1 x 360° Magnetic Pivoting Base
* 1 x Green Laser Target Plate
* 1 x Multilingual User Manual
* 1 x Hard Carry Case
3 x 360° Multiple Line Switching Functions
● This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal
and two vertical lines.
● The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.
● Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal&360° Vertical Lines mode, 360° Horizontal Line
mode, one 360° Vertical Line mode, one 360° Horizontal Line &one 360° Vertical Line mode, Two 360° Vertical Lines mode
● This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal
and two vertical lines.
● The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.
● Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal&360° Vertical Lines mode, 360° Horizontal Line
mode, one 360° Vertical Line mode, one 360° Horizontal Line &one 360° Vertical Line mode, Two 360° Vertical Lines mode

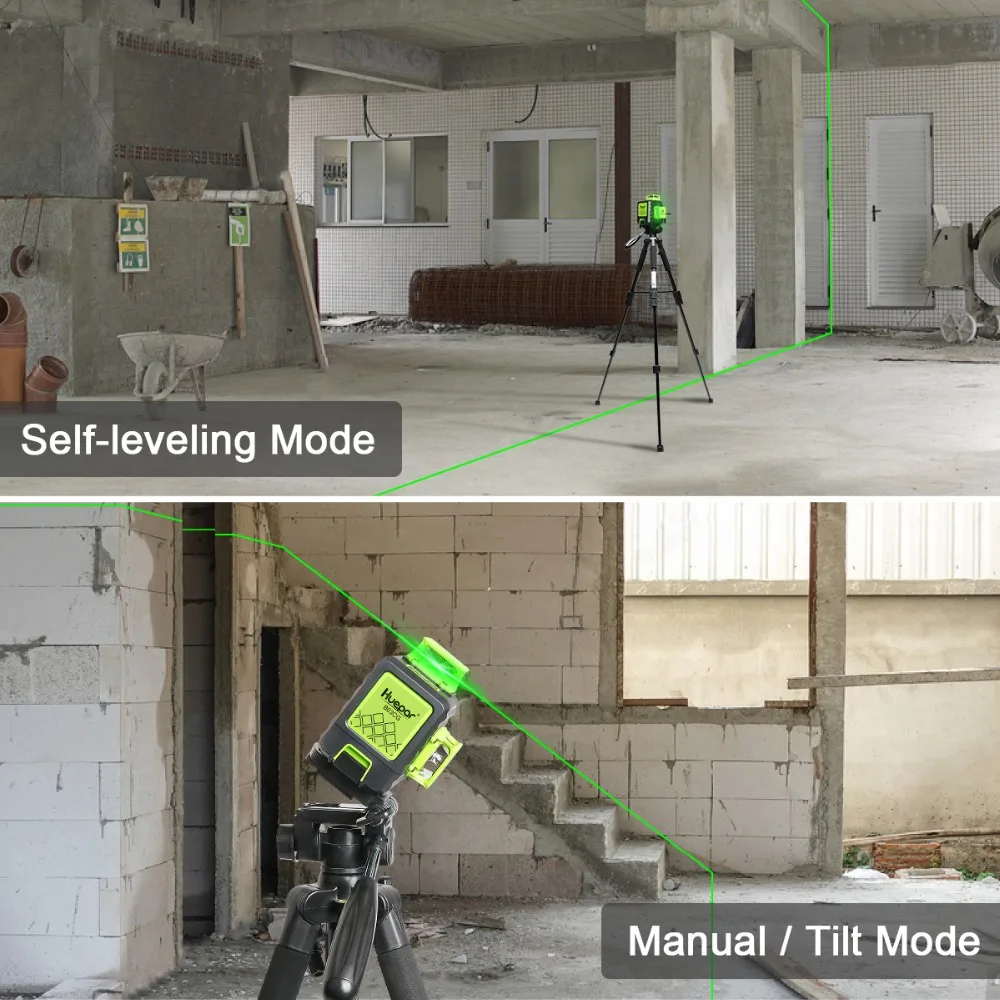

Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, manual mode locks laser lines in place for use at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Pulse Mode
Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in blue.
Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger working distance.
Note: ● When use with a receiver, it’s necessary to turn on the pulse mode
● It is compatible with Huepar Line Laser Receiver only.
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, manual mode locks laser lines in place for use at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Pulse Mode
Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in blue.
Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger working distance.
Note: ● When use with a receiver, it’s necessary to turn on the pulse mode
● It is compatible with Huepar Line Laser Receiver only.
Type-C Charging Port:.
* This laser tool utilizes the included large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time.
* The lithium battery with the Type-C charging port can be charged separately.
* Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.
* Four battery indicators on keypad allow users to know the current battery volume.
* Charging protection helps prevent from overcharging.
* The lithium battery with the Type-C charging port can be charged separately.
* Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.
* Four battery indicators on keypad allow users to know the current battery volume.
* Charging protection helps prevent from overcharging.
More Installation Methods:
* 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.
* 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to
meet different angles required.
* 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.
* Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.
* Green Target Plate: Increases the visibility of the laser beam.
* 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to
meet different angles required.
* 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.
* Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.
* Green Target Plate: Increases the visibility of the laser beam.
Bright Green Laser Diode
:* This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.
* At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.
* At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.
Flat Top Cover Design:
* Designed with the flat top cover, this laser tool projects 360° laser lines for tiling or ceiling installation at 10mm from the wall and ceiling.
* Huepar PV10 + Bracket is recommended for quick setup in wall and ceiling applications (ASIN: B07X2K3TVW, need to purchase separately)
* The laser windows can be removed and replaced with a screwdriver.
* Huepar PV10 + Bracket is recommended for quick setup in wall and ceiling applications (ASIN: B07X2K3TVW, need to purchase separately)
* The laser windows can be removed and replaced with a screwdriver.

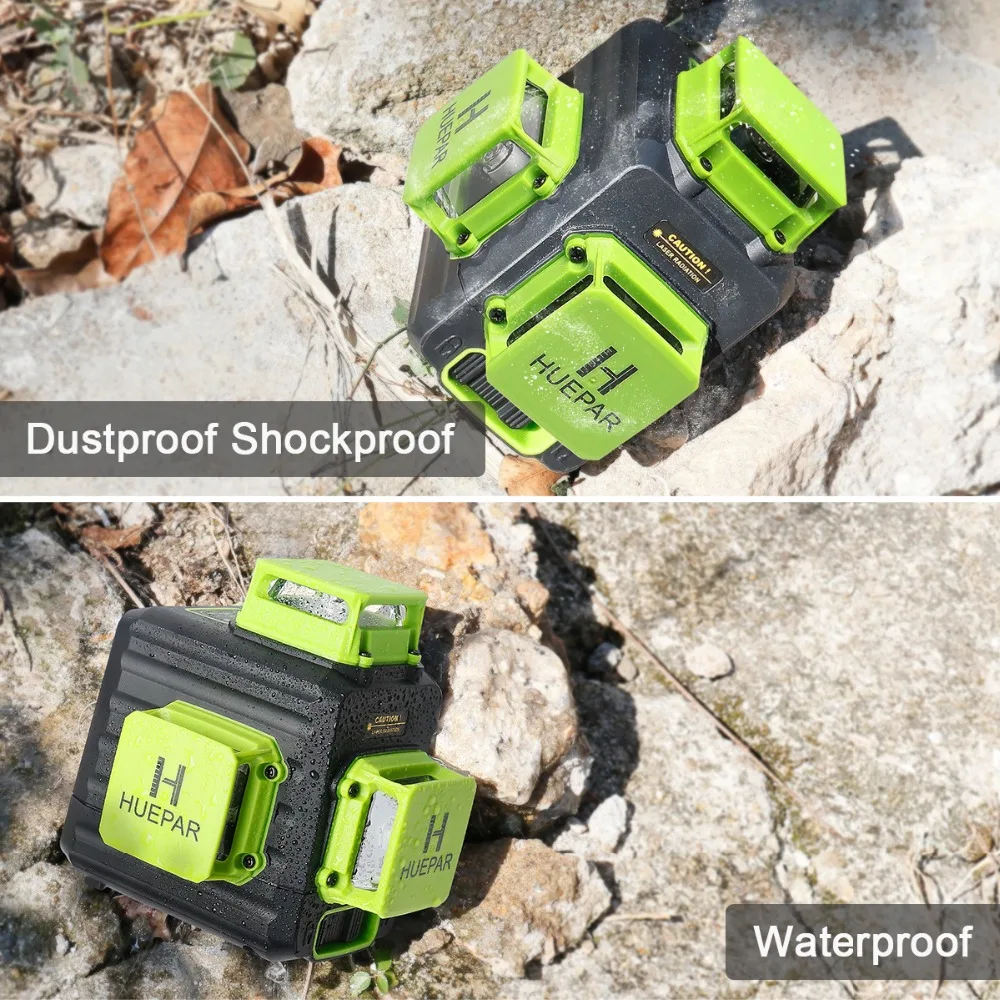

Durable Design:
* The laser tool is completely covered by TPR soft rubber, which delivers soft touch and stronger protection.
* The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.
* IP54 water/dust resistance ensures you work well in hazardous working conditions.
* The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.
* IP54 water/dust resistance ensures you work well in hazardous working conditions.
Specification
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output |
Laser Wavelength: 505-520nm |
Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft |
Leveling/Compensation Range: +/-4° |
Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Receiver LR-5RG/LR-6RG |
Operating Time: 6 hours continual use with all laser beams on |
Power Source: 5200mAh Li-ion battery |
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough |
Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃) |
Mount Size: 1/4"-20 |
