Линия гофрирования/лучшее качество в мире 3 / 5 7 plys Автоматическая фабрика по производству гофрированного картона/линия

Линия гофрирования/лучшее качество в мире 3 / 5 7 plys Автоматическая фабрика по производству гофрированного картона/линия

Категория: Табака обрабатывающее оборудование >>>
Поставщик: Cangzhou,Quanheng,Imp,&,Exp,Trade,Co.,Ltd.

Цена:200 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	238000.87 $*	249900.37 $*
Aug-19-2025	236000.63 $*	247800.23 $*
Jul-19-2025	198000.49 $*	207900.40 $*
Jun-19-2025	232000.19 $*	243600.69 $*
May-19-2025	202000.41 $*	212100.62 $*
Apr-19-2025	228000.73 $*	239400.11 $*
Mar-19-2025	226000.55 $*	237300.36 $*
Feb-19-2025	224000.7 $*	235200.51 $*
Jan-19-2025	222000.53 $*	233100.33 $*

Характеристики

CANGZHOU QUANHENG CARTON MACHINERY CO.,LTD MANUFACTURER FACTORY

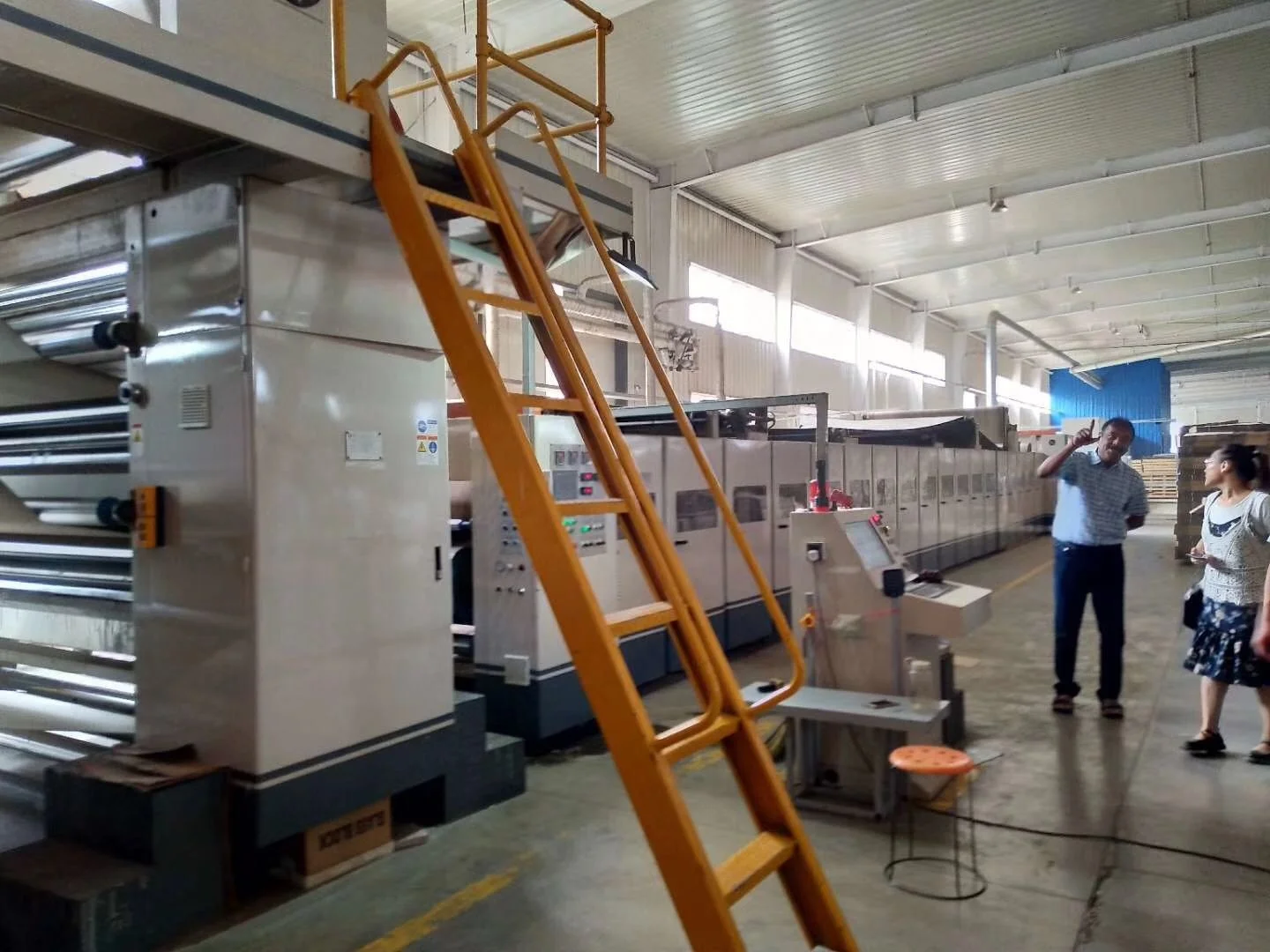

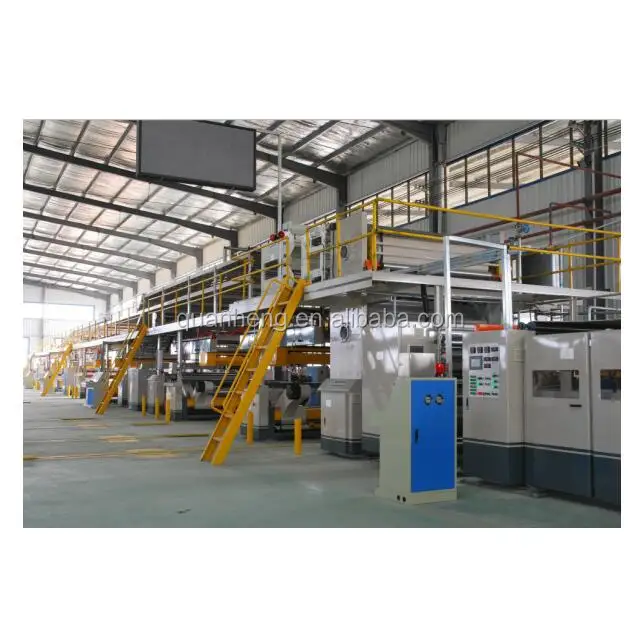

Name:1800mm-120m 5plys corrugated cardboard plants

Model	Name	Unit/set	Note
HB-I	Hydraulic Reel Stand	5	Main spindle ¢ 242mm, hyperbolic heavy-duty rocker arm, tooth-type clamp paper head, ventilated disc-type multi-point brake, hydraulic drive up and down, left and right translation, and medium. Guide rail length 6000mm, trolley adopts 10mm middle plate welding.
SP-1-600	Single Pre-heater (floor)	4	Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°.

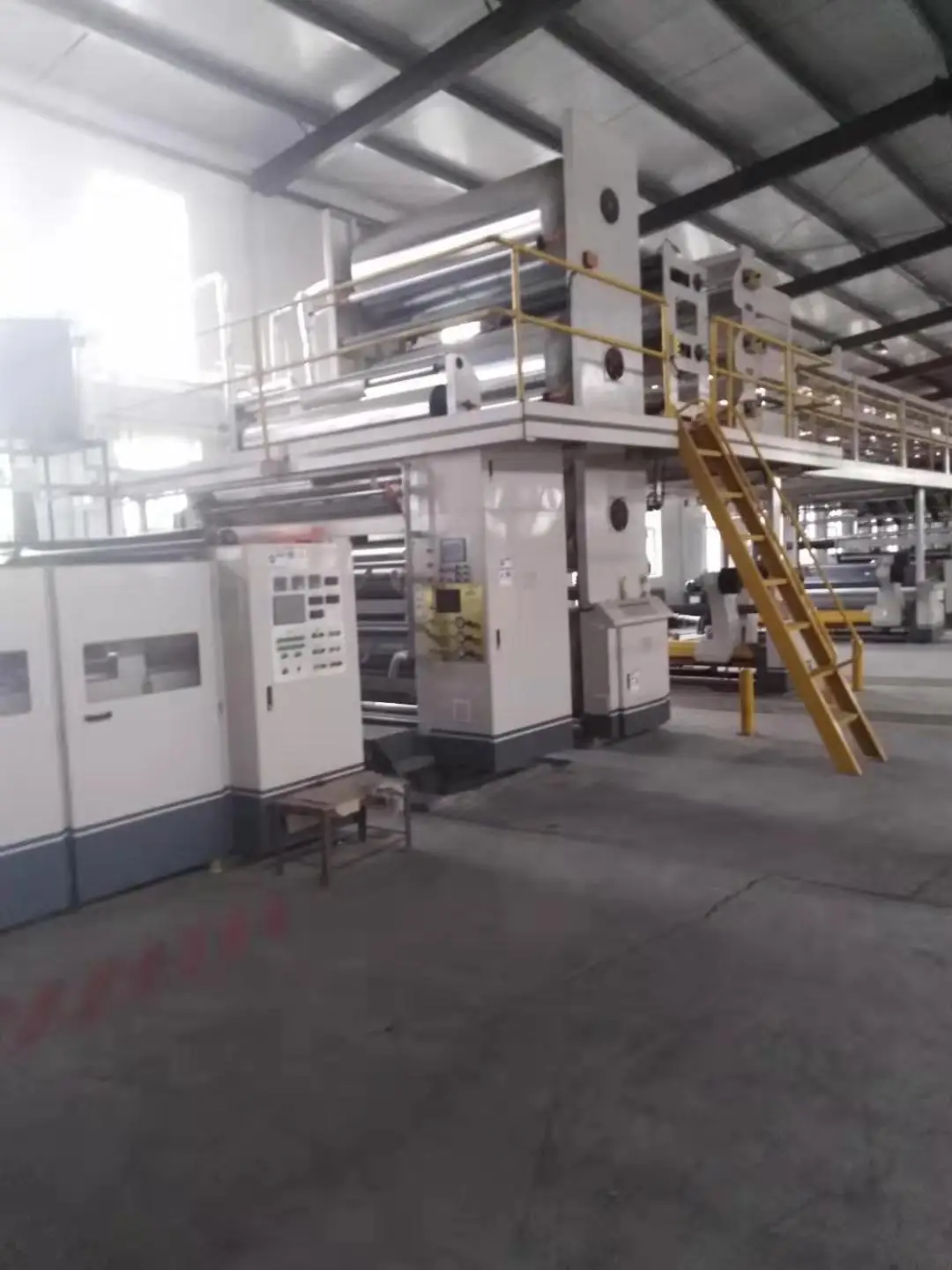

320B	Single facer	2	Corrugated main roll ¢ 320mm, material 48CrMo alloy steel. Independent gearbox, universal joint transmission structure.
SP-3-600	Triplex preheated	1	Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°..
OHB	Double transport bridge	1	The main beam 200mm channel steel, independent variable frequency motor driven paper transport, adsorption tension. Electric correction.
CGM-F	Double glue machine	1	Coated roller diameter 269mm; engraved 25-line pit type net pattern; independent variable frequency motor drive, PLC adjustment glue gap and man-machine interface; glue digital display.

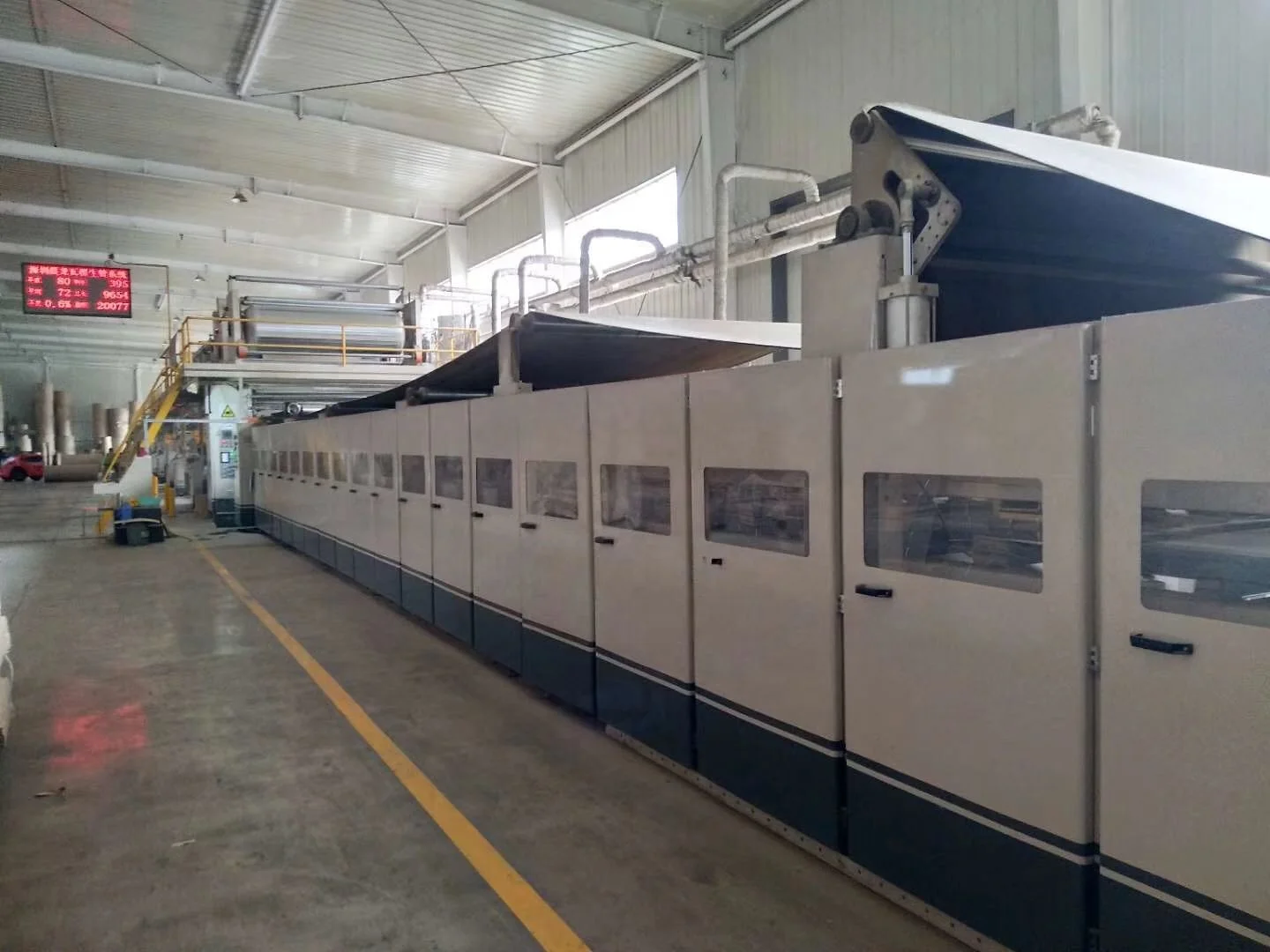

HPM	Double facer machine	1	Drying department 14 heating plates, 4 pressure plate, pneumatic lifting pressure roller, using dense pressure roller.
FTKM	Electric adjustment thin blade machine	1	Electric adjustment knife, electric bias, 5 knife 8-wire type, blade made of tungsten alloy steel.

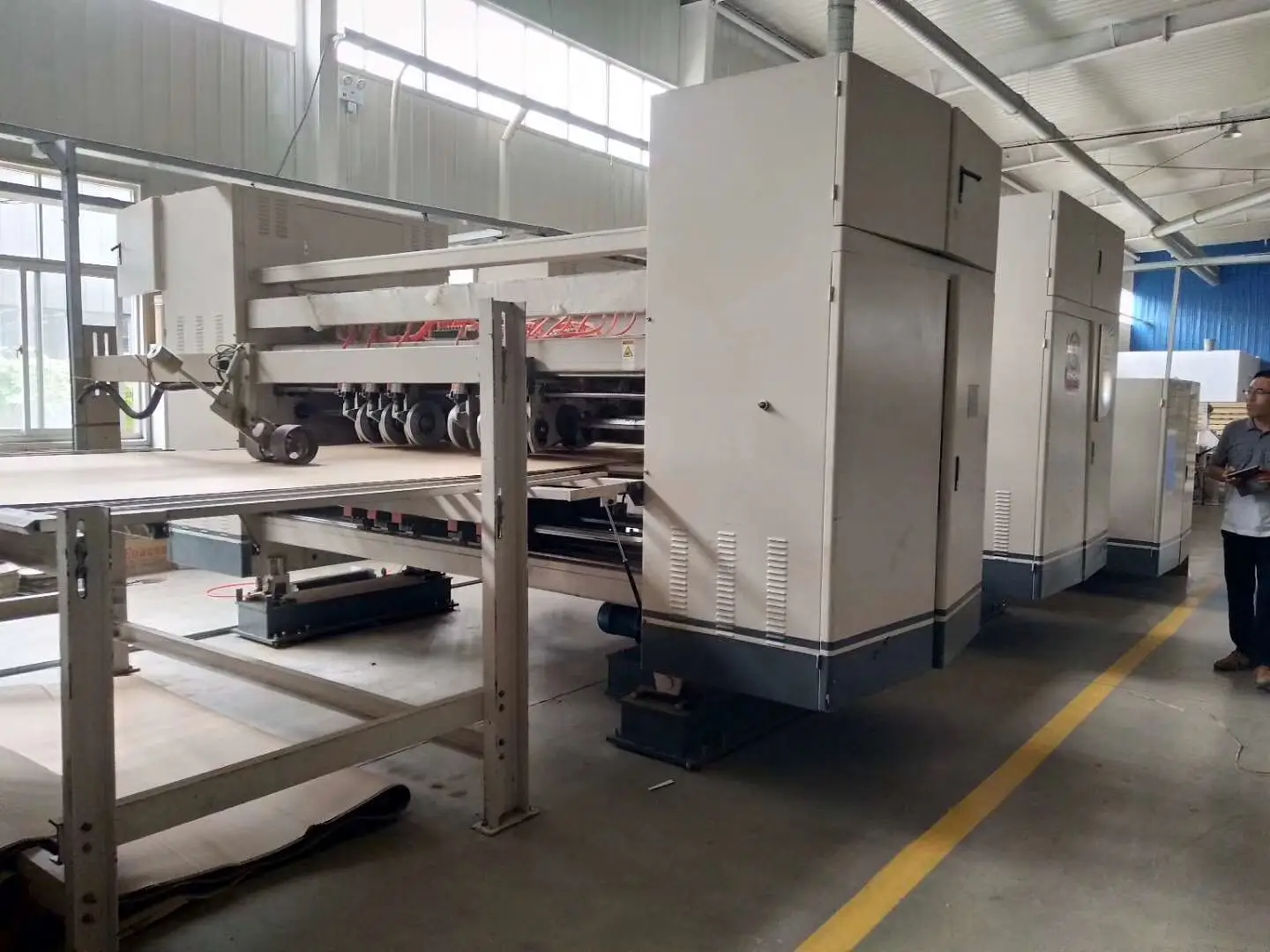

NC-S120	NC Cut off machine	1	Full AC servo control, energy storage brake, spiral knife structure, oil-immersed gear drive, 10.4 inch touch screen display.

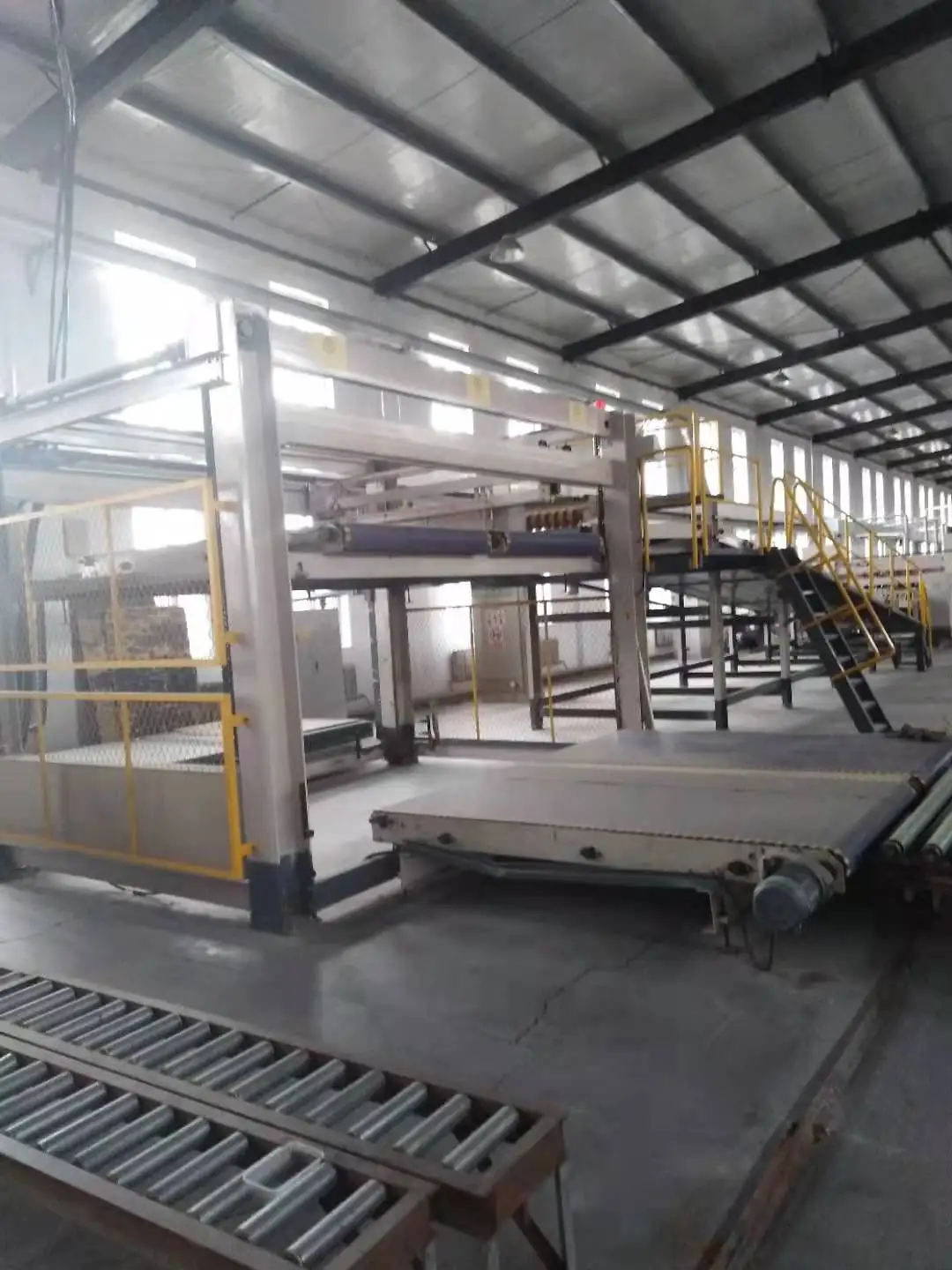

SMA-S	Stacker	1	Electrically adjust the cardboard size and pneumatically control the lateral output cardboard.
ZQ	Steam system	1	Including equipment pipeline valves, steam traps, meters and other steam components, customer-owned heat sources and pipelines.
ZJZ	Glue making system	1	Pipeline customers bring their own. The glue making device consists of a carrier tank, a main tank, a storage tank, and a glue pump and a back pump.

Model: WJ1800mm-II five-layer corrugated cardboard production line:

1. Maximum production width of corrugated board: 1800mm

2. Design speed: 120m/min; Economic speed: 100m/min

Note: The paper for production line speed test should meet the following requirements: (The surface temperature of equipment is not lower than 172°C)

* The grade of the base paper must not be lower than Grade B

* The water content of the base paper is approximately: 11% ± 2%

* Face Paper: 100-250g/m2 * Core Paper: 100--250g/m2

*Paper tiles: 100-200g/m2

3, corrugated type combination: A, B, C, E (or selected by the customer)

4, steam requirements:

* Steam volume 2500-3000Kg/Hr * Maximum pressure: 1.2Mpa

*Common pressure: 0.8-1.1Mpa

6, power supply: 380V 50Hz three-phase four-wire system

7, the equipment covers an area: about the specific length based on the foundation foundation map

8, the device out of paper direction: according to the user's plant to determine the drive left or right

9, equipment applicability, available A, B, C grade homemade base paper or imported paper

Customer-owned part

1. Steam heating system: It is recommended to use a 4000Kg/Hr steam boiler with a pressure of 1.25Mpa steam pipe.

2, air compressors, air ducts, glue pipelines.

3, power, wires connected to the operating cabinet and line pipe.

4, water, water pipes, buckets and so on.

5, water, electricity, gas ground plane installation of civil engineering.

6, raw materials for test run, corn (potato) starch, caustic soda for industrial use, borax and other materials.

7, equipment with oil, lubricants, hydraulic oil, grease.

8. Install and adjust personnel's diet and accommodation, and provide installation workers to cooperate with the installation and pay the workers' daily salary.
