Экран pantalla led p3.91 P1.9 P2.6 P2.9 P3.9 с функцией резервного копирования и передачи
- Категория: Дисплеи, вывески и Оптоэлектроника >>>
- Поставщик: Shenzhen,Ruishen,Optoelectronics,Technology,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.49 $* | 0.33 $* |
| Aug-20-2025 | 0.1 $* | 0.53 $* |
| Jul-20-2025 | 0.41 $* | 0.9 $* |
| Jun-20-2025 | 0.84 $* | 0.97 $* |
| May-20-2025 | 0.3 $* | 0.54 $* |
| Apr-20-2025 | 0.70 $* | 0.63 $* |
| Mar-20-2025 | 0.59 $* | 0.81 $* |
| Feb-20-2025 | 0.32 $* | 0.26 $* |
| Jan-20-2025 | 0.68 $* | 0.58 $* |
Характеристики
Products Description
Light/thin/complete
The thickness of FCL is only 70mm, and the weight of FCL is only 6.4kg
Product model coverage is comprehensive, and the main push is P2.6/P2.97/P3.91/P4.81
More comprehensive functions
Power line swing design, more convenient and faster
The power cord is designed with special interface to swing the cord, which is more convenient and practical
A backup is not an extra copy
Uniform flow interface design, power backup is no longer N+1 or 1+1
A is enough
90° right Angle splice
The box supports 45° cut Angle up to 90° direct splicing.
Universal fast lock, not just fast
Two sets of universal quick locks are provided on the upper and lower sides of the box body to solve the problem of quick assembly
and replacement/operation.
6 seconds reinforcement, N times efficiency
There are 2pcs tie holes on the side of the box body. The operation that used to take 60 seconds to fix with locking screw and
connecting piece can now be completed in 6 seconds, which is simpler and faster.60 seconds + reinforcement action, with "I" 6
seconds can be done
Signal interface double backup
Box signal interface double backup, double protection, how to connect up to your decision
High refresh high grey level
Using the well-known brand beads and chips commonly used in the industry, the display screen in low light, gray scale loss is
less, the picture display is fine, the detail performance is clear
160° Wide viewing Angle design
LED industry well-known core brand, for the development of indoor visual experience, horizontal 160°, vertical Angle of 140°
range, to give customers the most comprehensive visual enjoyment.
Product Paramenters
Pitch/mm | P1.56 | P1.953 | P2.604 | P2.976 | P3.91 | ||||
Module size/mm | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | ||||
Density of pixel/(dots/m2) | 409600 | 262144 | 147456 | 112896 | 65535 | ||||
Resolution of module | 160*160 | 128*128 | 96*96 | 84x84 | 64x64 | ||||
Use place | Indoor | Indoor | Indoor | Indoor / Outdoor | Indoor / Outdoor | ||||
Cabinet size | 500 x 500 | 500 x 500 | 500 x 500 | 500 x 500 | 500 x 500 | ||||
Driving method | 1/32 scan | 1/32 scan | 1/24scan | 1/28 scan | 1/16 scan | ||||
Refresh rate Hz/S | 3840 | 3840 | 3840 | 3840 | 3840 | ||||
Operation of Environmental Temperature/°C | below - 30 to above 60 | ||||||||
Working vlotage | 110-220 VAC/+/- 10% | ||||||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||||||
Life span | >100,000h | ||||||||
Defect dot rate | <0.0001 | ||||||||
Cabinet Frame | Die-casting Aluminum | ||||||||

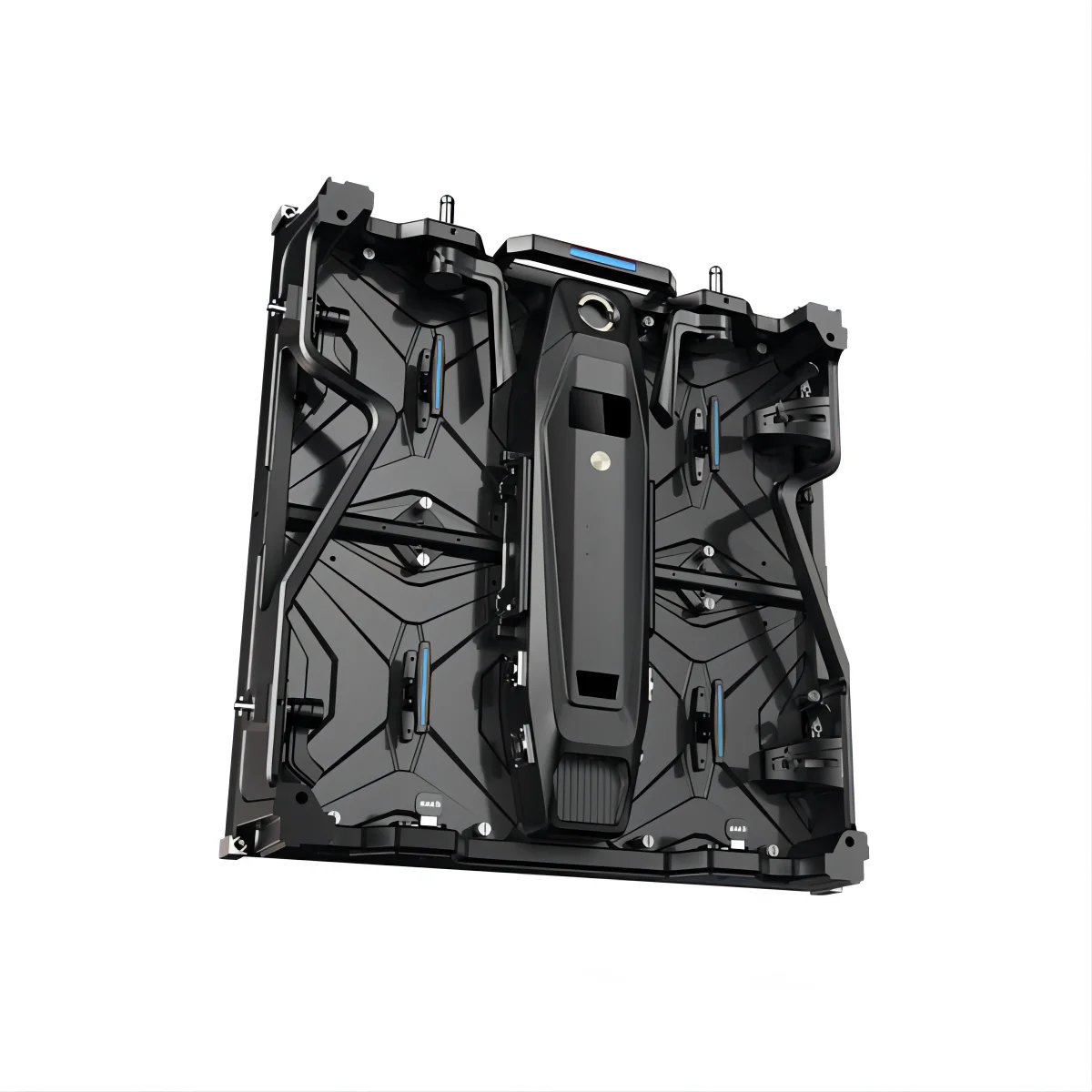

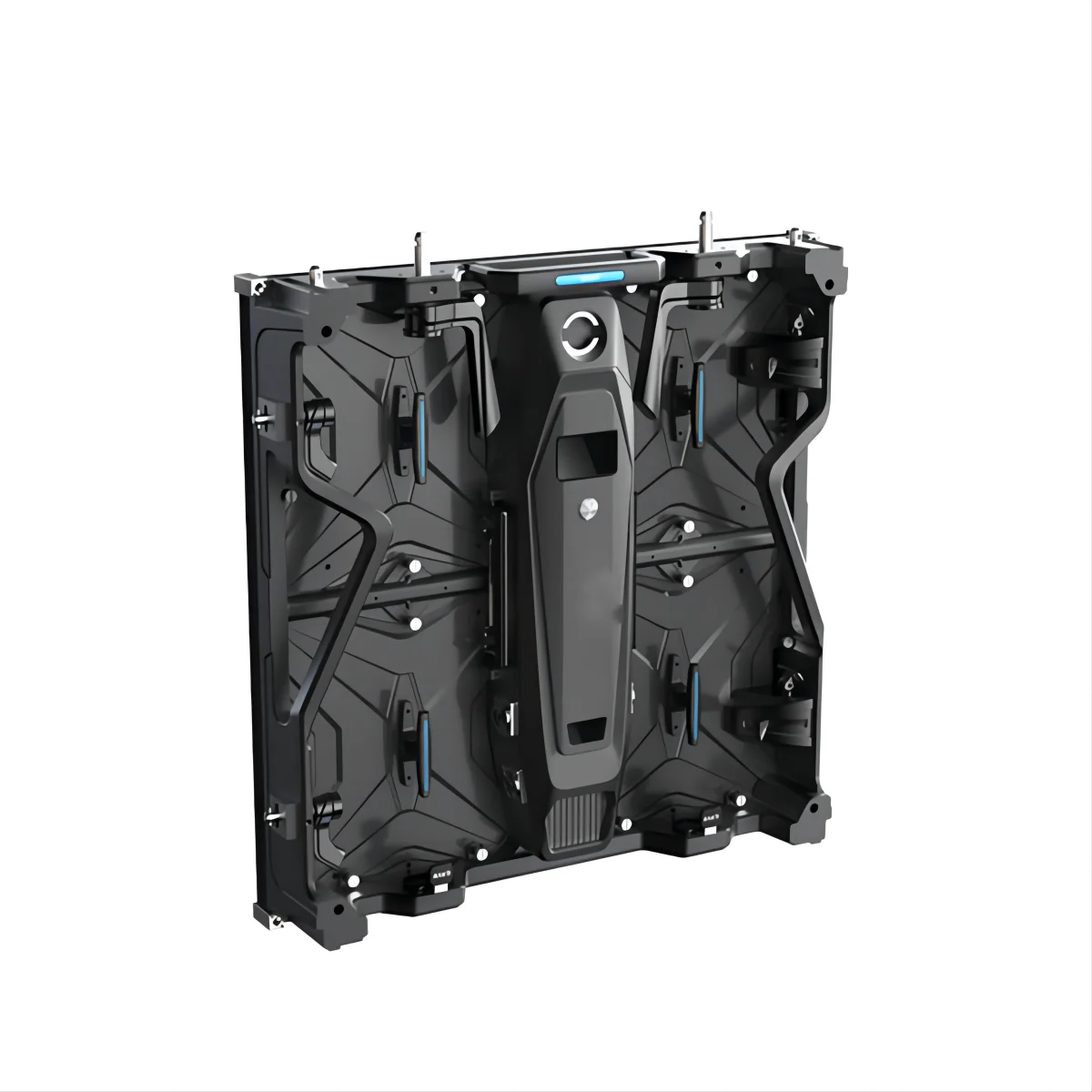

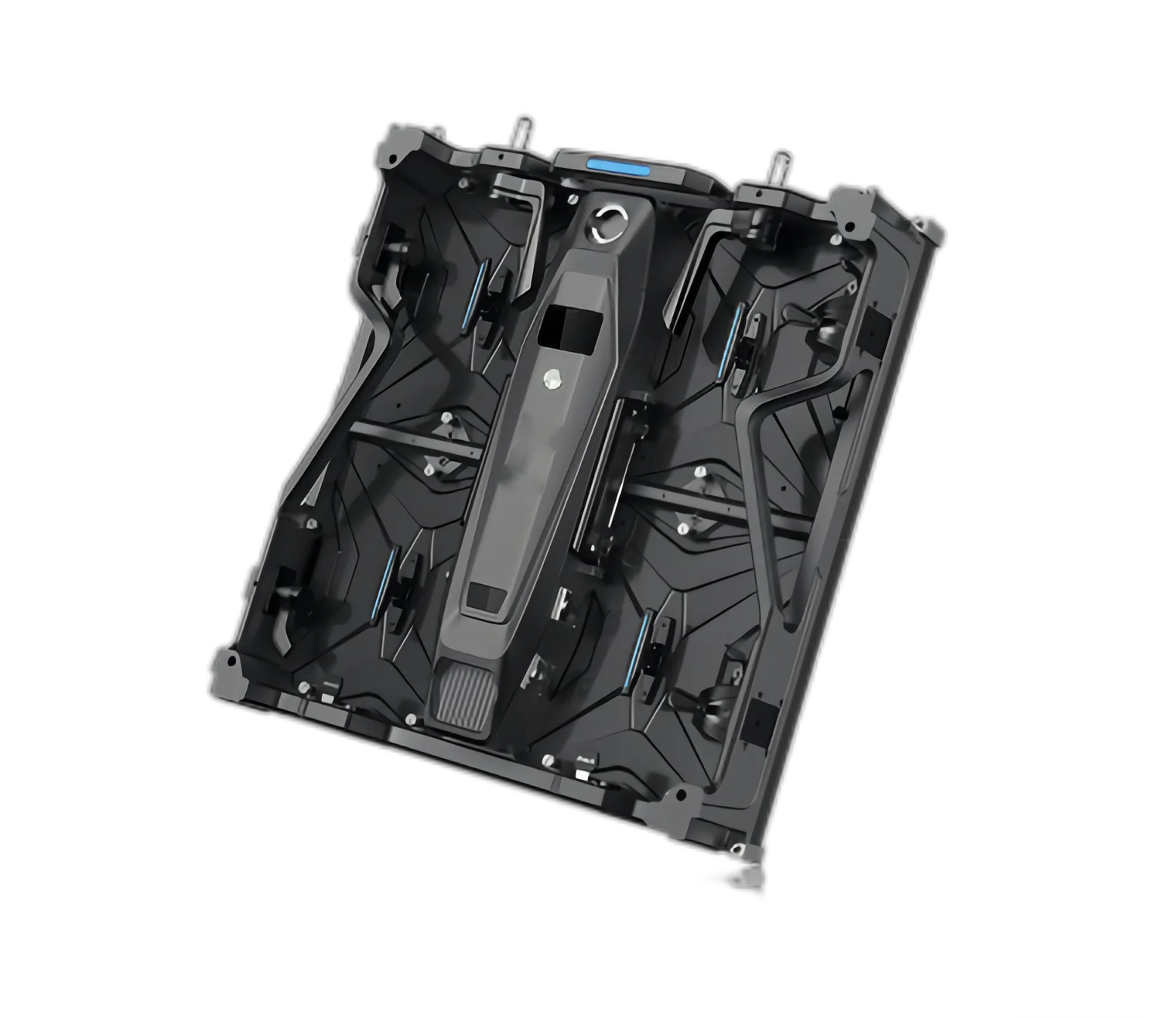

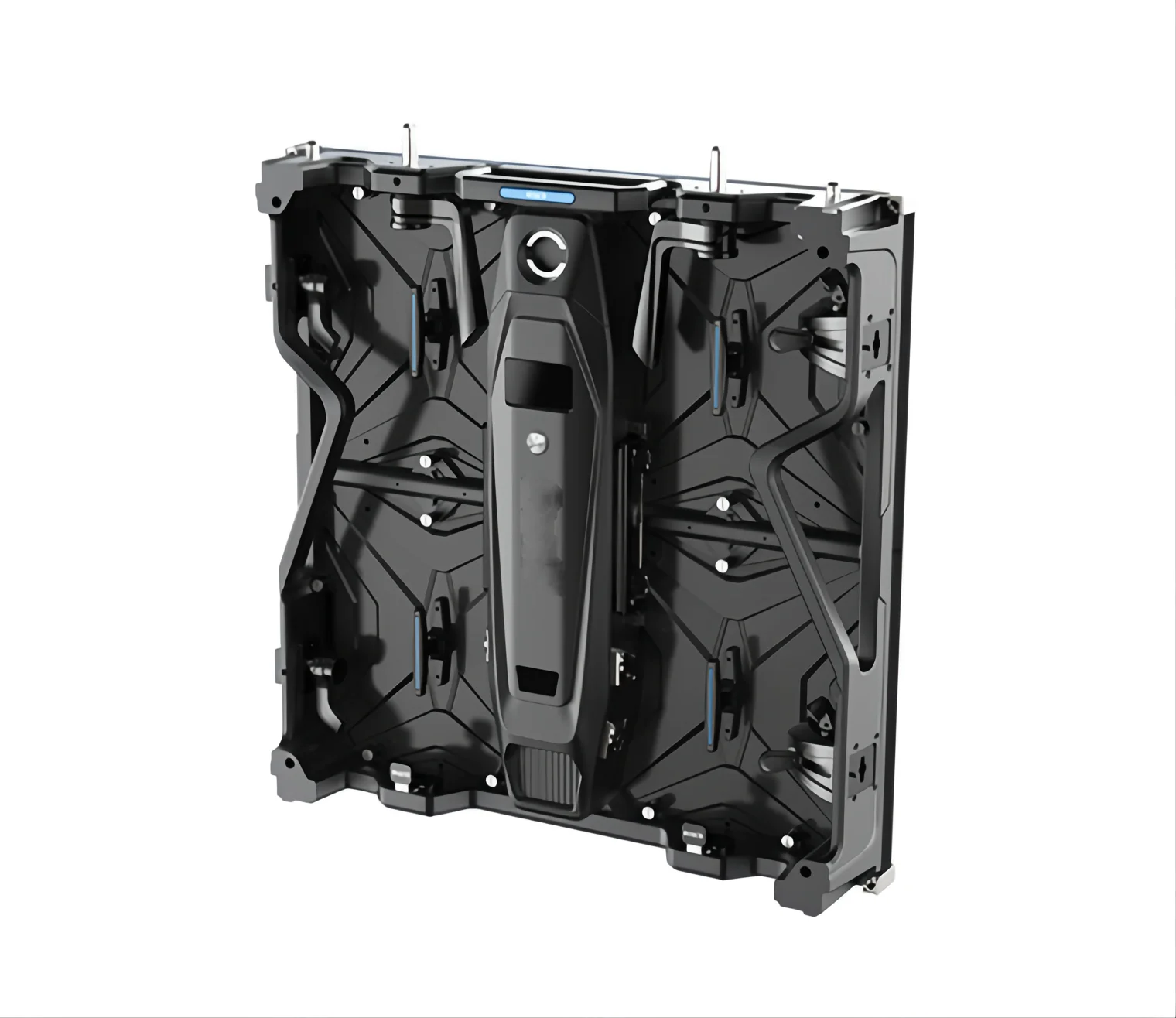

Details Images
Our Projects
Conference hall
P2.6 Indoor Rental led display
In the bar
P3.91 indoor LED Display
Indoor stage
P1.953 Indoor LED Display
In the concert hall
Indoor P2.976 with curved cabinet
Indoor Banquet hall P3.91 Indoor LED display
At the sales event P3.91 Outdoor Rental LED Display
Company Profile
WHO WE ARE ?
Shenzhen Ruishen Optoelectronics Technology Co., Ltd. was founded in 2009.Is a professional LED display research and development and manufacturing plant.
The LED screen series developed by Ruishen include stage rental screen, indoor/outdoor fixed screen, small spacing screen, court screen, window screen, etc. The products have been sold to more than 130 countries, widely praised;
Ruishen with high quality, high cost performance products is willing to cooperate with you for win-win results.
The LED screen series developed by Ruishen include stage rental screen, indoor/outdoor fixed screen, small spacing screen, court screen, window screen, etc. The products have been sold to more than 130 countries, widely praised;
Ruishen with high quality, high cost performance products is willing to cooperate with you for win-win results.
RuiShen Front Desk
Our office
Our workshop
Our workshop
