Контактный разъем TN HTN VA для цифрового сегмента ЖК-дисплея маленький ЖК-дисплей графическая ЖК-панель с символами автомобиля и электрического
- Категория: Модули дисплея >>>
- Поставщик: Changsha,Sunman,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.3 $* | 0.56 $* |
| Aug-18-2025 | 0.10 $* | 0.56 $* |
| Jul-18-2025 | 0.16 $* | 0.0 $* |
| Jun-18-2025 | 0.18 $* | 0.46 $* |
| May-18-2025 | 0.74 $* | 0.1 $* |
| Apr-18-2025 | 0.65 $* | 0.48 $* |
| Mar-18-2025 | 0.67 $* | 0.45 $* |
| Feb-18-2025 | 0.28 $* | 0.19 $* |
| Jan-18-2025 | 0.6 $* | 0.85 $* |
Характеристики
TN HTN VA Digit Segment Lcd Display Pins Connector Small Lcd Display Character Graphic Lcd Panel for Car and Electric Bicycle
Product Description
Main technical data:
Display content: | 8 numbers+2radix point+56Prompts | Backlight color : | White |
Operating voltage: | 3.0V | Backlight current : | <40mA |
Drive mode: | 1/3BIAS,1/4DUTY | ||
View angle: | 12:00 | ||
Character high: | 12.4mm,7.8mm | ||
Display type: | TN,Positive | ||
Display mode: | Reflective | ||
Connection way: | Pin connector | ||
Operating temperature: | -10~+60℃ | ||
Storage temperature: | -20~+70℃
| ||
Outline demension:

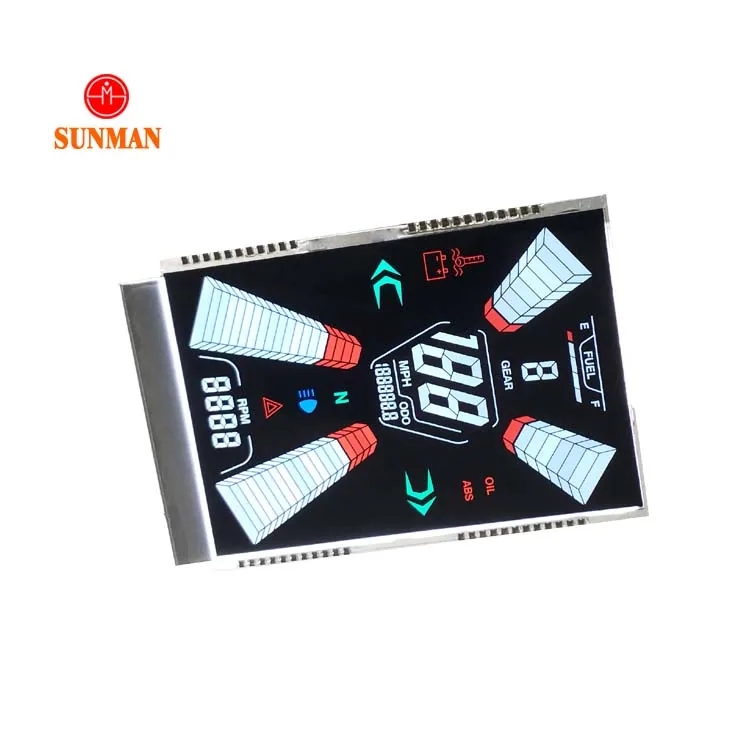

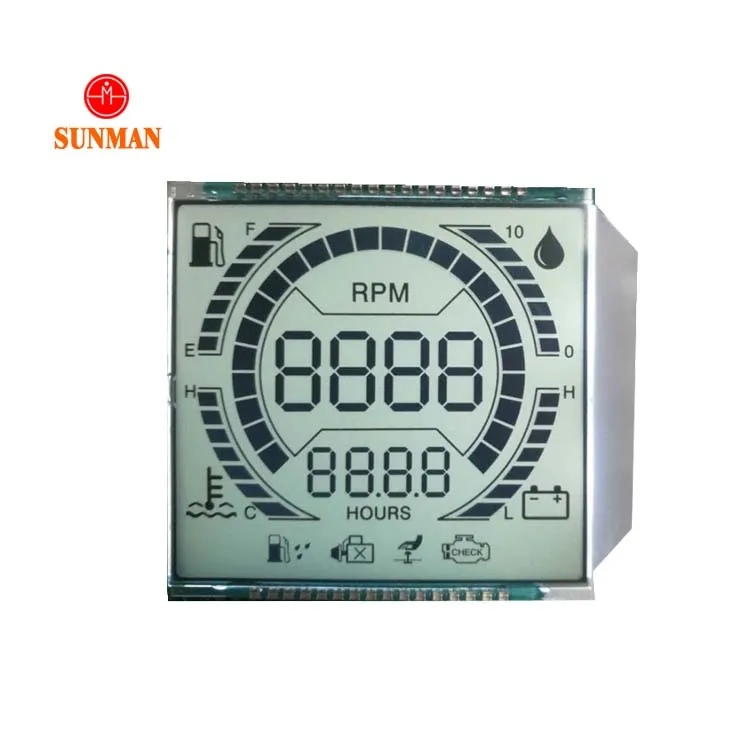

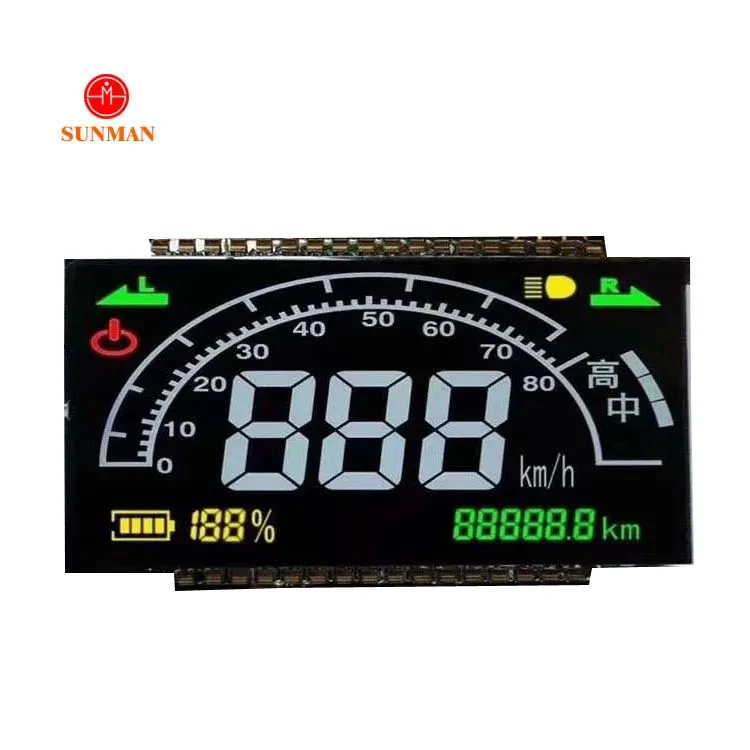

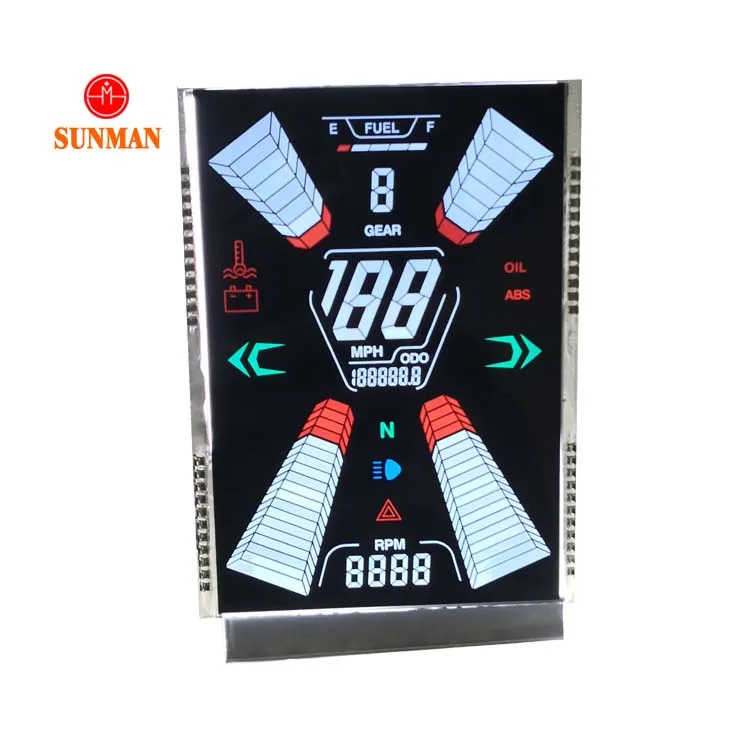

Product show:

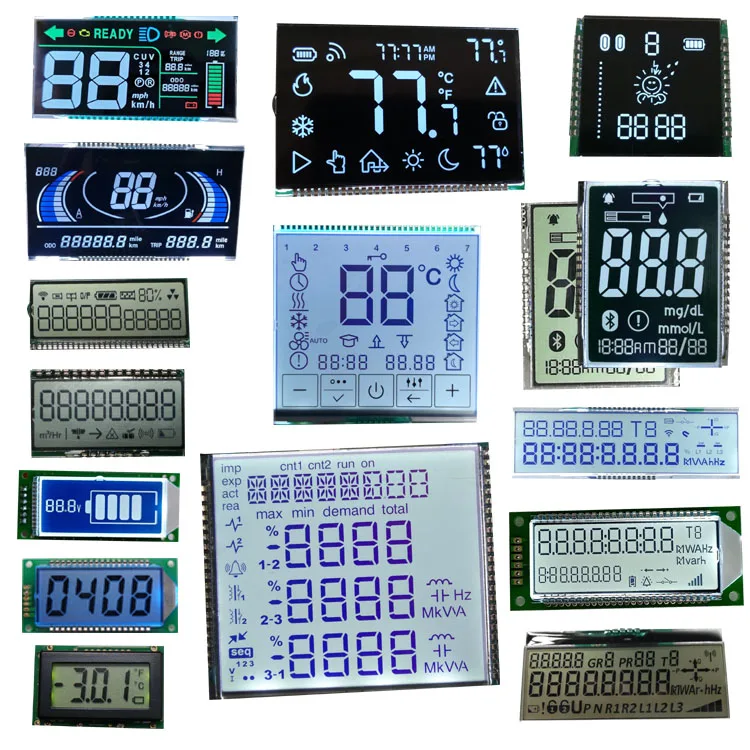

hot sell products
Hot Custom LCD ,we could customize any lcd according to your requiremets :
how to customize?
Welcome custom-made !Free design !
What can we custom?
Display type :VA/TN/HTN/STN/FSTN/FFSTN/DFSTN
LCD structure:LCD Glass With/Without backlight COB,COG
Polarizer:Transflective, Transmissive, Reflective, Anti- Glare, Anti-UV
Background :Gray, Yellow-Green, Blue, Black
Operating temperature:-30 ℃ +85 ℃, Customization
Connector/Connection:Metal PIN, Rubber/Zebra, Heat seal, Flat cable(FPC)
Buyers' Feedback
Feedback from our customers :
Applications
Certifications
contact
Welcome to contact with us via e-mail/skype: cherry at sunman.ltd
whatsapp: +86 13319561067
skype :cherry.wang0505
or send your inquiry details in the below for samples ,click "send" now
