Introductions of Electronic Thermostat Jacket Heaters for Drums and Tanks

Electronic Thermostat Jacket Heaters for Drums and Tanks combined by the heating element, base core, fabrics, power cord, junction box, control switch (or thermostat). It could be classified into two types, constant temperature type and adjustable temperature type. The constant temperature type is implanting one or more fixed temperature control element in the electric blanket, when the temperature is lower than the set temperature, the heating blanket automatically starts heating, when the temperature reaches the set temperature; the heating blanket automatically disconnected the power supply, and continues thermal insulation. The whole process is circulated. The temperature adjustable type is built in a temperature probe, which transmit temperature signal to the relay in the temperature control box, and the relay control the connection of the circuit. Temperature could be set up by users according to the using environment and conditions. The ordinary temperature range is -35℃ to 120℃, and for other temperature range, we could customized according to customers’ requirements.

Specifications of Electronic Thermostat Jacket Heaters for Drums and Tanks

1 Voltage: 50HZ 220V/110v/120V/230V/240V/380V

2 Rated power: 100-1500W/ square meter (according to the user's different needs can be                  customized)

3 Rated current: 0.45A~22A

4 Temperature: Adjustable temperature type≤190℃±1℃; Accessories: electronic temperature control box

5 Constant temperature type: 35℃~260℃±5℃(5℃/grade)

6 Heating area: Customized, ex.: 2200mm x 300mm.

7 Product size: Customized, ex.:2500mm x 400mm.

The feature of Electronic Thermostat Jacket Heaters for Drums and Tanks

A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.

B. Smoothly lied resistant wire makes the heating blanket heating Uniform.

C. High temperature resistance flame retardant fabrics are used.

D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.

E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.

F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.

G. Several temperature probes are layout uniformly, making sure the uniform heating.

Advantages of Electronic Thermostat Jacket Heaters for Drums and Tanks

1. Integrated type

2. Custom size and shape

3. Full coverage heating and insulation, high thermal and heating efficiency

4. Good flexibility

5. Uniform heating

6. Built-in overheat switch to prevent accidental burning of heated body

7. Large range, high power, fast heating.

8. High insulation performance of all material

9. Easy to install and remove, safer and adjustable

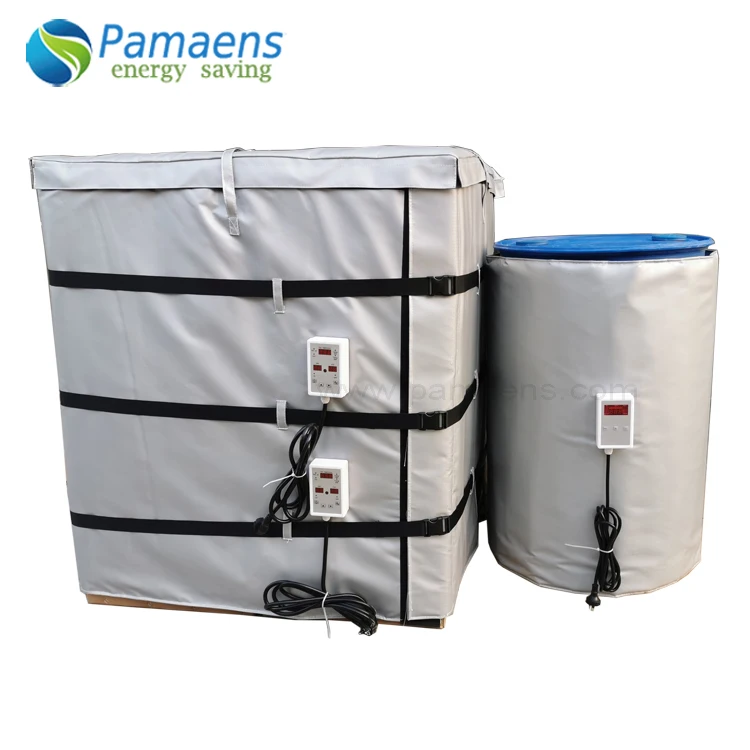

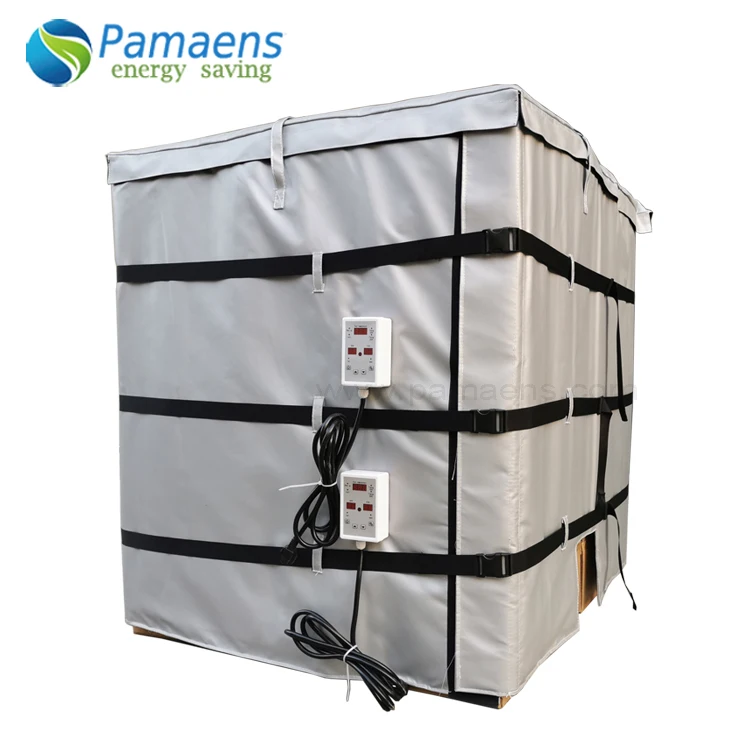

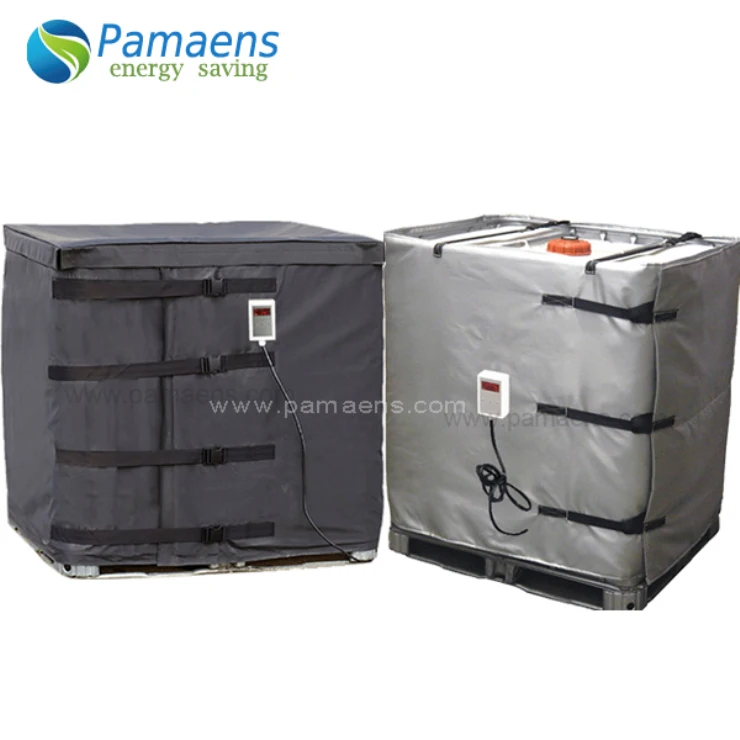

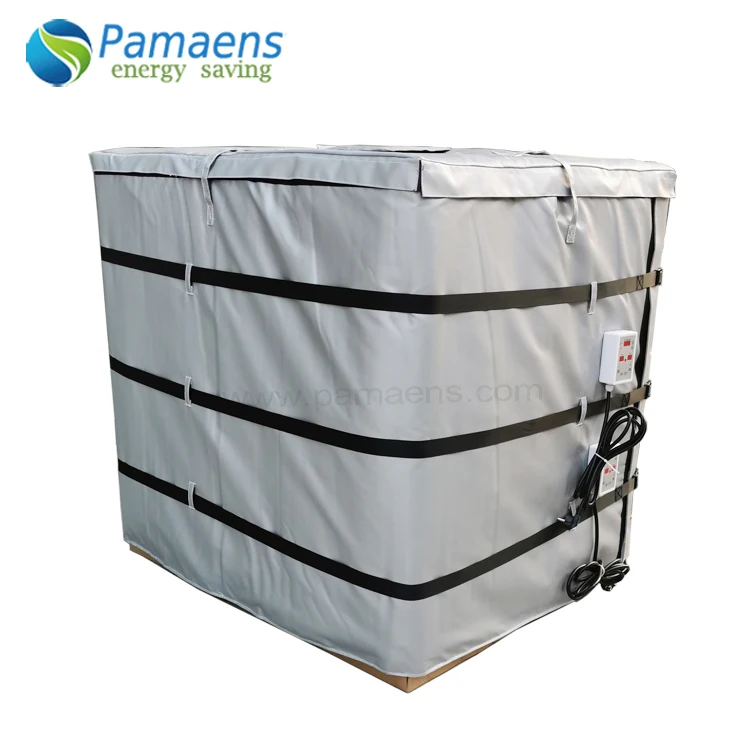

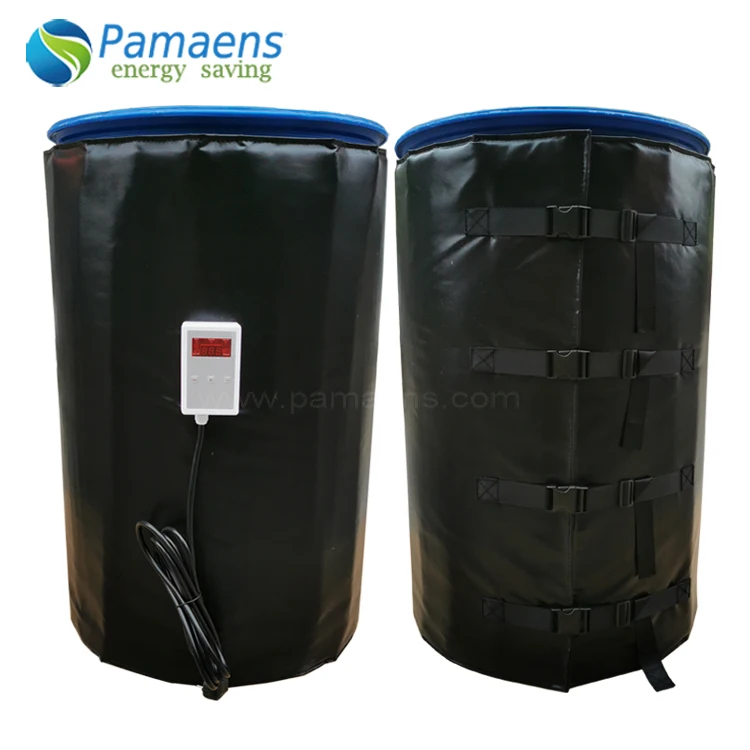

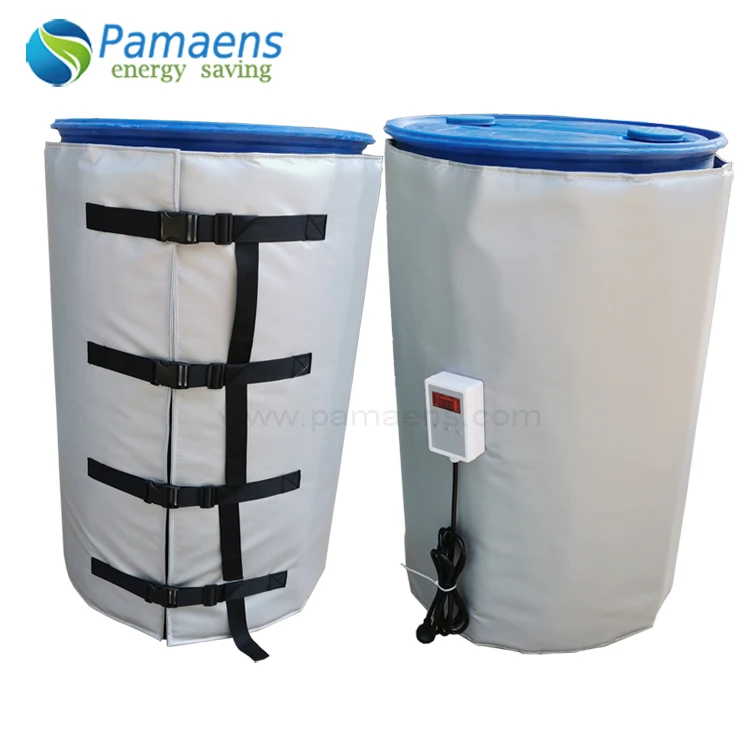

Products Show case of Electronic Thermostat Jacket Heaters for Drums and Tanks

Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.

Order Guidance of Electronic Thermostat Jacket Heaters for Drums and Tanks

1.


   Dimension of the tank/drum





2.


   Is this a hazardous (ATEX) area?





3.


   What temperature do you want to heat to, and how quickly?





4.


   What is the ambient temperature?





5.


   What is inside the tank?





6.


   Is it solid or liquid at normal ambient temperature?





7.


   Quantity




How can I get the sample to check your quality?

After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

What is your term of delivery?

We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.

What about the lead time for the mass production?

Our production time is 10-20 days depends on the order quantity and the season you place the order.
