Домашнее спиртовое дистилляционное оборудование moonshine для

Домашнее спиртовое дистилляционное оборудование moonshine для

Категория: Other Beverage & Wine Machines >>>
Поставщик: Daeyoo,Tech.,Co.,Ltd.,Wenzhou

Цена:1 100,00 $ - 1 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	1309.68 $*	1374.26 $*
Aug-16-2025	1298.30 $*	1363.38 $*
Jul-16-2025	1089.69 $*	1143.89 $*
Jun-16-2025	1276.9 $*	1340.9 $*
May-16-2025	1111.11 $*	1167.45 $*
Apr-16-2025	1254.65 $*	1317.43 $*
Mar-16-2025	1243.30 $*	1305.66 $*
Feb-16-2025	1232.89 $*	1294.68 $*
Jan-16-2025	1221.18 $*	1282.40 $*

Характеристики

Product Description

DYE home alcohol distillation moonshine whisky distiller equipment

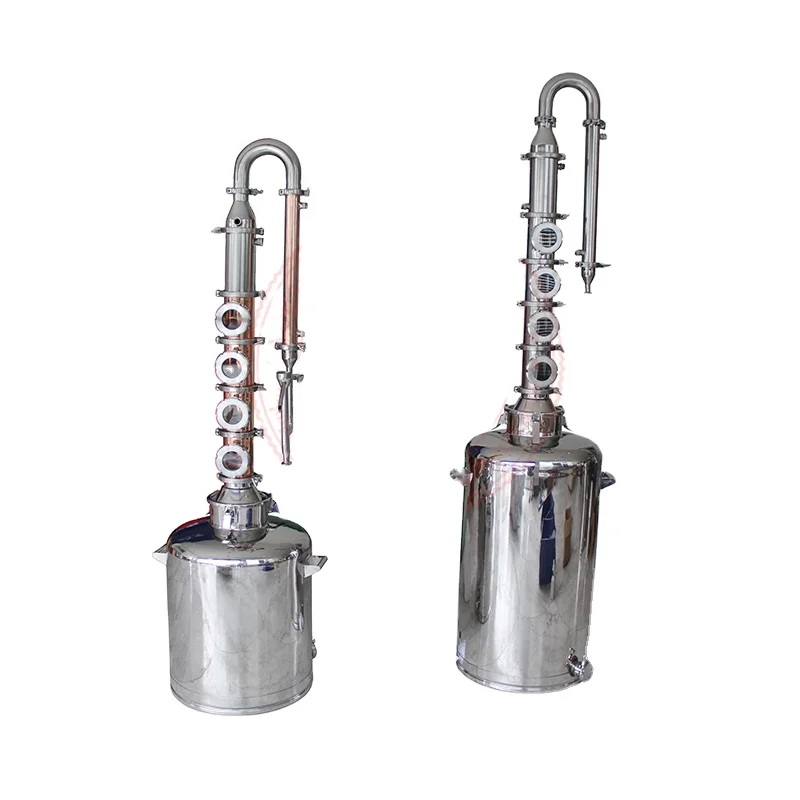

What's the pictured still consist of?

pot	SS304 made single layer distilling pot
heating	5KW electric heater & control box
column	SS made columns with totally 4 bubble plates
dephlegmator	SS304 made, Tri-clamped connect
condenser	SS304 made, Tri-clamped connect
parrot	SS304 made, Tri-clamped connect
Usage	It can make sure you get function of white Spirit,moonshine,rum

What we make

Our Advantage

DYE company, one of white hair for Brewing and distilling equipment business in China since 1986, wish you good luck and hope you can find suitable product here.

Quality

Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.

Certifications

Our equipment is coming with certifications of PED and our company is TUV approved.We use CE approved components for Europe customers,and CSA or UL approved motor for North American customers. And have 3A certificate.

We are ready to sign a contract with you in case you need to ensure our quality.

Detailed Images

Machine Parts

Name: Support

Brand:DYE

Original:China

All support are made of stainless steel 304 or red copper,we can also do the shape according to your requirement

Main Features

Name: Bubble caps and trays
Brand: DYE
Original: China
The trays of distillation column we have improve it like photo,if the trays be full welded on column,there will have welding scar around of column,it`s not good looking.All bubble caps and screw are made of T2 grade red copper,the screw design is by our company,no dead corner,it can 100% meet sanitary stand.

Machine Parts

Name: Distillation column
Brand: DYE
Original: China
5 & 8-4 plant/16 plate Distillation column
It consist of red copper column,bubble cap,down comers,bubble plate,red copper screw.We can tailor the height and plate number for your specific application.the max.height of column can reach 2000 mm;up to 10 plates with a pair of flange;all bubble plates integrated within a tightly embedded inner shell;all features so the surface appearance looks smooth and attractive,yet simple and generous.

FEATURES:For low wine:4-6 plates;For High wine:6-20 plates

Main Features

Name: Agitator
Brand: Siemens,ABB,Nanyang or other
Original: Germany ,Japan,China
On top of still pot,with agitator.
Material:stainless steel 304,union connection,it`s easy to installtion.

Voltage:280V/220V/240V/380V/415V/460V/etc,we can supply voltage according to customer request,Ex-proof motor with CE/UL/CSA certificate

Our Service

Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.

After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

Packing & Delivery

Packaging
Size	Customization
Weight	Customization
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	Customization
Weight	Customization
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Quality control:

Spectrometer

We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.

surface roughometer

Strictly manufacture in accordance with standards Roughness is less than 0.22 μm

Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.

thickness measuring meter

thickness of steel plates

super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate. equipment 3 year's warranty, all life service.

Our company's customer segmentation:

Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc. At present, we have no formal foreign agents but we are looking for superior agents to create a brilliant future.

DYE has help thousands of customer build thier distillery

FAQ:

Which is better and more productive – a Reflux Still or a Pot Still?

Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.

A Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the 'character' of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.

A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the 'character' coming through. This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.

Why do I need coppper?

Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.

Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.

How much copper is really needed?

a. Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.

b. Our systems are designed to give you the needed amount of copper for any distilled product. We can always add more copper to your system for a premium,if you require it.

Do I need Permits?

a. Yes there are many permits required to start a new distillery depending on where you are located. Besides the federal permitting with the Alcohol and Tobacco Tax and Trade Bureau (TTB), most states and local jurisdictions require permitting of some sort. Please consult with an industry consultant or your legal counsel.

Will someone from DYE train me on how to operate the equipment?

Because we specialize in equipment design and manufacturing, we recommend contacting a consultant regarding your particular product line. While we offer general guidelines, a consultant will be able to offer a more specific set of instructions, often tailored to the product(s) you plan on producing.

If you have no available consultant,please feel free to contact us and we will recommend you one.
