Pls kindly Note:the price shown is Mechanical Probe Wireless Veterinary B ultrasound Scanner for reference,as for Electron Probe type,pls contact us



New Arrival Wireless Portable Veterinary Color B Ultrasound Scanner WaterProof Animal Pig Sow Sheep Pregnancy Ultrasound Tester



Product Description

Wireless Veterinary Pregnancy B Ultrasound Tester

Traditional animal cable. The Handheld wireless pig pregnancy ultrasound scanner for pig sow is highly integrated with ultrasound image processing, power management and wireless ultrasonic tester with the host to connect to the host via cable, while the intelligent wireless B-ultrasound probe is not used for transmission. It is different from the host of traditional animal B-ultrasound equipment. Intelligent systems use smart mobile terminals as hosts. In the connection, the probe is connected to the mobile terminal as a Wi-Fi access point. Once the probe has been properly connected to the iPad via Wi-Fi, launching the APP will begin the day with no cable troubles.



Features

Wireless Veterinary Pregnancy B Ultrasound Tester

·Workable with ipad or Smart  Phone
·Advanced digital  imaging technology, clear image
· High cost-effective
·Wireless connectivity, easy to operate
·Small and  light , easy to carry
·Applicable in emergency, clinic, outdoor and vet inspection
·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

Product Parameters

Wireless Veterinary Pregnancy B Ultrasound Tester

Wireless Veterinary Pregnancy B Ultrasound Tester
Probe	3.5MHz Mechanical Probe	3.5MHz Electron Probe
Depth	≥100-180mm	≥70-240mm
Dead Zone	≤5mm	≤6mm
Screen Display	show on phone/ipad	show on phone/ipad
Display mode	B	B
Scanning way	80 degree sector sweep	Resolution(mm): Lateral:≤3(depth≤80) ≤5(80<depth≤80) Portrait≤1(depth≤80)
Size	150*45*54mm	167*30*70mm
Weight	240g	270g
Image gray scale	256 level	256 level
Battery capacity	3200MAh	4500MAh
Battery working time	>4hours	3-5hours



Specifications

Wireless Veterinary Pregnancy B Ultrasound Tester

-Scanning system: Sector sweep
-Frequency: 3.5MHz (convex array)
7MHZ (linear array)
-Depth: ≥100-180mm(Mechanical Probe type)/≥70-240mm(Electron Probe type)
-Field of view(convex array): 80 degree
-Screen: Smart phone or ipad screen
-Supporting system: Apple MacOSx (Android, Windows system version coming soon)
-Display mode: B,B/M
-Frame rate: 12f/s
-Image gray scale: 256 level
-Image Storage: Using intelligent terminal customers to use (mobile phones,ipad PC) storage devices
-Sutible for obstetrics, abdomen organs ultrasound scanning
-Power: by built-in battery
-Battery working time: >4hours
-Weight: 240g/ 270g



Advantages

Wireless Veterinary Pregnancy B Ultrasound Tester

♦Using such probe + your iphone/ipad = one set ultrasound scanner.

♦ Wirless waterproof wifi connect.

♦ Internal battery of the probe, can work more than4 hours.

♦ weight slight, easy to carry.

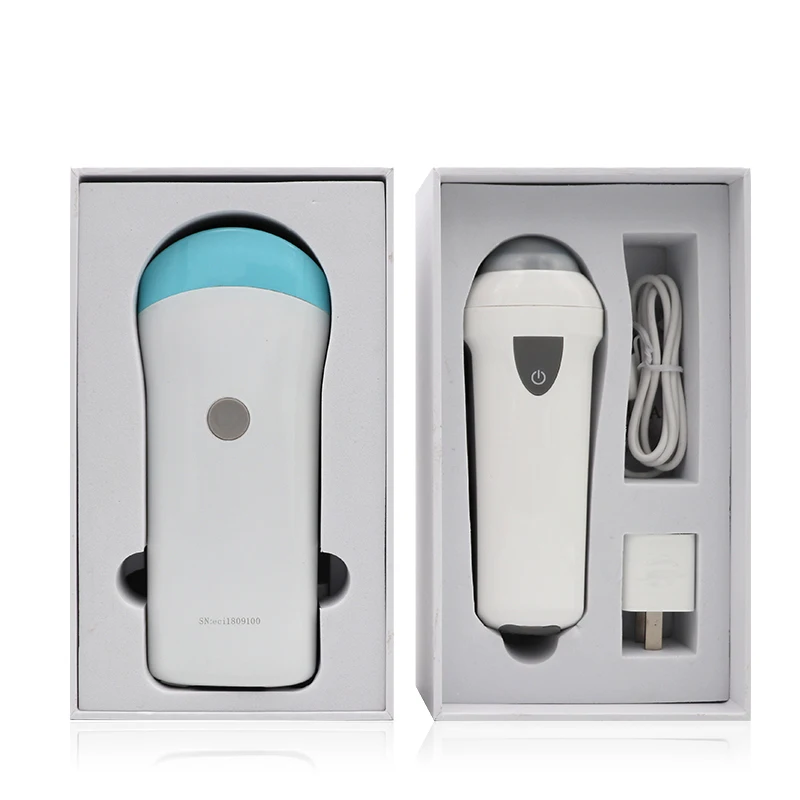

Standard Configuration:
Main Machine(with Lithium battery),3.5MHz Probe,Instruction Book,Power Adapter,usb Data Cable,packing box

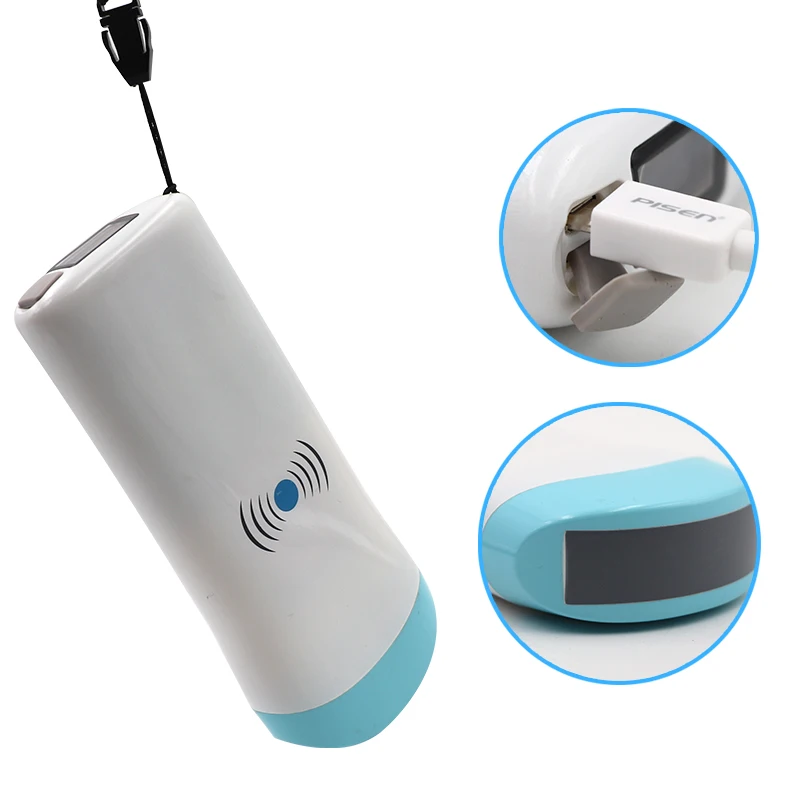

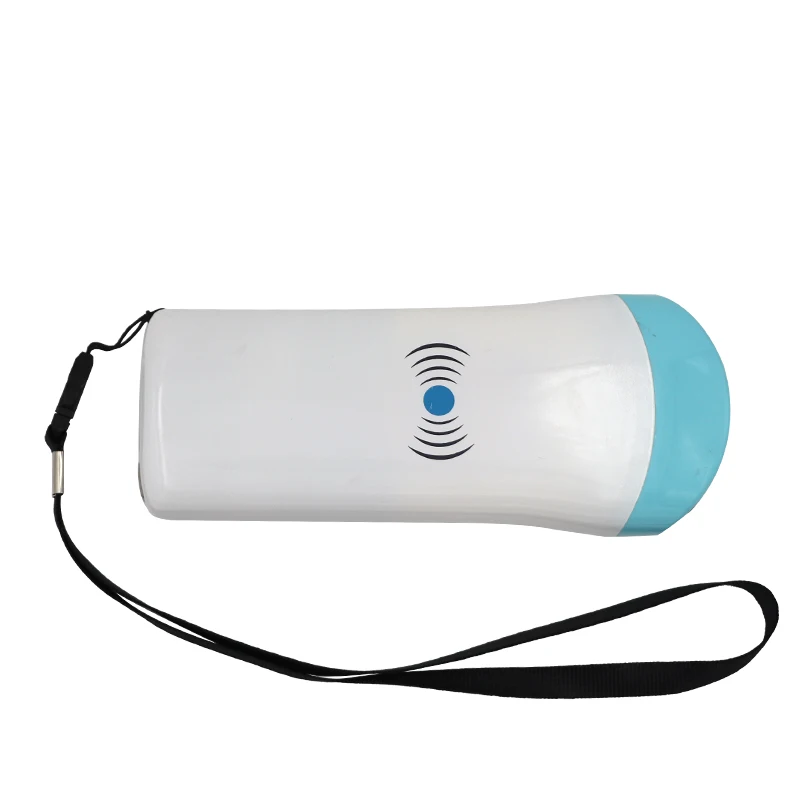

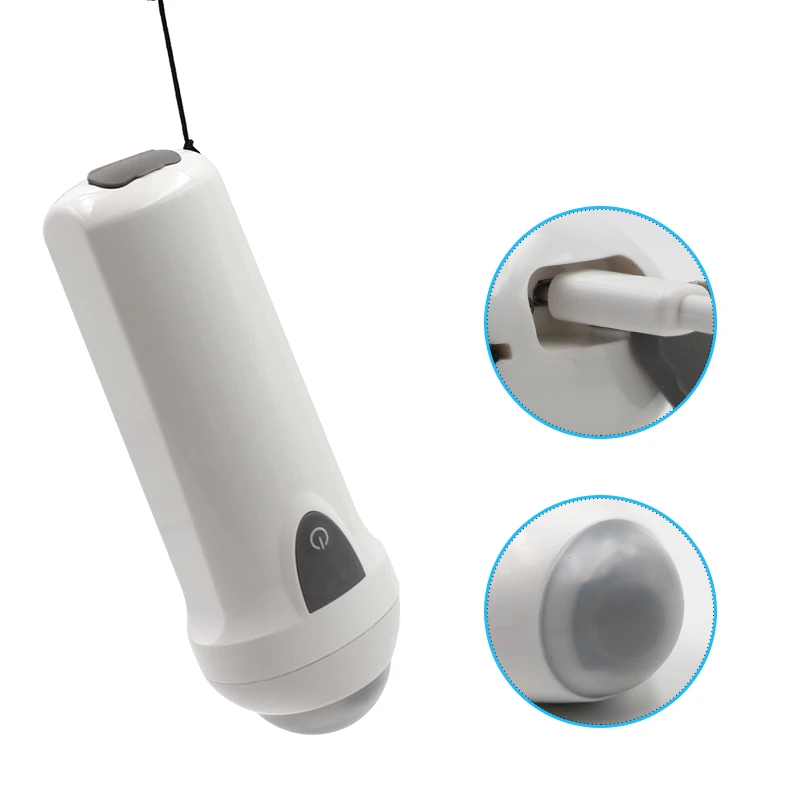

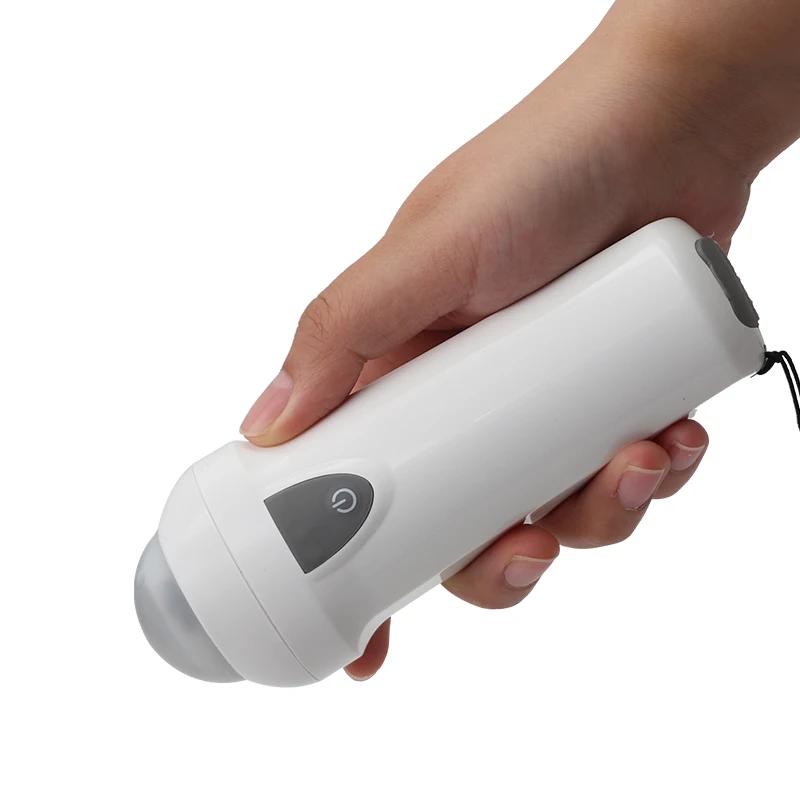

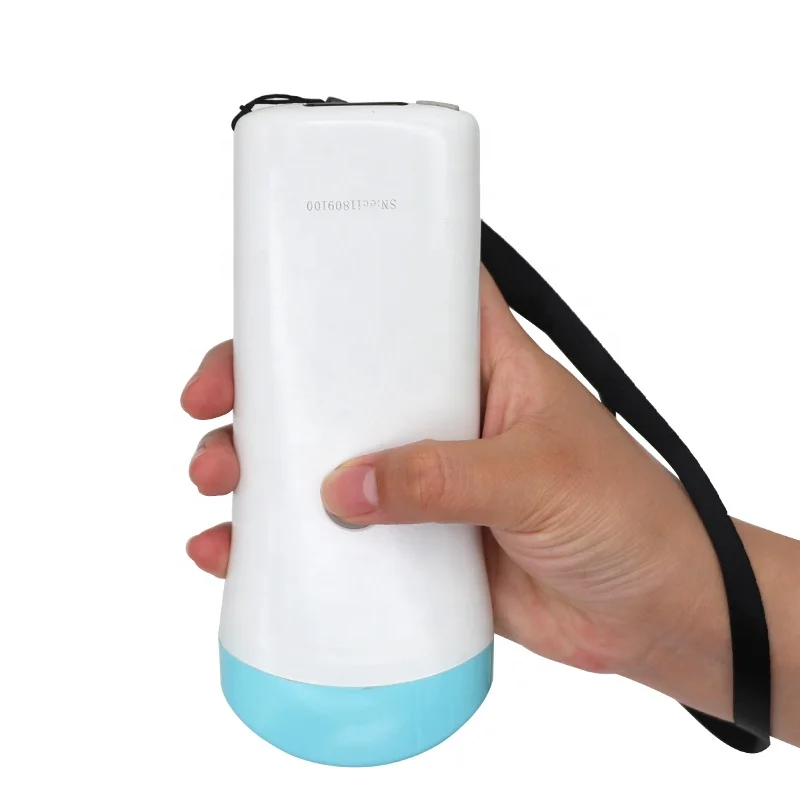

Product Display

  Structure(Take the mechanical probe wireless veterinary ultrasound scanner as an example)

The Probe ultrasound scanner can be directly connected to mobile phones, iPad
