Вентиляторы шкафа серии CF центробежные вентиляторы высокого давления с большим воздушным
- Категория: Центробежные вентиляторы >>>
- Поставщик: Dalian,Changyong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.85 $* |
| Aug-16-2025 | 0.3 $* | 0.0 $* |
| Jul-16-2025 | 0.0 $* | 0.88 $* |
| Jun-16-2025 | 0.59 $* | 0.6 $* |
| May-16-2025 | 0.45 $* | 0.0 $* |
| Apr-16-2025 | 0.30 $* | 0.25 $* |
| Mar-16-2025 | 0.40 $* | 0.43 $* |
| Feb-16-2025 | 0.35 $* | 0.50 $* |
| Jan-16-2025 | 0.2 $* | 0.55 $* |
Характеристики
Product Description

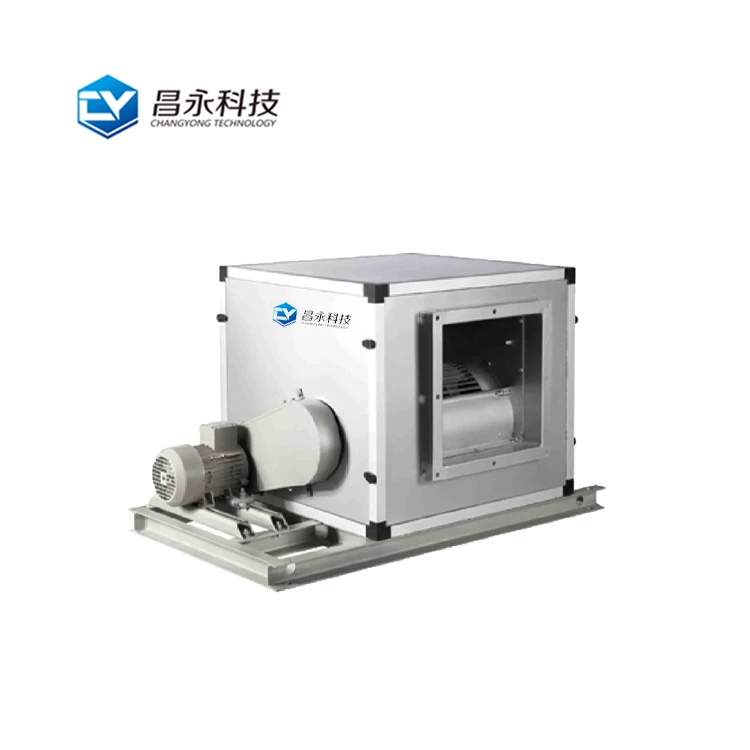

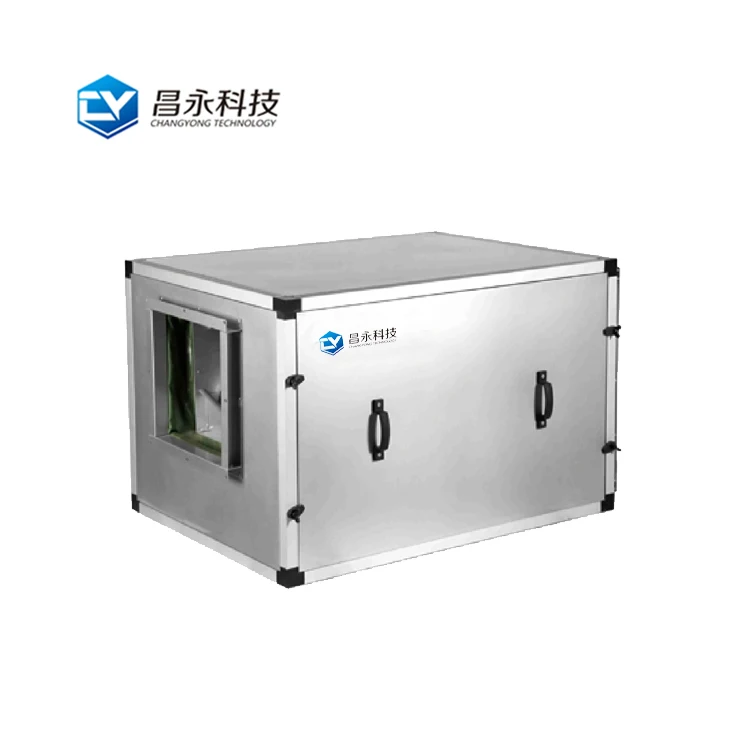

CF series cabinet fan
The CF series, Cabinet Fans, provide the best performance and durability. The CF series is carefully engineered for efficiency and reliability in supply, exhaust, and return air applications. The CF series is designed specifically for low sound levels in ducted applications.
Performance
Air volume: 1000m3/h-160000 m3/h Static pressure: 150Pa-4000Pa
Material
Carbon steel
Stainless steel
Gas Service
General gas
Corrosive gas, acid-base gas
Fuel volatile gas
Flammable and explosive gas
Applicable Place
Air supply, exhaust and return air systems for various civil Laboratory exhaust
Kitchen fume exhausting system
Method for determining position of inlet and outlet（Motor is inside the cabinet)
Method for determining position of inlet and outlet（Motor is inside the cabinet）
The observer is facing the cabinet, standing near the outlet and away from the motor position.
Position of inlet and outlet(Motor is inside the cabinet)
Horizontal air inlet and air outlet
Top air inlet, horizontal outlet
Left or right inlet ,horizontal outlet
Horizontal air inlet, top outlet
Left or right inlet ,top outlet
*If the direction of the inlet and outlet does not meet your needs, please contact us. We will provide detailed design.
Method for determining position of inlet and outlet (Motor is outside the cabinet)
Method for determining position of inlet and outlet (Motor is outside the cabinet)
The observer is facing the cabinet, standing near the outlet and away from the motor position.
Horizontal air inlet and air outlet
Horizontal air inlet and air outlet
Horizontal air inlet, top outlet
Horizontal air inlet, top outlet
Left or right inlet ,horizontal outlet
Left or right inlet ,horizontal outlet
Left or right inlet ,horizontal outlet
*If the direction of the inlet and outlet does not meet your needs, please contact us. We will provide detailed design.
Dimension
Horizontal air inlet, top outlet（Motor is inside the cabinet）
Dimensions(unit: mm)
Model | A | B | C | D | E | F | G |
CF200 | 880 | 629 | 662 | 256 | 256 | 115 | 472 |
CF225 | 960 | 675 | 700 | 288 | 288 | 115 | 510 |
CF250 | 1000 | 719 | 730 | 322 | 322 | 115 | 540 |
CF280 | 1120 | 776 | 820 | 360 | 360 | 115 | 630 |
CF315 | 1200 | 838 | 880 | 404 | 404 | 115 | 690 |
CF355 | 1300 | 911 | 940 | 452 | 452 | 115 | 750 |
CF400 | 1400 | 994 | 1000 | 506 | 506 | 115 | 810 |
CF450 | 1500 | 1095 | 1120 | 568 | 568 | 115 | 930 |
CF500 | 1600 | 1225 | 1240 | 638 | 638 | 135 | 1020 |
CF560 | 1700 | 1335 | 1380 | 714 | 714 | 135 | 1160 |
CF630 | 1900 | 1460 | 1530 | 800 | 800 | 135 | 1310 |
CF710 | 2100 | 1684 | 1720 | 898 | 898 | 145 | 1500 |
CF800 | 2300 | 1850 | 1920 | 1006 | 1006 | 145 | 1700 |
CF900 | 2530 | 2030 | 2150 | 1130 | 1130 | 145 | 1930 |
CF1000 | 2700 | 2190 | 2400 | 1266 | 1266 | 145 | 2180 |
Model | H | J | K | L | M | Motor Base |
CF200 | 399 | 962 | 40 | 580 | 862 | 63/71/80/90 |
CF225 | 445 | 1000 | 40 | 660 | 900 | 63/71/80/90 |
CF250 | 489 | 1130 | 40 | 700 | 1030 | 63/71/80/90 |
CF280 | 546 | 1220 | 40 | 770 | 1120 | 71/80/90/100 |
CF315 | 608 | 1280 | 40 | 850 | 1180 | 71/80/90/100 |
CF355 | 681 | 1340 | 40 | 950 | 1240 | 80/90/100/112 |
CF400 | 764 | 1400 | 40 | 1050 | 1300 | 90/100/112/132 |
CF450 | 865 | 1520 | 40 | 1100 | 1420 | 90/100/112/132 |
CF500 | 955 | 1640 | 50 | 1200 | 1540 | 90/100/112/132 |
CF560 | 1065 | 1780 | 50 | 1300 | 1680 | 112/132/160 |
CF630 | 1190 | 1930 | 50 | 1350 | 1830 | 112/132/160 |
CF710 | 1364 | 2220 | 100 | 1400 | 2120 | 112/132/160/180 |
CF800 | 1530 | 2420 | 100 | 1600 | 2320 | 132/160/180/200 |
CF900 | 1710 | 2650 | 100 | 1830 | 2550 | 160/180/200/225 |
CF1000 | 1870 | 2900 | 100 | 1900 | 2800 | 160/180/200/225 |
