Новые товары 3 дюйма C100 автомобильный беспроводной проекционный дисплей OBD2 спидометр

New Items 3inch C100 Car HUD Wireless  Head Up Display OBD2 Speedometer Alarm

Product Introduction:

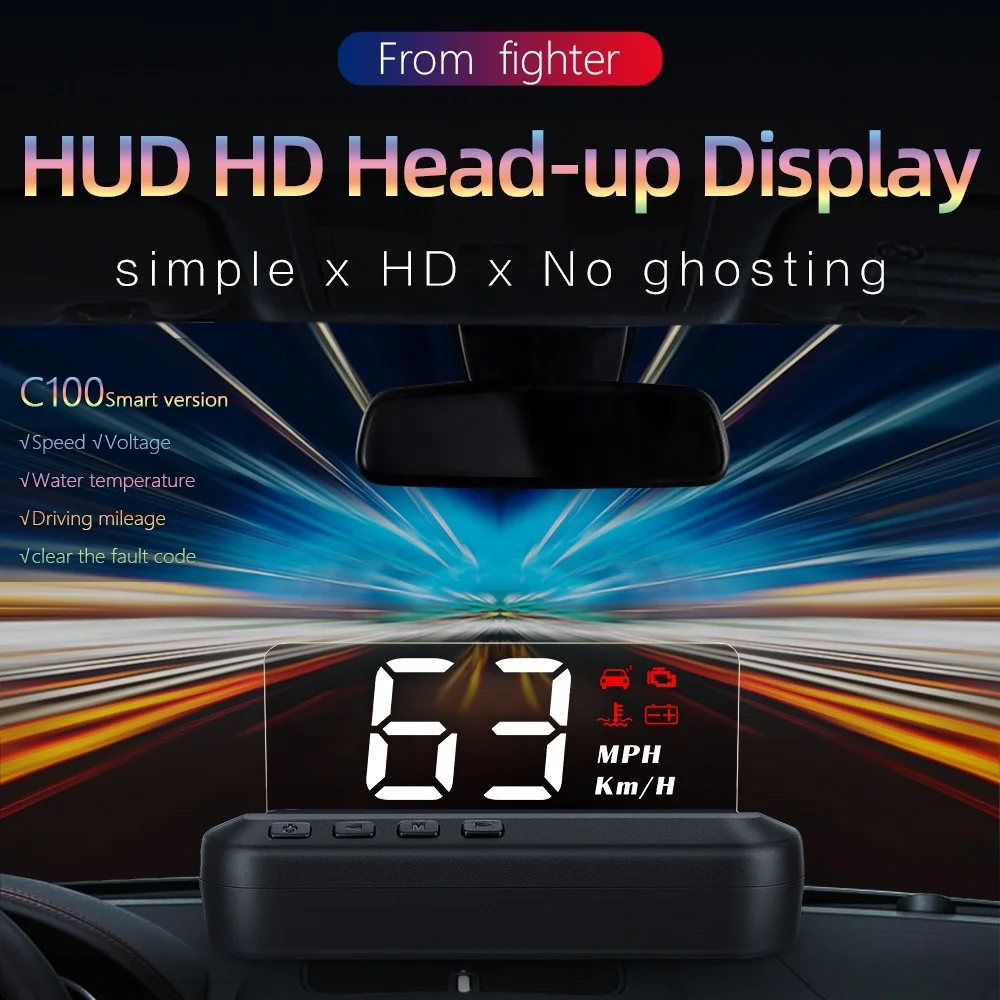

HUD short for Head Up Display,the main function is to display the car dashboard information (e.g.speed,RPM,water temperature,voltage,trip distance etc ),and keep the driver eyes always on road to avoid the dangerous of lowering down head to read the dashboard.

Product function:

1.Multi function : speed,engine RPM,water temperature,voltage,driving distance

2.Fatigue driving , Engine Error

3.Water temperature icon ,voltage icon

4.Light sensor:HUD can automatically adjust the brightness according to the environment

5.MPH=Speed Mile/hour,KM/H=kilometer/hour, MPH=Mile/hour

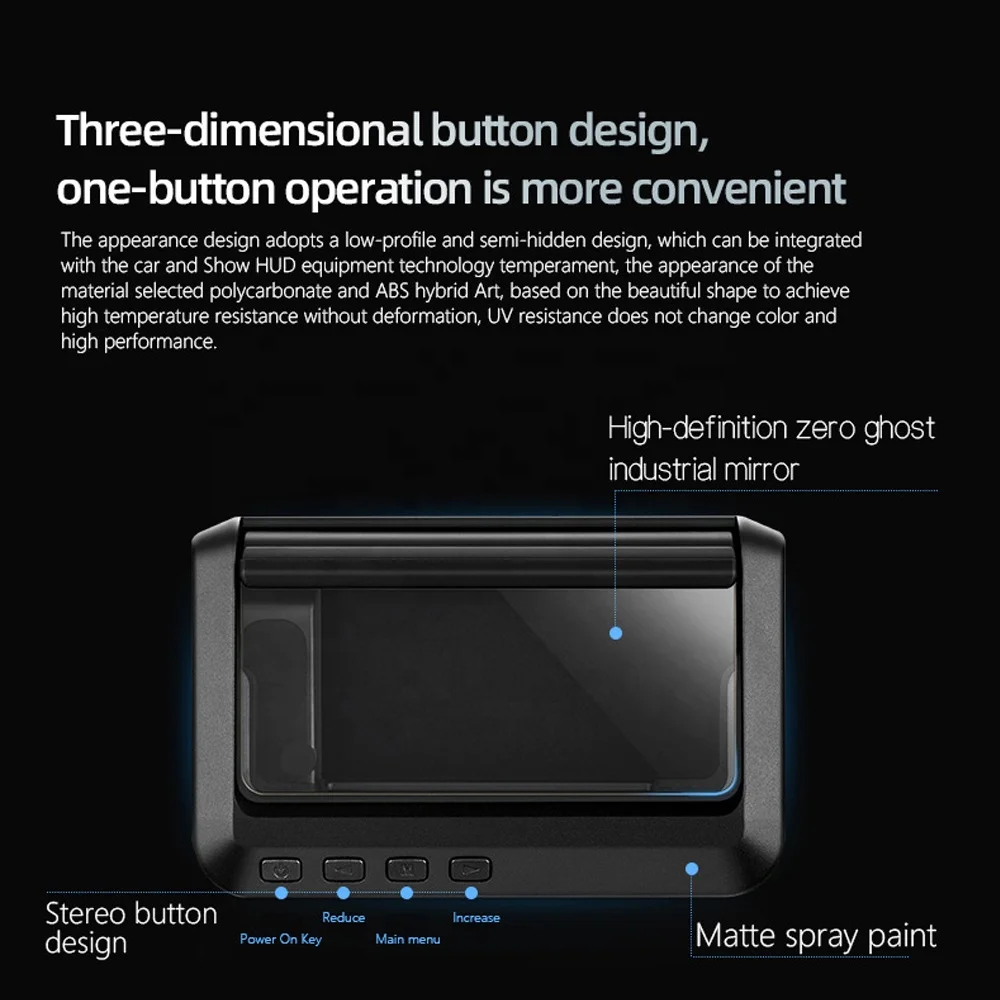

Button functions:

Short press (1 second)

Long press 5s until the display image comes

Power switch:5s to turn off,again to turn on

1.Short Press‘<’

(1)to switch the display mode  (2) to setup menu options

2.Long Press‘<’Turn off the buzzer and press for 2 seconds to turn on the buzzer again.

3.Short Press‘M’OBD system: to switch voltage, water temperature,vehicle speed during OBD system, enter into menu setting to switch menu options or parameter values

Long press‘M’ :to enter into menu settings (see instructions for Menu 1-12) and press 5 seconds to save and exit

4.Short Press‘>’Switch speed mode,add menu or parameter after entering setting

Long Press‘>’(1)To confirm all of the LED lights can be worked

(2)To clear engine fault code

Restore setting:

Unplug the power supply,long press 'M' button and hold until all of the LED lights on.

Fault code clearance:

long press '>' button and hold until all of the LED lights on.

Turn off/on the buzzer

Long press and hold the ‘<’ button to turn off the buzzer, again to turn on.

Speed mode switching

After the HUD is displayed normally, short press ‘>’ switch the speed mode

Menu setting

Please watch the reflective image on the windshield for operation when setting.Long press and hold the 'M' button to enter into setting menus (1-12). The menu is displayed 1,use the '>' button to increase the menu options,short press '>' or '<' button to adjust the parameter value, short press M button to return to the menu, long press M button to save and exit.

Please note:

Please manually turn off the HUD,when you don’t drive your car for more than a week.Standby current is 20ma around of OBD devices so that the use time of a common battery is 1 month,surely,situation of each car is different,we recommended to unplug the OBD device if your car doesn’t been used for a long time.

OBD Troubleshooting:

1.The screen without any display, and no power

Please do these operations: If OBD cable is tight enough,pull the OBD cable out several times. Try another car to test

2.When HUD power on,HUD only show the car voltage and be automatic power off after 30 seconds driving.

HUD is only available for cars with OBD2 and EOBD agreement(European:manufactured after 2003, Other region: after 2007)

HUD Products don’t support JOBD and OBDI,replace other vehicles that meet the OBD2 interface

3.Wrong operation leads to crashes

A.If your car equip with other OBD devices (parking sensor, TPMS monitor,car window closer,ELM27)

B.If your car had been modified(central control navigation,electronic throttle controller,speed cruise,refresh the computer system,One-click start-up,keyless entry,remote startup)will cause a crash,unplug other OBD devices and do the factory settings (more details please refer to the menu table)Pull out one or two wires and use HUD alone, or replace other vehicles for use.

4. Inaccurate speed

In the case of power-on,long press the 'M' button in to enter into menu option,menu displays 1,parameter displays 107.Fine tuning of the values according to the difference between HUD and car instrument(Example:the instrument displays 100 KM but HUD displays 105KM,then calculation should be default value 107-5=102.Long press the 'M' button to save your adjustment and exit.

5. The cars are with automatic start/stop system

After the car starts and stops automatically, the engine stops running. The HUD shuts down after 20 seconds. The turn off time can be adjusted to 180-300 seconds in Menu 11.

6.HUD can not auto power off(RPM or Speed not at O)

When HUD is power on,long press the button in to enter into menu,set the voltage from 0 to 13.2V or 13.5V(Menu 10).HUD will turn off after 3 minutes.

7.HUD will automatically restart

Indicates that the car voltage is higher than the starting voltage 13.2 volts,what you should do is  to set voltage to 13.6-13.8v(Menu).HUD will automatically on when voltage is higher than 13.2v.

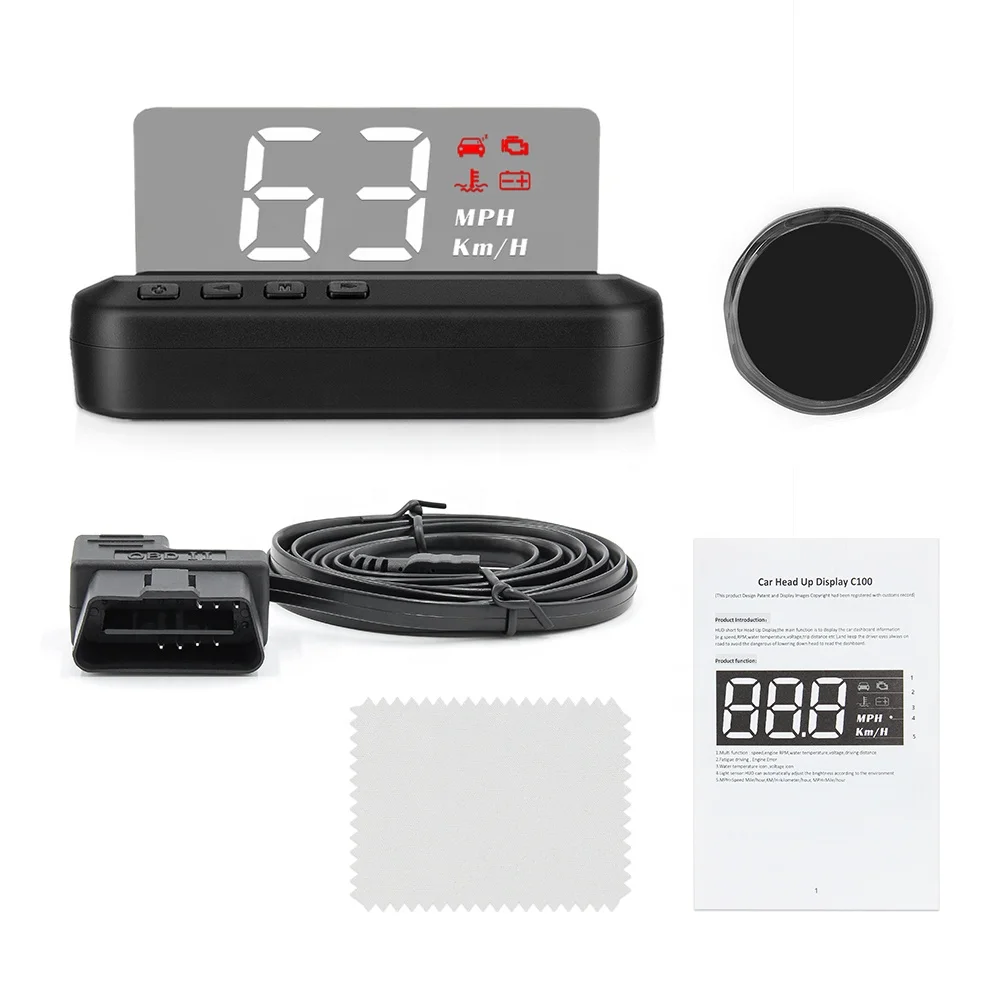

Packing including:

1pc x OBD2 HUD unit

1pc x OBD2 Cable

1pc x Non-Slip Mat

1pc x user manual

1pc x Box package

Packing:

Paper box package + Standard Carton case package outside or As per your customized packag

Delivery Time:

3-7 working days for samples; 7-30 working days for bulk goods.

Alibaba Trade Assurance can assure all your benefits during the whole deal, contact sales to know more!

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced with strict quality control system (if the problem occurs, the product can be replaced free of charge)
