Якорная цепь с CCS Быстрая

Категория: Морское оборудование >>>
Поставщик: Anhui,Yatai,Anchor,Chain,Manufacturing,Co.,Ltd.

Цена:743,00 $ - 756,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	944.2 $*	963.45 $*
Jul-16-2025	765.34 $*	780.2 $*
Jun-16-2025	929.69 $*	948.23 $*
May-16-2025	921.30 $*	939.5 $*
Apr-16-2025	736.7 $*	751.85 $*
Mar-16-2025	906.66 $*	924.4 $*
Feb-16-2025	899.42 $*	917.20 $*
Jan-16-2025	892.93 $*	910.35 $*

Характеристики

Product Description

ANCHOR CHAIN

As the CCS standard drafting unit, Yatai anchor chain manufactures stud link/studless link anchor chain, kenter shackle, joining shackle, end shackle, swivel group etc accessories of following spec:

Grade: U2 U3 chain & accessories
Size: 12mm-107mm
Color: black or galvanized
Certificate: CCS, BV, RINA, KR......
Following strictly the standard requirement, product quality 100% guaranteed!

Accessories of anchor chaln products

Load test of anchor chain

Load test of unstud anchor chain

Diameter MM	Proof Load					Breaking Load		Approx Mass (27.5m) KG
Diameter MM		Grade 1 KN	Grade 2 KN	Grade 3 KN	Grade 1 KN	Grade 2 KN	Grade 3 KN	Approx Mass (27.5m) KG
6	6.62	9.30		13.32	18.60		21.45
7	9.02	12.60		18.13	25.20		29.15
8	11.78	18.50		23.68	33.00		38.23
9	14.90	20.90		29.97	41.80		48.40
10	18.40	25.80		37.00	51.60		59.68
11	22.26	31.20	44.02	44.70	62.40	87.51	72.33
12	28.75	41.20	58.13	57.81	82.60	115.84	93.23
14	34.78	51.00	71.96	69.93	101.90	142.90	116.88
16	47.10	66.20	93.40	94.72	132.30	185.53	152.90
17.5	56.35	78.89	111.31	113.31	157.78	221.27	182.88
18	59.62	84.28		119.60	168.50		193.23
19	66.42	93.60	132.06	133.57	187.20	262.52	215.33
20.5	77.33	108.64	153.28	155.49	217.27	304.69	250.80
22	89.06	125.40	176.93	179.08	250.90	351.85	288.75
24	105.98	149.90	211.49	213.25	299.90	419.17	343.75
25	115.00	162.70		231.25	324.40		372.90
26	124.38	175.40	247.47	250.12	350.80	491.95	403.43
28	144.26	203.80	287.54	290.08	406.70	570.34	467.50
30	165.50	234.20	330.43	333.00	467.50	655.61	536.25
32	188.42	265.60	374.73	378.88	531.20	744.94	611.05
34	212.70	299.90	432.13	427.72	599.80	841.14	689.70
35	225.4	317.50		453.25	635.00		730.95
36	238.46	336.10	474.20	479.52	672.30	942.81	773.30
38	265.7	374.40	528.24	534.28	748.70	1049.95	861.58
40	294.40	414.50	548.24	592.00	829.10	1162.70	954.80
42	324.58	457.70	645.76	652.68	915.30	1283.59	1052.70
44	356.22	502.70	709.25	716.32	999.60	1401.81	1155.28
45	372.60	525.30		749.25	1048.60		1208.35
46	389.34	548.80	774.30	782.92	1097.60	1539.24	1262.80
48	423.94	597.80	843.43	852.48	1195.60	1676.67	1375.00
50	460.00	648.80	915.39	926.09	1293.60	1814.11	1491.88

Load test of stud anchor chain and accessries

Diameter MM	Proof Load					Breaking Load		Approx Mass (27.5m) KG
Diameter MM		Grade 1 KN	Grade 2 KN	Grade 3 KN	Grade 1 KN	Grade 2 KN	Grade 3 KN	Approx Mass (27.5m) KG
11	36	52	72	52	72	102	76
12.5	46	66	92	66	92	132	98
14	58	82	116	82	116	165	122
16	76	107	150	107	150	216	161
17.5	89	127	179	127	179	256	193
19	105	150	211	150	211	301	227
20.5	123	175	244	175	244	349	264
22	140	200	280	200	280	401	305
24	167	237	332	237	332	476	362
26	194	278	389	278	389	556	425
28	225	321	449	321	449	642	493
30	257	368	514	368	514	735	566
32	291	417	583	417	583	833	644
34	328	468	655	468	655	937	727
36	366	523	732	523	732	1050	815
38	406	581	812	581	812	1160	909
40	448	640	869	640	869	1280	1007
42	492	703	981	703	981	1400	1110
44	538	769	1080	769	1080	1540	1218
46	585	837	1170	837	1170	1680	1331
48	635	908	1270	908	1270	1810	1450
50	686	981	1370	999	1370	1960	1573
52	739	1060	1480	1060	1480	2110	1701
54	794	1140	1590	1140	1590	2270	1835
56	851	1220	1710	1220	1710	2430	1973
58	909	1290	1810	1290	1810	2600	2117
60	969	1380	1940	1380	1940	2770	2265
62	1030	1470	2060	1470	2060	2940	2419
64	1100	1560	2190	1560	2190	3130	2577
66	1160	1660	2310	1660	2310	3300	2741
68	1230	1750	2450	1750	2450	3500	2909
70	1290	1840	2580	1840	2580	3690	3080
73	1390	1990	2790	1990	2790	3990	3353
76	1500	2150	3010	2150	3010	4300	3634
78	1580	2260	3160	2260	3160	4500	3828
81	1690	2410	3380	2410	3380	4820	4128
84	1800	2580	3610	2580	3610	5160	4440
87	1920	2750	3850	2750	3850	5500	4760
90	2050	2920	4090	2920	4090	5840	5097
92	2130	3040	4260	3040	4260	6080	5326
95	2260	3230	4510	3230	4510	6440	5679
97	2340	3340	4680	3340	4680	6690	5920
100	2470	3530	4940	3530	4940	7060	6292
102	2560	3660	5120	3660	5120	7320	6546
105	2700	3850	5390	3850	5390	7700	6937
107	2790	3980	5570	3980	5570	7960	7204
111	2970	4250	5940	4250	5940	8480	7420
114	3110	4440	6230	4440	6230	8890	7827
117	3260	4650	6510	4650	6510	9300	8244
120	3400	4850	6810	4850	6810	9720	8686
122	3500	5000	7000	5000	7000	9990	8964
124	3600	5140	7200	5140	7200	10280	9260
127	3750	5350	7490	5350	7490	10710	9714

Detailed Images

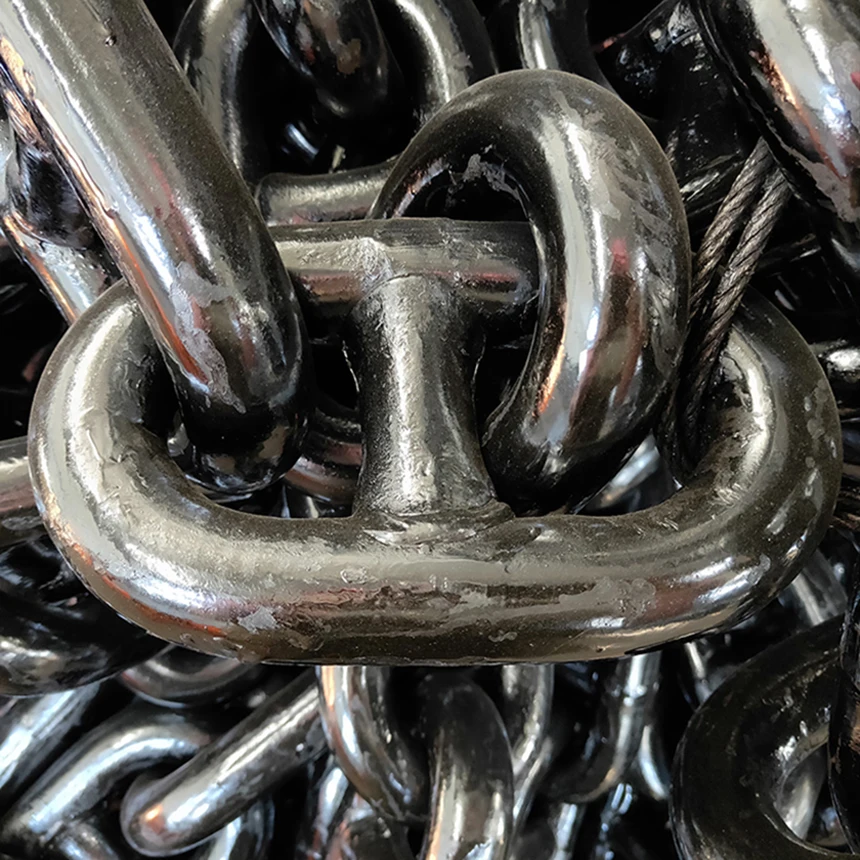

Black painted anchor chain

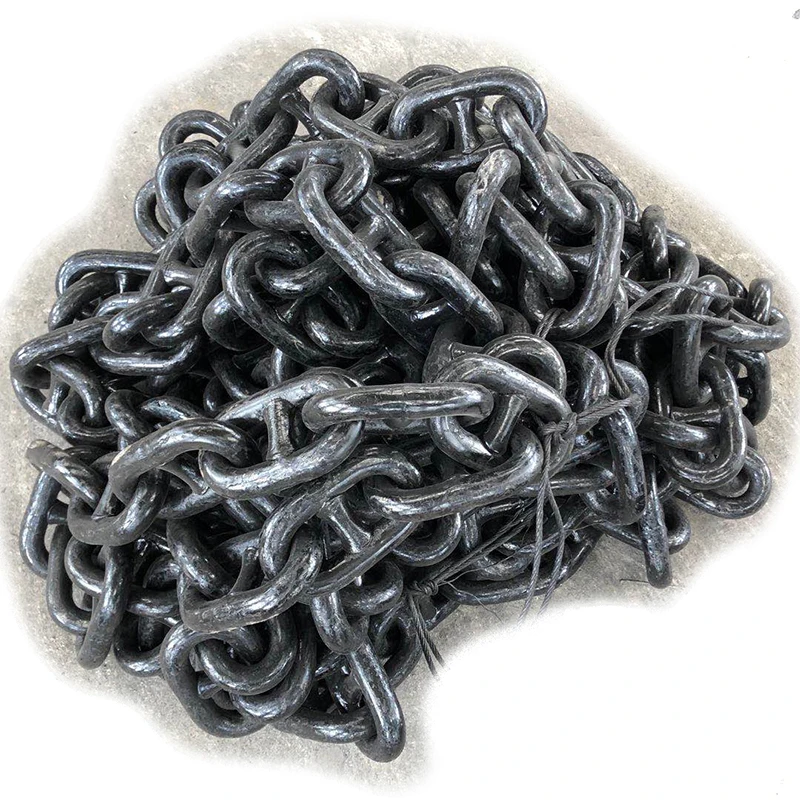

Galvanized anchor chain

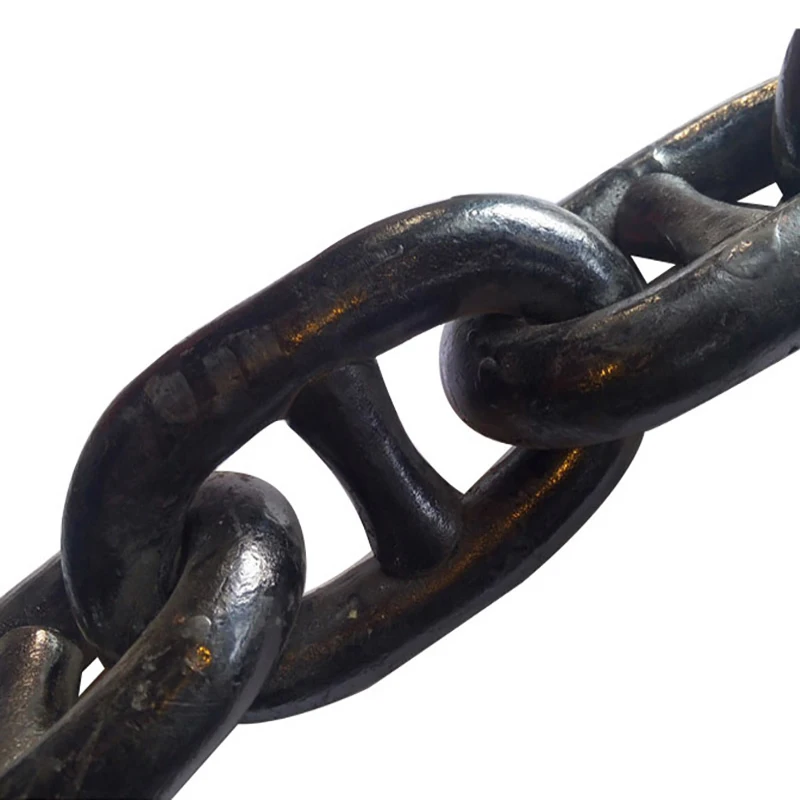

Stud Link & Studless Link Anchor Chain

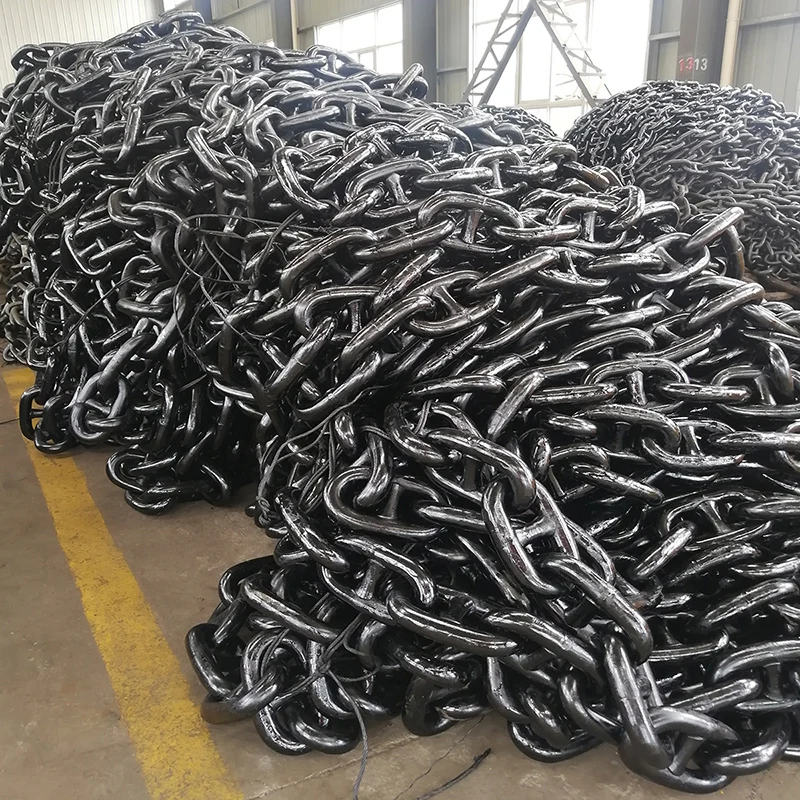

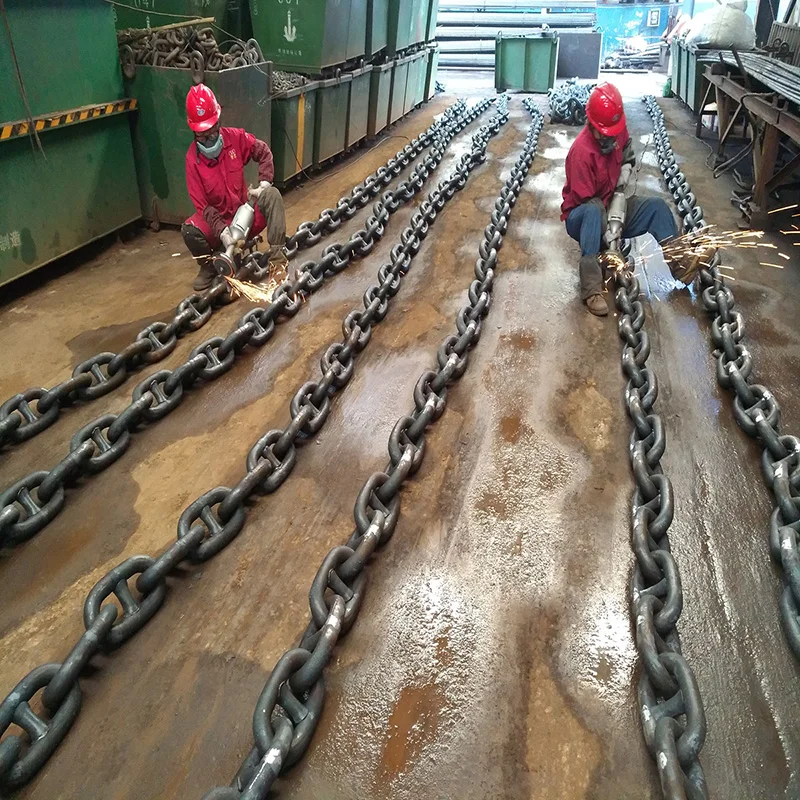

Equipment And Technology

Related Products

Packing&Shipping

1. For LCL loading, the package method includes sacks, pallets.
2. For FCL loading, the chains will be bound with steel wire rope and load in container directly.

Company Introduction

Anhui Yatai Anchor Chain Manufacturing Co., Ltd.is a modern enterprise established on the basis of Anhui Chaohu Yinhuan Anchor Chain Co., Ltd., a national high-tech enterprise,and participated in the drafting of the national GB/T 549-2017 "welding chain" standard . It includes an anchor chain factory,casting and forging factory and outfitting factory. It is specialized in Φ12.5mm-107mm M2 M3 marine anchor chain, buoy anchor chain, anchor chain attachment, anchor, ship outfitting, navigation mark, mooring buoy, ship type buoy, Φ10m marine monitoring buoy and navigation lights production, installation and service. The products are sold to shipyards, terminals, navigation marks,waterway bureaus and marine bureaus all over the country, and go to the international market.
The company's products are produced in strict accordance with national standards and classification society welding
specifications, and have passed ISO9001:2015 quality management system certification and China Classification Society (CCS), local ship inspection (ZC), fish inspection ( ZY), Germany (GL), Norway (DNV), Japan (NK), Korea (KR), Germany (GL), France (BV), Italy(RINA) and other foreign classification society factory approval.
The company has strong technical force, complete testing means and perfect after-sales service. Our company has 3#, 5#, 7# anchor chain units, 160, 250 flash welders, anchor chain heat treatment furnaces, CO2 automatic welding machines, submerged arc welding machines. , 1000KN and 5000KN tensile machines, physical and chemical analysis rooms and other production and testing equipment.It has sales offices of the head office sales department, Anhui, Jiangsu, Zhejiang, Shanghai, Wuhan, Chongqing, Guangzhou, and North China.
Since the establishment of the company 30 years ago, we have been providing customers with satisfactory products and services based on the concept of “integrity management, sincere service”. Warmly welcome customers at home and abroad to negotiate business, exchange technology and expand trade!
Let us work together for a better future!

Our Clients

Certification & Patents

FAQ

Q: Are you the factory or trading company?
A: We are direct factory, welcome to visit us at Hefei, Anhui Province
Q: What size of anchor chain you can provide?
A: 14mm-107mm
Q: What kind of certificate available?
A: ZC, CCS, BV, RINA, KR, NK, GL, ABS, DNV
Q: What is the delivery period?
A: Normally within 30 days
Q: What is the warranty?
A: Within 2 years after delivery
Q: Any foreign experience?
A: Yes, products been exported to various foreign countries and we also have foreign engineering project.
