Product Parameters



Application:

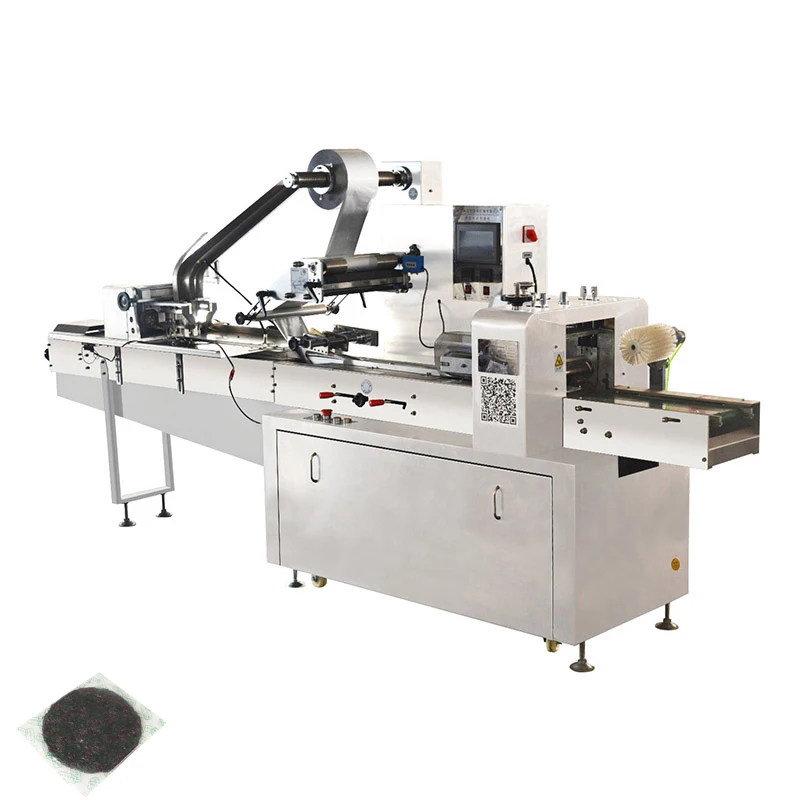

It’s a horizontal form fill seal machine.And can be connected with other production line.It’s widely applied to food and pharmaceutical industry.

Technical data:
Model		HZ-260
Film Width		260mm
Packaging speed		5-220bag/minute
Packaging film thickness		0.025-0.07mm
Packaging size	Formed Bag Length	60-230mm
	Formed Bag Width	60-100mm
	Product Height	1-45mm
Power Requirements		220V/50HZ
Film Roll Diameter		≤380mm
power		2.4KW
Outline size		4200mm×850mm×1420mm
Weight		500KG

Features:
1.Dual frequency converter control,bag length can be set and cut precisely, saving time and film.
2.Imported touch screen,easy setting value of machine.
3.PLC controller system and touch screen display
4.Fault detecting, which is shown on the screen.
5.Import brand photoelectric sensor track color mark high sensitive.No need to set the length of bag,intelligent cutting length.
6. Side sealing by hob,much higher speed.
7.PID digital temperature controller for perfect wrapping.
8.The conveyor is stainless steel to meet food safety.

Type	HZ-260	HZ-350	HZ-450	HZ-600	HZ-800
Film roll width	255mm	350mm	450mm	600mm	800mm
Film roll diameter	320mm	320mm	320mm	320mm	320mm
Packaged length	65-230mm	60-220mm	—350mm	—500mm	60--500
Packaged width	30-100mm	30-160mm	30-200mm	30-250mm	30-250mm
height	≤45mm	≤55mm	≤65mm	≤85mm	≤100mm
Production capacity	40-230bag/min	30-220bag/min	30-220bag/min	30-150bag/min	30-150bag/min
Electric supply	220V,60HZ,1Φ	220V,60HZ,1Φ	220V,60HZ,1Φ	220V,60HZ,1Φ	220V,60HZ,1Φ
Power	2.4Kw	2.5Kw	2.6Kw	2.8Kw	3.0Kw
Machine dimension(mm)	4190*850*1420	4200*850*1520	4200*950*1520	4400*1100*1520	4400*1400*1520
Machine weight	500KG	550KG	680KG	750KG	800KG
