Оптовая продажа индивидуальная Настройка RK3288 4K Android HD система медиаплеер
- Категория: Other Advertising Equipment >>>
- Поставщик: Shenzhen,Sunchip,Technology,Co.,Ltd.Shenzhen,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11477.50 $* | 11707.48 $* |
| Jul-16-2025 | 9308.91 $* | 9494.81 $* |
| Jun-16-2025 | 11296.43 $* | 11522.9 $* |
| May-16-2025 | 11206.48 $* | 11430.86 $* |
| Apr-16-2025 | 8947.81 $* | 9126.55 $* |
| Mar-16-2025 | 11025.34 $* | 11246.91 $* |
| Feb-16-2025 | 10935.95 $* | 11154.16 $* |
| Jan-16-2025 | 10844.12 $* | 11061.14 $* |
Характеристики
Product Description
Overview:
RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio&video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. With HD interface, support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.

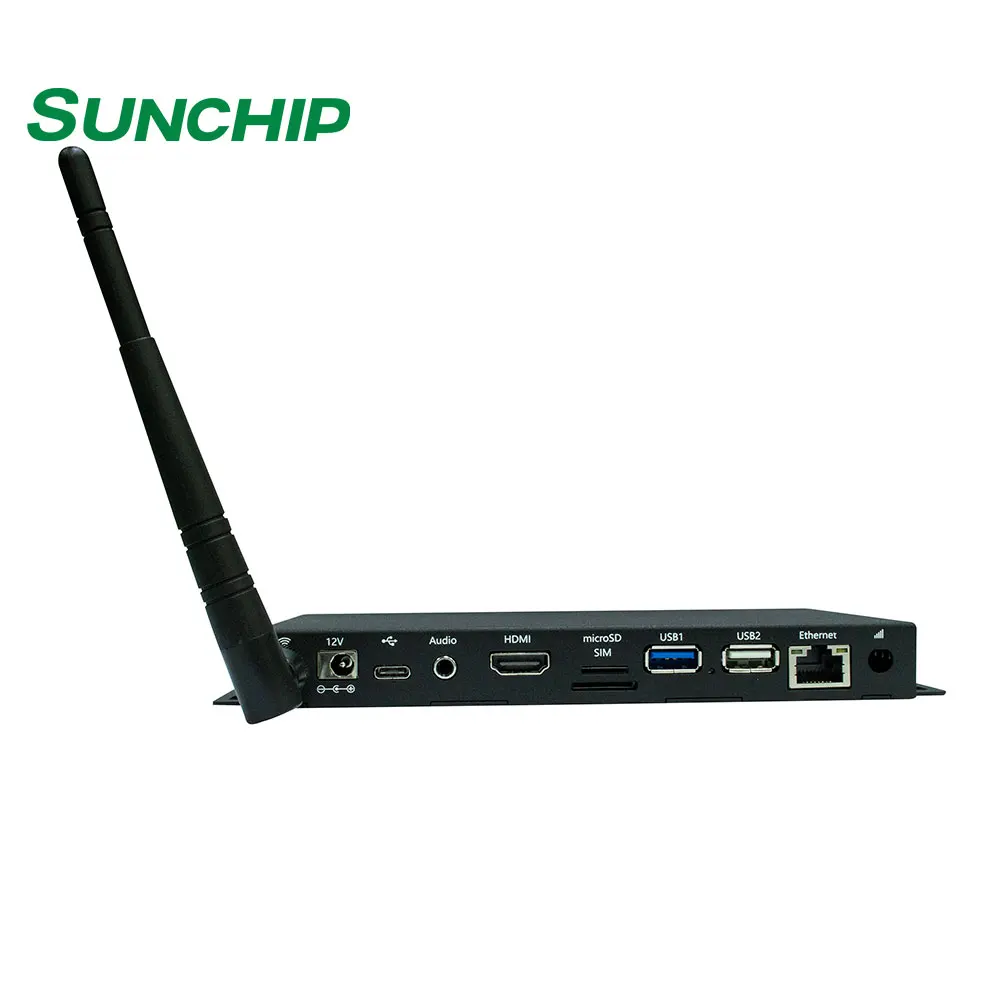

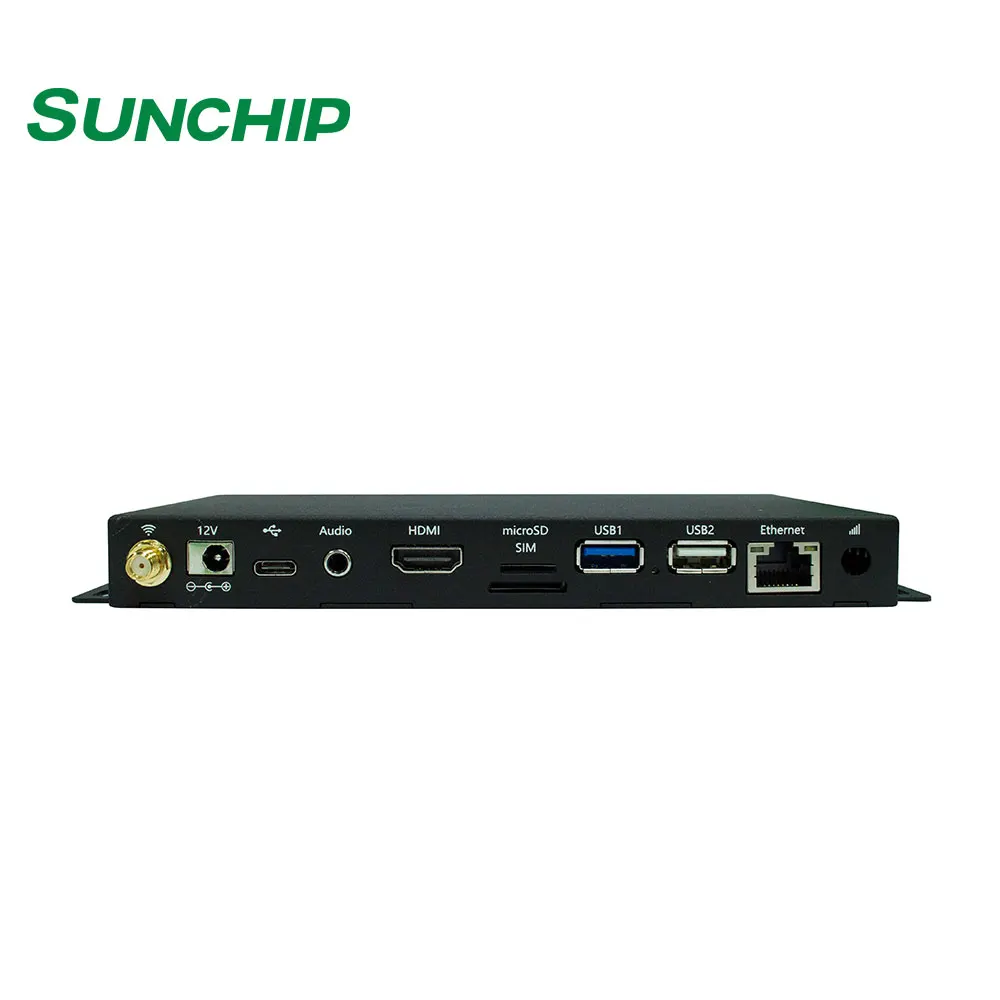

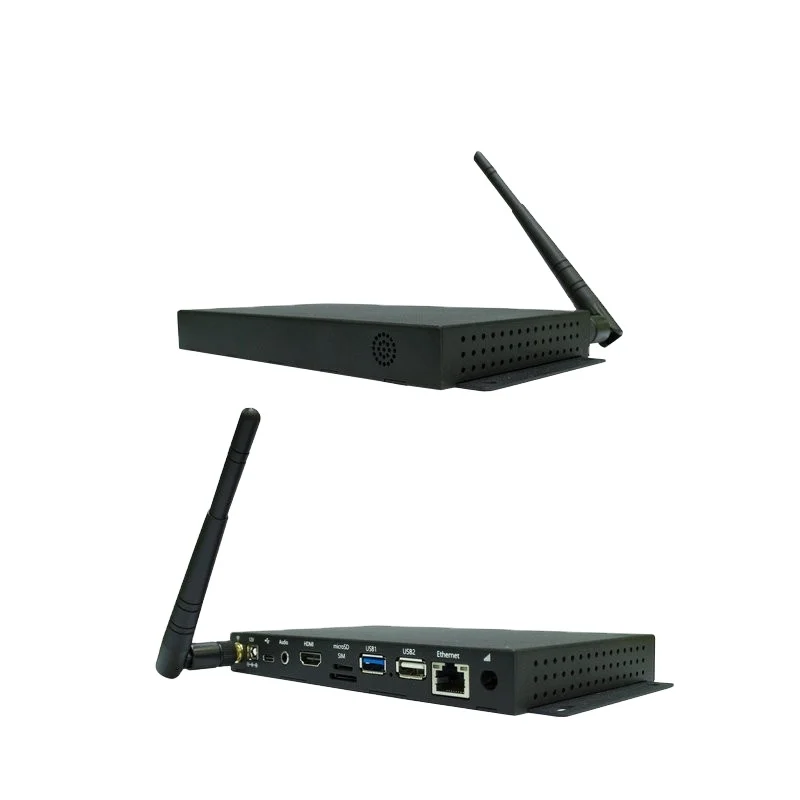

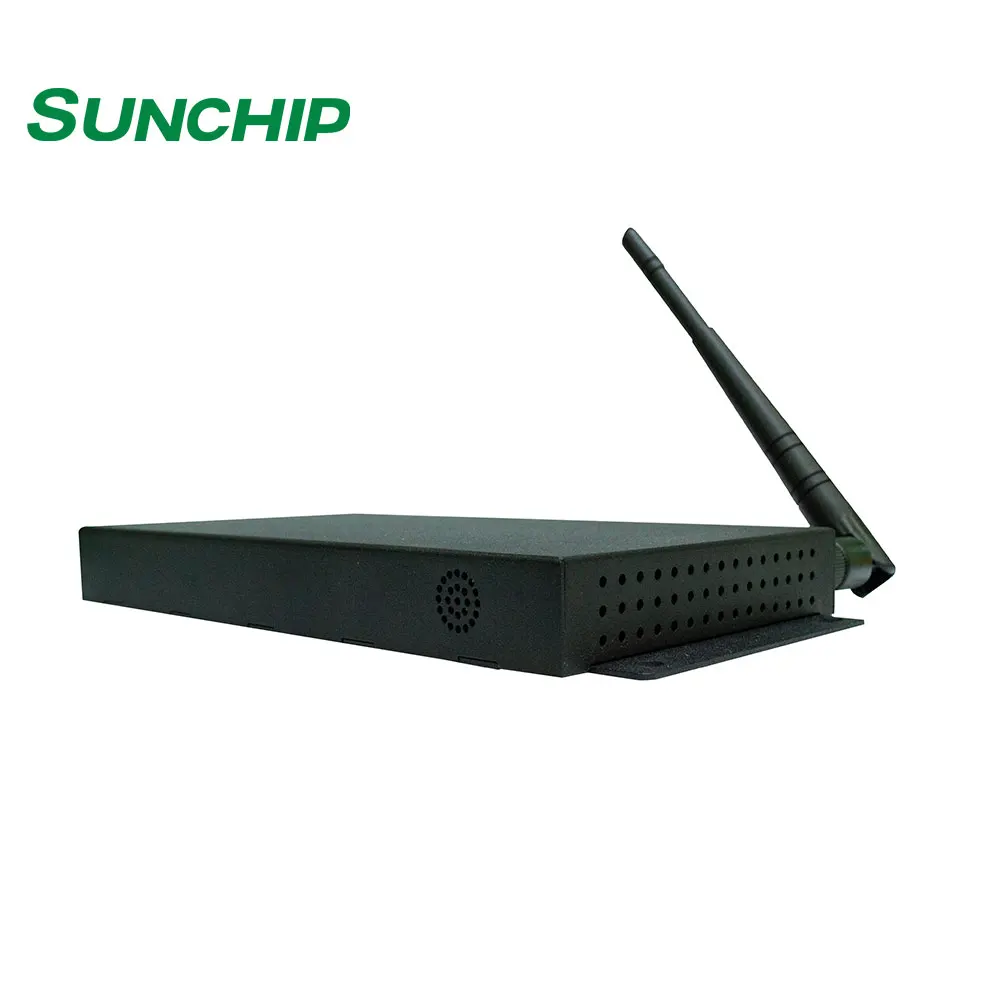

Sunchip RK3288 advertising player box with embedded system indoor outdoor
Android 6.0 digital signage wifi advertising media player box from sunchip
RK3288:
Model No.: AD-B02 BOX
Product Features
Features:
\tHigh performance: The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
\tHigh stability: RK3288 Android integrated board, add their own unique technology in the hardware&software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
\tHigh integration: RK3288 Android integrated board integrates Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
\tMulti interfaces: 6*USB ports, 3*UART ports, can connect more peripheral devices.
Model No.: AD-0140(AD-B02)\t\t\tRK3288 Quad-Core chipset with Android 6.0 OS\t\t\t
Hardware Spec:\t\t\t\t\t\t
System\t\t
CPU&GPU: RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
RAM: 2GB/4GB (optional)
Memory: 8GB/16GB/32GB(optional)
Operating system: Android 6.0(Linux optional)
Network: 802.11b/g/n(2.4G/5G optional)\t
Mobile network: Support full Netcom 4G (optional)
Bluetooth: Bluetooth 4.0\t
Ethernet: 10M/100/1000M Ethernet
Language: Multi-Language support\t\t
Interface:
USB interface*2: Support USB host*2
Micro USB interface: USB_Debug interface*1\t
DC: DC power 12V input\t
TF card: TF Card (micro SD card), up to 64GB\t
HD: Support HD output Support 4K 60FPS frame rate
Display interface: EDP screen interface / LVDS screen interface(optional)
Speaker interface: 8Ω 5W*2(optional)\t
UART interface: UART2 interface*1(optional)\t
IR remote control: support IR Remote Control\t
USB port extension: support USB extension host*1(optional)\t
RJ45:10/100/1000M Ethernet port\t
Headset/AUDIO Out:\t\t3.5mm stereo headphone output*1\t
Media Parameter:
Media Playback\t\t
Video format:support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player\t\t
Audio format: MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP\t\t
Text processing: EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT\t\t
Ebook: PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2\t\t
Image Format: JPG,BMP,PNG\t\t
System Management:
System Management: APK install\t\tAPK installer\t\t
Root permission: Original Android system, open root permissions, product customization development\t\t
Remote control: Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended\t\t
OTA upgrade: Support OTA remote upgrade\t\t
Accessories:
Adapter: Power adapter 12V/2A\t\t
User's Guide: Standard\t\t
Warranty Card: Standard\t\t
Size(unit:mm):\t\t\t\t\t\t
Product size(L*W*H)\t\t\t\t195*100*20\t
Others Parameters:
Double display:Support dual display different contents play(optional)\t\t
Gravity induction: Support 0°90°180°270°manual/automatic rotation\t
Our Company
Certifications
FAQ
Похожие товары
