Китайская фабрика сельскохозяйственная ферма питьевая соленая вода установка обратного осмоса 10000
- Категория: Water Filter >>>
- Поставщик: Guangzhou,Kaiyuan,Water,Treatment,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.22 $* | 0.33 $* |
| Aug-19-2025 | 0.93 $* | 0.70 $* |
| Jul-19-2025 | 0.71 $* | 0.38 $* |
| Jun-19-2025 | 0.61 $* | 0.36 $* |
| May-19-2025 | 0.34 $* | 0.57 $* |
| Apr-19-2025 | 0.85 $* | 0.73 $* |
| Mar-19-2025 | 0.97 $* | 0.15 $* |
| Feb-19-2025 | 0.55 $* | 0.55 $* |
| Jan-19-2025 | 0.73 $* | 0.40 $* |
Характеристики
Product Description
Why choose us among so many Chinese supplier
1.Professional experience in water treatment for 13 years with CE,ISO9001,SGS certificates.
2.Our many experience in domestic and foreign project, usch as in Saudi Arabia,UAE,Qatar, USA,Canada,Chile,Mexico,Nigeria.....and enjoy good fame among our customers.
3.We have the absolute competitive price and long-time cooperative shipping company with best service and good price.
4.Our parts adopt the high quality parts, such as CNP&Grundfos pumps DOW&Hydranautics membranes
5. We took every as our friends and serve them the best service
2.Our many experience in domestic and foreign project, usch as in Saudi Arabia,UAE,Qatar, USA,Canada,Chile,Mexico,Nigeria.....and enjoy good fame among our customers.
3.We have the absolute competitive price and long-time cooperative shipping company with best service and good price.
4.Our parts adopt the high quality parts, such as CNP&Grundfos pumps DOW&Hydranautics membranes
5. We took every as our friends and serve them the best service
6.We will do machine testing before shipping,and used both film and wooden packages to ensure the shipping.
Product Application
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.
Raw water requirements: city water/ground water/rains/river water....TDS must be less than 2000ppm, if the higher water TDS, please contact Sherry Zhou to get better suggestion.
System desalination rate:more than 97%, that is to say, more than 97% of the im,purities will be removed. Inside side of the ro membranes is 1Nm.
Output water usage:Pure/still drinking water/dialysis water/medical water...according to customers different requirements of output water.
Main Features
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance\t3.RO system uses imported USA DOW membrane\t
4.Automatic switch on when lack of water,and switch off when no water or full of water\t
5.RO membrane auto wash and reduce the pollution speed.\t
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.\t
7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
Detailed Images
Machine Parts
Automatic control valve/Manual control valves for flushing
Three function:Flushing,Backwashing,Normal operation. Keep normal purification for snd&carbon filters.
Quartz sand and carbon need flush and backwash in 3-5days.
Auto control valve:Set up the time of flushing and backwashing, it can do automatically.
Manual control valve: easy operation
Main Features
Name:RO membrane
Brand: USA DOW
Original:USA
Great ro membrane brand.it can remove heavy mental iron more than 97%, which is the most improtant part in the system.The Service life is about 2 years.
Reverse osmosis membrane pore size:1Nm
Machine Parts
PLC Touch Control panel/Standard control panel
Conductivity meter: display the conductivity of pure water
Auto Program controller:display device operating status
Flow meter :dense water and pure water flow
Pressure meter:high pressure inlet and outlet pressure
Company name and logo design:customize as your requirements
Main Features
Name: high pressure pump
Brand: CNP
Original:China or Grundfoss according to customers requirements.
Function:provide pressure for RO part
Or we can offer Danfoss/Grundfos for optiona
China top quality pump with long life span and high performance
This is the manual pre-treatment:
Sand filter: Quartz sand can filtrate big particles in the water, the water go out of this part with less sediments.
Quartz sand can remove big particles in the water, and water go out of this part with less sediments.
Carbon filter;Acivated carbon can remove color,smell, metallic ions in the water.Water go out of this part is clear and smelless.
Security filter:It can remove water the volume larger than 5um colloids in the water.
Carbon filter;Acivated carbon can remove color,smell, metallic ions in the water.Water go out of this part is clear and smelless.
Security filter:It can remove water the volume larger than 5um colloids in the water.
RO main part:
High pressure pump: Provide pressure for the ro membranes.
Ro membranes: more than 97% desalination rate(That is to say, the water go out of membranes will be removed more than 97% impurilities,such as dissolved ions bateria,virus...
Uv/Ozone: They are optinal parts for ro system.Usually, we will recommand the suitable one for our customers according to customers's output water application.
Consumbles for this system
Consumbles for changing
Sand filter: changing for every 1.5-2 years.
Remove large sediments in the water.
Carbon filters:changing for every 1.5-2 years.
Remove smelle,ordors,colors residual chlorine
PP filter cartridges:changing every 1 month
Remove volume larger than 5um colloids in the source water
ro membranes:Changing 1.5-2 years, remove impurities large than 1Nm in the source water including dissolved ions...
UV and Ozone generator are optional parts in the ro system according to your output water application
Good comments from customers
Company

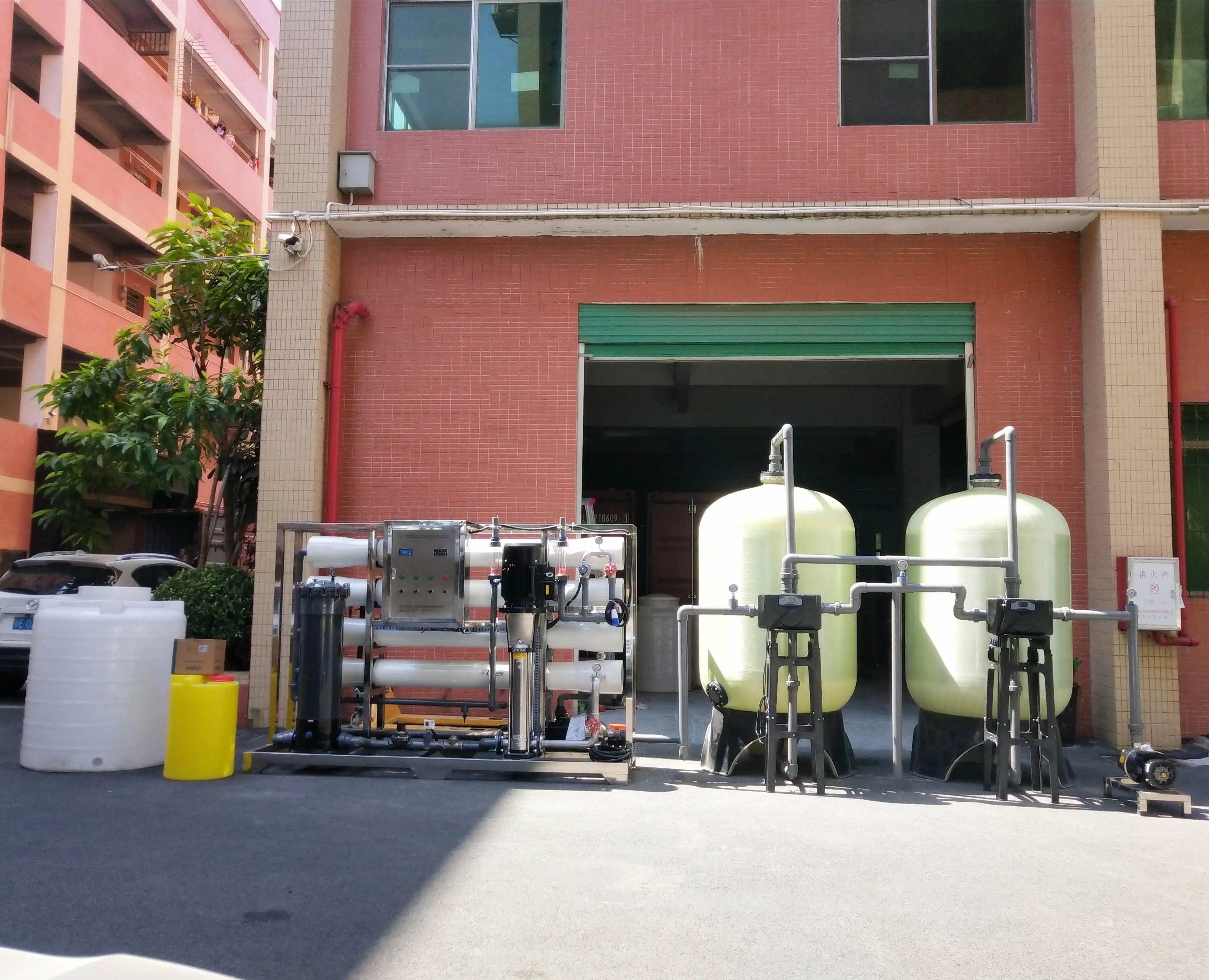

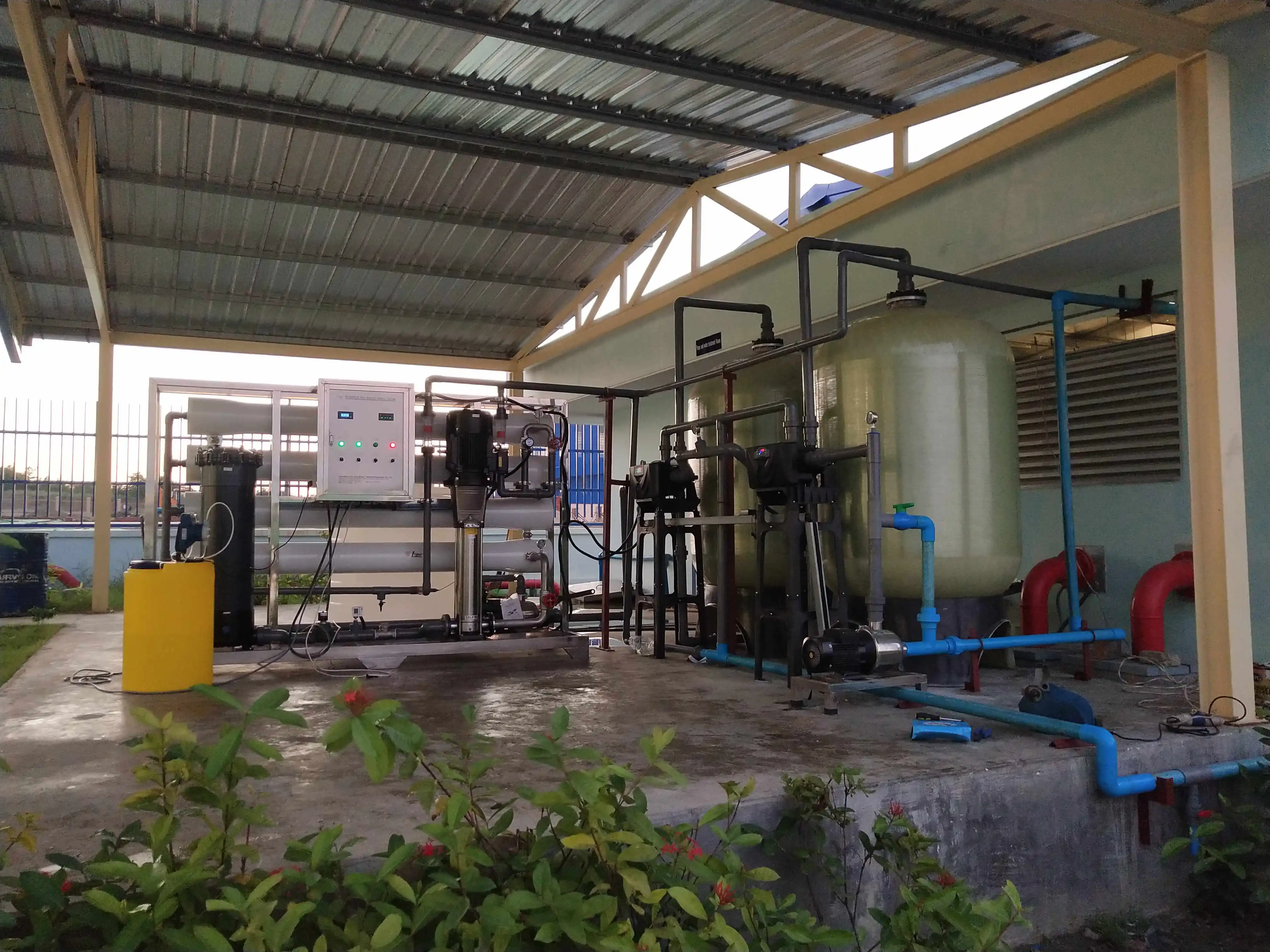

Installation abroad

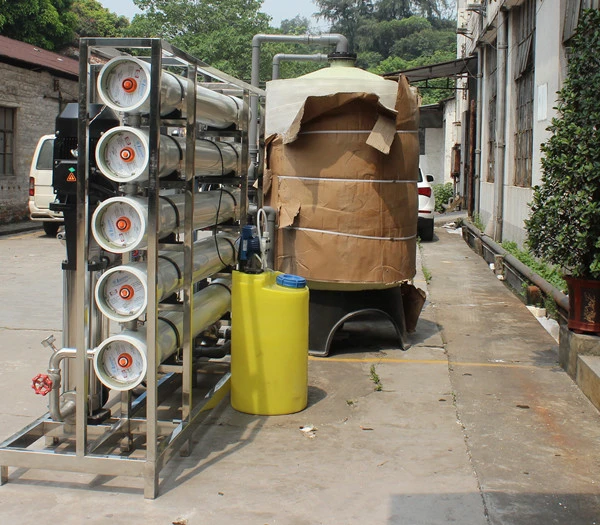

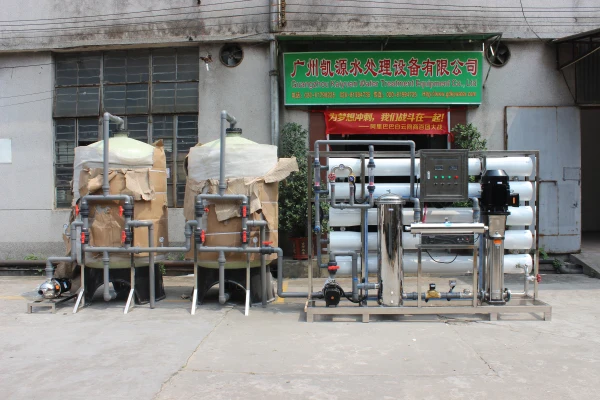

Packing & Delivery
Packaging | ||
Size | Customerized | |
Weight | According to capacityCustomerized | |
Packaging Details | The normal package is wooden case. Or according to customer requirements. | |
Manual operation | ||
Operation and video | we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation. | |
