Характеристики
PN16 Manual Lever Ductile Iron Wafer Type Butterfly Valve
Product Description
DESCRIPTION
1. Working pressure: 1.0/1.6Mpa2. Working temperature:
NBR: 0℃～+80℃
EPDM: -10℃～+120℃
3. Face to face: DIN3202K1
4. Flange connection according to DIN2501 PN10/16, BS4504 PN10/16,BS10 TABLE D/E, JIS2220 10K/16K, ANSI 125/150 etc.
5. Testing: DIN3230, API598
6. Medium: Fresh Water, Sea Water, Food Stuff, All kinds of Oil etc.
NO. | Part | Material |
1 | Circlip | 65MN |
2 | Lock Piece | Steel |
3 | Sleeve | PTFE |
4 | O-ring | NBR |
5 | Shaft | SS304 |
6 | Body | GG25/GGG40 |
7 | Seat ring | NBR/EPDM |
8 | Disc | GGG40/Stainless steel |
9 | Shaft | SS304 |
10 | Screw | Steel |
SIZE | 2" | 2 1/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
ΦD | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 125 | 125 |
ΦF | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 102 | 102 |
4-Φ2 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 11.5 | 11.5 |
L | 42 | 44 | 48 | 52 | 56 | 56 | 60 | 68 | 78 |
□a×a | 9×9 | 9×9 | 11×11 | 12×12 | 14×14 | 14×14 | 17×17 | 20×20 | 22×22 |

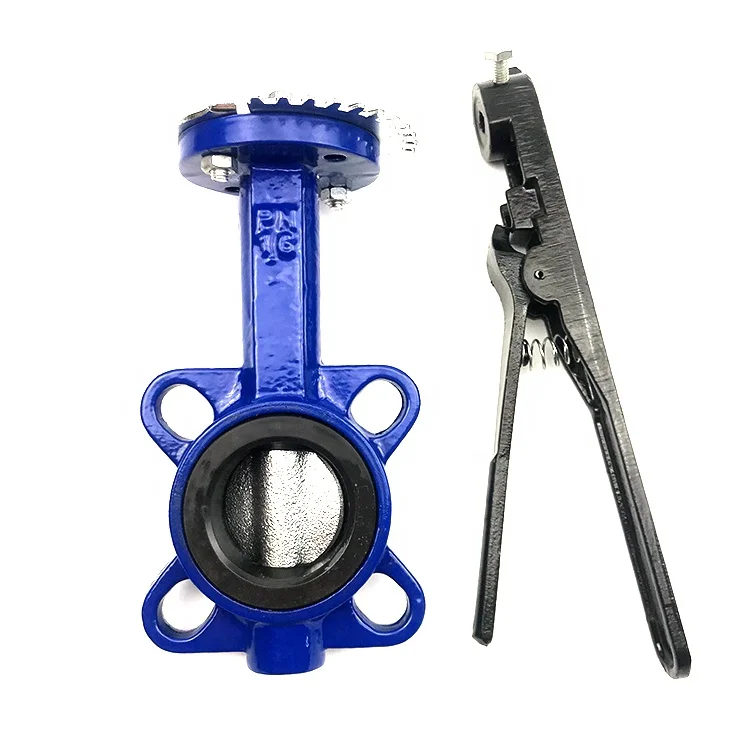

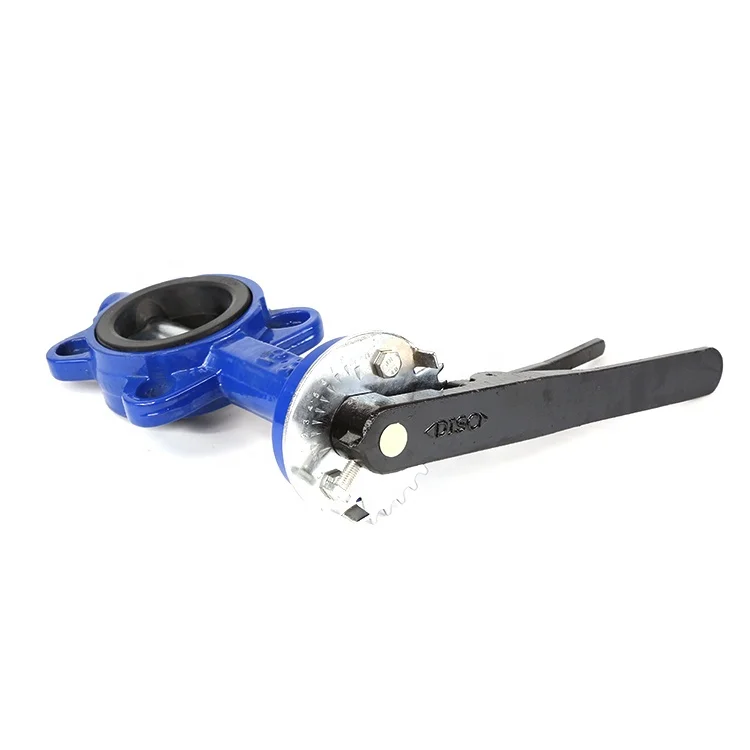

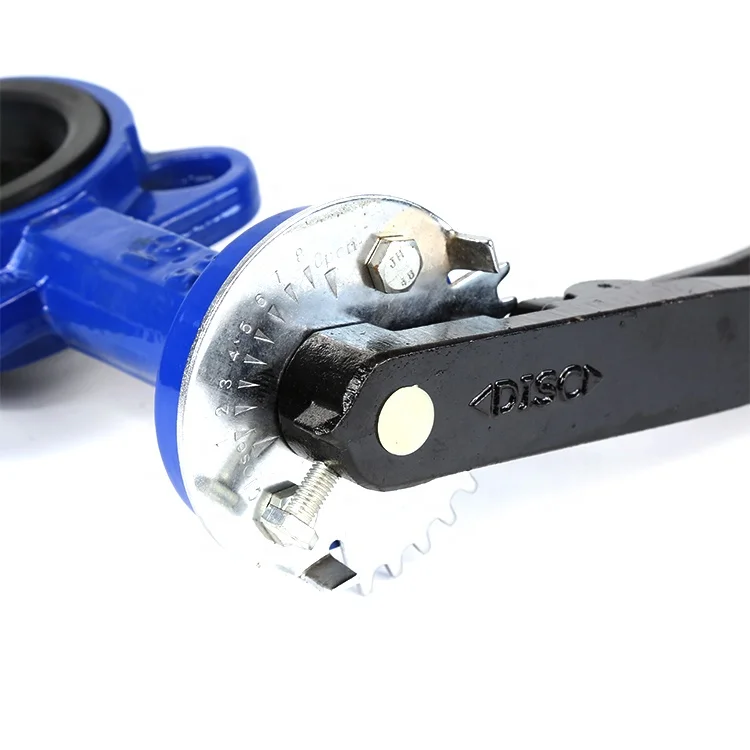

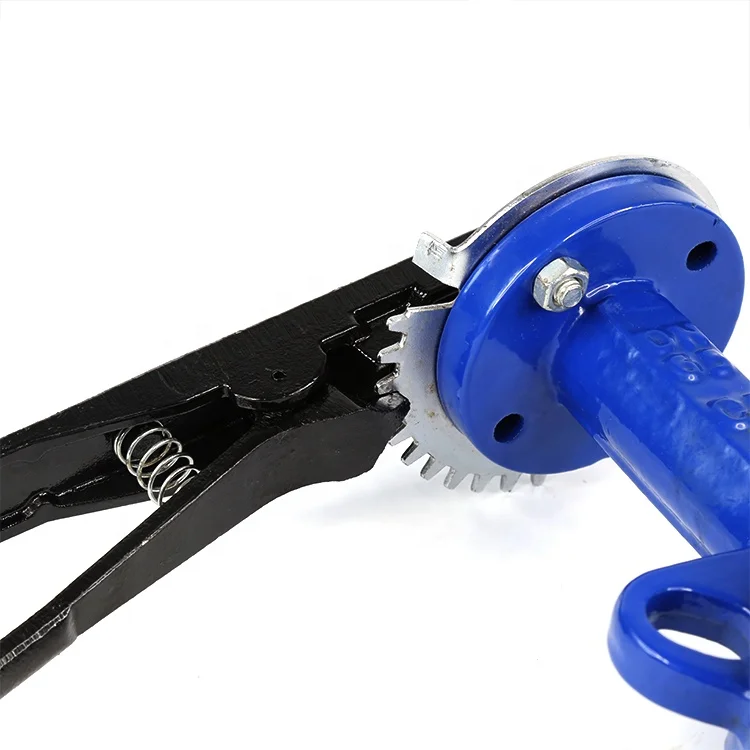

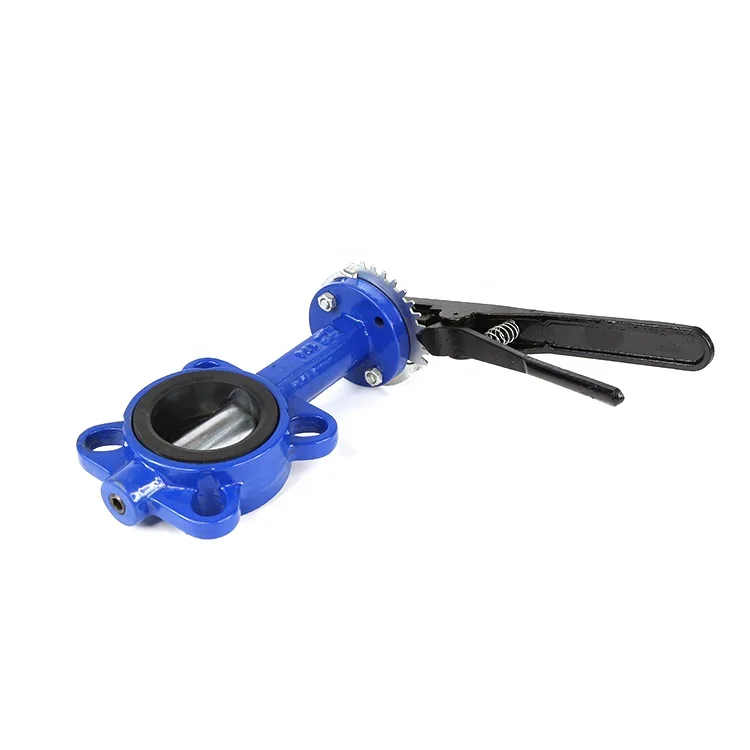

Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
