Характеристики

Product Description

Usage

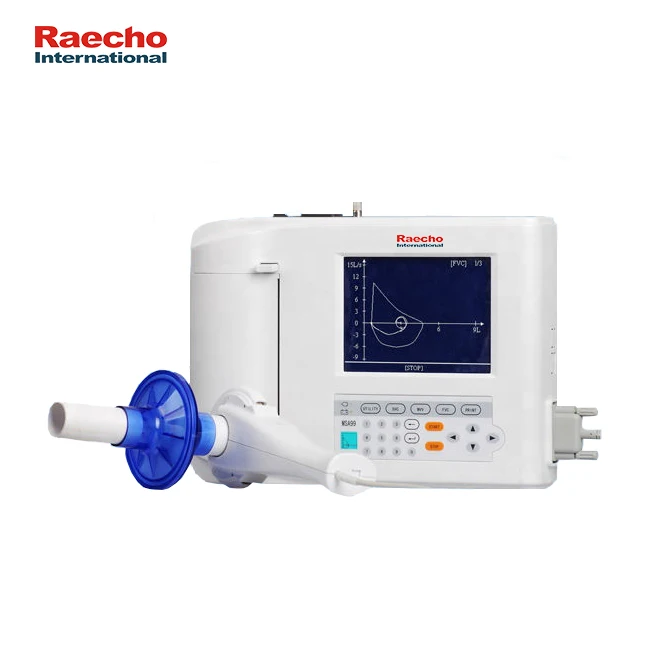

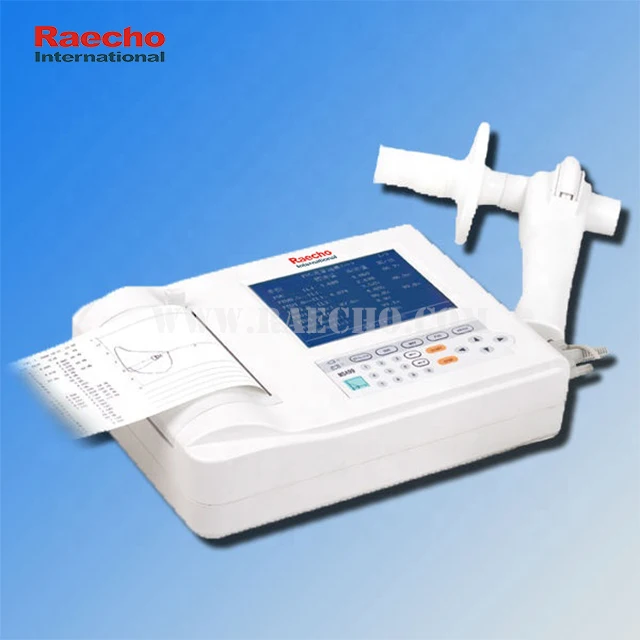

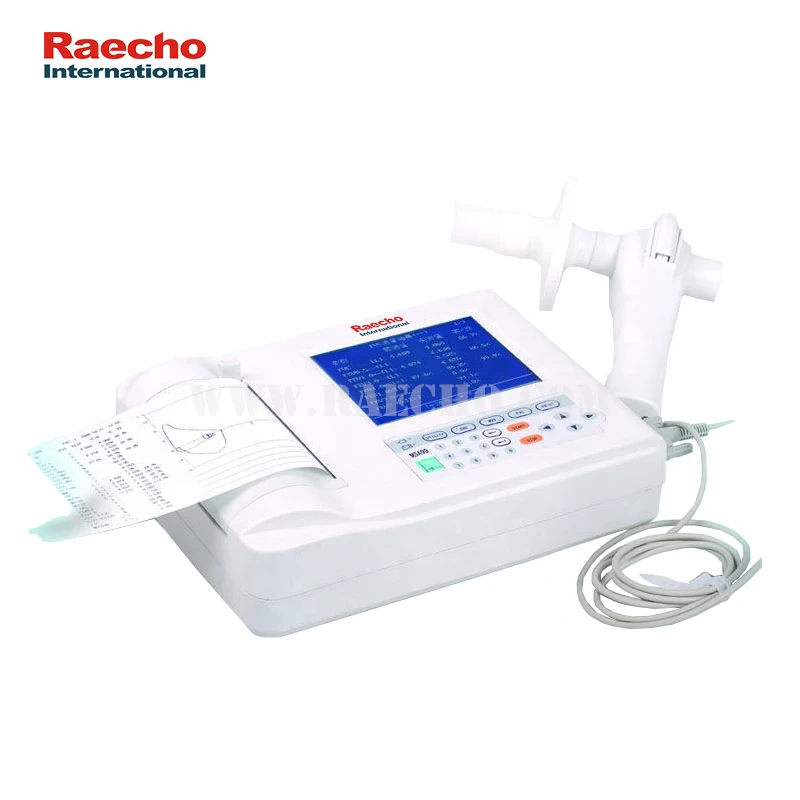

The RA-SA99 Portable Spirometer can be used to measure vital capacity (VC), forced vital capacity (FVC), Maximum Ventilatory Volume (MVV). Measurement algorithm refers to the ITS, ERS standards of the American Thoracic Society (ATS).

Features

1. Can display all parameters on the 5.7" 320×240 dots LCD screen, and store 300 copies of measurement report.

2. Soft-touch keys, easy to maintain, Small size, light weight and easy to carry

3. Built-in precise 110mm thermal printer

3. Can be connected to PC station through USB socket, completing a pulmonary function test directly with work station, also thousands of measurement records can be stored.

4. PC workstations support the measurement and comparison functions before and after taking medicine.

5. High-precision differential pressure flow sensor

6. Measurement of breathing time: VC time 50 seconds, FVC measuring time 25 seconds, MVV time 12 seconds, in favor of the coordination between patients and the device.

7. The instrument can calibrate automatically, all English operation, more convenient to operate.

TECHNICAL PARAMETERS
Display screen	Diagonal line 5.7inches, Monochrome LCD, Resolution 320*240
Measurement means	Flow velocity detection	pressure gradient pneumatic flow sensor
Measurement means		Capacity detection	flow velocity integral
Measuring range	Capacity range	0L ~ 9L
Measuring range		Flow velocity range	0 ~ 14L/s
Measurement accuracy	Capacity	0L ~ 1.6L (±50ml), 6L ~ 9L (±3%)
		Flow rate	5% or 0.2L/s
		Respiratory rate	4/20~/min (±1/min), 20/60/min (error: ± 5%)
Measuring time limit and degree	Vital capacity	every 50s, measuring 3
		FVC	per second, 25s, measuring 3
		The maximum ventilation volume	every 12 seconds, measuring 3
Paper recorder	Method	dot matrix
		Level Resolution Ration	8 d/mm (speed 25mm/s)
		Uprightness Resolution Ration	8 d/mm
		Wave Channels	1
		Paper Width	110mm(1.97inches)
		Paper Length	15m(100inches)
		Formfeed Speed	12.5, 25 and 50mm/s (±2%)
Control	UTILITY KEY, SVC KEY, FVC KEY, MVV KEY, PRINT KEY, 10WORDS KEY, START KEY, STOP KEY
Control		Light alarm
Power supply	AC	100V ~ 240V
Power supply		DC	rechargeable Nickel-metal hydride (NI-MH), 14.4-volt, 1.8 amp hour
Fuse	100V~240V AC: F2A250V, 5*20mm
Safety classification	IEC60601-1 class I, type CF
