New HAITUI 130KW wetland Crawler bulldozer HD16S with CE


Поделиться:


Цена:4 896 963,50 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 6219143.86 $* 6343526.5 $*
Jul-18-2025 5043872.75 $* 5144749.79 $*
Jun-18-2025 6121204.58 $* 6243628.71 $*
May-18-2025 6072234.99 $* 6193679.41 $*
Apr-18-2025 4847993.30 $* 4944953.71 $*
Mar-18-2025 5974295.81 $* 6093781.78 $*
Feb-18-2025 5925325.61 $* 6043832.18 $*
Jan-18-2025 5876356.8 $* 5993883.44 $*

Характеристики

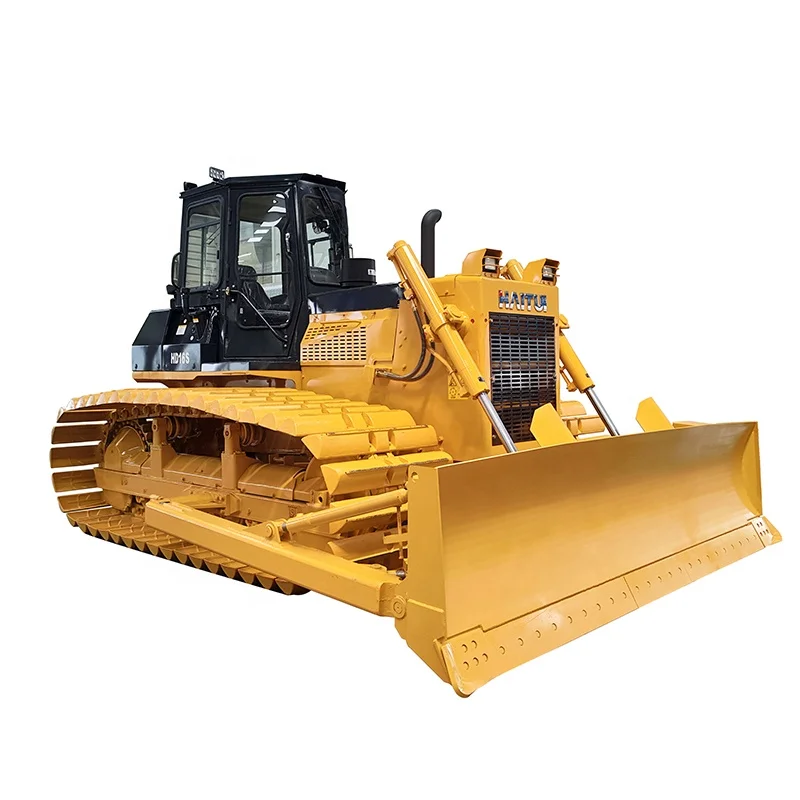

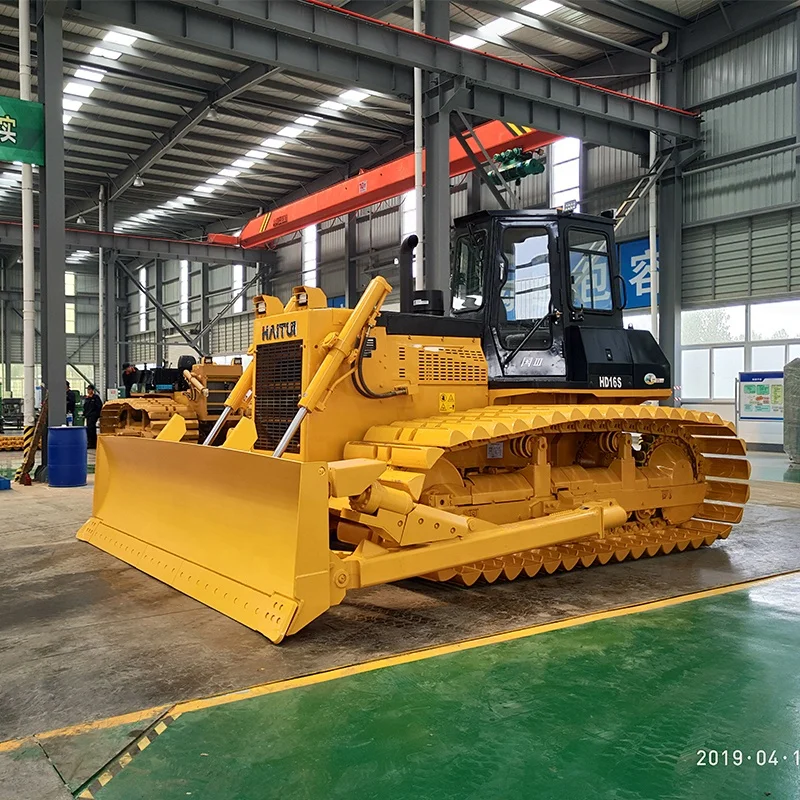

New 178HP Wetland Crawler bulldozer HD16S with CE ISO

Swamp bulldozer HD16S



Scope of Application:

HD16S hydraulic transmission bulldozer has the features of high technology, advanced design,strong power and high efficiency, etc. It can adapt to more harsh working environment and is convenient for maintenance and repair.



The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the rapid andflexible steering controls by joysticks.



Equipped with 950mm wetland tracks, the extended bogie can effectively reduce the ground pressure and ensure good wetland trafficability and is applicable for the earthworks in muddy regions (such as swamp and mudflat).

Product Description

 Main Features:

A Weichai WD10G178E25 engine which gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.

engine 2.jpg  engine.jpg

The gearbox uses a planetary gear structure that operates the hydraulic control valve to achieve forward, reverse and various shifts. The structure is planetary gear, multi-plate clutch, hydraulic combined with forced lubrication, which is divided into three forward and three reverse.



The closed system keeps the tank pressure at a specific value, which can increase the evaporation temperature and heat dissipation efficiency of the cooling water. The fan power comes from the engine, and the forced air supply increases the cooling effect.



Mainstream 14MPa working hydraulic system,can greatly reduce the failure rate of hydraulic components with overload protection function.



The use of waterproof connector of the whole vehicle,new relays and injection molding instruments can effectively eliminate the failure of the electrical system. The instrument box integrates air conditioning, electrical appliances and instruments into one, which is more beautiful and luxury.



The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.






Product Display



The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to transmit the working load and impact load to the main frame during working, which effectively improves the stability of small-sized bulldozers under complicated working conditions.



The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force




Attachment

 According to the different working condition, several choices of attachments can be choosedHD16_07.jpg

Construction Site

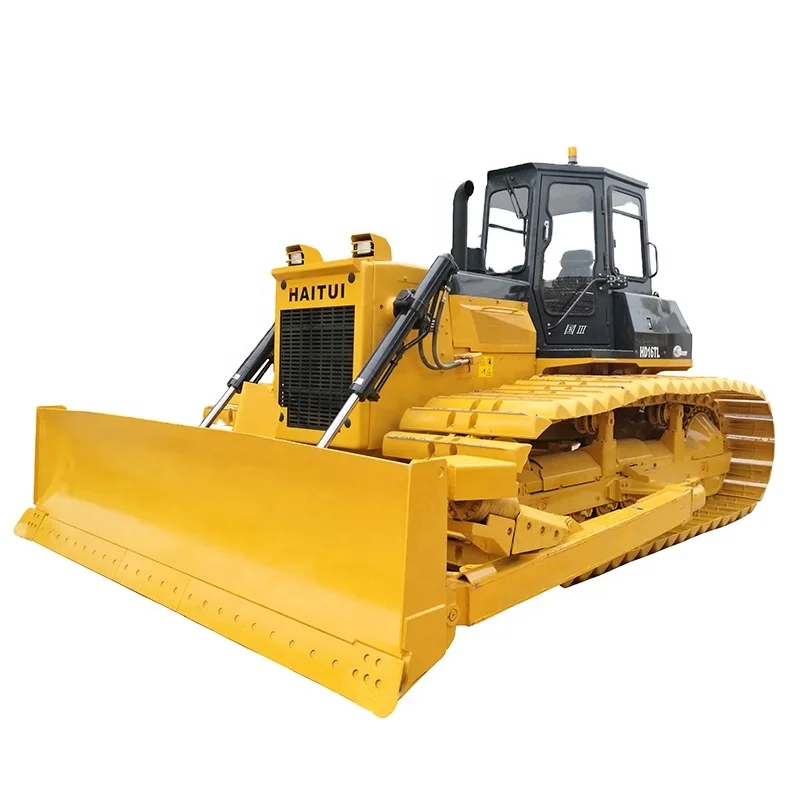

Models Introduction

HAITUI range of bulldozers adopts the international advaced crawler bulldozer production technology.

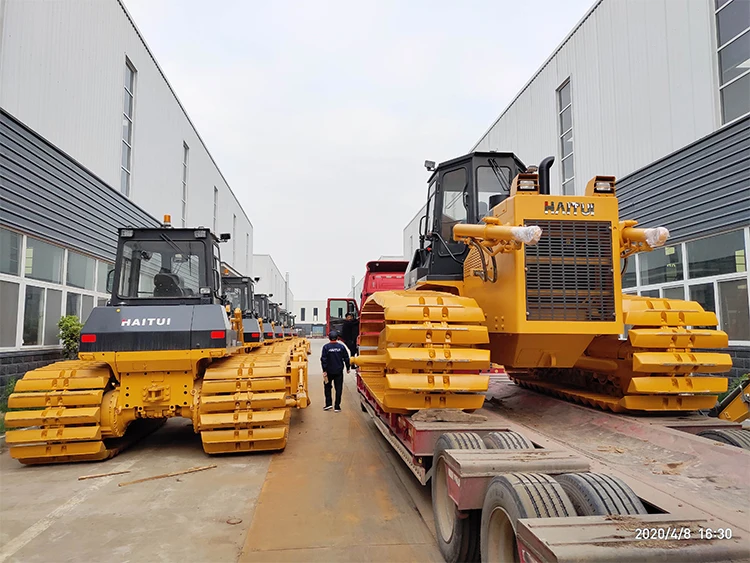

Packing And Shipping




About Company

 The business scopes of  SHANDONG Haitui Industry Machinery CO.,Ltd. are producing and exporting mechanical and hydraulic bulldozers with various features of high-efficiency,energy-saving and multi-function.The products types are more than ten models from 160HP to 320HP.Besides the standard types,we offer a broad range of types for different work conditions as well,such as specialized dozers for swamps,landfills,forests and power plants(coal).

P81103-144804.jpg   P81025-154940.jpg







FAQ

1. Which countries do we export to?

Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.

South America: Brazil, Chile, Paraguay, Argentina, etc.

Africa: South Africa, Ethiopia, Libya, etc.

2.What are our advantages compared with other manufacturers/factories?

1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge, transmissions, and many parts designed and produced by ourselves, always adapting the best materials.

2)Competitive Price: Concentration of mechanized production in large quantities reduce production costs to ensure that our price is competitive.

3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your questions at any time. Second, professional maintenance team with senior technicians, ready to provide support services to users and dealers. Most problems can be solved within 24 hours.

4)Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.

3.Which payment terms can we accept?

Normally we can work on T/T or L/C.

1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.

2)On L/C term, 100% irrevocable L/C at sight without “soft clauses” can be accepted.

4.What logistics ways we can work for delivery?

1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.

2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.

3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.

5. How long is the validity of our quotation?

As a reliable supplier, basically our price remains stable for at leather three month.We’ll adjust our price based on the following two changes:

1)The rate of USD

2)The price of material
