Многофункциональный вспомогательный автомобиль Mine underground для человека/топлива/взрывоопасного
- Категория: Другие фермы для майнинга >>>
- Поставщик: Ksq,Technologies,(beijing),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 238000.29 $* | 249900.62 $* |
| Aug-18-2025 | 236000.85 $* | 247800.87 $* |
| Jul-18-2025 | 198000.48 $* | 207900.69 $* |
| Jun-18-2025 | 232000.36 $* | 243600.43 $* |
| May-18-2025 | 202000.60 $* | 212100.46 $* |
| Apr-18-2025 | 228000.26 $* | 239400.60 $* |
| Mar-18-2025 | 226000.28 $* | 237300.20 $* |
| Feb-18-2025 | 224000.21 $* | 235200.54 $* |
| Jan-18-2025 | 222000.60 $* | 233100.6 $* |
Характеристики

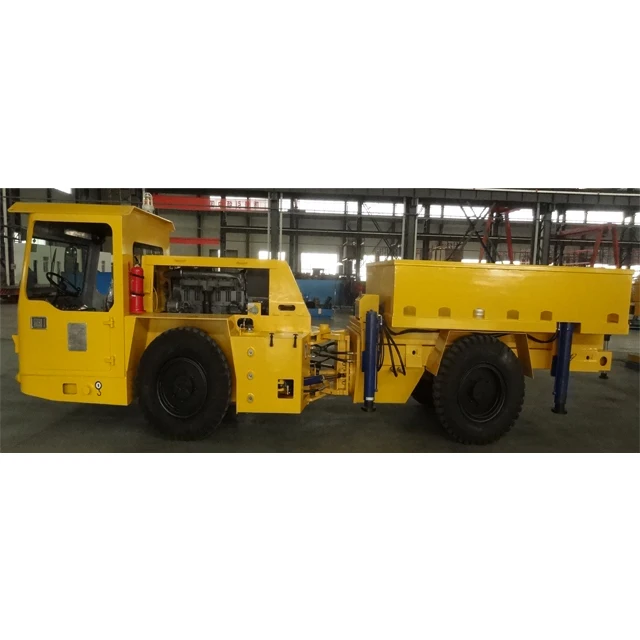

Mine underground Multifunction service vehicle for person/fuel/explosive material/crane
Mine underground service vehicle is configured for many support tasks for underground mining and tunneling
Technical datas
| Engine | |
| Manufacturer | Deutz |
| Model | F6L914 |
| Power | 83kw/2300rpm |
| Type | air-Cooled diesel Engine |
| Air intake filter | |
| Manufacturer | MANN |
| Type | 2-stage dry type |
| Exhaust system | |
| Manufacturer | Canada ESC |
| Type | Catalytic purifier with silencer |
| Transmission and converter | |
| Manufacturer | DANA USA |
| Model | 1201FT20321 |
| Axle (With reed brake) | |
| Manufacturer | DANA USA |
| Model | 112/341 |
| Type | The work brake is a wet multi-disc hydraulic brake, the hydraulic brake spring is released; the parking and emergency brake are hydraulic release spring brake |
General Parameters
Item | Unit | Data | |
Wheelbase | mm | 3500 | |
Tread | mm | 1510 | |
Weight | kg | 8100±500 | |
Min.Ground Clearance | mm | 230 | |
Climbing capacity(Load) | (º) | ≥15 | |
Transverse Swing Angle | (º) | ±8 | |
Max Steering Angle | (º) | 40 | |
Max.Speed | I gear | km/h | 5 |
II gear | km/h | 11 | |
III gear | km/h | 22 | |
Tractive Effort | kN | 104 | |
Rated Loading | kg | 7000±100 | |
Drawing of Crane
