Meltblown Cloth Extruder Machine 600Mm Melt Blown Nonwoven Fabric Cloth Production Line
Product Description

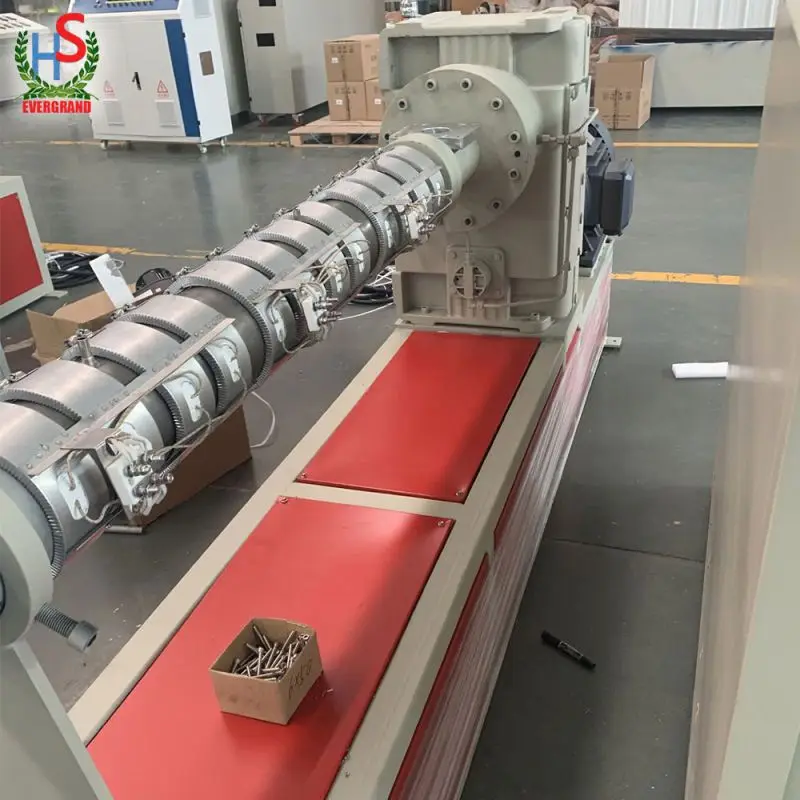

High Capacity Single Screw melt blown cloth Extruder: 1. Adopt the single screw extruder, and mainly used in extruding PVC, PE, PP, PET,ABS and so on 2. The extruder using the special designed single screw making the product foaming well. 3. Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940. 4. Barrel temperature control though two section, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.
5. The reduction box adopt the Germany technical which have long life span, low noise and lower hot. 6. The control panel: AC/DC motor ,SIMENS contactor
Screw
heater
L/D
Gear reducer
Motor power
SJ45/30
ceramic band heater
30:1
133
11KW
SJ50/30
ceramic band heater
30:1
146
15KW
SJ55/30
ceramic band heater
30:1
146
15KW
SJ65/30
ceramic band heater
30:1
173/180
22KW
SJ75/30
ceramic band heater
30:1
200
30KW
SJ90/30
ceramic band heater
30:1
225
45KW

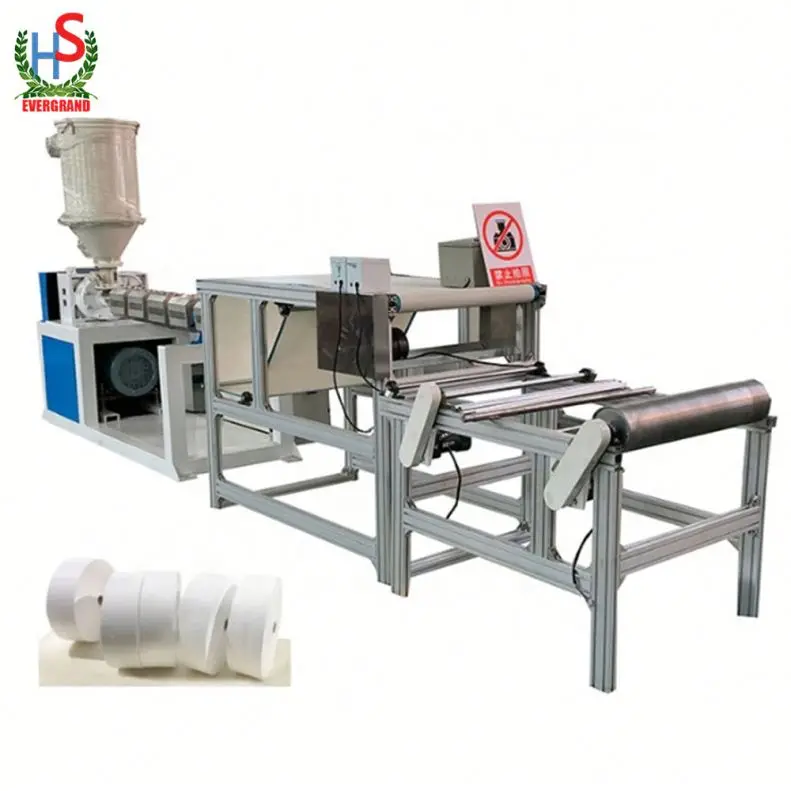

Melt-blown fabric equipment introduction and main parameters The whole set of melt-blown equipment consists of main engine, heating system, lubrication system, hydraulic system, cooling system, electrical control system, etc. The main engine is mainly composed of screw extruder, filter device, metering pump, melt-blown die head assembly, receiving device and rolling-up mechanism.
Melt-blown nonwovens is the most core material of mask, melt spraying cloth mainly USES polypropylene as the main material, the fiber diameter can reach 1 ~ 5 micron. The microfiber with unique capillary structure increases the number and surface area of fiber per unit area, so that the melt spray cloth has good filtering, shielding, insulation and oil absorption.
Melt-blown nonwovens can be used for air, liquid filtration materials, isolation materials, absorption materials, mask materials, warm materials, oil absorption materials and wiping cloth and other fields.
