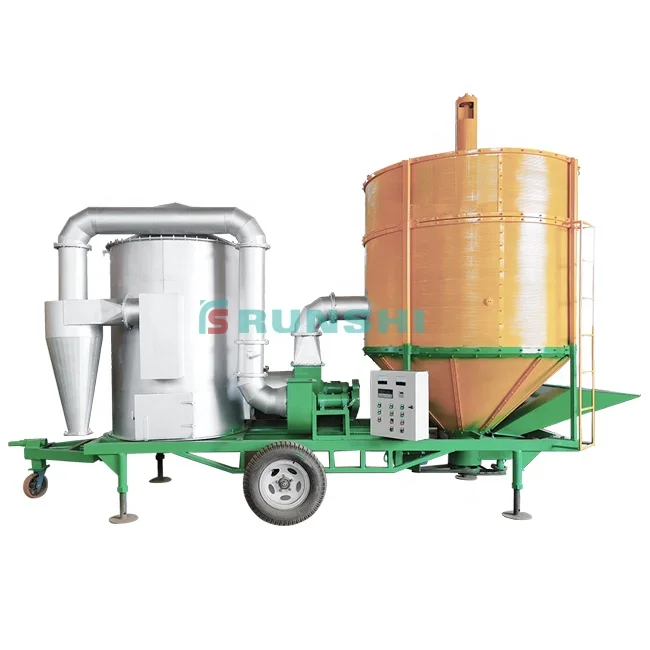

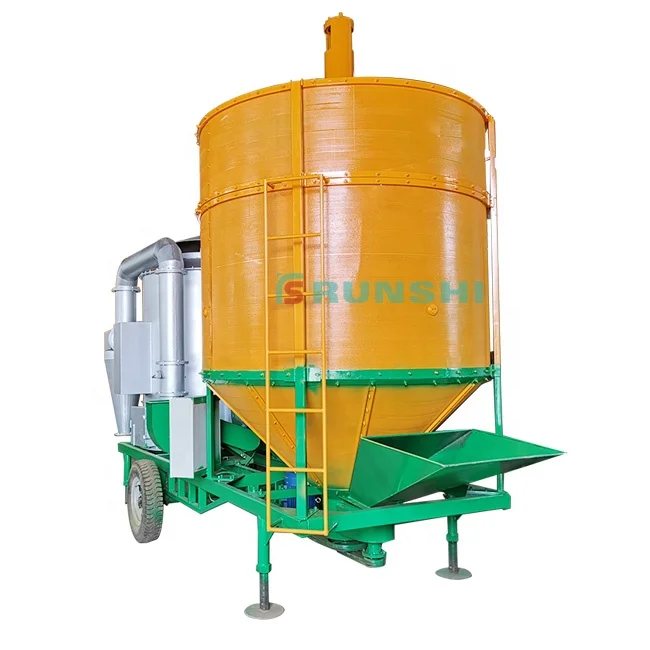

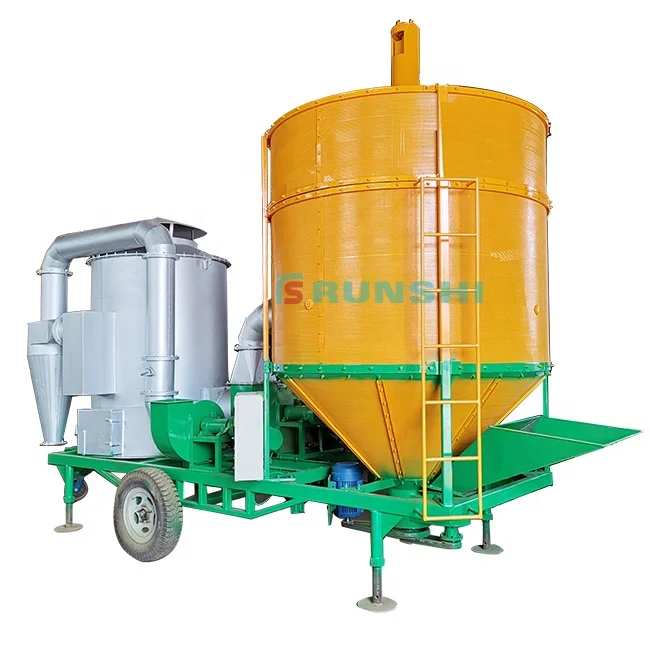

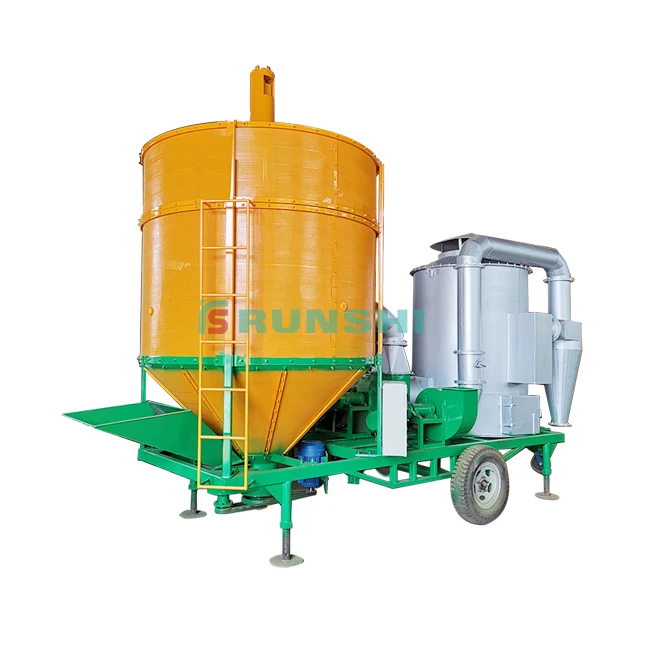

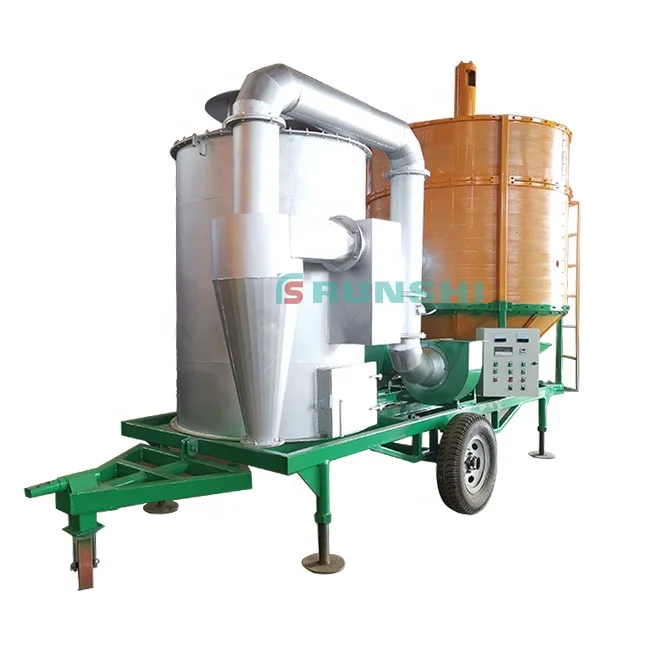

Mobile paddy dryer is used to dry corn, rice paddy, wheat, Sorghum,sesame,bean,and other particle material,etc.When harvest season comes,large quantity grain need to be dried at a short time,so grain can be well transported and stored,that is why you need a mobile grain dryer.
Mobile paddy dryer is not like very big capacity grain dryer,it suitable for grain distributors,big farmer.The small and middle capacity which can meet customers demand,at the same time,it’s mobile feature is more convinent to dry grain at different place.
Advantage of Mobile paddy dryer
1.Short drying time(2-3h per batch), keep cereal with natural feature,reduce drying cost and save labor and time.
2.Body compact, easy operation, especially design for small and middle farmer and company
3.High drying efficiency, easy transport, save space, it can be moved to farm and drying everywhere.
4.Widely use for corn, paddy, wheat, sesame, etc.
Features of Mobile paddy dryer
1.Equiped with wheel, can be towed by tractor.
2.Cereal without pollution, fresh air as input and make sure cereal clean without pollution.
3.Automatic control system for temperature and moisture
4.Machine can be separate and install together, easy transport
Specification Data
Mobile paddy dryer Specifications
Model
RS-1T
RS-2T
RS-4T
RS-6T
Silo Volume
1.5m³
3.8m³
6.5m³
9.6m³
Dry type
Low temperature hot air cycle dry
Air temperature range
Paddy:45-60℃;Corn:100-130℃;Wheat:90-110℃
Transport height
2.1m
2.7m
2.9m
2.9m
Operation height
2.1m
3.46m
3.85m
4.92m
Area
8m2
13m2
15.5m2
16.3m2
Coal and wood Oven
Clean oven,Ignition by manual
(If use other fuel,need different design)
Fuel consumption
Coal
(Standard conditions)18kg/t
Gas
(Standard conditions)7m³/t
Diesel oil
(Standard conditions)7.5L/t
Total power
3kw
8.5kw
13.13kw
19.4kw
Capacity:
1T/batch
2T/batchh
4T/batch
6T/batch
Note:Each batch need 2-3h
Precipitationrate (%/h)
Paddy:1.7-2.5% ;Corn:3.8-6% ;Wheat:2.8-4.5%
Safety Devices
Thermal relay,Error alarm, Times Switch, Overheat alam
Daily production is calculated by the condition from25% to 14% moisture.
Manufacture workshop
Mobile paddy dryer manufacture workshop
Our Services
Q1.About installing:
We have video and photos to show you how to intall and use Mobile paddy dryer,We can dispatch technician according to your requirement.
Q2.About quality:
We provide customers with the most resonable and excellent proposal,We can accept trade assurance which can protect your profit.
Q3.What is your warranty service?
We supply one year free warranty,after years with favorable price for spare parts.
