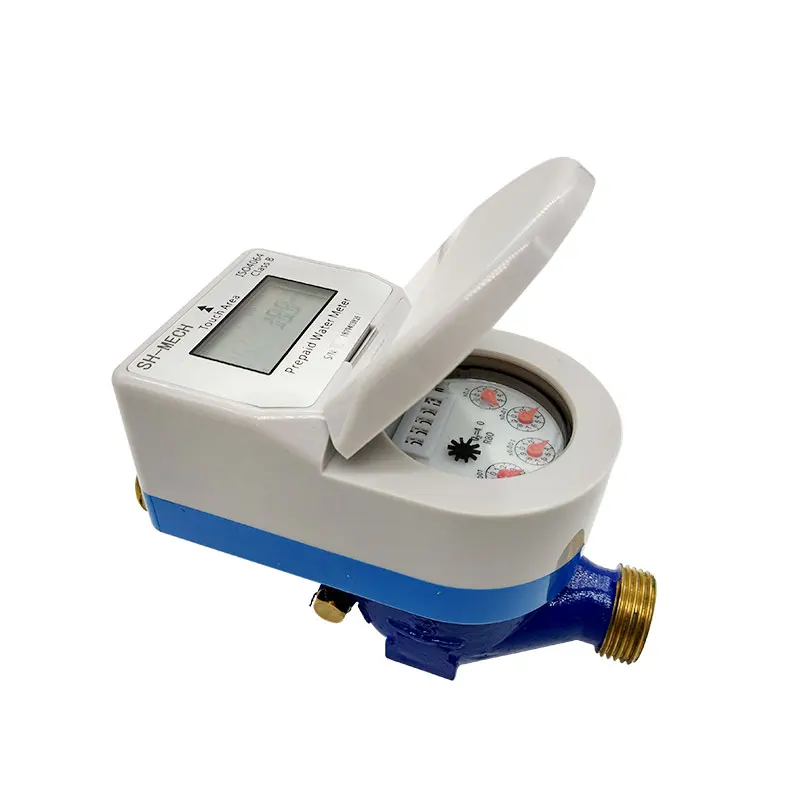

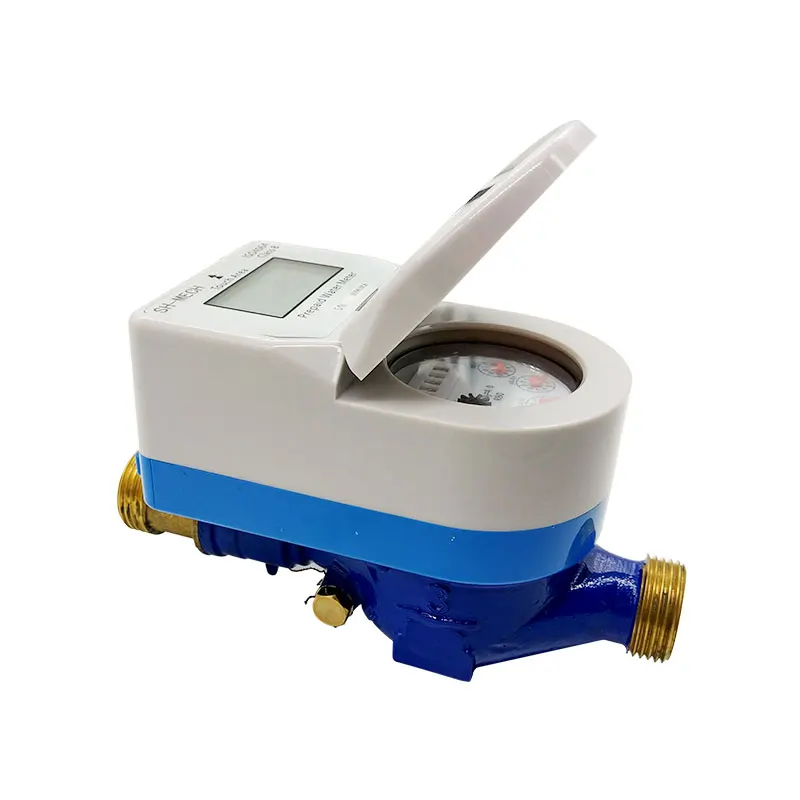

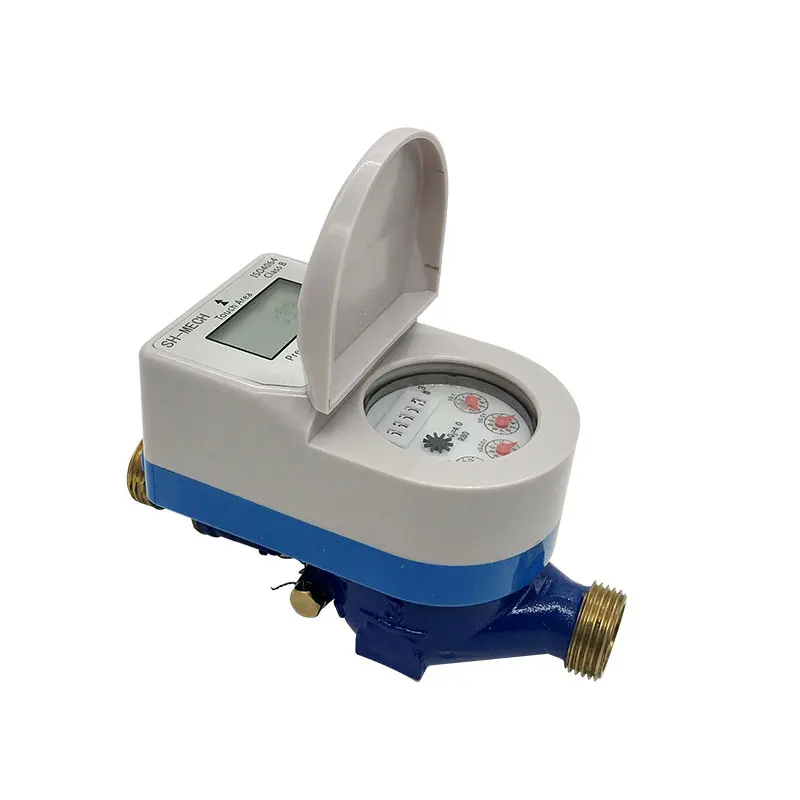

DN25MM cheap price IC card prepaid water meter for residential
Prepaid water meter
PREPAID WATER METER
LXSGIC-DN15~25
PREPAID SYSTEM INTRODUCTION
Overviews
The IC Card series water meter is a kind of prepaid and smart water meter. It’s designed and manufactured by our company and famous design companies both domestic and aboard according to the international standard.
Advantage of the system
·OEM, language display and currency unit display can be customized, and company name can be added to the software.
·The data will be saved automatically after exiting the system.
·Simple management and user card making, easy to query consumption records.
·Invoice printing, providing payment voucher to users in the most common form in the local area.
Brief introduction
The prepaid water meter have mechanical and electronic readings. It is used to control users overspend by prepaying with an IC card. Pay in advance and then use water get rid of the inconvenience of on-site meter reading and charging.
Product features
·Our ic card prepaid water meter has high accuracy
·Type:screw,joint,split
· Material: Brass
·Scenes to be used: garden, housing,commercial, general household, residential building,apartment,municipality, household, potable
·Waterproof level:IP68
·Technical data conform to international standard ISO 4064.
·Accuracy:class b
Fitting:Connctor,PCB,Valve control,Reading device,Adapter,Actuator,Battery operated,Pipe fitting,Connector fitting,Coupling,Pointer,Components,Counter,Rgister
·Communication:IC card reading,Private protocol
Main technical data
(Ⅰ) Technical specifications
| Item | Unit | Details | ||
| Nominal diameter | mm | 15 | 20 | 25 |
| Q3/Q1 | R80/R100 | |||
| Overload flow(Q4) | m³/h | 3.125 | 5 | 7.875 |
| Nominal flow(Q3) | m³/h | 2.5 | 4 | 6.3 |
| Transitional flow(Q2) | m³/h | 0.05 | 0.08 | 0.13 |
| Minimum flow(Q1) | m³/h | 0.031 | 0.05 | 0.08 |
| Accuracy class | Class 2 | |||
| Maximum indication | m³ | 99999 | ||
| Temperature class | T30,T90 | |||
| Pressure class | MAP 10/MAP16 | |||
| Pressure loss class | ΔP63 | |||
| Flow prefile sensitivity class | U10/D5 | |||
| environmental class | Class B | |||
| Electromagnetic environment class | E1 | |||
| Static current | uA | <10 | ||
(Ⅱ) Relative error
·Maximum permissible error between Q1 and Q2(excluded) is ±5% in flow low area.
·When the water temperature is not higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±2% in flow high area.
·When the water temperature is higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±3% in flow high area.
(Ⅲ) Working temperature: cold water (0.1~30)℃
(IV) Operating ambient temperature: (5~55)℃
(V) Storage environmental temperature: (-5~55)℃
Fault handling instructions
| Item | Fault display | Fault explanation | Elimination methods |
| 1 | Under voltage | Low battery | Contact the manufacturer |
| 2 | Flow | Flow sensor signal failure | |
| 3 | Valve open/close | Valve sticking rusting or scaling | |
| 4 | Can not read card | Write card erroror take the wrong card | Go to water supply department to test the card |
Outline dimensional drawing
| Nominal Diameter | Length L | Length L1 | Width B | Height H1 | Height H2 | Connecting Thread | |
| mm | d | D | |||||
| 15 | 258 | 165 | 90 | 112 | 184 | R1/2 | G3/4B |
| 20 | 299 | 195 | 90 | 112 | 184 | R3/4 | G1B |
| 25 | 345 | 225 | 90 | 114 | 186 | R1 | G11/4B |
Comparis
REMOTE WATER METER COMPARISON CHART
| PREPAID | LORA | GPRS | NB-IOT | |
| Composition | Prepaid water meter IC card Card Reader Software | Lora water meter Concentrator Repeater Serve Platform | GPRS water meter Serve Platform | NB-IOT water meter NB-IOT transmission base station Serve Platform |
| Communication Band | None | 470-510Mhz 865-868Mhz | GSM850/EGSM900 | CDMA1X800E/EGSM900 |
| Advantage | Transmit information through IC card,charge accurately Install and operate easily | LANtransmission data,low power,Suitable for intensive installation real-time reading control | Wide area network,data transmission without distance limitation,simple installation and debugging,low sample order cost. | Wide coverage,low power consumption,low cost and slower rate. |
| Limitations | The stand-alone version of the software can only be read and controlled on a designated computer.Back up user data when replacing a pc. | Greater impacts by obstacles and limited communication distance(up to 1 km).On-site debugging is a heavy workload | Occasionally there will be data packet loss,high transmission rate,relatively high power consumption. | At present,NB technology is not fully mature and the coverage of base stations is low. |
| Battery capacity | more than 6 years | more than 6 years | more than 6 years | more than 6 years |
| Software payment | Free | Free | Free | Free |
| Cost | Almost no use cost | Electricity and flow charges for concentrators | Mobile data traffic charge of 2g data traffic in water meter | Mobile data traffic charge of 2g data traffic in water meter |
| necessary part of sample purchase | Prepaid water meter IC card Card Reader | Lora water meter Concentrator | GPRS water meter | NB-IOT water meter |
| Software | Stand-alone application | B/S Cloudy serve platform | B/S Cloudy serve platform | B/S Cloudy serve platform |
| Software compatible | YES | YES | YES | YES |
FAQ
Frequently asked questions
Water meter
1. How long is the battery life?
Using the ER26500 battery with a capacity of up to 9000 mAh and the frequency of reading the meter once a day, the battery life can reach 8 years.
2. Waterproof rating?
This water meter adopts completely encapsulated and sealed technology. It uses silicone to package the circuit board part, and the battery plug and socket are also sealed to achieve IP68 protection.
3. Can your product run underwater?
This product can be soaked in water, but soaking in water will affect the stability of signal transmission, because it will greatly affect the signal transmission in water
4. If the valve cannot be closed or opened, how to find and deal with it?
If the valve is blocked by sand and gravel flowing into the pipe, the program in the water meter will try to perform the on-off valve action within 40 seconds.
If the valve cannot be switched normally, the water meter will give up the command and return the fault data to the platform.
On the platform, you can easily view the relevant information of the water meter.
Pre-sales and after-sales service
1. Pre-sale service
Patient product introduction.
AMR system demonstration.
Project case introduction.
Support sample ordering.
2. After-sales service
Installation instructions, including software part and water meter part;
Support data to the third management system;
Installation supervision, on-site debugging and advertising training;
Maintain long-term tracking and service, even beyond the warranty time
Communication and service platform
1. Does GPRS wireless water meter need a concentrator or a collector?
No, because the GPRS wireless water meter uses the existing GPRS communication tower for data transmission, which is similar to the signal transmission of a mobile phone.
2. What data can the platform collect from the water meter?
Currently, our platform can collect cumulative flow, battery voltage, upload time on the water meter
3. How does the concentrator transmit data?
The concentrator needs 220V power supply and uses GPRS to transmit data to the PC platform.
4. How about the transmission distance?
The data uploaded by the GPRS water meter is not affected by the distance under the GPRS signal.
5. How do you know that the water meter is faulty and there is no data to return?
First, we can check the alarm function on the platform to see if the water meter has no data returned, and then check the installation environment to see if there is any obvious damage, and can actively trigger the water meter to turn on-line mode.
6. Is the platform free? Can I pay in advance?
It is free, and the administrator can charge the amount in advance
Set up user information files for each user on the platform
Within one (1) year from the date of acceptance, it will be guaranteed that the working principles and materials of all meters are free from defects. Any defective instruments or parts found during this period should be replaced free of charge when returned to SHMETERS.
