Портативная эндоскопическая камера с монитором светодиодный источник света и HD-рекордер медицинский портативный эндоскопический
- Категория: Медицинские оптические приборы >>>
- Поставщик: Hangzhou,Easy,Medical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1107.14 $* | 1162.1 $* |
| Aug-16-2025 | 1097.86 $* | 1152.8 $* |
| Jul-16-2025 | 921.31 $* | 967.57 $* |
| Jun-16-2025 | 1079.3 $* | 1133.92 $* |
| May-16-2025 | 939.6 $* | 986.38 $* |
| Apr-16-2025 | 1060.75 $* | 1113.46 $* |
| Mar-16-2025 | 1051.59 $* | 1104.61 $* |
| Feb-16-2025 | 1042.76 $* | 1094.32 $* |
| Jan-16-2025 | 1032.80 $* | 1084.85 $* |
Характеристики

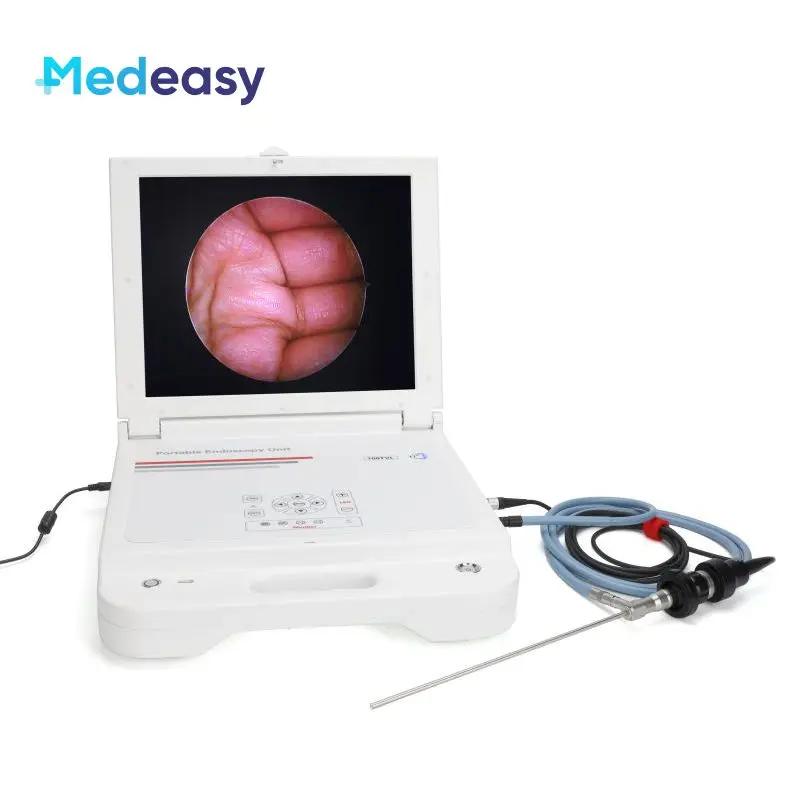

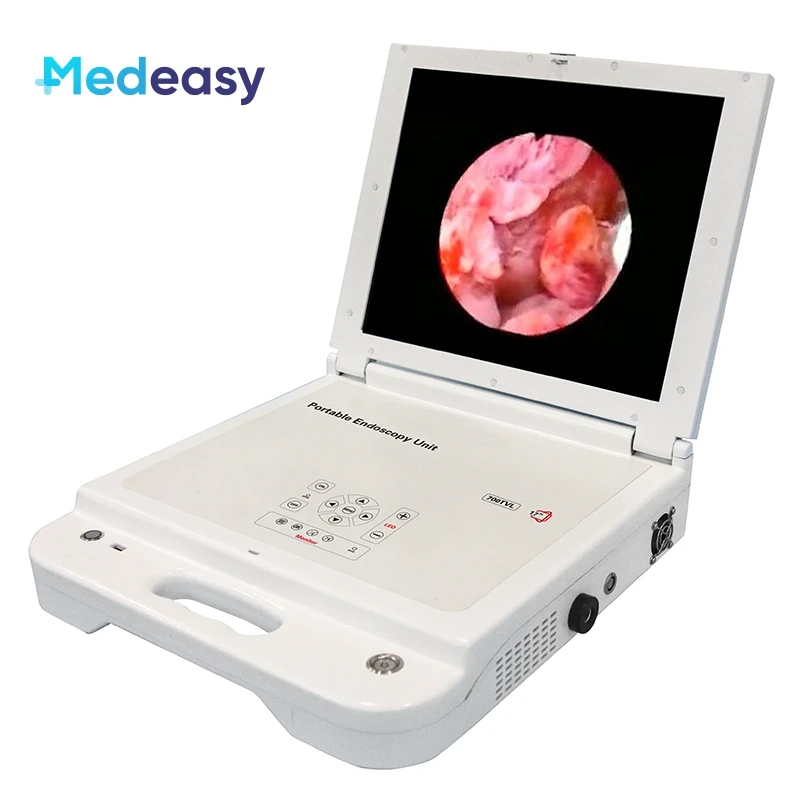

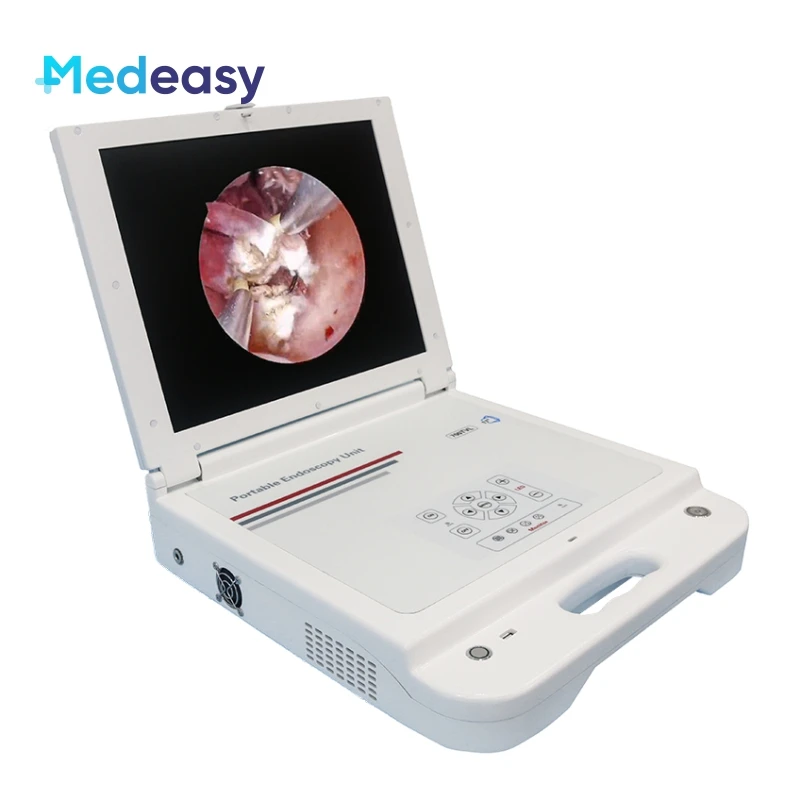

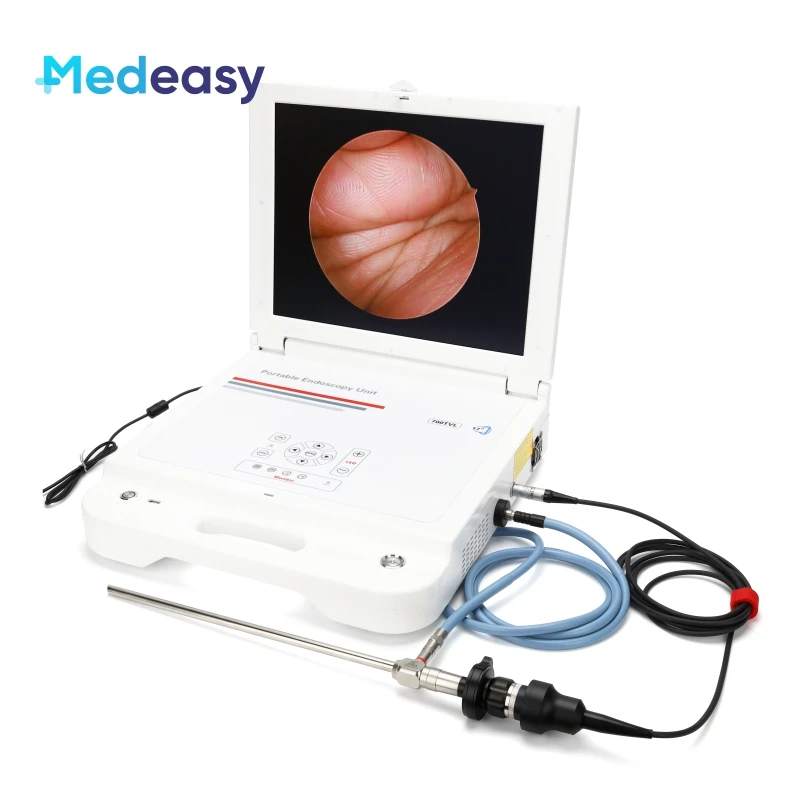

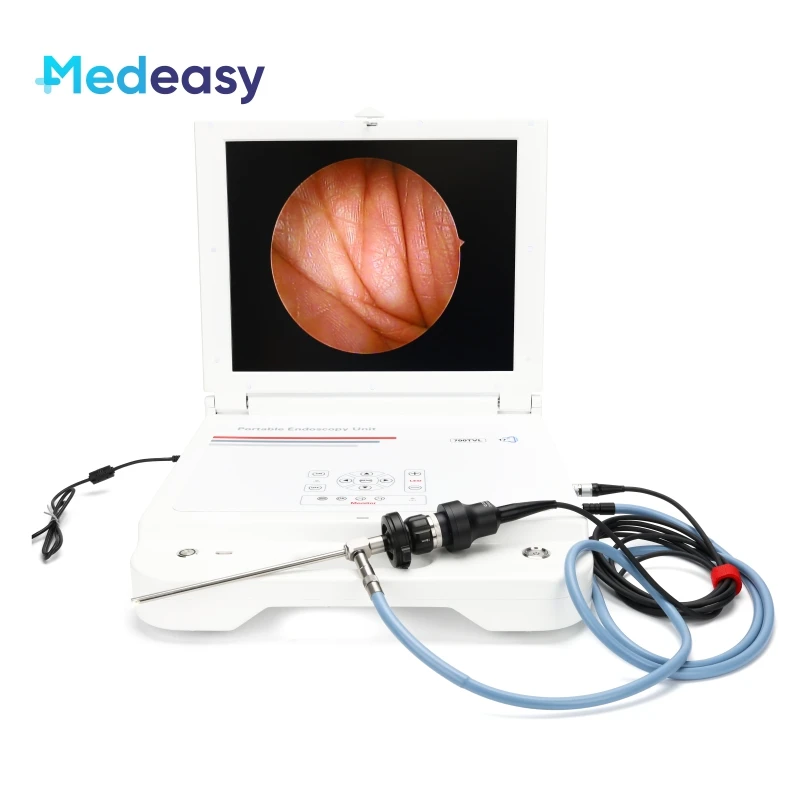

Portable Endoscope CCD Camera with Monitor, Led Light Source & HD Recorder, Medical Portable Endoscopy Unit
Product Description
Portable Endoscope CCD Camera & Standard Monitor & LED light Source & HD Recorder
* 4 in 1, camera 700 lines+LED light source+monitor+HD recorder.
* High brightness, 80 wtt LED.
* Medical grade HD monitor, 17 inch.
* With suitcase, easy to carry.
* Suitable for diagnosis and surgery.
* Application: Gynecology, Urology, ENT, Orthopedics etc.
Endoscope CCD Camera | ||||||
Image Device | 1/3 CCD | SNR | >=50dB | |||
SY | PAL | Brightness | ODS Adjustble | |||
Total Pixels | N:811(H)*508(V) P:795(H)*596(V) | Backlight Processing | Wide dynamic(rank adjustable)/backlight compensation/strong inhibition | |||
Effective Pixels | N:768(H)*494(V) P:752(H)*582(V) | Synchronous System | Internal Synchronization | |||
Scanning System | 2:1 interlaced | White Balance | ATW1/ATW2/MANUA | |||
Scan Frequency | N: 15.734KHZ 59.94HZ P: 15.635KHZ 50HZ | Acutance & Saturation | Turn on/off grade adjustable | |||
Scanning Mode | Interlaced Scanning | AG | Low/medium/high/off grade adjustable | |||
Horizontal Resolution | 700TVL | Minimum Illumination | F 1.2<=0.5lx | |||
Electronic Shutter | N: 1/60S-110000sec P: 1/50S-120000sec | Rollovers | on/off | |||
OSD Control-Menu | Built in external | DNR | 20 VOX | |||
Medical Monitor | ||
LCD Screen | 17'' | |
Color | 10.7 billion | |
Aspect Ration | 5:4 | |
LED Light Source | ||||||
Input Power | 80VA | Light Output Hole Diameter | φ(10±0.10)mm | |||
Light Source | LED | Working Conditions | 5℃~+40 ℃ | |||
Brightness | >=1,200,000Lux | Storage Conditions | -40℃~+55℃ | |||
Color Tempetature | >=6500K | Continuous Working Hours | >4h | |||
HD Recorder | ||||||
Specifications | Parameters | External U Flash Disk | Max 64G | |||
Recordering Format | MP4 | External Mobile HDD | Max 2T | |||
Recordering Quality | MAX 18Mbs @1080P 30Fps | Recorder Interface | Support USB disk & removable hard disk | |||
Details Images
Medical grade HD monitor, 17 inch.
With aluminum suitcase which will protect products during shipment
All items inside the case with sponge protection
Easy to carry and take away
All items inside the case with sponge protection
Easy to carry and take away
4 in 1, camera 700lines + LED light source + monitor+ HD recorder.
Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.
Light source is customized connector, it accepts fiber light guides with active areas ranging from 3 mm to 10 mm diameter.
Brightness, sharpness, freeze, d-zoom, language, rs485, reset, etc, all these can be operated accordingly.
High brightness, could be used for all rigid endoscope surgery without any problem.
All in one design, which can save shipping cost.
Wide range power from 100-240V/AC; 50/60 Hz.
The buttons are sensitive, no delay.
Using effect
The price does not include endoscope.
Application
Certifications
Recommend Products
Packing & Delivery
Company Profie
* Medeasy is one of leading medical training, medical science and professional medical instruments manufacturers in China.
* We specialize in laparoscopic and endoscopic instruments, endoscopes and endoscopic camera system, medical science products including CPR manikin, nursing manikins, anatomical models and related medical training products like laparoscopic trainer box, suture pad, suture etc..
* We specialize in laparoscopic and endoscopic instruments, endoscopes and endoscopic camera system, medical science products including CPR manikin, nursing manikins, anatomical models and related medical training products like laparoscopic trainer box, suture pad, suture etc..
* We can also customize ceramic, metal and plastic parts for medical industry.
* We provide quite satisfactory service and products with best quality at most competitive price in the world.
* We provide quite satisfactory service and products with best quality at most competitive price in the world.
*All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
*We can also develop products or help develop new products according to customers' requirements.
*We can also develop products or help develop new products according to customers' requirements.
Medical Endoscopy Camera Unit
