Быстрая зарядка и разряд золотой конденсатор
- Категория: Capacitors >>>
- Поставщик: Shenzhen,Yunkun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.88 $* | 5.68 $* |
| Aug-16-2025 | 5.47 $* | 5.92 $* |
| Jul-16-2025 | 4.55 $* | 4.76 $* |
| Jun-16-2025 | 5.70 $* | 5.94 $* |
| May-16-2025 | 4.27 $* | 4.53 $* |
| Apr-16-2025 | 5.88 $* | 5.57 $* |
| Mar-16-2025 | 5.43 $* | 5.51 $* |
| Feb-16-2025 | 4.18 $* | 4.46 $* |
| Jan-16-2025 | 4.24 $* | 4.85 $* |
Характеристики

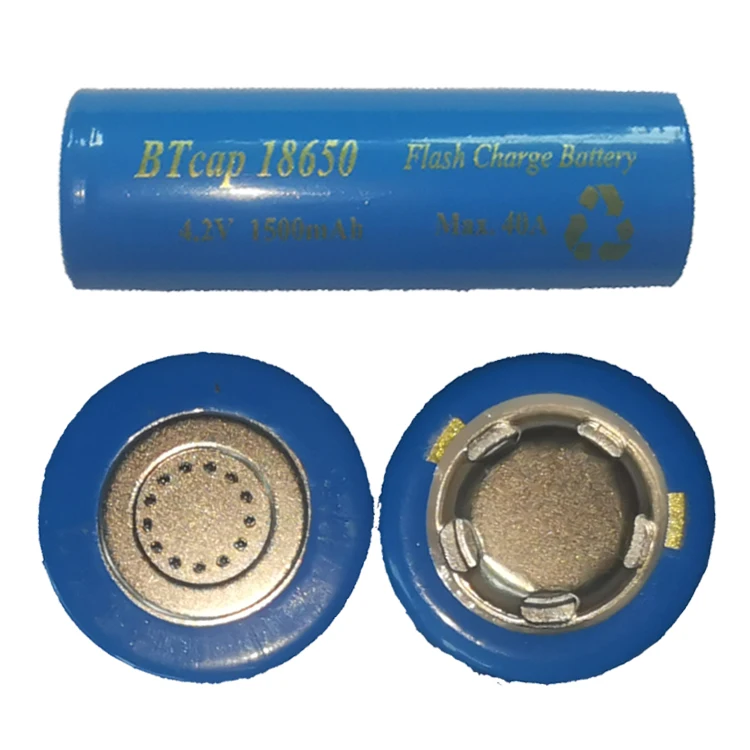

Product Description
Advantages of super capacitor battery
Super capacitor battery is a new type of high-power power battery made by mixing super capacitor and lithium ion battery; one of its electrodes is activated carbon electrode of super capacitor, and one electrode is lithium ion battery electrode! He has the following advantages:
2. The power that can be released instantly is nearly ten times higher than that of ordinary batteries, and it will not be damaged.
3. The charge and discharge cycle life is more than 30000-100,000 times, which is one of the biggest advantages. Traditional batteries can only be charged and discharged hundreds of times.
4. Can be used normally in an ambient temperature of 40 to 60 degrees, the performance of traditional batteries will be greatly reduced at low temperatures.
5. With super charge retention ability, the leakage is very small, the traditional battery needs to be charged frequently to maintain the state.
6. Charging is fast, its speed is dozens of times faster than ordinary batteries, and it can fully charge the power required by a car in a few minutes.
7. It will not cause pollution to the environment itself, and it is truly maintenance-free, while traditional batteries are still polluted.
Specification
Series | Merits | Values |
1 | Rated Capacity | 1500mAh+5% |
2 | Upper limit voltage | 4.2V |
3 | Lower limit voltage | 2.5V |
4 | DC internal resistance (10ms) | ≤15mΩ |
5 | Standard charging current | 4.5A(3C) |
6 | Fast charging current | 15A(10C) |
7 | Rated discharge current | 4.5A(3C) |
8 | Maximum continuous discharge current | 45A(30C) |
9 | Maximum discharge duration | 200s |
10 | Maximum temperature rise | 55±5℃ |
11 | safety | R GB / T 31485-2015 |
12 | Charge and discharge temperature range | -40~85℃ |
13 | Storage temperature range | -40~55℃ |
14 | Fast charge cycle life (@ 25 ± 2 ℃) | ≥30000 time(10C) |
15 | Slow charge cycle life | ≥50000 time(1C) |
16 | weight | ≤45g |
17 | Dimensions (diameter D × height H) | Φ18mm×65mm |
Related products
product application
Consumer electronics,UPS,Intelligent instruments,Vehicle recorders,toys,sps exchange

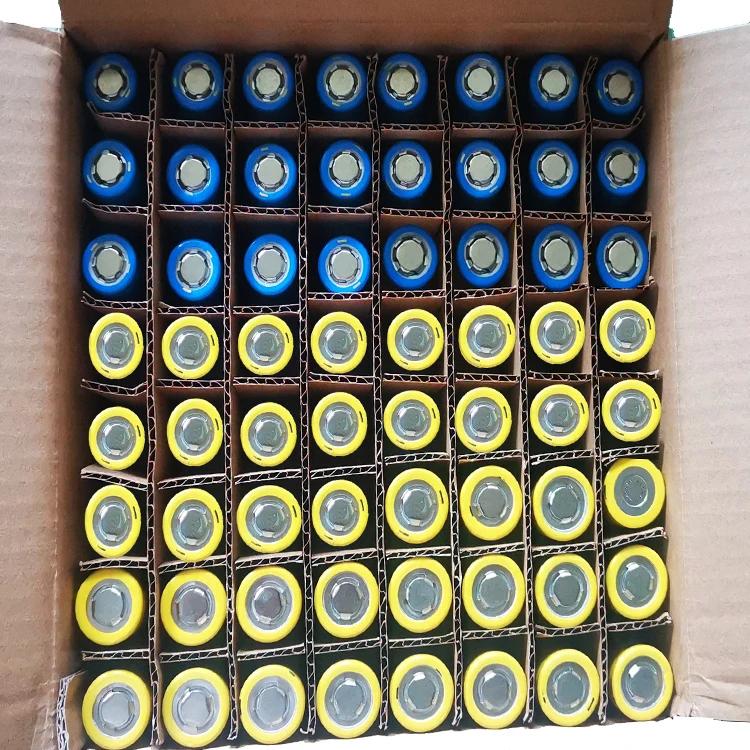

Packing & Delivery
Company Profile
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
