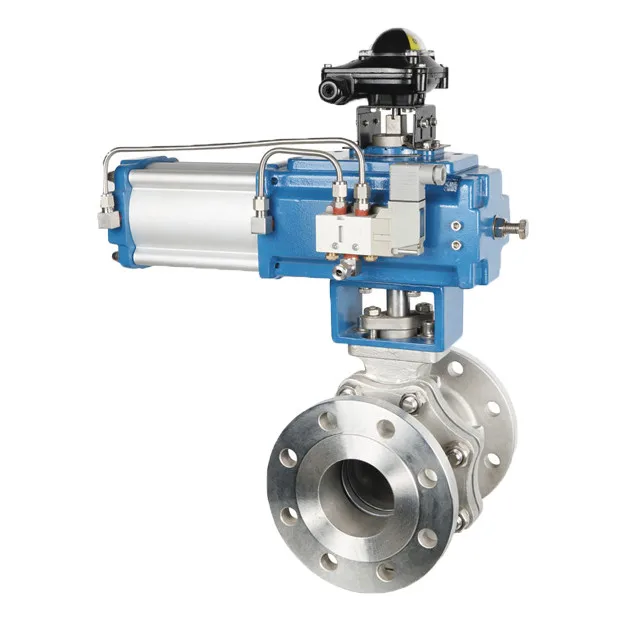

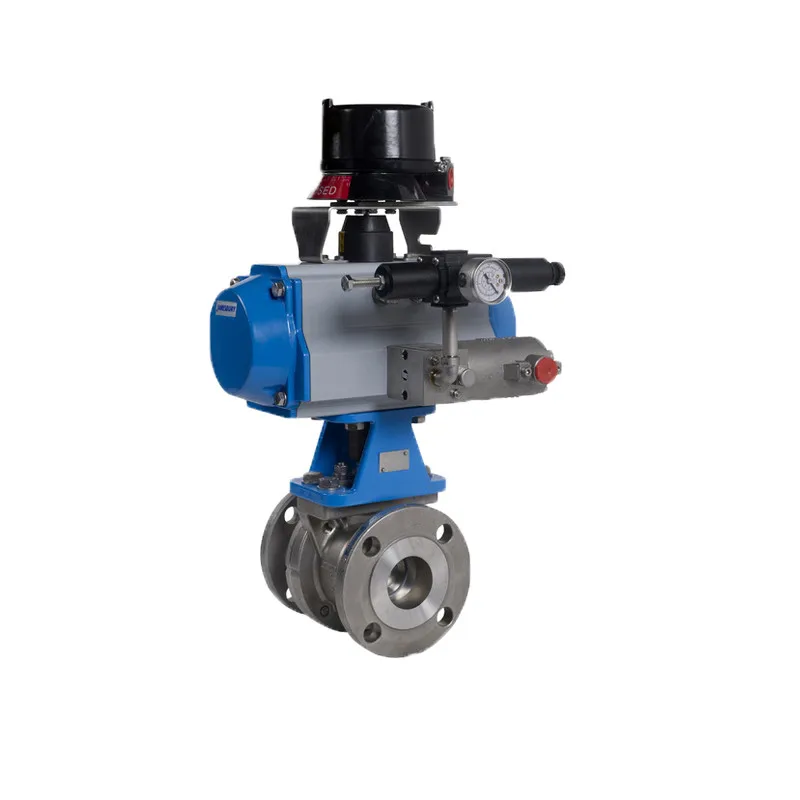

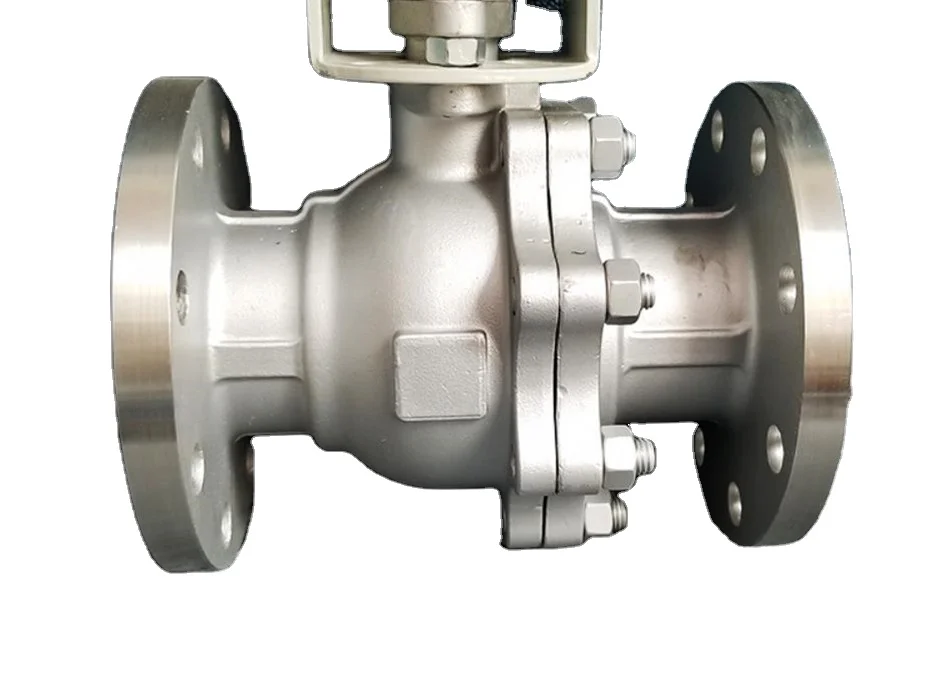

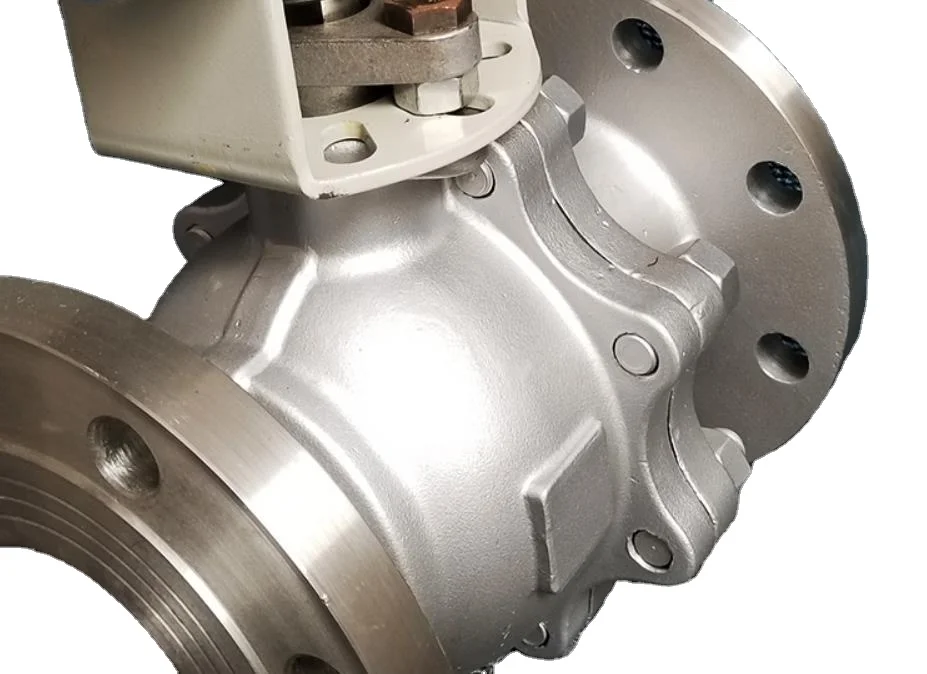

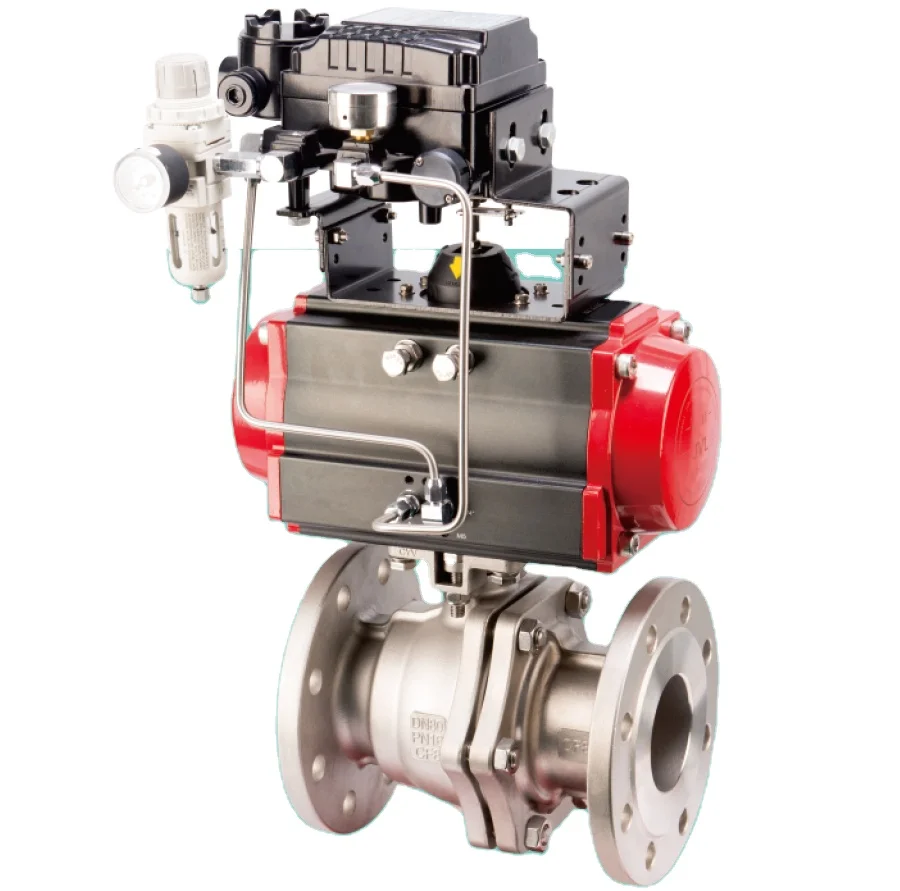

Пневматический привод Серии AW фланец сварной шаровой
- Категория: Шаровые клапаны >>>
- Поставщик: Chongqing,Taiyou,Machinery,And,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 70.76 $* | 71.76 $* |
| Jul-20-2025 | 57.30 $* | 58.55 $* |
| Jun-20-2025 | 69.25 $* | 70.40 $* |
| May-20-2025 | 68.39 $* | 69.11 $* |
| Apr-20-2025 | 54.71 $* | 55.7 $* |
| Mar-20-2025 | 67.57 $* | 68.10 $* |
| Feb-20-2025 | 67.78 $* | 68.54 $* |
| Jan-20-2025 | 66.47 $* | 67.9 $* |
Характеристики
Product Description
Technical Parameter
Nominal Diameter | DN15-200MM |
Nominal Pressure | 1.6-42Mpa |
Body Material | Carbon steel, Stainless steel |
Medium Temperature | W2:-20~150℃ W3:-20~250℃ W4:-29~425℃ |
Connection Type | Flange, Butt welding |
Pneumatic Actuator | JLAT series, JLAW series, Import regulator series |
Interaction Way | Double action series, Single acting normally closed, Single acting normally open |
Control | Standard switch type, Whole regulation type, Whole Switch, Main line type |
Sealing Material | PTFE, PPL, HARD SEALED, HARD ALLOY |
Remark:
1.the body can adopting cast&forge process, divided into Floated mode, Fixed mode and upper mounting mode. seal is divided into soft seal, hard seal, pressure up to 2500 pounds, low temperature to -196C, high temperature up to 570C
2.Other special sealing material or special temperature can choose by customer's design
technical specifications
Design consideration | GB | API | ASME | ||
Design standard | GB/T 12237 | GB/T 19672 | API608 | API6D | ASME B16.34 |
Structure length | GB/T 12221 | GB/T 19672 | ASMEB16.10 | API6D | ASME B16.10 |
Flange standard | GB/T 9113 | ASME B16.5/MSS SP-44/ASME B16.47a | |||
Test/inspection standard | GB/T 9092 | GB/T 19672 | API598 | API6D | ASME B16.34 |
Materials of main parts
No. | Part Name | No. | Part Name |
1 | Body | 11 | O type ring |
2 | Valve Bonnet | 12 | Padding |
3 | Valve Seat | 13 | Gland |
4 | Sealed wash | 14 | Outer hex screw |
5 | Spherical body | 15 | Solenoid |
6 | Connect bolt | 16 | Pneumatic regulator |
7 | Nut | 17 | Filter pressure relief valve |
8 | Anti-static device | 18 | Limit switch |
9 | Valve rod | 19 | Anti-explosion actuator |
10 | Thrust washer | 20 | Electric actuator |
Remark: Main components and seal ring material to choose by actual work condition or customer's requirements
Solenoid valve | Please indicate in order : Double action for 2 -positon-5 Way,Single action 2-position 3Way, Single or Double Electric |
Air source treatment triple b bracket | Conduct Pressure stabilization,Filter, Cylinder lubrication for the air sourcing |
Limit switch | Remote feedback switch signal |
Hand operation structure | With the capability to Manual Switch On/Off |
Positioner | Input Analog Signal (4-20mA or 0-10V),Adjust valve open level |
Remark | The above attachment not standard spare parts,if need other fit please clearly Indicate, Soleniod and limit switch with Anti- explosion and non anti-explosion, please indicate Anti-explostion Grade if need anti-explosion. |
Features
Full bore design, quick response and good sealing performance
Small opening &closing moment, high reliability and long service life
High platform structure , ISO5211 connection standard, convenient instal
Bidirectional sealing, bidirectional pressure bearing, automatic compensation, self-cleaning function
Fire proof,Static proof structure ,apply with AP1607, GB/T6899 Standard
Available fiber and small particles of suspension and viscous media
