HDMI к USB видеозахват UVC с аудиовыходом для игр прямой трансляции ПК камера
- Категория: Vedio Capture >>>
- Поставщик: Shenzhen,Suofeixiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.0 $* | 11.38 $* |
| Jul-19-2025 | 9.24 $* | 9.26 $* |
| Jun-19-2025 | 11.38 $* | 11.73 $* |
| May-19-2025 | 11.58 $* | 11.0 $* |
| Apr-19-2025 | 9.31 $* | 9.29 $* |
| Mar-19-2025 | 11.61 $* | 11.74 $* |
| Feb-19-2025 | 11.83 $* | 11.80 $* |
| Jan-19-2025 | 11.5 $* | 11.62 $* |
Характеристики

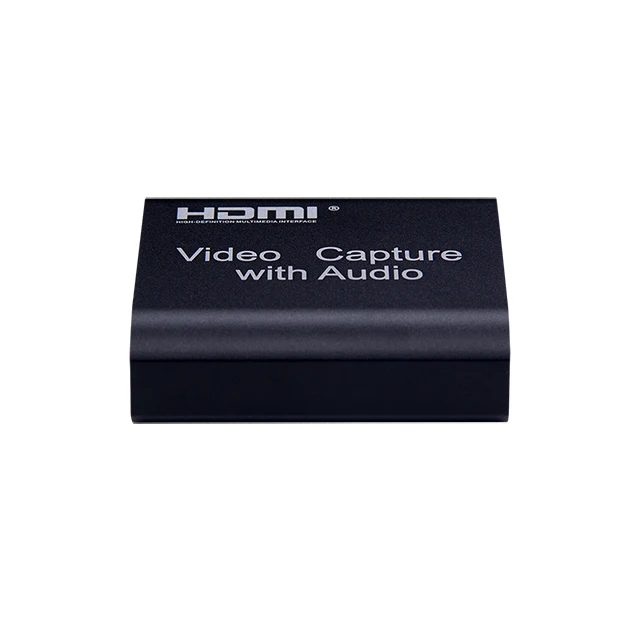

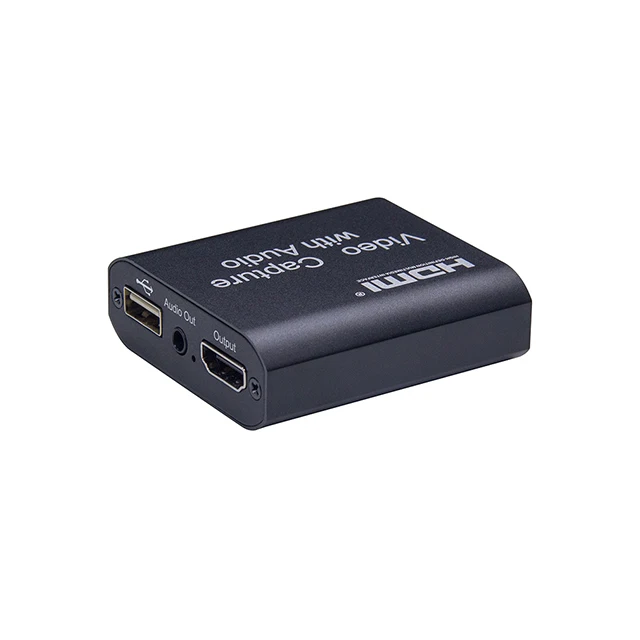

USB Video Capture with Audio
INTRODUCTION
The video capture can capture both HDMI video and HDMI audio, sending audio and
video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc.
Features:
* Support HDMI loop out;
* Support microphone audio input ,3.5 stereo output;
* Support microphone audio and hdmi audio superimpose capture;
* Support input max resolution 4K;
* Support output max resolution 1080P;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
Specifications:
| HDMI resolution | Max input can be 4K |
| Support video format | 8/10/12bit Deep color |
| Video output format | YUV,JPEG |
| Video output resolution | Max output can be 1080P |
| Support audio format | L-PCM |
| Input cable distance | ≤15m,AWG26 HDMI standard cable |
| Max working current | 0.7A/5V DC |
| Operating Temperature range | (-10 to +55℃) |
| Dimension (L x W x H) | 59x56x19 (mm) |
| Weight | 56g |
Application diagrams
Connection and Operation

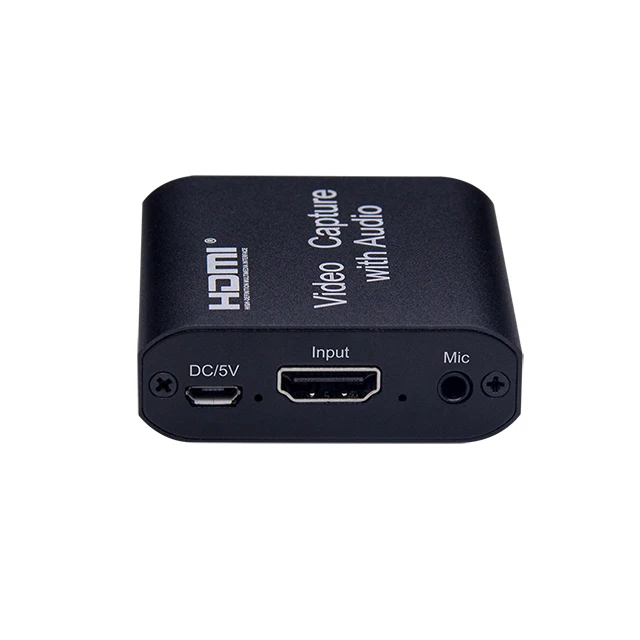

1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI
cable.
2: Connect microphone with the ‘mic’port of the video capture.

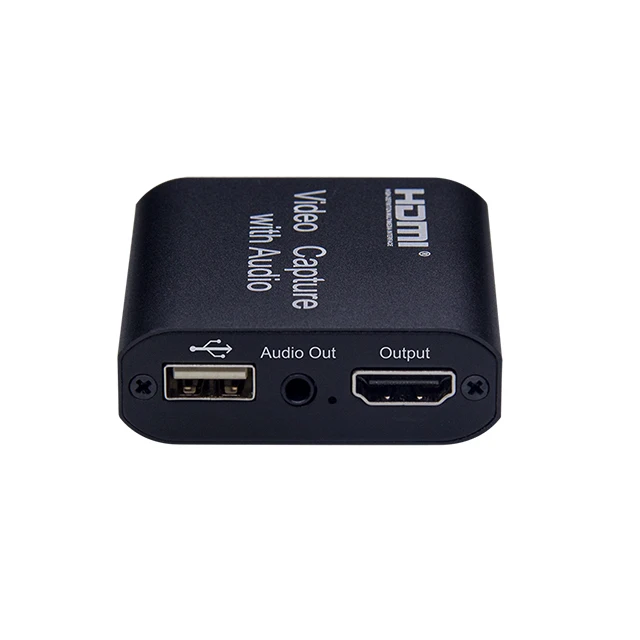

3: Connect the display device to the HDMI output of the video capture with one HDMI cable.
4: Connect PC USB port to the USB output of the video capture with one USB cable.
5: Operation steps for USB video capture(OBS): Open the software→Choose sources of
“Video capture Device”/ “Audio Input Capture”→Set the size of image→Choose “Studio
Mode”(double window)→Choose “Start Recording”.
Operation Example as below
1. Add new sources, choose “ Video Capture Device ”/ “Audio Input Capture”
2. Set the size of the image.
3. Choose “Studio Mode”(double window).
4. Click “ Start Recording”
Package include
1. Video capture
2. user manual
3. USB cable male to male
4. Micro USB cable
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
Run memory: 4G RAM
