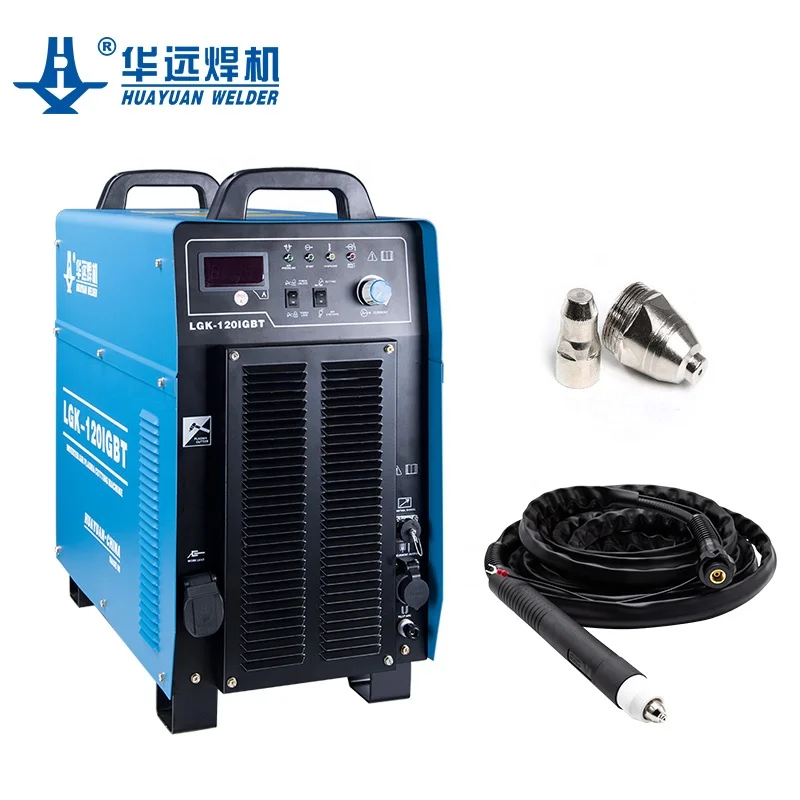

Плазма cut-120 igbt/плазма huayuan
Плазма cut-120 igbt/плазма huayuan
Плазма cut-120 igbt/плазма huayuan
Плазма cut-120 igbt/плазма huayuan
Плазма cut-120 igbt/плазма huayuan
Плазма cut-120 igbt/плазма huayuan
Плазма cut-120 igbt/плазма huayuan

Плазма cut-120 igbt/плазма huayuan


Поделиться:


Цена:920,00 $ - 1 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 1095.21 $* 1150.48 $*
Aug-19-2025 1086.36 $* 1140.87 $*
Jul-19-2025 911.1 $* 957.84 $*
Jun-19-2025 1067.97 $* 1120.44 $*
May-19-2025 929.35 $* 975.6 $*
Apr-19-2025 1049.77 $* 1101.27 $*
Mar-19-2025 1040.64 $* 1092.61 $*
Feb-19-2025 1030.98 $* 1082.32 $*
Jan-19-2025 1021.89 $* 1072.39 $*

Характеристики



Products Description


Soft switch technology with stable cutting current;
High duty cycle for heavy industry use;
Used compressed air as protection to save cost;
Suitable for handhold and automate cut.




Main Features:
100% duty cycle for heavy industry use.
Suitable for handhold and automate cut.
Stable cutting quality and reliable performance

Cutting quality:

handhold CNC type
LGK-100IGBT 22mm 12mm
LGK-120IGBT 25mm 14mm

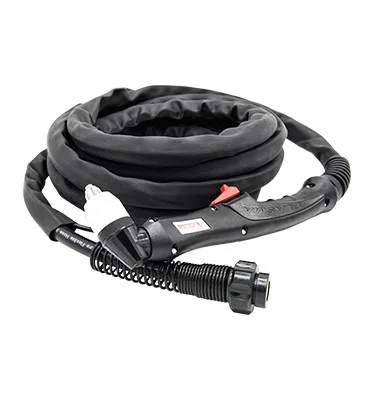

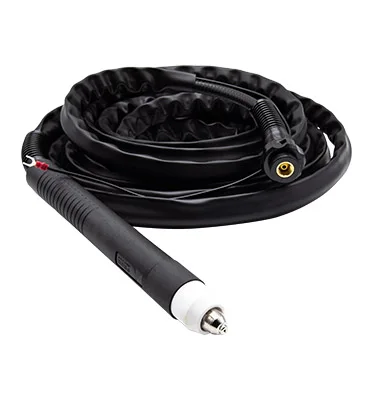

Torch Selection


If Automated use,choose straight torch YP80
If Handhold cutting,choose manual torch YP80


How to improve cutting Quality


If you want to Improve the cutting quality,and get the cutting quality as above,need to do as follows to improve.

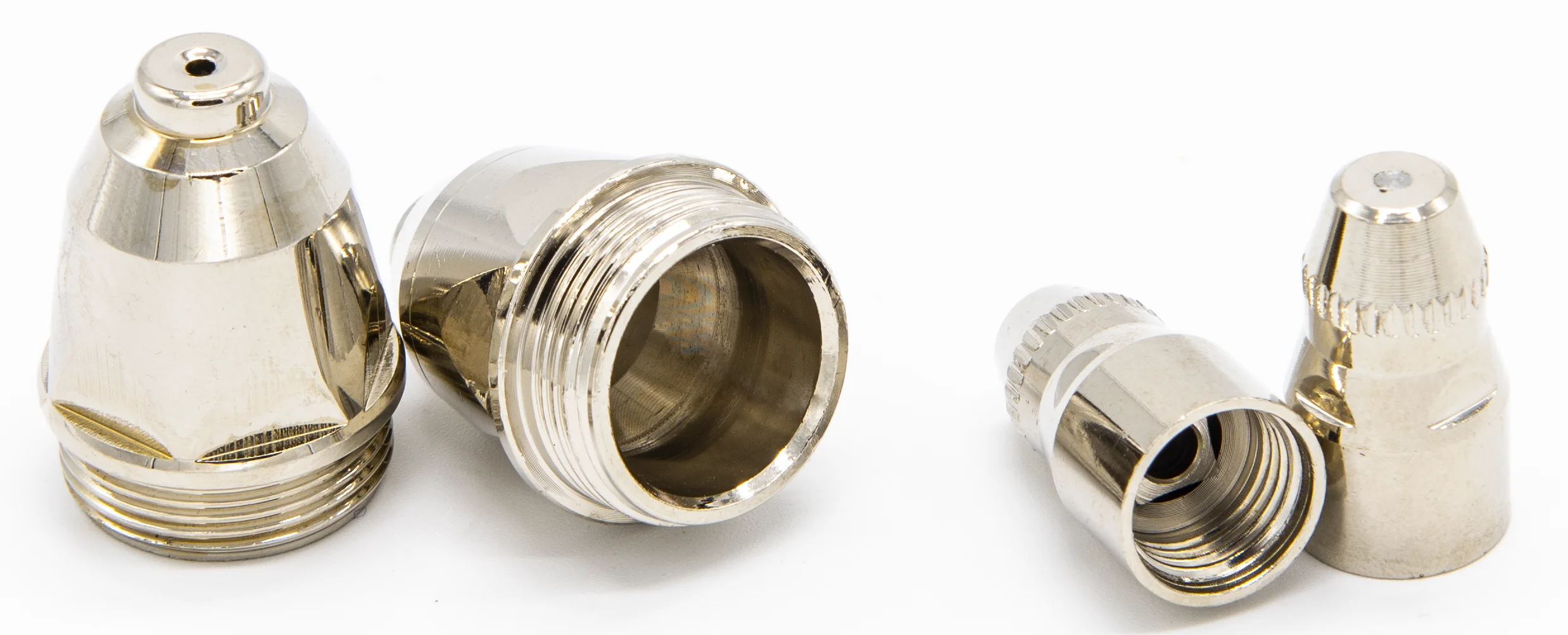

1- Choose goodplasma power source(Huayuan) 2-Choose high quality torch and original consumables
3- Quality and intellegent liquid filter cooler 4- Install the torch correctly
5-Set a proper cutting current 6-Choose proper plasma gas and shileding gas
7-Make the torch vertical with workpiece 8-Conform the cutting direction
9-Set the initial arc striking distance 10-Adjust the cutting speed


Specification


Item
Unit
Models
LGK-63IGBT
LGK-100IGBT
LGK-120IGBT
LGK-160IGBT
LGK-200IGBT
LGK-300IGBT
Input Power
V/
Hz
3～380±15％ 50/60
 Rated Input Capacity
KVA
9.5
17.8
22.4
32.2
38.8
70.1
 Rated Input Current
A
14.5
27
34
49
71
100
 Rated Output Current
A
63
100
120
160
200
300
Rated Output Voltage
V
106
120
128
144
160
200
Rated Output  Circuit Voltage
V
300
300
300
315
315
380
 Rated Duty Cycle
-
60%
（40℃）
100%（40℃）
Output Current Adjust Range
A
30-63
30-100
30-120
40-160
40-200
60-300
Arc Voltage Output Radio
-
1:1/1:20/1:50/1:100
Handheld Quality Cut Thickness
(Carbon Steel)
mm
0.3-12
0.3-22
0.3-25
1-35
1-45
1-50
Handheld Severance Cut Thickness
(Carbon Steel)
mm
25
40
45
55
65
80
Plasma Gas
-
Non-contact
Air Pressure
Mpa
0.3-0.5
0.4-0.6
0.45-0.6
Torch Cooling Mode
-
Air Cooling
Air/N2
Air Cooling/Water Cooling
Power source Cooling Mode
-
Air Cooling





 Insulation Grade
-
F
 Ingress Protection
-
IP21S
 Dimension
(LxWxH)
33
585*280*485
695*320*580
800*380*610
800*380*810
890*430*900
Net Weight
Kg
26
51
52
73
82
140


Company Profile












Exihbition&Customer Visit Company








Package&Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Aftersale Service
