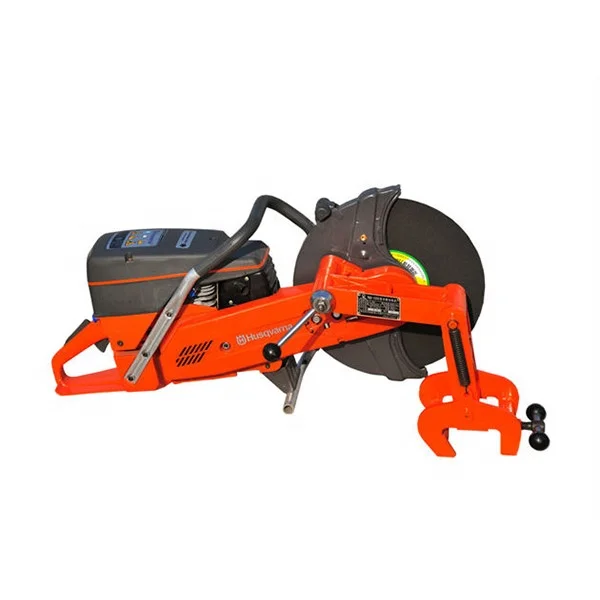

NQG-1260 Petrol Engine Portable Abrasive Rail Cutter

Application:

Special tool for cutting off rail in railway construction, maintenance or emergency construction.



Feature:
1.Gasoline driven, strong adaptability to an open working environment.
2.Small volume, light weight, and portable.
3.Simple clamping and convenient operation.
4.Large matching power and quick cutting speed.
5.High precision of positioning, good quality of cutting section.



Main technical parameter:
1. Engine type: K1260   Ratedpower: 5.8kW.
2.Rated speed: 5400rpm.
3.Rail-typedrange: 43kg/m-75kg/m.
4. Machine weight: 23kg



                                     NQG-1250 Internal-combustion Rail Cutter

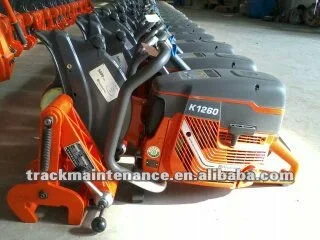

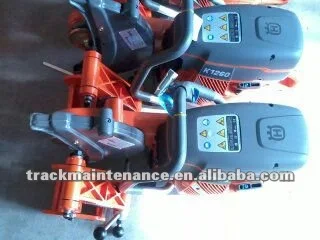

NQG-1250 Internal-combustion Rail Cutter in Workshop

















Wear-resistance parts of NQG-1250 Internal-combustion Rail Cutter

(Saw bit)





Characteristics:

    This rail cutting machine is light so can be operated in hand.

    The grinding wheel spindle can oscillate around the two spindles of swing arm of clamping fixture, so the contacting length between abrasive disk and the cut object is always short for high-speed cutting rail with less power. After fixing the rail clamping fixture, the machine can be inserted on both sides of rail to cut rail to cut rail from two sides with fully overlapped seams for enhancing the availability of abrasive disk.

    The clamping fixture is installed with needle roller bearing with play free and easy to be fixed on rail because of less weight of 5.4kg.
