 die casting machine, injection molding machine, injection molding machinery,injection molding machine price: ZLC-700T







The die casting machine structure adopts 3-pull rod or C- shaped bracket plus hydraulic elevator device and satisfies requirements for moulds .

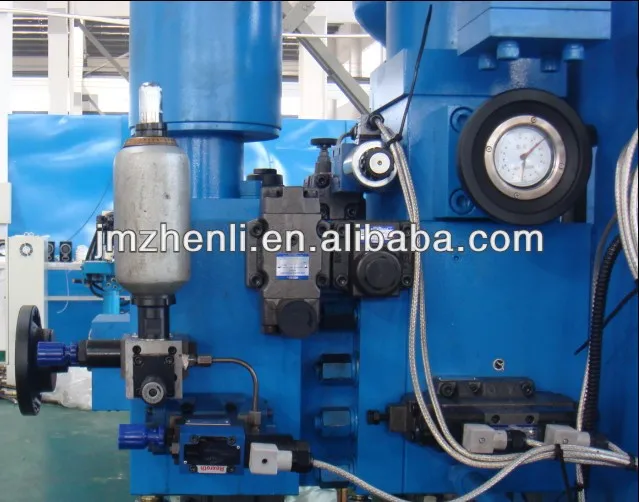

Adopts high and low pressure twin pump with high performance and low noise,saves energy consumption and improves production efficiency .

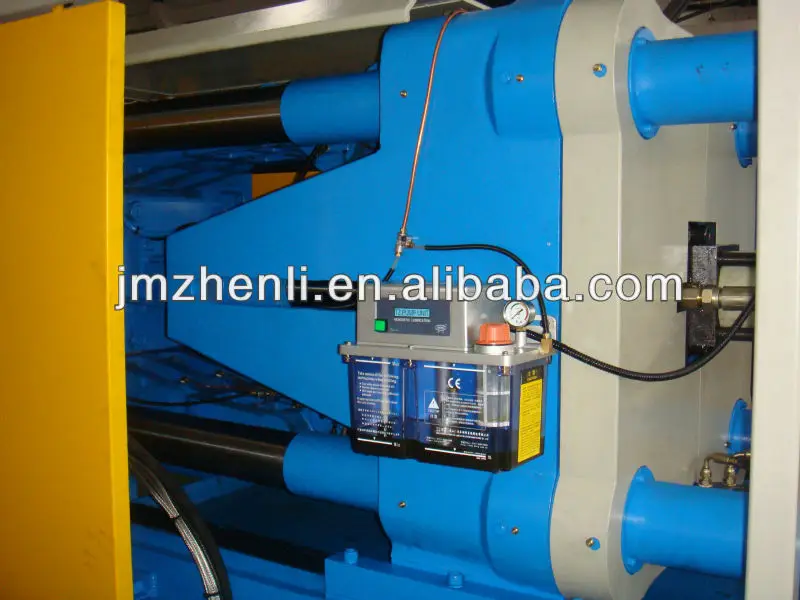

Adopts automatic concentrated lubrication system ,directly sets lubrication for times of machine operation and improves service life of the machine and decrease repair .

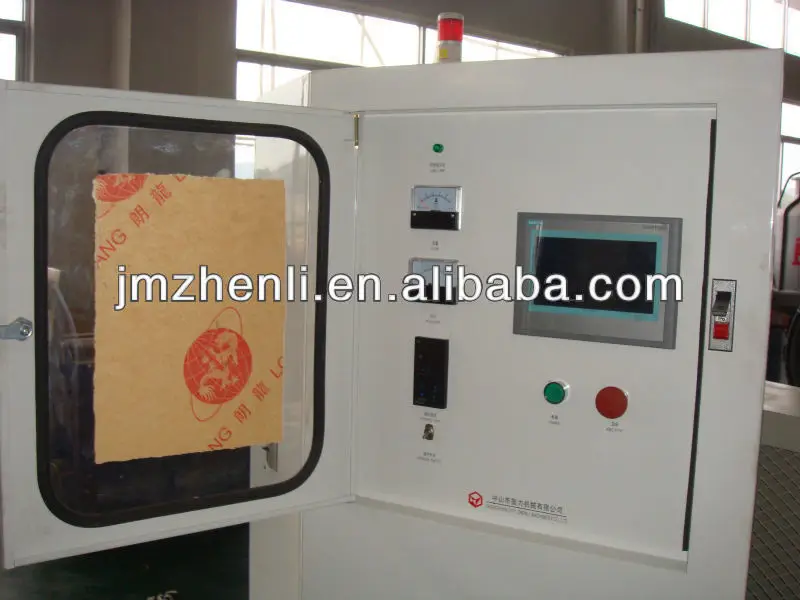

Appliances control:

1.Adopts precise artificial intelligent computer control,can control and supervise the data

and status of every movement,which is convenient for operation and maintenace .

2.The large screen LCD monitor can realize conversion between Chinese and English.

3.Its powerful memory can store 100 sets of moulding data ,such as the time,times,speed,pressure,traveling distance,mould thickness,options,etc .

4.Has self-check and alarm functions to failures of computer hardware,and display function of mechanical failures,which is convenient for mechanical failure removal .

5.Mould closing adopts high precision E-ruler positioning test,which can control the precise distance to 0.1mm.

















Items	Unit	ZLC-700
Clamping Force	NN	7000
Die Stroke	MM	650
Die Thickness(Min-Max)	MM	350×850
Platen Size(HXV)	MM	1256x1360
Space Between Tie Bars	MM	800x800
Tie bar Diameter	MM	165
Intensification Injection Force	KN	580
Injection Force	MM	215
Injection Strokein	MM	650
Plunger Diameter	MM	80,90,100
Shot Weight	Kg	4.2,5.8,7.3
Casting Pressure	Kg/cm2	1154,912,738
Casting area	cm2	545,690,858
MaxCastingAreaUnder40Mps	cm2	1585
Shot Injection Position	MM	0-250
Plunger Penetration	MM	290
Ejector Force	KN	315
Ejector Stroke	MM	155
Hydraulic Working Pressure	Kgp/cm2	140
Driving Motor	HP/KW	37
Hydraulic Oil Tank Capacity	L	1050
Machine Weight	KG	27500
Machine Dimensions(L×W×H)	MM	7580×2060×2850









when machine arrival destination port, we will appoint one technician go to your factory,commissioning and debugging the machine for you,in generally 5days is enough,to make sure the  machine in your factory produce your product normally.

by the way,our technician can train your worker to operate the machine for free.
