TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
200 л Солнечный водонагреватель под давлением для наклонного крепления
- Категория: Solar Water Heaters >>>
- Поставщик: Jiaxing,Jinyi,Solar,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 202.10 $* | 206.2 $* |
| Jul-15-2025 | 164.19 $* | 167.46 $* |
| Jun-15-2025 | 199.96 $* | 203.70 $* |
| May-15-2025 | 197.97 $* | 201.82 $* |
| Apr-15-2025 | 157.81 $* | 160.56 $* |
| Mar-15-2025 | 194.74 $* | 198.69 $* |
| Feb-15-2025 | 192.37 $* | 196.60 $* |
| Jan-15-2025 | 191.65 $* | 195.10 $* |
Характеристики

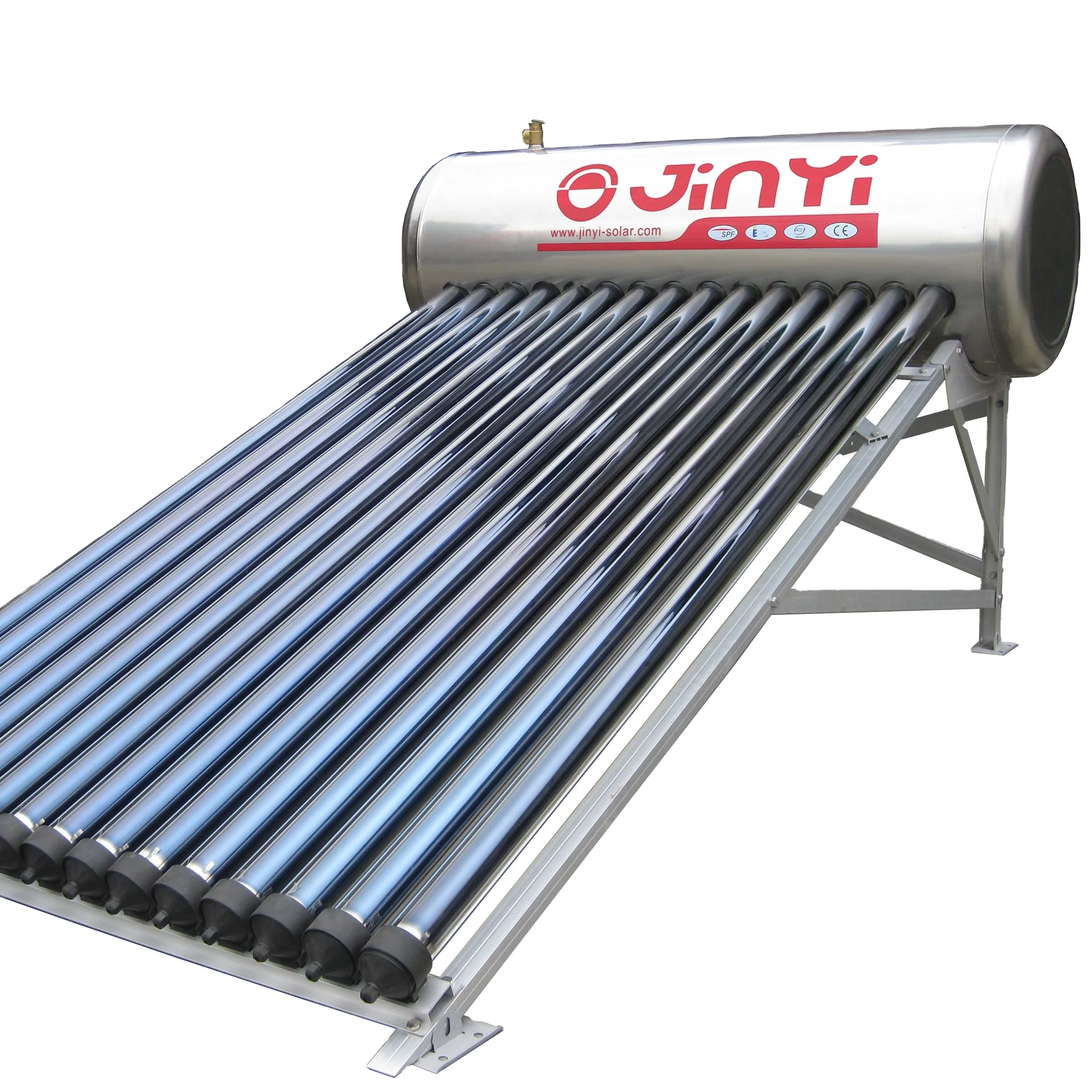

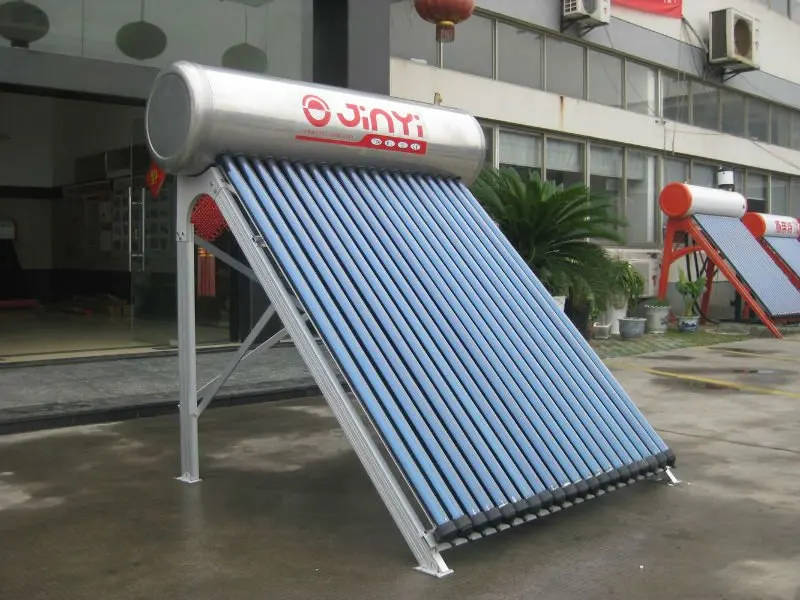

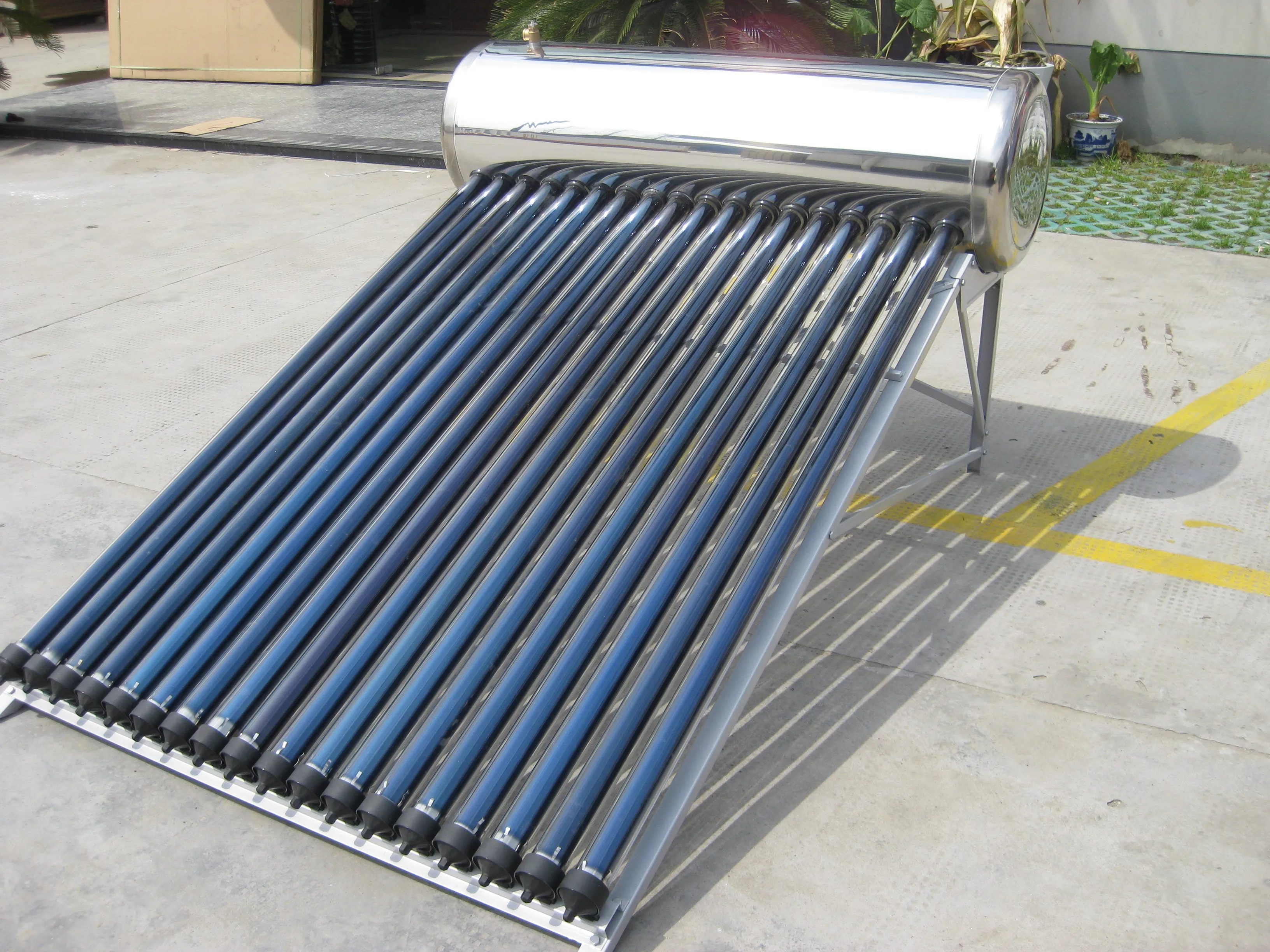

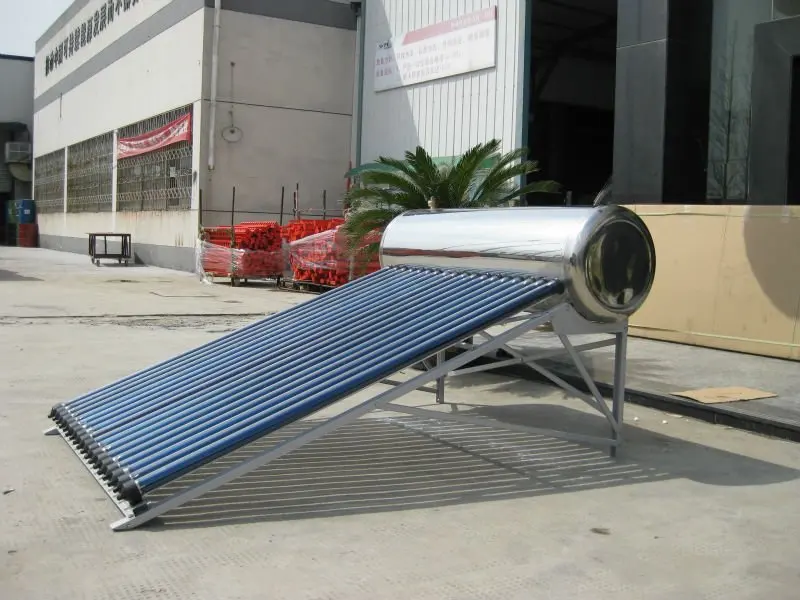

200L Pressurized Solar Water Heater for Sloped Roof
Product Description
Working principle

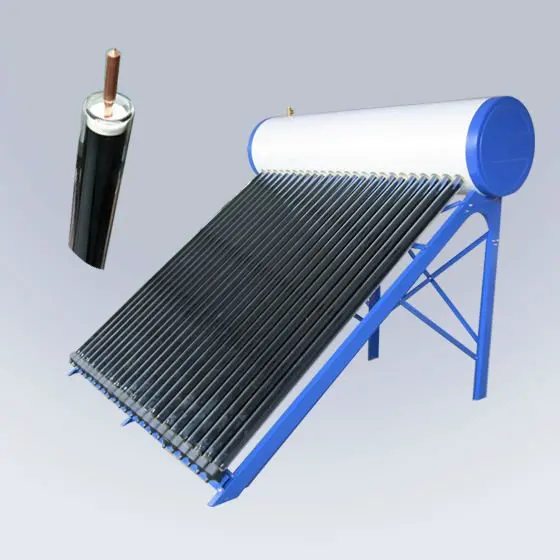

Jinyi compact pressure solar water heater is a renovation model for the solar hot water, which adopts advanced heat pipe technology, combines heat pipe solar collector with pressurized tank to form a compact design.
The vacuum tube absorb solar energy and convert solar energy into thermal energy, then transfer to the central heat pipe via the aluminum fin. The heat pipe have tiny amount of purified water sealed inside at depressurized condition. When heated, the water inside the heat pipes vaporizes at low temperature (about 25C)the vapor rises to the condenser and heat energy is conducted to water (inside the tank). When vapor is cooled down, and becomes condensate, falling back to the bottom of heat pipe. By continuously circulating in this way, heat is carried from outside to the water inside the tank.
![I)[)33V6($A_BVC_]4(3(T4](http://sc01.alicdn.com/kf/HTB1oXChwKGSBuNjSspbq6AiipXak/200185043/HTB1oXChwKGSBuNjSspbq6AiipXak.jpg)
Characteristics
1. Certified by Solar Keymark (EN12976),ISO, CE
2. Multifunctional support for both flat and slope roof installation.
3. Low temperature resistance, can be used in -50℃ condition.
4. Easy to replace individual tube in the event of tube damaged.
5. High pressure system, directly connected with city water without booster pump
6. Tank withstanding high pressure (0.6MPa), comfortable shower.
7. No Glycol, No Chemicals.
Specifications
Model | JPH-20 | ||
Tank
| Tank Capacity | 200L | |
Inner Tank | Material | SUS304 | |
| Thickness | 1.2mm | |
OuterTank | Material | Color Steel | |
| Thickness | 0.4mm | |
Insulation material | Polyurethane foam | ||
Insulation Thickness | 50-60 mm | ||
Insulation Density | 42Kg/m3 | ||
Collector
| Heat pipe material | Copper | |
Heat pipe condenser | 14mm | ||
Heat transfer Fin | Aluminium alloy | ||
Vacuum tube size | 58*1800mm | ||
Vacuum tube material | Borosilicate glass | ||
Vacuum tube number | 20pcs | ||
Bracket
| Material | Aluminium alloy | |
Thickness | 1.5mm | ||
Angle | 30/38/45 degree for optional | ||
Diagram
Installation for flat roof
Installation for sloped roof
Solar Keymark Certification
Company Information
Jiaxing Jinyi Solar Energy Technology Co., Ltd., located in Jiaxing city, Zhejiang province, near Shanghai city, dedicated to the solar thermal application since 2000 year, specialized in researching, producing and marketing solar water heaters, has an annual production capacity of 150,000 units.
As an ISO 9001:2008 certified company, we are professional manufacturer of high-pressure solar water heating products, such as: heat pipe compact solar water heater, heat pipe solar collector, U pipe solar collector, high pressure water tank, also produce non-pressure solar water heater. Have acquired the Solar Keymark certification (EN12975 & EN12976) for different products, also have got the latest Europe Union Energy Efficiency Class (EN12897), have export to over 60 country, OEM service welcomed.
