Аксессуары для солнечного водонагревателя трехкомпонентная Солнечная тепловая труба вакуумная трубка герметичного коллектора
- Категория: Solar Water Heater Parts >>>
- Поставщик: Zhejiang,Shentai,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.39 $* |
| Aug-16-2025 | 0.45 $* | 0.65 $* |
| Jul-16-2025 | 0.26 $* | 0.73 $* |
| Jun-16-2025 | 0.21 $* | 0.45 $* |
| May-16-2025 | 0.17 $* | 0.50 $* |
| Apr-16-2025 | 0.30 $* | 0.88 $* |
| Mar-16-2025 | 0.23 $* | 0.11 $* |
| Feb-16-2025 | 0.90 $* | 0.1 $* |
| Jan-16-2025 | 0.35 $* | 0.5 $* |
Характеристики
Solar Water Heater Accessories Three Elements Solar Heat Pipe Vacuum Tube for Pressurized Solar Collector 58*1800
1). Structure: all glass concentric dual tube geometer
2). Glass material: borosilicate glass
3). Absorptance: >0.92
4). Emittance: <0.08 (80°C)
5). Vacuum: <5*10-3 Pa
6). Stagnation >230m2.°C/KW
7). Average heat loss: <0.8w/ m2.°C
8). Lifetime >15years
Type | Tri-element | Normal (Blue) |
Length | 1500mm/1800mm | 1500mm/1800mm |
Outer Tube Diameter | 47mm/58mm | 47mm/58mm |
Internal Tube Dia | 37mm | 37mm |
Weight | 1.4kg/2.0kg | 1.4kg/2.0kg |
Glass Thickness | 1.6mm/2mm | 1.6mm/2mm |
Material | Borosilicate glass 3.3 | Borosilicate glass 3.3 |
Absorptive Coating | Grade ALN/AIN-SS/CU | Grade ALN/AL |
Vacuum degree | P≤5.0*10-3 Pa | P≤5.0*10-3 Pa |
Thermal Expension | 3.3*10-6/ºC | 3.3*10-6/ºC |
Insulation | >200ºC | >200ºC |
Absorptance | >95% | >93% |
Emittance | 4-6% | 5-7.5% |
Heat loss | 0.4-0.6W/(m2 ºC) | 0.6-0.8W/(m2 ºC) |
Maximum strength | 0.8Mpa | 0.8Mpa |
Resist cold | -35ºC | -35ºC |
Resist hailstone | Φ25mm | Φ25mm |
Resist wind | 30m/s | 30m/s |
Start-up temperature | ≤25ºC | ≤25ºC |

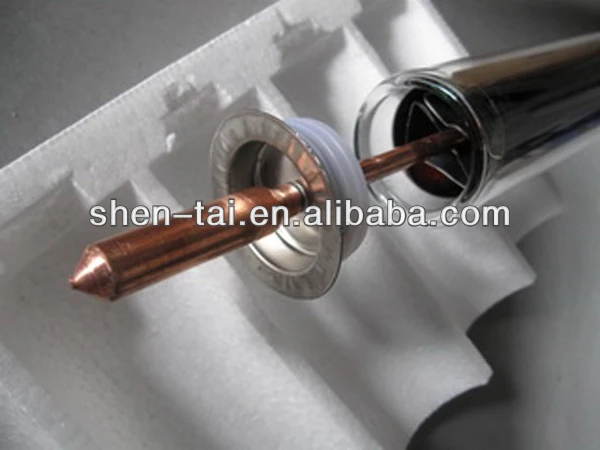

A perfect combination of the vacuum tube and the heat pipe.
1).higher heat efficiency: advanced heat transferring style of the heat pipe, excellent selective absorb coating and perfect combination with high vacuum heat preservation.
2).Wide applicable range: as the SUNTASK heat pipe has less heat can be started quickly even under cloudy fine day and collect heat effectively. It can work normally even -30 below degree. As no water in the vacuum tube, it can effectively prevent lowing of heat efficiency due to frost cracking or scaling.
3). Each individual tube can work independently, and the whole machine can still work if individual tube is damaged. The service life of the heat pipe can be longer than 15 years.
4). The unique connection between the heat pipe and the vacuum tube can ensure both sealing and replace of damaged glass vacuum tube.
