Резак для керамической плитки Johntools 8102B-2 25 дюймов ручной прибор резки настенных напольных
- Категория: Прочие ручные инструменты >>>
- Поставщик: Hangzhou,John,Hardware,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.24 $* | 0.10 $* |
| Aug-16-2025 | 0.34 $* | 0.79 $* |
| Jul-16-2025 | 0.35 $* | 0.57 $* |
| Jun-16-2025 | 0.92 $* | 0.50 $* |
| May-16-2025 | 0.29 $* | 0.74 $* |
| Apr-16-2025 | 0.54 $* | 0.88 $* |
| Mar-16-2025 | 0.79 $* | 0.68 $* |
| Feb-16-2025 | 0.15 $* | 0.17 $* |
| Jan-16-2025 | 0.99 $* | 0.57 $* |
Характеристики
Product Description
Our Advantage
1. Verified supplier on Alibaba.com
2. Low MOQ acceptable
3. OEM & ODM accepted
4. Trade Assurance Safeguard
5. Factory price

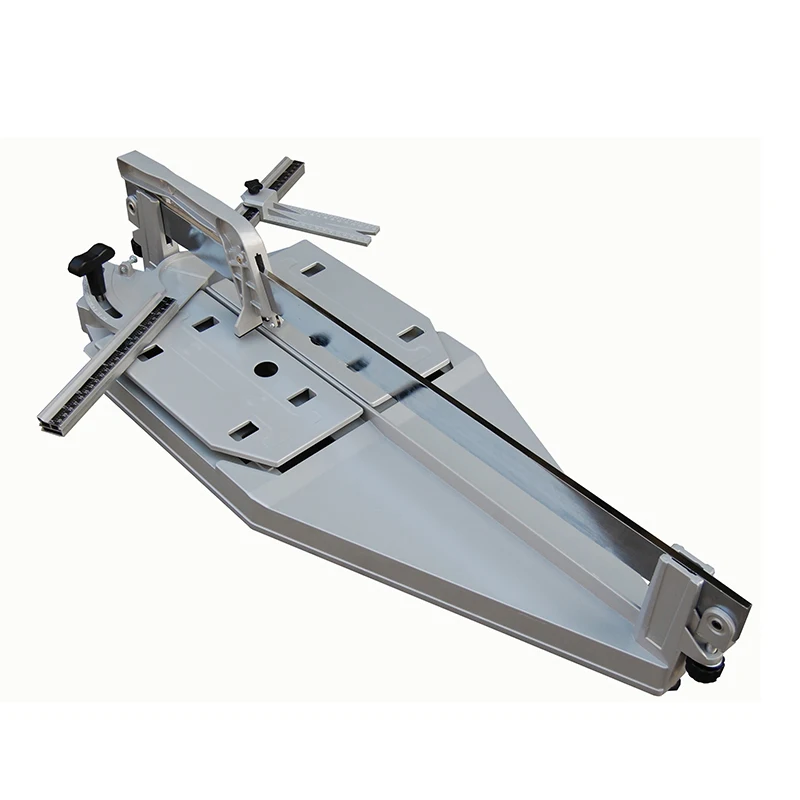

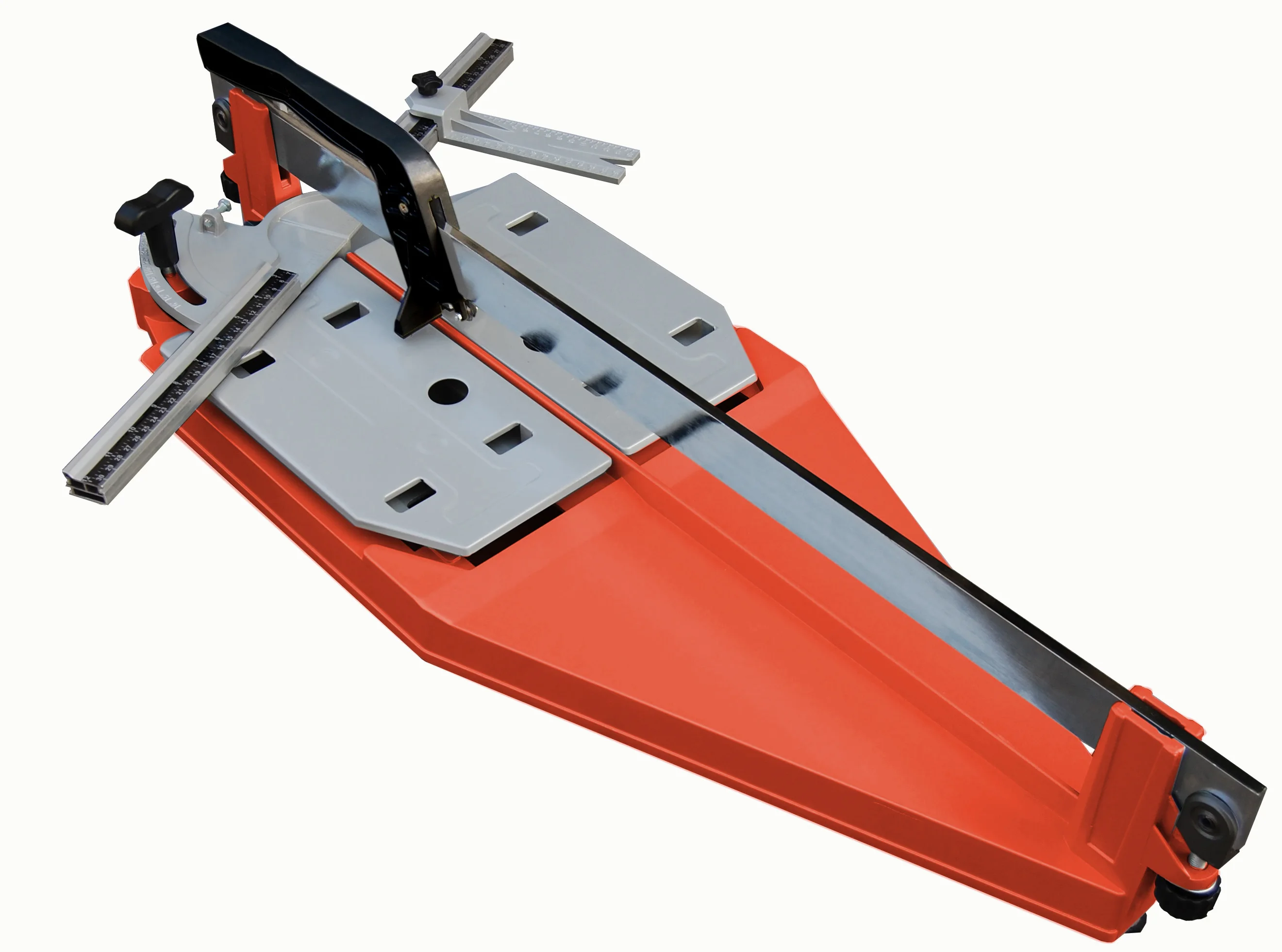

HEAVY DUTY TILE CUTTER
* Large size aluminum adjustable gauge
* Aluminium alloy base ensure high precise cutting performance
* Human-engineering handle
* Innovative Steel extention pads in square edge
* The height of the guiding rod is adjusted by the screws support cutting of tiles in different thickness
* Maxium cutting tile thickness:16mm
* Replaceable cutting blades: φ12*φ3*3MM
1. Verified supplier on Alibaba.com
2. Low MOQ acceptable
3. OEM & ODM accepted
4. Trade Assurance Safeguard
5. Factory price
HEAVY DUTY TILE CUTTER
* Large size aluminum adjustable gauge
* Aluminium alloy base ensure high precise cutting performance
* Human-engineering handle
* Innovative Steel extention pads in square edge
* The height of the guiding rod is adjusted by the screws support cutting of tiles in different thickness
* Maxium cutting tile thickness:16mm
* Replaceable cutting blades: φ12*φ3*3MM
Direction for use
使用说明
RIP CUT
1.Place the tile at the front edge against the front stop
2.Position the tile so the line of cut is directly over the scoring line,which is the line between the left and right pad.
3.Place the extension arms under the tile for the best possible support
4.Adjust the cutting guide by loosening the gauge and sliding it left or right to the desired cutting position,and lock the gauge
in place

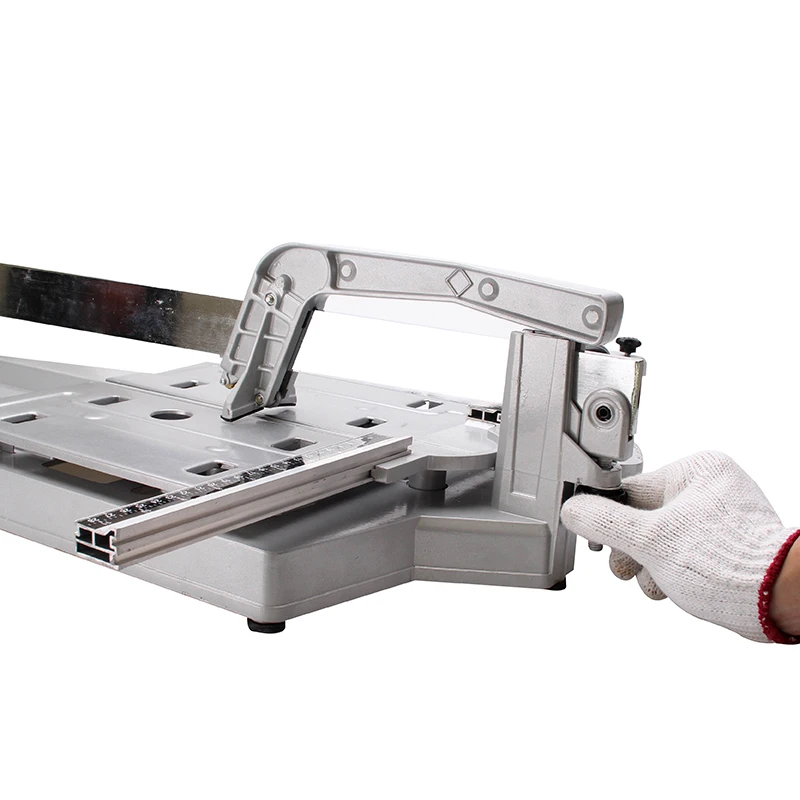

MAKING THE CUT
1.Place the cutting wheel on the rear edge of the tile.
2.Slide the wheel forward by pushing the handle down with medium pressure,
scoring the tile surface glaze as the handle is pushed forward.
1.Place the tile at the front edge against the front stop
2.Position the tile so the line of cut is directly over the scoring line,which is the line between the left and right pad.
3.Place the extension arms under the tile for the best possible support
4.Adjust the cutting guide by loosening the gauge and sliding it left or right to the desired cutting position,and lock the gauge
in place
MAKING THE CUT
1.Place the cutting wheel on the rear edge of the tile.
2.Slide the wheel forward by pushing the handle down with medium pressure,
scoring the tile surface glaze as the handle is pushed forward.
Direction for use
使用说明
DIAGONAL CUT
The gauge can also assist in making diagonal cuts.
First loosen the gauge so it can move side to side to adjust to the size of the tile you are cutting. Then loosen the knob on the
angle guide dial to allow the tile to rest against the angle guide ,when the tile is positioned for a diagonal cut.
Tighten both knobs ,you are now ready to make the diagonal cut.
NOTE
It is important to make one continuous motion.scoring the surface only once per tile .
After scoring ,and without moving the tile ,position the handle so that the breaker bar is slightly in from the front edge of the
tile and front stop.
Apply increasing pressure on the handle until the tile snaps along the score line.
The gauge can also assist in making diagonal cuts.
First loosen the gauge so it can move side to side to adjust to the size of the tile you are cutting. Then loosen the knob on the
angle guide dial to allow the tile to rest against the angle guide ,when the tile is positioned for a diagonal cut.
Tighten both knobs ,you are now ready to make the diagonal cut.
NOTE
It is important to make one continuous motion.scoring the surface only once per tile .
After scoring ,and without moving the tile ,position the handle so that the breaker bar is slightly in from the front edge of the
tile and front stop.
Apply increasing pressure on the handle until the tile snaps along the score line.
Related Products
WHY CHOICE US ?
Company Introduction
Established in 1996，Hangzhou John Hardware Tools Co., Ltd is a professional manufacturer and exporter of energy-saving and environmental protective manual Tile cutters, Tiling tools,Flooring tools and Carpet tools.
The company has marketplaces covering more than 100 countries and regions on five continents, and has established strategic partnerships with internationally renowned enterprises such as HOMEDEPOT in the United States,KINGFISHER in UK,ADEO in France, OBI in Germany,TRUPER in Mexico,CTM in South Africa, and
Cencosud in South America.
The company has marketplaces covering more than 100 countries and regions on five continents, and has established strategic partnerships with internationally renowned enterprises such as HOMEDEPOT in the United States,KINGFISHER in UK,ADEO in France, OBI in Germany,TRUPER in Mexico,CTM in South Africa, and
Cencosud in South America.
Employees | Workshop | Assembly lines | Tile Cutter Output | Total sales |
230+ | 23310 m² | 7 | 1,500,000pcs | $30million+ |
